S6200-SP CAD Template

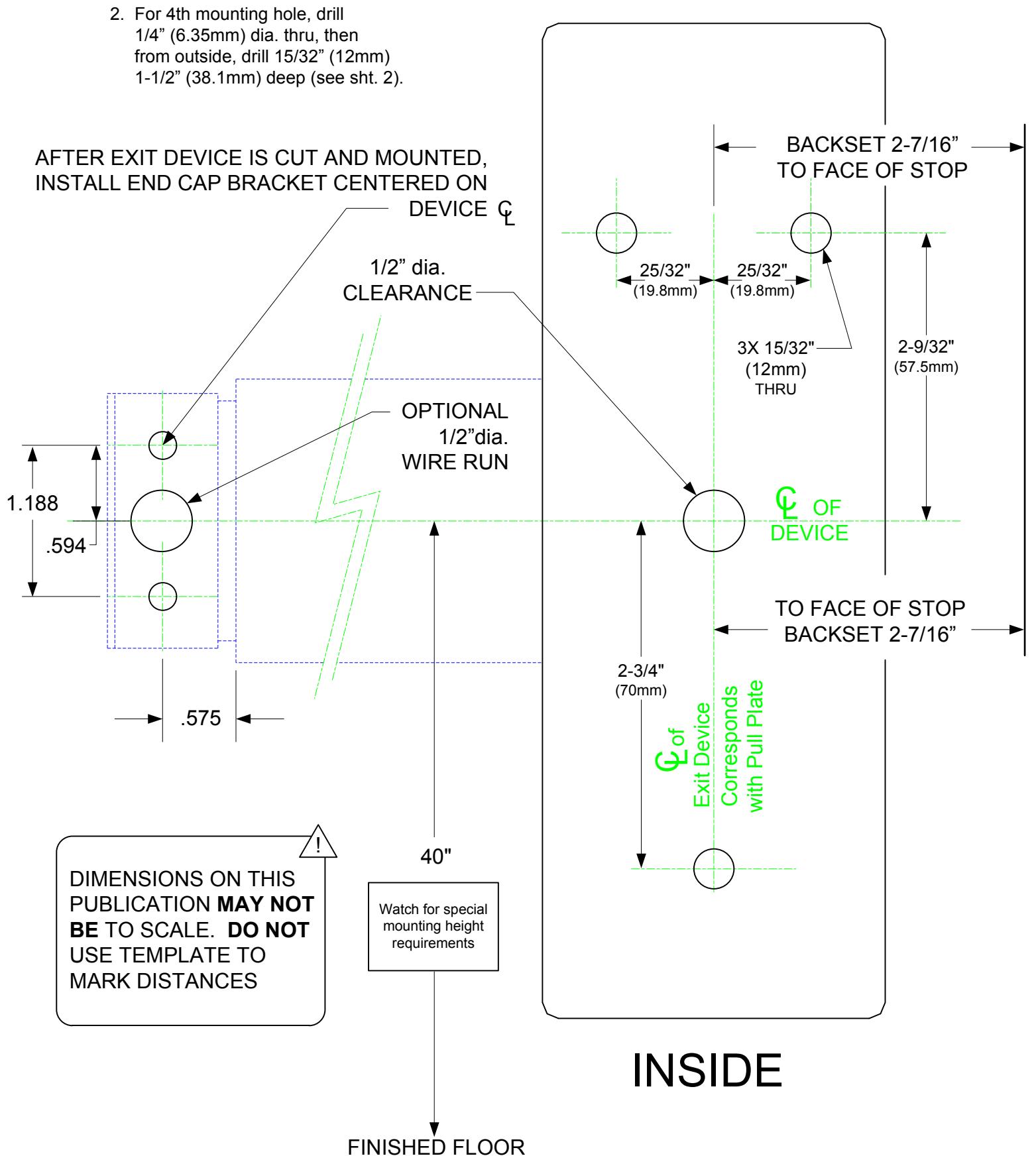

INSIDE MOUNTING HOLES

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com •E-mail: service@sdcsecurity.com

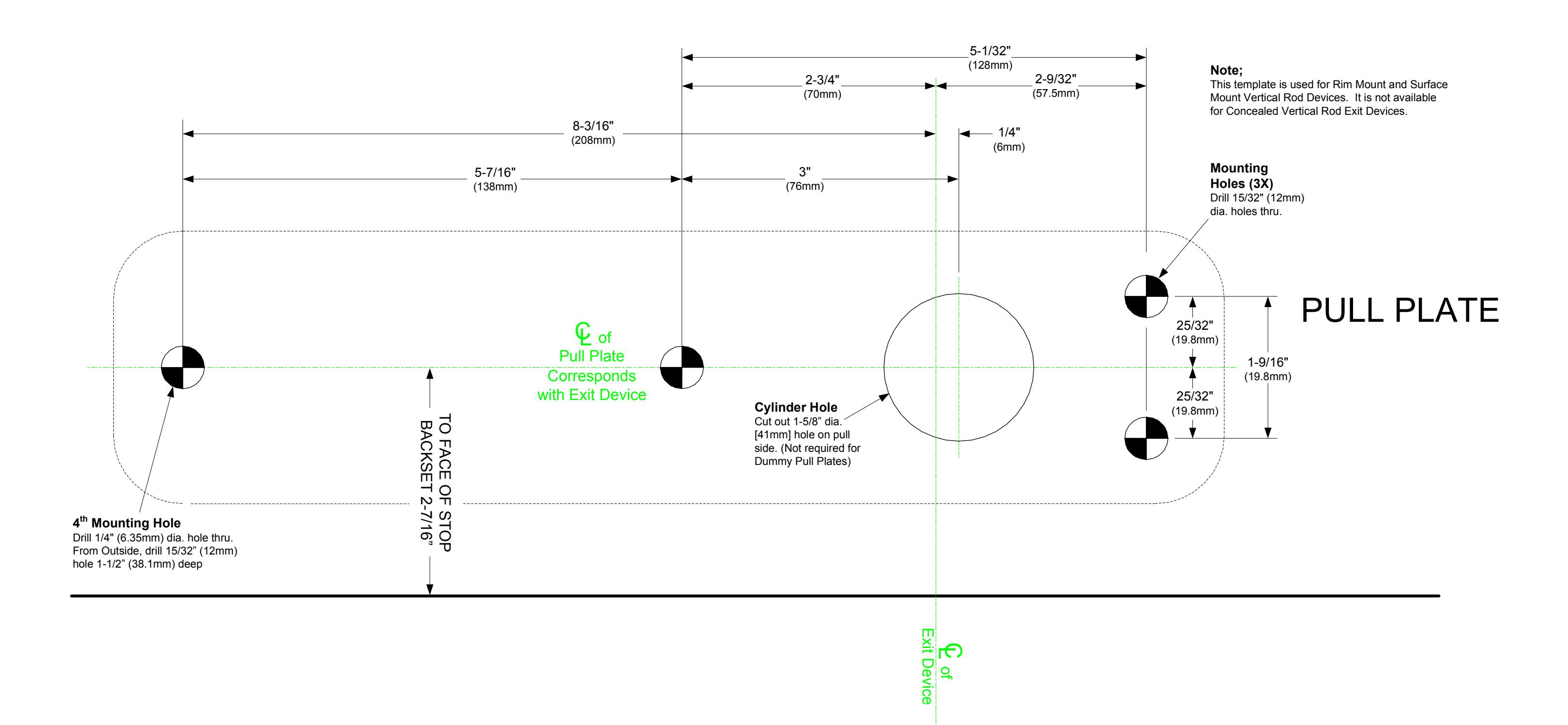

TEMPLATE-S6200-SP SURFACE MOUNT VERTICAL ROD w/PULL PLATE

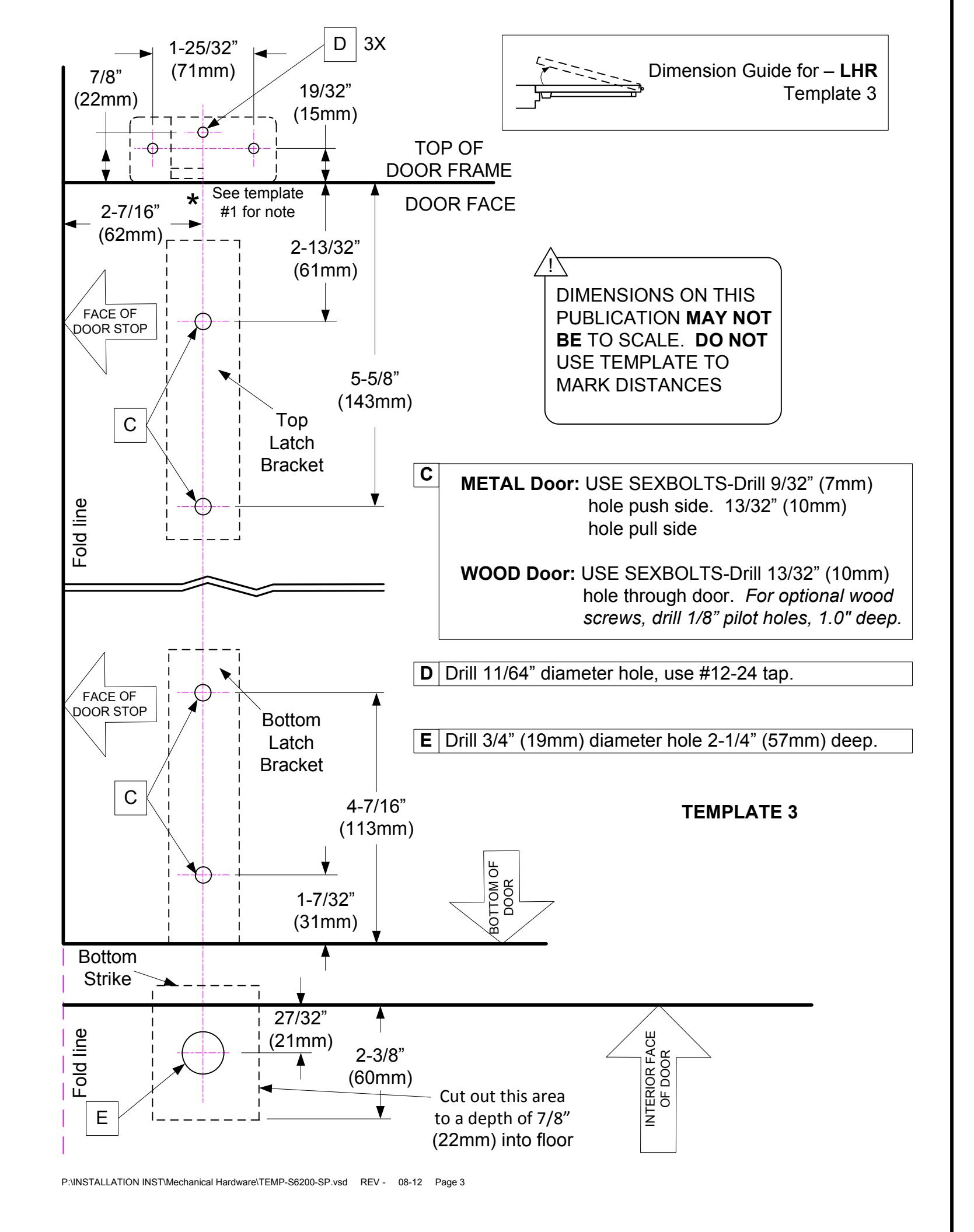

Dimension Guide for - LHR (Left Hand Reverse door) Template 1

• 1. Draw a centerline horizontally across the door, 40" (1016mm) from bottom of door.
• 2. Draw a vertical centerline 2-7/16" (62mm) from edge of door.
• 3. Select the appropriate side of both templates. (1 & 2). Your door handing will determine the appropriate side, either (LHR) or (RHR).
• 4. Using dimensions indicated on templates 1 & 2, locate and mark the center of the required holes.
• 5. Drill holes as indicated by their designated letter.
• 6. If using an exterior trim, refer to the template with trim to further prepare door.

ACTUATING SHAFT HOLE: Drill 1/2" thru hole.

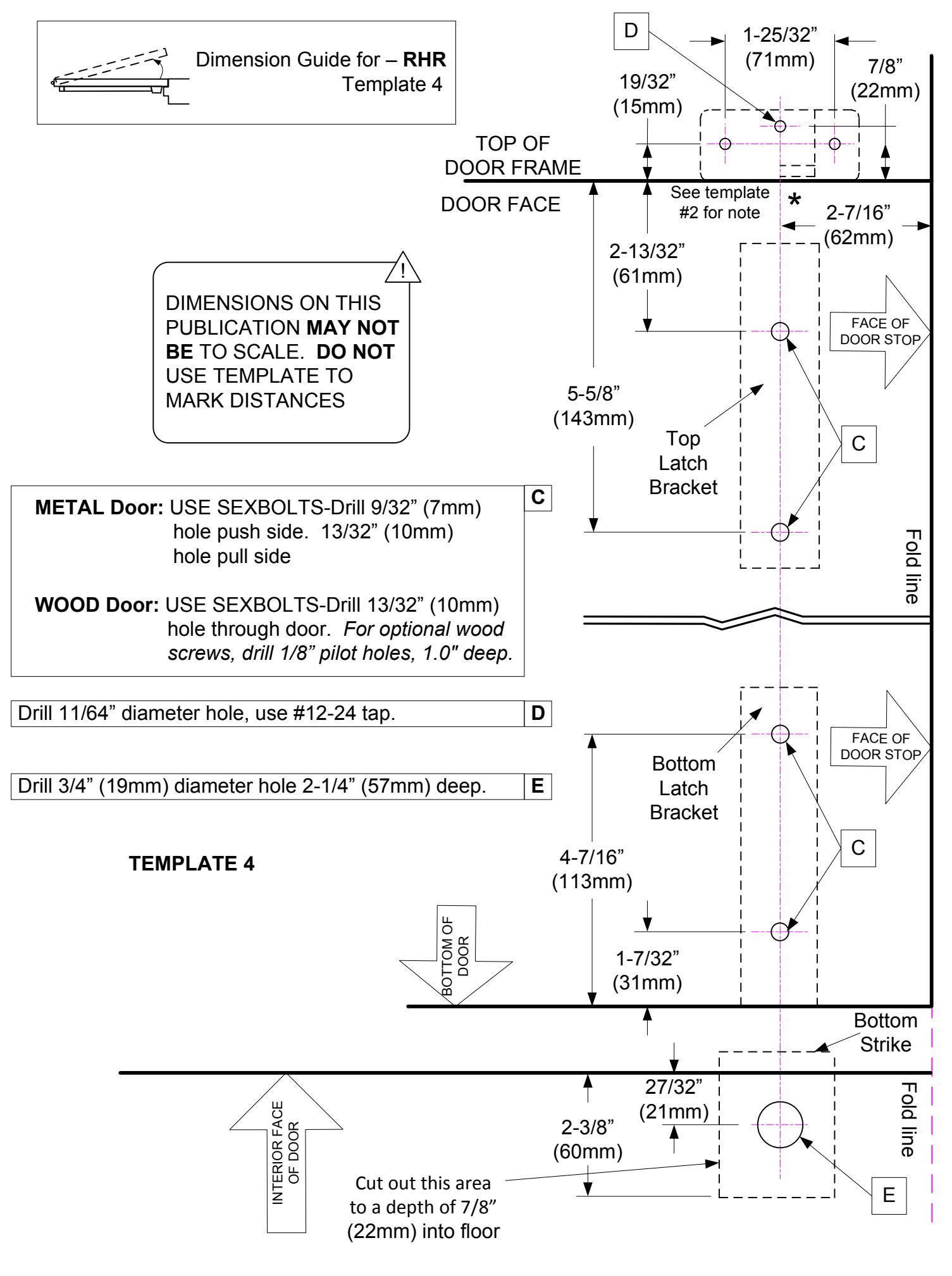

Dimension Guide for – RHR (Right Hand Reverse door) Template 2

Α

В

• 1. Draw a centerline horizontally across the door, 40" (1016mm) from bottom of door.
• 2. Draw a vertical centerline 2-7/16" (62mm) from edge of door.
• 3. Select the appropriate side of both templates. (1 & 2). Your door handing will determine the appropriate side, either (LHR) or (RHR).
• 4. Using dimensions indicated on templates 1 & 2, locate and mark the center of the required holes.
• 5. Drill holes as indicated by their designated letter.
• 6. If using an exterior trim, refer to the template with trim to further prepare door.

METAL – Panic Rated: Drill/Tap for 1/4-20 machine screws (sexbolts recommended).

METAL – Fire Rated: Sexbolts required.

SEXBOLTS: Drill 3/8" (9.5mm) clearance holes on Push and Pull Sides.

WOOD: Pre-Drill 1/8" (3mm) hole.

ACTUATING SHAFT HOLE: Drill 1/2" thru hole.

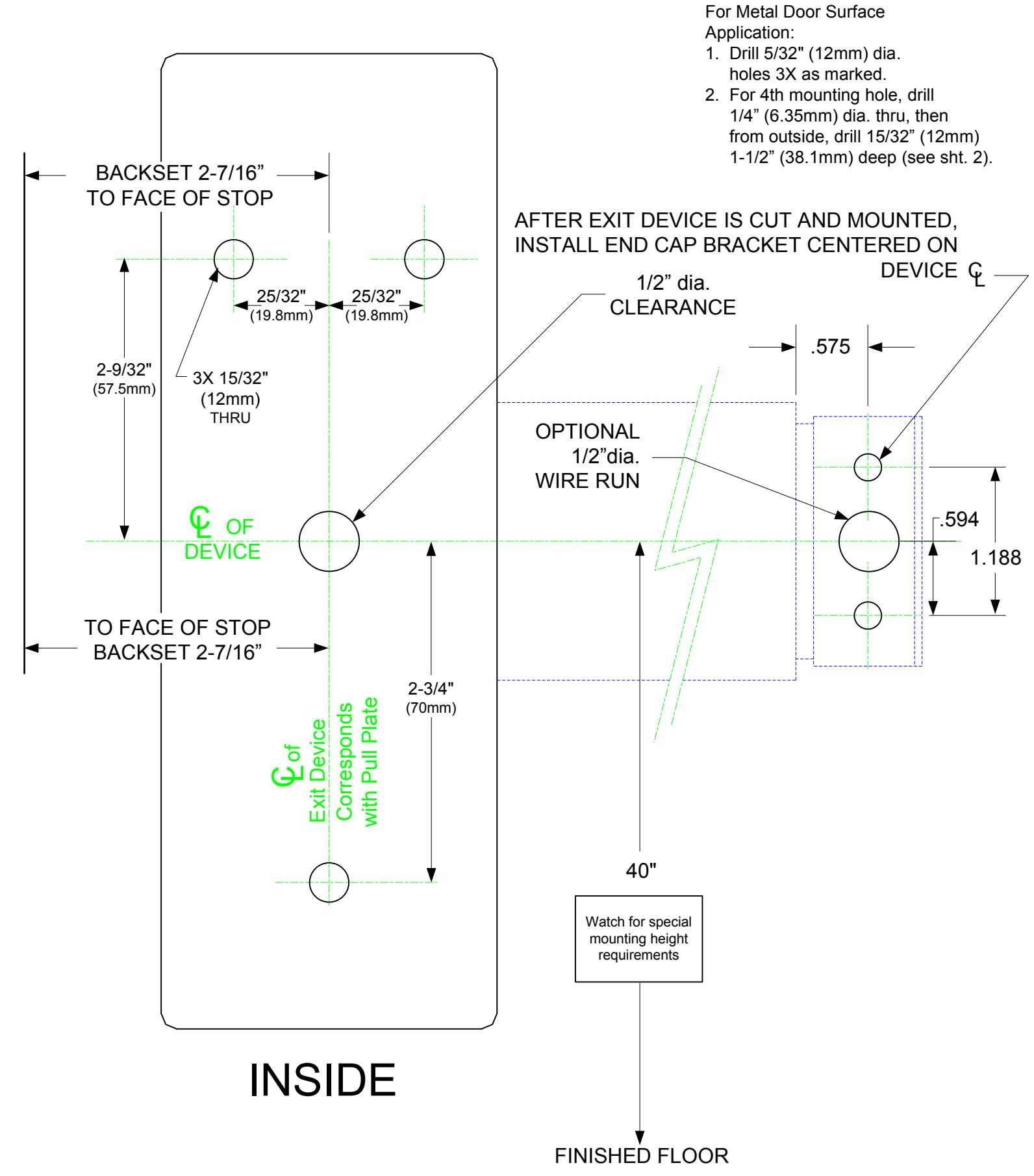

INSIDE MOUNTING HOLES For Metal Door Surface Application:

Drill 5/32" (12mm) dia. holes 3X as marked.
