S6000 Pricesheet

Open the original PDF document

View PDF

SDC S6000 Spectra™ Series panic and fire rated exit devices are available in rim mount, mortise and surface vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes.

  • ANSI/BHMA A156.3-2001 Grade 1 Compliant
  • CA Title 19 Compliant
  • Meets/Exceeds ADA requirements
  • UBC 97, Standard 7.2

S6100 Rim Mount

SPEC TRA SERIES EXIT DEVICE LIST
S61 Rim mount exit device 665.0
S62 Surface vertical 998.0
SPE ECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
80 Lever with key locks/unlocks lever N/C
14 Lever trim always active N/C

S6200 SVR Surface Vertical Rod

SPEC CIFY PANIC OR FIRE RATED Add to List
P Panic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging 		N/C
F Fire exit device
Mechanical dogging not available 		122.00
SPE CIFY FINISH Add to List
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 23 00 48 For 48" Door 45 00
SPE CIFY OPTIONS Add to List
R Request-To-Exit Output, SPDT 89.00 L Latch Status Output, SPDT 89.00
For 62 Series devices only:
LBR Less Bottom Rod,
for Panic Devices 		N/C LBRF Less Bottom Rod,
for Fire Rated devices 		N/C

Keyed dogging (Specify key cylinder separately) CD 23.00 (not available with (F) fire exit device)

S6200-LBR SVR

S6100 and S6200 Series Device Trim

Eclipse

Galaxy

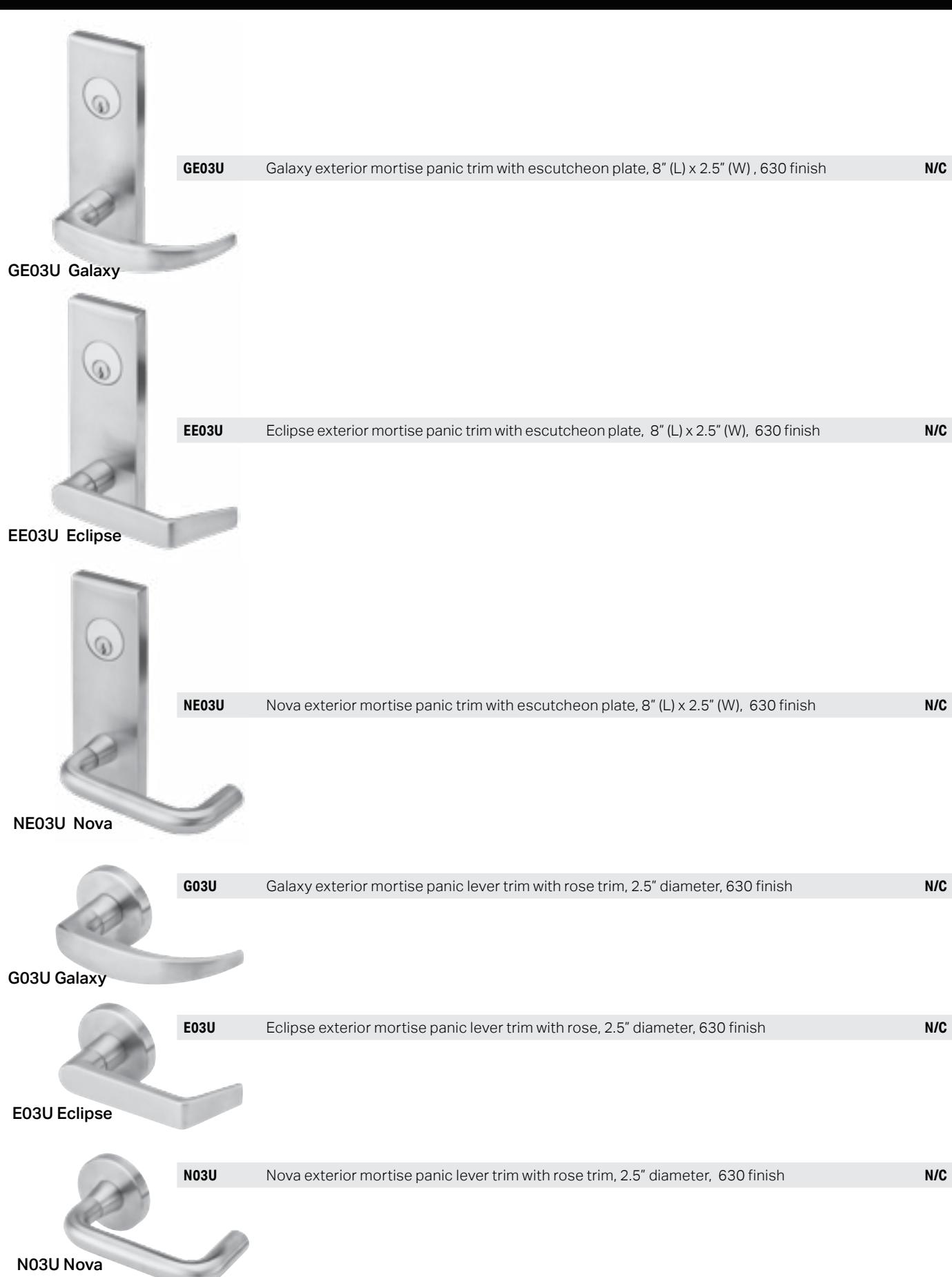

Standard Active and Dummy Trim

SPECIFY S610 0 AND S6200 SERIES LEVER TRIM / Add to List
Trim Type Function Finish Part # Price
Eclipse Dummy Trim 630 EK02U 249.00
Key Retracts Latchbolt 630 EK03U 249.00
Key Locks/Unlocks Lever 630 EK08U 249.00
No Cylinder, Lever Always Active 630 EK14U 249.00
Galaxy Dummy Trim 630 GK02U 249.00
Key Retracts Latchbolt 630 GK03U 249.00
Key Locks/Unlocks Lever 630 GK08U 249.00
No Cylinder, Lever Always Active 630 GK14U 249.00
Saturn Dummy Trim 630 SP02U 112.00
Key Retracts Latchbolt 630 SP03U 112.00
OPTIONAL CYLINDERS Add to
  • Rim cylinde
  • 03 function
r required for • 1 key cylinder required for CD option
  • Mortise cylinder required for
    08 functions and GKE03, EKE03

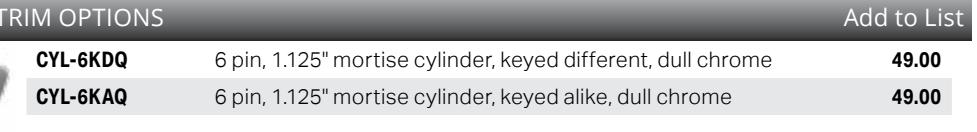

CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome incl. straight cam 49.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome, incl. straight cam 49.00
RIM-CYL-KA 6-pin Rim Cylinder, Keyed Alike, Specially for 03 Function Specifically For Trim EK03, GK03 and SP03 37.00

ELECTRIC TRIM OPTIONS FOR SDC 6000 SERIES

Add to List

FEATURES

  • Failsecure, field reversible to failsafe
  • 600/300 mA @ 12/24VDC
  • 4 ft cable and connectors

EKE03 Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 748.00
GKE03 Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 748.00

LIST

Optional

for mullion

application

76.00

Electric Trim Options

Locked/unlocked status, SPDT 3 Amp contact

89.00

LIST

721.00

GKE03 Galaxy

Optional Door Strikes

ST2DF 54.00

Optional for pairs of doors with rim mount device.

Projection: 1-15/16" (49mm)

ST1MP ST1MF For 6100P For 6100F

Projection: 7/8" (22.5mm)

Removable Mullion

Standard Key Removable Mullion

For Panic Exit and Fire Exit Rim Mount Devices

Length: 8ft

KR90F

Material: 2" 11 Gauge Steel Tube

Finish: Primer gray

Exit Devices - Alarmed Exit XK Distributor

  • Discount Code
  • Field selectable alarm modes include:
    • Continuous alarm with manual key reset
    • Alarm automatically rearms 2 minutes after door closes and may be retriggered.
    • May be manually rearmed by key before automatically rearmed.

• LED (field selectable Active or Off) Bypass - No LED

  • 15 or 60 second arming delay
  • Remote status output (B-Option Required)

SPECIFY DEVICE LIST
S61 Rim mount exit device 665.00
S62 Surface vertical 998.00

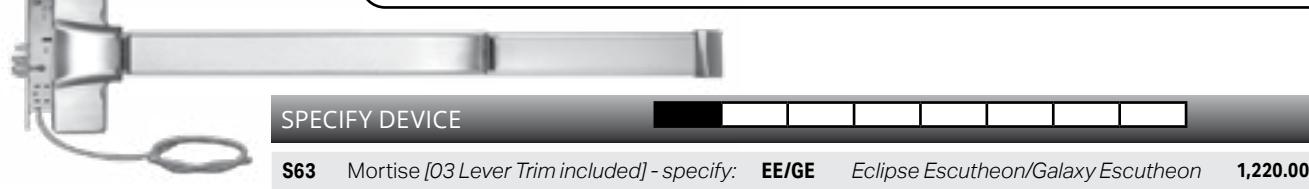

S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,220.00
SPECIFY FUNCTION Add to List
01 Exit Only 03 Nightlatch N/C
SPECIFY PANIC OR FIRE RATED
P Panic N/C F Fire 122.00
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH

36 For 36" Door N/C 42 For 42" Door 23.00 48 For 48" Door 45.00

SPECIFY TRIM (Mortise Only) ALSO SEE PAGE 47

SPECIFY EXIT ALARM

EE Eclipse Escutheon GE Galaxy Escutheon N/C

TRIM OPTIONS (NOTE: use Clover Cam for S63) Add to List CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 49.00 CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 49.00 RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike - see page 48 for more info 37.00

A Exit Alarm, 9V Battery Powered 444.00 B Exit Alarm with 12/24V AC/DC input (9V battery provides power backup) 488.00

Specify Trim for S61
and S62 - See page 45

PTH x 5 Ft Cable

- - -
-38
-
1000 ou.i
0.557 - -
8521 - 4 All parts
92 -
-
_
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 48 and page 48) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent 		383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5" x 4.5" standard weight, 626 Dull Chrome 		164.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 48)
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 284.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 381.00

Add to List

134.00

134.00

134.00

N/C

43.00

N/C

N/C

N/C

Electric Frame Actuator Controlled Exit Device

FEATURES

ACTUATOR VOLTAGE AND FRAME SIZE

Right hand reverse bevel, RHRB

N/C

N/C

N/C

N/C

G03

22.00

Failsafe actuator for 1-3/4" to 2" face frames

A 115VAC 0.2 Amp

C 24VDC 0.5 Amp

SPECIFY HAND

SPECIFY LENGTH

36 For 36" Door (std) 42 For 42" Door

SPECIFY FINISH

U 630 Dull Stainless Steel (std)

SPECIFY TRIM ALSO SEE PAGE 49 EE03 Eclipse x Escutcheon GE03

Eclipse

E03

24VAC 0.5 Amp

  • Fire rated exit device
  • Failsafe, unlocks by access control, power loss or signal from fire command center
  • For use with fire rated exit and stairwell doors
  • Door stays latched even when unlocked
  • All wiring maintained in the strike jamb
  • Complies with all national codes
  • No power transfer hinge

Narrow failsafe actuator for 1-1/4" to 1-1/2" face frames

115VAC 0.2 Amp

24VAC 0.5 Amp

24VDC 0.5 Amp

48 For 48" Door

See SDC power supplies with fire command interface for emergency release of exit device

SPECTRA SERIES EXIT DEVICE LIST
S6303FH Fire rated mortise exit device with electr ric frame actuator, key retracts lat tch 2,057.00

Ε

LR Left hand reverse bevel, LHRB

NE03 Nova

EE03 Eclipse

GE03 Galaxy

0 di 0 L
0 ١
OPTIO NAL STATUS OUTPUTS
L Latch position status output, SPDT, 3 Amp 67.00
S Latch & deadlocked status output, SPDT, 3 Amp 112.00
SC10 Socket connectors with 10ft. cable, power wiring only 67.00
SC10-5 Socket connectors with 10ft. cable for power and options 86.00

Galaxy x Escutcheon

Galaxy

G03 Galaxy

E03 Eclipse

NE03

N03

Nova x Escutcheon

Nova

Exit Device - Electrified Mortise XK Distributor

Remains latched when unlocked for fire door integrity. Failsafe (F) fire rated device for stairwell doors, power loss or signal from fire command center releases failsafe device immediatly. Complies with national building and fire codes

Voltage: 12/24VDC @ 600/300 mA

SPECIFY DEVICE LIST

SPECIFY FUNCTION Add to List

01 Exit Only 03 Nightlatch N/C

SPECIFY PANIC OR FIRE RATED

P Panic N/C F Fire 122.00

SPECIFY HAND (Mortise Only)

RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C

SPECIFY FINISH

U 630 Dull Stainless Steel N/C

SPECIFY LENGTH

36 For 36" Door N/C 42 For 42" Door 23.00 48 For 48" Door 45.00

EE Eclipse Escutcheon GE Galaxy Escutcheon N/C

TRIM OPTIONS Add to List CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 49.00 CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 49.00

SPECIFY FAILSAFE OR FAILSECURE

MF Failsafe Electric Mortise Exit Device 222.00
MS Failsecure Electric Mortise Exit Device 222.00

PTH x 5 Ft Cable

ı PTI
PT

600 Series Power Supply 602RF (shown)

SPECIFY OPTIONS LIST
D Door Position, MC-4 Door Contact 56.00
L Latch Position Status Output 89.00
R Request-To-Exit Output 89.00
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 50 and page 50)
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent 		383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5" x 4.5" standard weight, 626 Dull Chrome 		164.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 50) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 284.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 381.00

Exit Device - Electric Dogging XK Distributor

When energized by optional built-in (KS) or remote switch, manual depressing the pushpad causes the pushpad and latch to remain retracted (unlocked) providing push-pull door operation. When de-energized or signaled by a fire alarm, the pushpad and latch are released.

Voltage: 12/24VDC @ 170/100 mA

SPECIFY FINISH

SPECIFY ELECTRIC DOGGING

Ļ,
'n
æ
1
ľ ortise

Specify Trim for S61 and S62 - See page 51

PTH x 5 Ft Cable

600 Series Power Supply 602RF (shown)

SPECIFY DEVICE LIST
S61 Rim mount exit device 665.00
S62 Surface vertical 998.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,220.00
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY PANIC OR FIRE RATED
P Panic N/C F Fire 122.00
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 23.00 48 For 48" Door 45.00
Options
KS Built-in key switch 89.00
L1 Dogged Status Indicator, less cylinder, green = dogged (unlocked) 41.00

G Electric Dogging 488.00

SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
TRIM OPTIONS (NOTE: use Clover Cam for S63) Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 49.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 49.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike - see page 45 for more info 37.00
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 51 and page 51) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent 		383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5" x 4.5" standard weight, 626 Dull Chrome 		164.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 51) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 284.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 381.00

SPECIFY FINISH

SPECIFY LENGTH

SPECIFY TRIM (Mortise Only)

Momentary or maintained latch bolt and push pad retraction, with simultaneous dogging. Automatic re-triggering of latch retraction

Voltage: 24VDC @ 700 mA activation, 200 mA continuous

Rim Mount

Specify Trim for S61 and S62 - See page 52

SPECIFY DEVICE LIST S61 Rim mount exit device 665.00

S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,220.00

S62 Surface vertical 998.00

SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY PANIC OR FIRE RATED
P Panic N/C F Fire 122.00
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C

U 630 Dull Stainless Steel N/C

36 For 36" Door N/C 42 For 42" Door 23.00 48 For 48" Door 45.00
SPECIFY ELECTRIC LATCH RETRACTION
E Dual Electric Latch Retraction and Dogging 776.00
EM External Module Dual Electric Latch Retraction/Dogging 833.00
EE Eclipse Escutheon Galaxy Escutheon N/C
TRIM OPTIONS (NOTE: use Clover Cam for S63)
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 49.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 49.00
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 49.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 49.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike - see page 52 for more info 37.00

5 37 1000
10.00
10425
Alleni
11109

600 Series Power Supply 602RF (shown)

SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 52 and page 52)
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent 		383.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent 		383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5" x 4.5" standard weight, 626 Dull Chrome 		164.00
PTH-10Q Ten (10) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5" x 4.5" standard weight, 626 Dull Chrome 		217.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 52) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 284.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 381.00
EMC Sequencer Module (For more etail see page 101) 167.00

17.00

RIM DEVICES STANDARD STRIKES

SURFACE / STANDARD VERTICAL ROD DEVICES STRIKE

Rim Strikes

List

23.00

Projection: 13/16" (21mm)

Top Strikes

List

21.00

21.00

Optional Threshold Strikes List

Standard top strike for S6200P

Projection: 29/32" (23mm)

Optional floor strike for using threshold openings

ST28T

Projection: 3/8" (9.5mm)

ST1F 23.00

Standard for S6100F

Projection: 13/16" (21mm)

Standard top strike for S6200F

Projection: 1-1/8" (29mm)

Optional Mullion Strike List

Optional for mullion application

ST1MP For 6100P

ST1MF For 6100F

76.00

Projection: 7/8" (22.5mm)

OPTIONAL DOUBLE DOOR STRIKE List

ST2DF Optional for pairs of doors with rim mount device.

Projection: 1-15/16" (49mm)

REMOVABLE MULLION List

54.00

KR90F 721.00

Standard Key Removable Mullion Less Key Cylinder

For Panic Exit and Fire Exit Rim Mount Devices.

Length: 8ft Material: 2" 11 Gauge Steel Tube Finish: Primer gray

OPTIONAL CYLINDER List

RIM-CYL-KA

37.00

Rim Cylinder, keyed alike - see page 45 for more info
