View PDFFWAX SPECIAL LOCKING ARRANGEMENTS

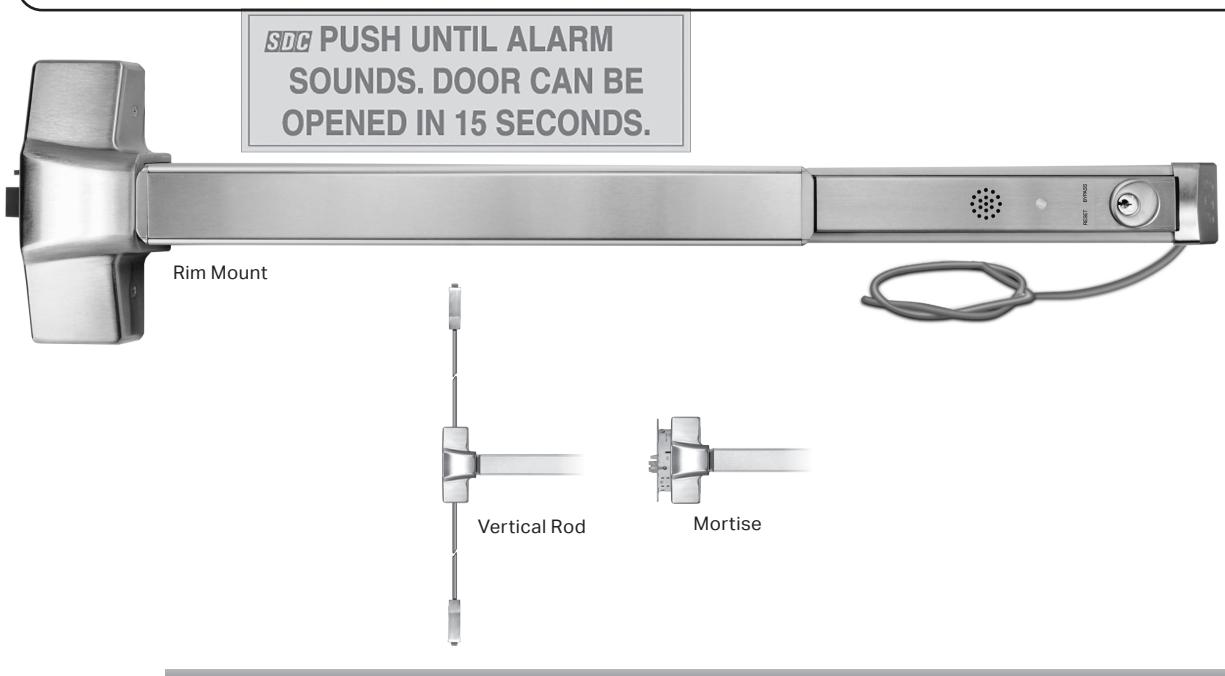

The Exit Check® All-In-One Device integrates our premium Spectra™ bar with SDCs innovative delayed egress electronics. When unauthorized egress is innitiated by depressing the push pad of the S6000-101, an audible alarm will sound and an irreversible delay period of 15 seconds will begin. After the delay period has expired, the device unlocks, permitting egress until the device is reset. In a life safety emergencty, the device will immediatly unlock upon loss of power or when powered by a fire control supervised power supply. Door contact included for anti tailgate and door prop.
APPLICATION INCLUDE:
- Restricting the egress of wandering patients for their own safety
- Restricting the egress of commercial center patrons for security application needs
- Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
- Reducing shoplifting and employee theft
- Compatible with access control for entry using electrified trim on rim and vertical rod devices or using mortise case electrification (Not compatible with rim electric strike)
Single: 24VDC @ 540 mA Pair: 24VDC @ 790 mA
| SPECIFY DEVICE | LIST | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| S61 | Rim mount exit device | 665.00 | ||||||||
| S62 | Surface Vertical - ROD GUARDS SUGGESTED | 998.00 | ||||||||
| S63 | Mortise [03 Lever Trim included] - specify: | EE or GE | Eclipse Escutheon or Galaxy Escutheon | 1,220.00 | ||||||
| SPECIFY FUNCTION | ||||||||||
| 01 | Exit Only | 02 | Dummy | 03 | Nightlatch | N/C | ||||
| SPECIFY PANIC OR FIRE RATED | Add to List | |||||||||
| P | Panic | N/C | F | Fire | 122.00 | |||||
| SPECIFY HAND (Mortise Only) | ||||||||||
| RR | Right hand reverse bevel, RHRB | LR Left hand reverse bevel, LHRB | N/C | |||||||
| SPECIFY FINISH | ||||||||||
| U 630 Dull Stainless Steel | N/C | |||||||||
| SPECIFY LENGTH | Add to List |
Exit Check® - Delayed Egress All-In-One Device XK Distributor Discount Code S61000-101 Rim Device Single Door Application S62000-101 Surface Vertical Rod Device Double Door Application S6100-101 S6200-101 S6200-DES
SPECIFY DELAYED EGRESS Add to List
101 Electrification of master exit device and integrated controller with key switch control and reset, less cylinder 1,497.00
DES For pair of doors, additional exit device equipped with delayed egress mechanism, less integrated controller. Must be ordered together with 101 device. 555.00
door closure
If no Code is specified - ND is the SDC Standard Operations Mode for this product
| NC | IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant | N/C |
|---|---|---|
| Fixed 15 exit delay, 1 or 2 second nuisance delay | ||
| Calif. Building Code OSHPD/Manual Power Up | ||
| ND | IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant | N/C |
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant Fixed 15 exit delay, 1 or 2 second nuisance delay
BC BOCA National Building Code and Chicago Building Compliant 15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure N/C
N/C
BD BOCA National Building Code 15 second fixed exit delay, 1 or 2 second nuisance delay, auto reset 30 seconds after
SPECIFY TRIM (optional) Add to List
Mechanical Trim (less cylinder) FOR S61 RIM AND S62 SURFACE ONLY - FOR S63 TRIM SEE PAGE 47
EK03U Eclipse Escutheon GK03U Galaxy Escutheon 249.00
Electric Trim (FOR RIM AND VERTICAL ROD ONLY)
Failsecure, field reversible to failsafe; 4 ft cable and connectors; 600/300 mA @ 12/24VDC
EKE03U Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 748.00 GKE03U Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 748.00
Electronically Controlled Trim (FOR MORTISE ONLY)
MS Failsafe MF Failsecure 222.00
TRIM OPTIONS Rim Cylinder Required for 03 function, Mortise Cylinder Required for S6300 Add to List CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 49.00 CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 49.00 RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike - see page 45 for more info 37.00
| SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 97 and page 98) | ||||
|---|---|---|---|---|
| PTM-10AL |
(10) Cond.,5 Amp @ 12/24V AC/
DV, Alum US28 |
383.00 |
PTH-10Q (10) Cond.,1 Amp @ 12/24V
per pair, 4.5" x 4.5" |
217.00 |
| PT-5 |
UL Listed Concealed Power
Transfer Device, less wires |
67.00 |
PT-3V Armored flex conduit, less
wires, with wire junction box |
50.00 |
| SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 100) | LIST | |
|---|---|---|
| 602RF | 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box | 284.00 |
| 631RF | 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box | 381.00 |
