INSTALLATION INSTRUCTIONS

S5100 RIM EXIT DEVICE

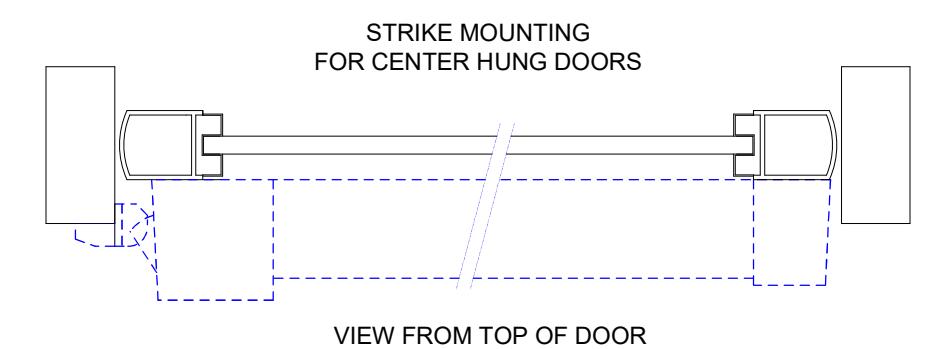

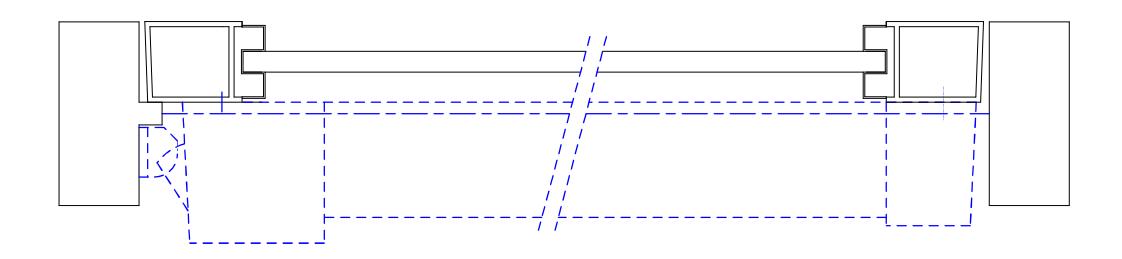

VIEW FROM TOP OF DOOR

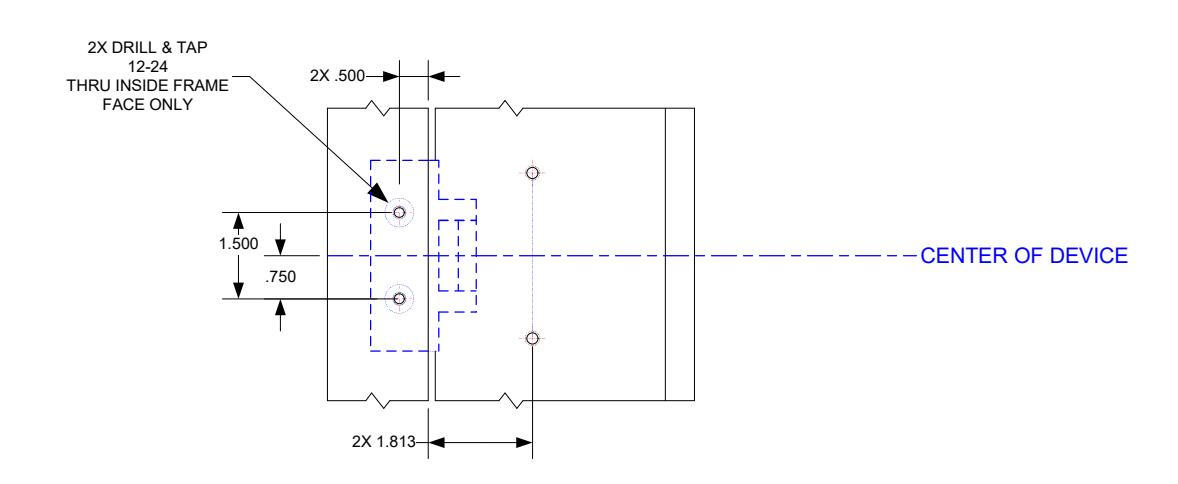

* CUTOUT REQUIRED ONLY IF STOP IS PRESENT

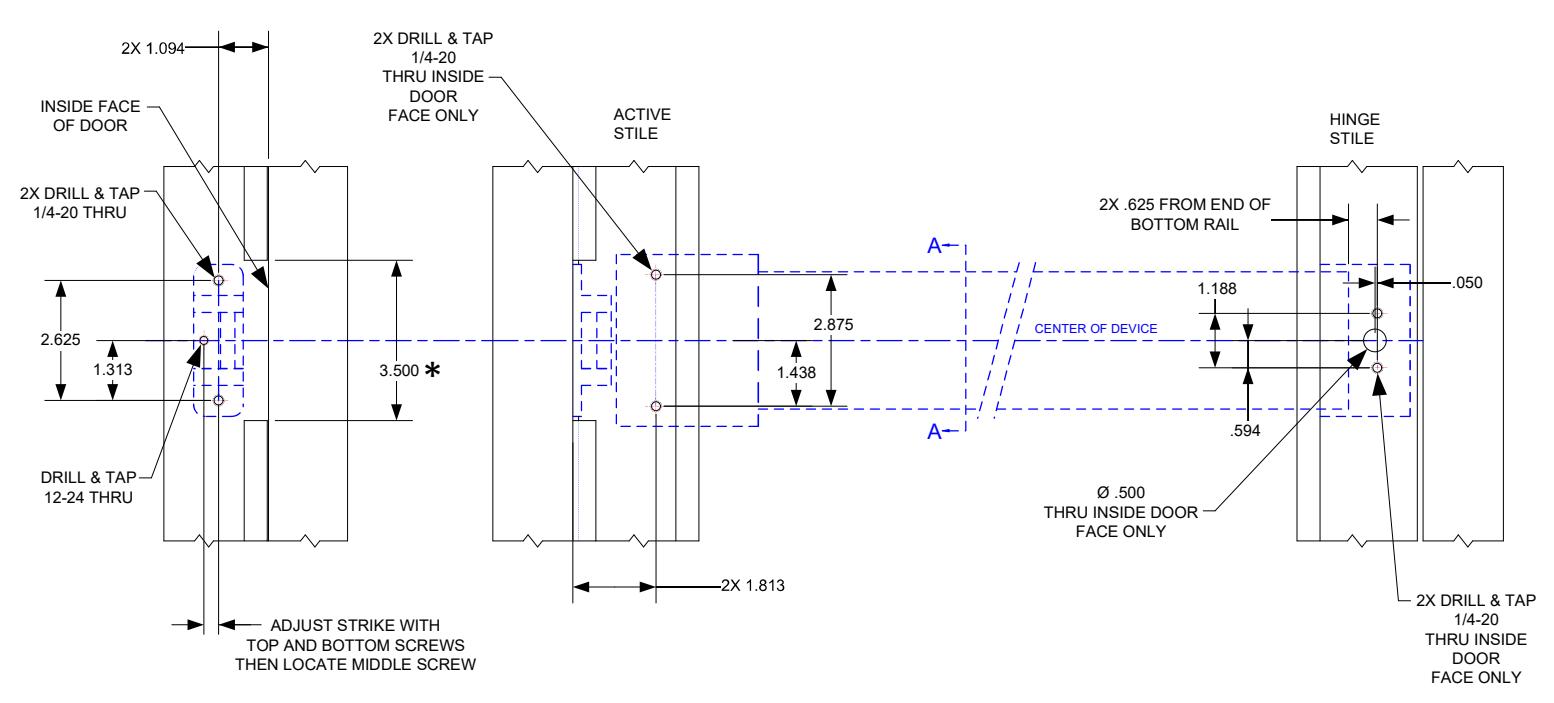

INTERIOR VIEW OF DOOR

SECTION VIEW A-A

SECURITY DOOR CONTROLS • WWW.SDCSECURITY.COM

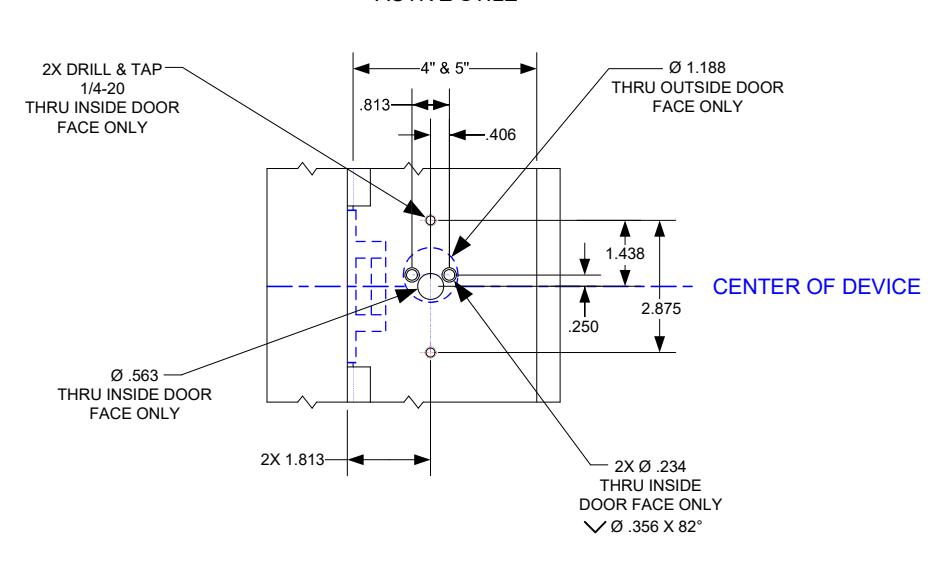

RIM CYLINDER PREP FOR MEDIUM AND WIDE DOOR STILES

ACTIVE STILE

^* Item is sold separately, see part number and finish availability below

ST51CV – Center Mounting Extension Block 628 Finish

ST51CY - Center Mounting Extension Block 335 Finish
