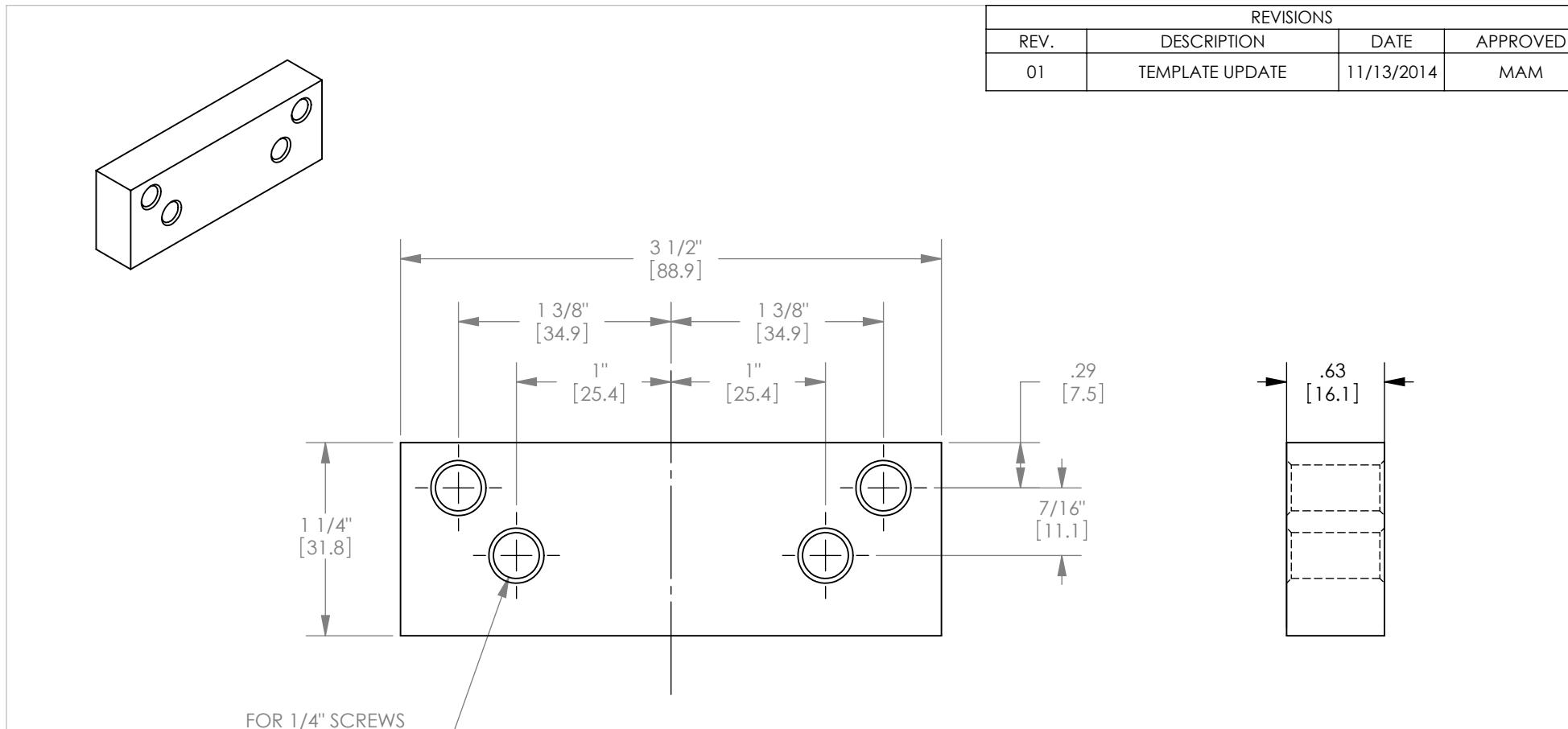

S-CL00195-Rev01-5913 Drawing

SCREW PACK INCLUDES: 4 PCS 1/4-20 x 2" FPHS SELF DRILLING (STEEL) 4 PCS 1/4-14 x 2" FPHS SELF DRILLING (STEEL)

(4)

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE. FINSH FINSH

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

| DRAWN | T Sveitis | 02/09/06 | |-----------------------------------

THREE PLACE DECIMAL: ±0.004"

DO NOT SCALE DRAWING

5913 BLADE STOP SPACER

SIZE DWG. NO. S-CL00195 01 SCALE:1:1 WEIGHT: 0.25 SHEET 1 OF 1
