Roton Removable Electric Through-Wire Module – M-RT00021

Roton Removable Electric Through-Wire Module (RETW)

M-RT00021

COMPONENTS COVERED IN THIS DOCUMENT:
RETW-10WIRE	RETW-12WIRE
7-102-1860 780-ETW 10R WIRE MODULE CLR 7-112-1870 780-ETW 10R WIRE MODULE DBA 7-112-1875 780-ETW 10R WIRE MODULE GLD 7-112-1880 780-ETW 10R WIRE MODULE BLA	7-102-1870 780-ETW 12R WIRE MODULE CLR 7-112-1872 780-ETW 12R WIRE MODULE DBA 7-112-1876 780-ETW 12R WIRE MODULE GLD 7-112-1881 780-ETW 12R WIRE MODULE BLA

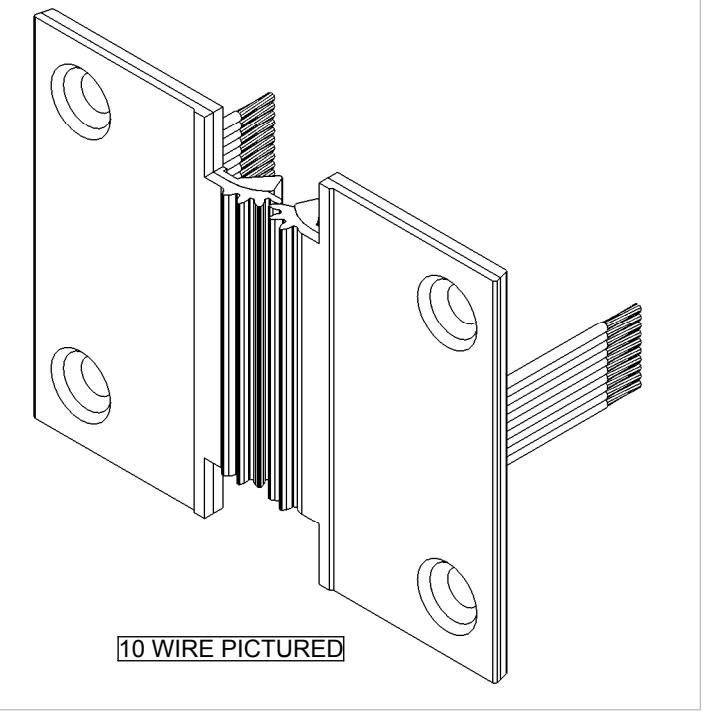

Removable Electric Through-Wire (RETW)

• Transfers power discreetly from building to door hardware.
• Removable wire module can be easily removed for adjustment or service.
• Available In:
  • -Twelve 24 gauge 4" wire
  • -Ten 24 gauge 4" wire
• Specify handing and the dimension from the top edge of the door to the centerline to the electric through-wire location.
• Templates regarding location of module available upon request.
• Supplied with mounting hardware, marking template, and transfer punch.
• Prep locations are limited. Please contact Hager Companies for additional information.
• To order removable module only, use component numbers as shown above.
• Example of How to Order with Hinge: 780-112 HD 83" CLR ETW12R 44-1/6"

Available on the following Heavy Duty Roton hinges:

• 780-111HD RETW
• 780-112HD RETW
• 780-124HD RETW
• 780-224HD RETW
• 780-226HD RETW

Maximum Electrical Rating:

Volts: 48V DC/AC

Amperes: 3.5 Amps Continuous

16 Amp Pulse
