780-041LL

Lead Lined Concealed Leaf Hinge

Application:

• Lead lined model for hospital x-ray room doors with double row of screws to straddle lead (specify "LL")
• Door edge protection lip
• Swing-clear action and ADA compliant for classroom or patient room doors
• Not recommended for doors with a beveled edge on the hinge side

PRODUCT SPECIFICATIONS

CLEARANCE:

• 5/16" (8 mm) hinge side
• Plus standard lockside clearance

FASTENERS:

- #12-24 X 11/16" Flat Head Self-Drill Screws

LENGTH OPTIONS:

• Standard and Custom
• For additional fasteners, check Price Book for availability

DOOR REINFORCEMENT:

- None required to 200 lbs. Heavier weight use 16-gauge channel.

FRAME REINFORCEMENT:

- None required to 200 lbs. Heavier weight use 16-gauge channel.

FIRE RATING:

- Up to 3 hr. metal and 90 min. wood composite (with studs)

WARRANTY:

- All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.

MATERIAL:

- Aluminum 6063-T6

EPD:

- Roton Continuous Hinge Environmental Product Declaration

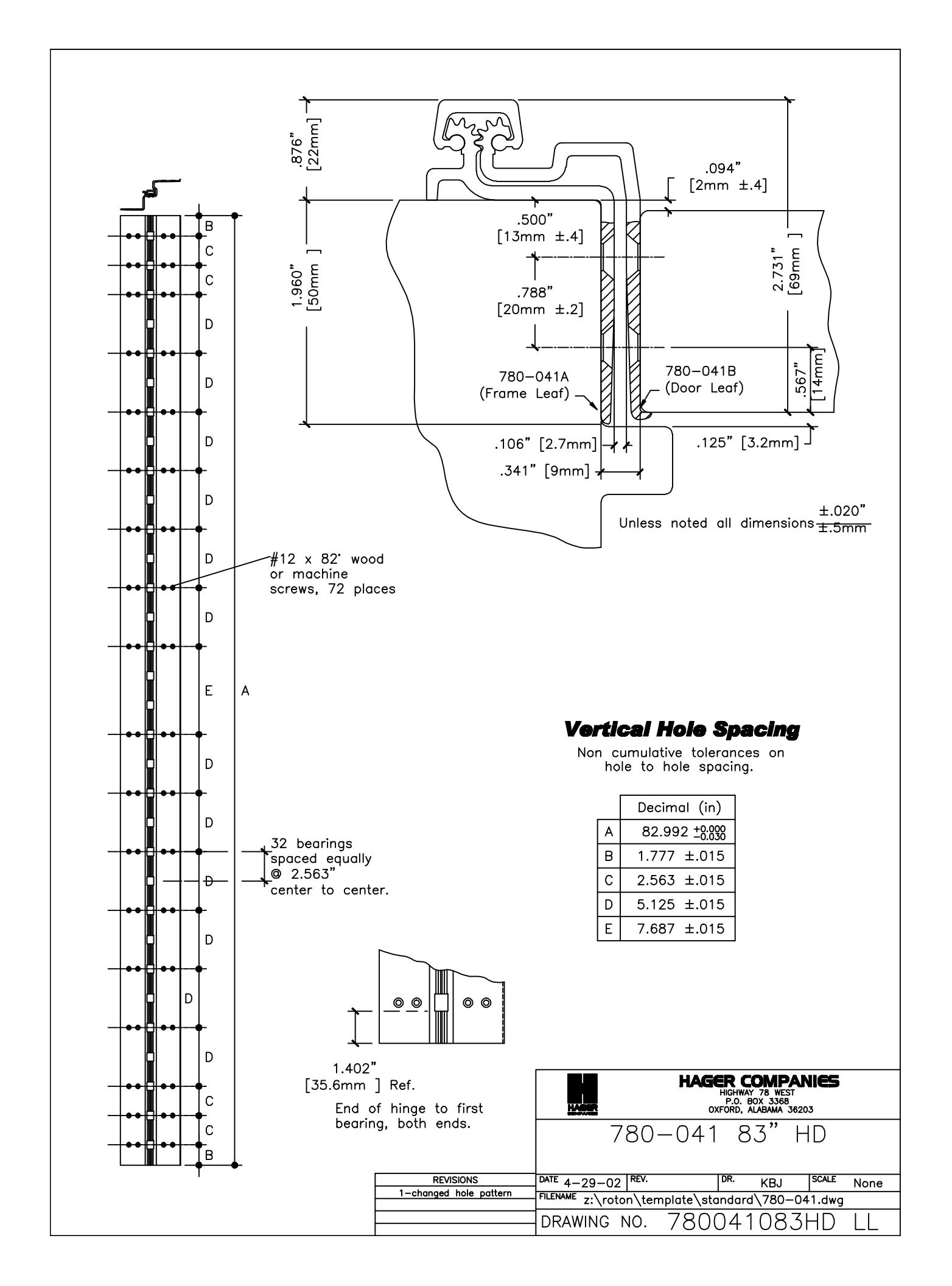

PRODUCT SIZE OPTIONS

LENGTH (INCHES)	LENGTH (MM)	HOLE COUNT (DOOR)	HOLE COUNT (JAMB)
79	2007	32	32
83	2108	36	36
85	2159	36	36
95	2413	42	42
119	3023	48	48

ROTON MODEL: 780-041 REVISION: 021510 ROTON INSTRUCTION SHEET

PART NO: 75008041

HAGER Companies - 139 Victor Street - St. Louis, MO 63104 1(800)-325-9995

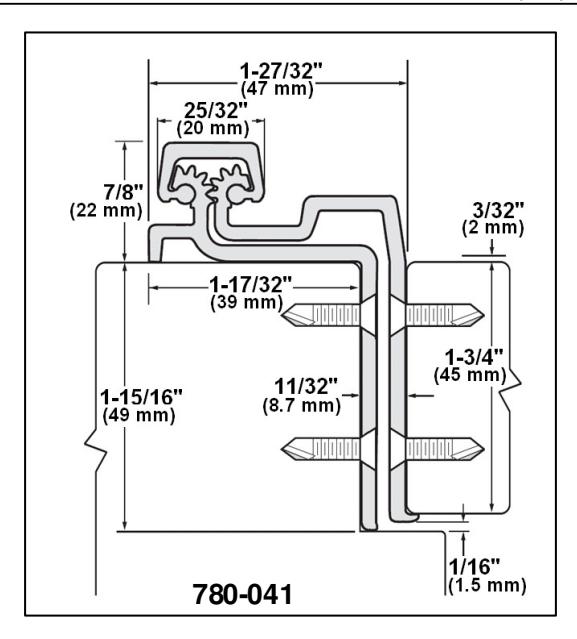

ROTON Models 780-041 is an Aluminum Continuous Geared Concealed Leaf Hinge which provides a 3/32" door inset. It can be used with any frame or frameless wall without hinge preps, and either with or without reinforcements depending on door weight. The frame rabbet must have a flat surface at least 1-15/16" wide and the frame face must have a flat surface of 1-17/32". Clearance required between the hinge edge of the door and the frame rabbet is 11/32" (8.7mm). "HD" models have additional bearings for heavy-duty application. Not recommended for use on doors that have a beveled edge on the hinge side.

Hinge Length

All ROTON Hinges are supplied approximately 1" to 1-5/16" shorter than the nominal door height to avoid threshold or carpet clearance problems. If the hinge must be trimmed shorter, first determine the correct hand of the door and orientation of the hinge. Then mark and trim from the bottom of the hinge only – do not cut from the top end.

NOM. DOOR HEIGHT	NOM. HINGE LENGTH	NUMBER OF FASTENERS (Door/Frame)
6'-8"	79" (2006mm)	15 / 15
7'-0"	83" (2108mm)	19 / 19
7'-2"	85" (2159mm)	19 / 19
8'-0"	95" (2413mm)	19 / 19
10'-0"	119" (3022mm)	21 / 21

Total Clearance Between Door And Frame Width

SINGLE DOOR - SQUARE EDGED

Hinge thickness 11/32" (8.7mm) Allowance for frame irregularities 1/32" (0.8mm) Latch side clearance (typical) 1/8" (3.2mm)

TOTAL* 1/2" (12.7mm)

11/32"	11/32" 3/16" min.
min.

PAIR OF DOORS - SQUARE EDGED

First hinge thickness 11/32" (8.7mm) First allowance for frame irregularities 1/32" (0.8mm) Clearance between doors (typical) 3/16" (4.8mm) Second hinge thickness 11/32" (8.7mm) Second allowance for frame irregularities 1/32" (0.8mm)

TOTAL* 15/16" (23.8mm)

General Fitting Procedure

• For new construction with metal doors/frames: To accommodate the 11/32" (8.7mm) hinge clearance required for this ROTON model, order the door undersized or the frame header oversized. See the clearance information above to attain the proper size. Mortar guards, either styrofoam or wood, are recommended for frames to prevent grout from interfering with the installation of the hinge fasteners.
• For new site-hung wood doors: If necessary, scribe and cut from the latch edge of the door to leave sufficient hinge stile thickness for proper fastening. A minimum clearance of 11/32" (8.7mm) is required between the hinge edge of the door and the frame rabbet. See the clearance information above to attain the proper finished width of the door.
• For remodeling with existing wood or laminate doors: If necessary, scribe and cut from the hinge edge of the door and plane smooth. A minimum clearance of 11/32" (8.7mm) is required between the hinge edge of the door and the frame rabbet. Do not bevel the hinge edge of the door. See the clearance information above to attain the proper finished width of the door.

ROTON INSTRUCTION SHEET ROTON MODEL: 780-041

PART NO: 75008041 REVISION: 021510

HAGER Companies - 139 Victor Street - St. Louis, MO 63104 1(800)-325-9995

Installation Procedure

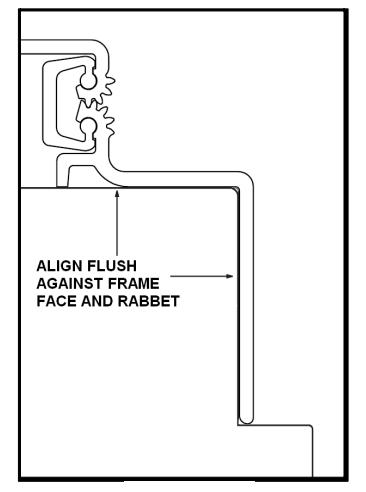

Frame Preparation (See Fig. 1)

• 1. With the hinge open, place the hinge frame leaf against the frame rabbet making certain it is flush against the frame face and rabbet along its entire length. Position the top of the hinge 1/16" (1/8" maximum) below the header. Note: A 1/16" shim is recommended due to initial settling of the bearings.
• Mark and center punch the screw hole locations. Accurate location is important for proper installation.
• 3. For metal frames 12 gage or less (= .110"/2.8mm), it is not necessary to pre-drill pilot holes if using the self-drilling screws provided. For metal frames greater than 12 gage (> .110"/2.8mm), drill and tap all mounting holes for #12-24 threads prior to installing the screws. For wood frames, pre-drill pilot holes using a #18 (.170"/4.3mm) bit for optional #12 wood screws.
• 4. Do not attach the hinge to the frame at this time.

Door Preparation

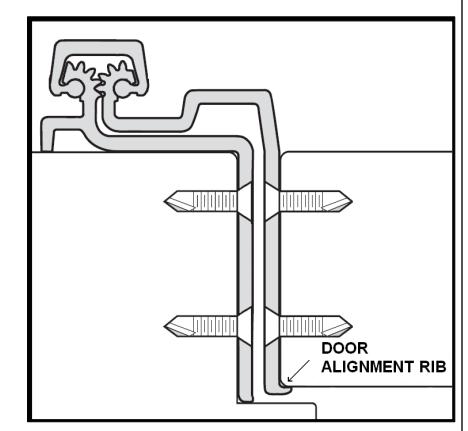

• 1. With the hinge open, place the hinge door leaf against the edge of the door making certain that the door alignment rib is flush against the door face along its entire length.
• 2. Mark and center punch the screw hole locations. Accurate location is important for proper installation.
• 3. For hollow metal doors 12 gage or less (= .110"/2.8mm), it is not necessary to pre-drill pilot holes if using the self-drilling screws provided. For metal doors greater than 12 gage (> .110"/2.8mm), drill and tap all mounting holes for #12-24 threads prior to installing the screws. For wood doors, pre-drill pilot holes using a #18 (.170"/4.3mm) bit for optional #12 wood screws.

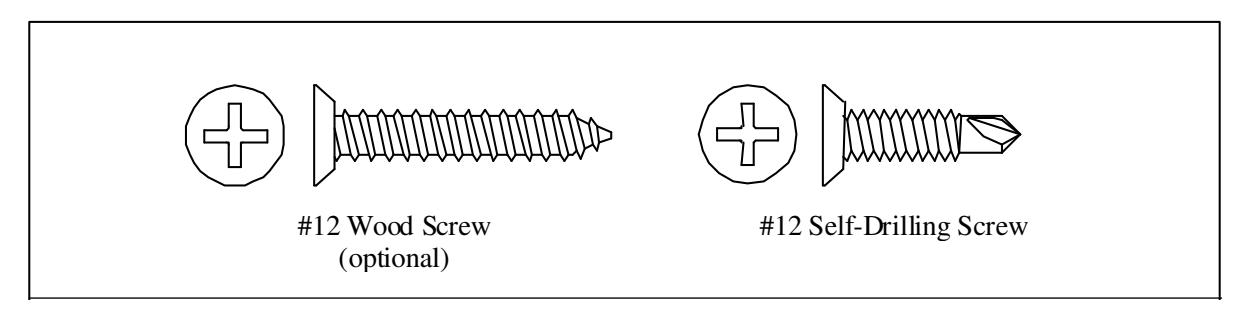

• 4. Attach the hinge to the door. For metal doors, use the #12 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood doors, use optional #12 wood screws.

Hanging the Door

• 1. Position the door (with hinge attached) at 90° to the frame. Attach the hinge to the frame rabbet. For metal frames, use the #12 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood frames, use optional #12
• 2. Make a gentle trial swing. Carefully check the door for proper swing and clearance.

Adjusting the Door 1. If lateral adjust

• If lateral adjustment of the door is required due to excessive or uneven door/frame clearance, adjust by shimming where needed:
  • a) For minor adjustments, an effective shimming material is 1-1/2" cloth duct tape. Apply the tape in stepped layers underneath the frame leaf where needed to build up to the desired thickness.
  • To shift the entire door, a thin continuous aluminum strip may be used underneath the frame leaf (available in 1/16" (1.6mm) and 1/8" (3.2mm) thicknesses from HAGER).
• Retighten all screws. Carefully check the door for proper swing and clearance.

Fig. 1

Fig. 2

ROTON UL FIRE–RATED STUDS PART NO: 75006041 ROTON MODEL: 780-041 REVISION: 05/31/17

HAGER Companies, 139 Victor Street, St. Louis, MO 63104 (800) 325-9995

ROTON Hinge U.L. Fire-Rated Studs – 780-041

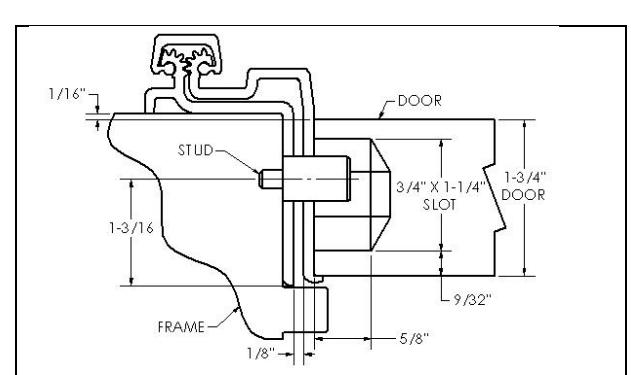

These instructions outline how to install the optional stainless steel studs (4) for ROTON Hinge model 780-041. All four studs must be used in order to comply with U.L. requirements for composite wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours.

Materials Needed

• Stainless steel studs (4).
• Drill, 3/4" diameter bit, #16 (.177") bit, 12-24 thread tap.
• #10 spanner screwdriver.

Installation

• 1. Install the hinge in accordance with the standard installation instructions furnished with the hinge.
• 2. On the frame leaf, drill and tap 12-24 in the center of the four (4) pre-drilled ¾" holes.

Vertical Location79"		83"	85"	95"	119"
Hole #1	13-7/8"	15-7/8"	16-7/8"	16-3/4"	13-3/8"
Hole #2	10-1/4"	10-1/4"	10-1/4"	20-1/2"	30-3/4"
Hole #3	30-3/4"	30-3/4"	30-3/4"	20-1/2"	30-3/4"
Hole #4	10-1/4"	10-1/4"	10-1/4"	20-1/2"	30-3/4"

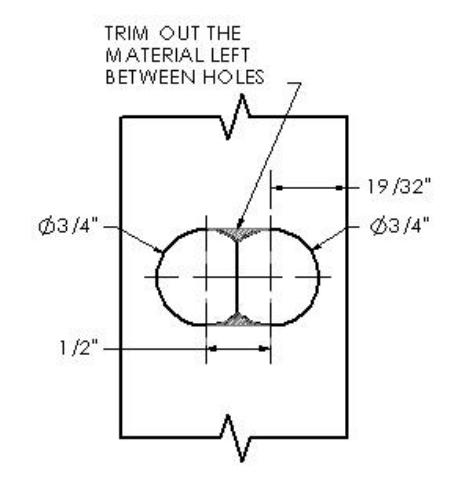

3. On the door leaf, drill a ¾" diameter hole in each end of the slots on the leave. Trim out the material left between each horizontal pair of holes to create a ¾" x 1-1/4" slot in the door leaf.

• 4. Insert a stud into each of the four #12-24 threaded holes on the frame and tighten securely using a #10 spanner screwdriver.
• 5. Close the door slowly to assure that the studs are properly aligned. Any minor interference can be corrected using a rat-tail file.
