Rockwood Trim Protector Bars

NOT TO SCALE

Solutions to Door and Trim Damage

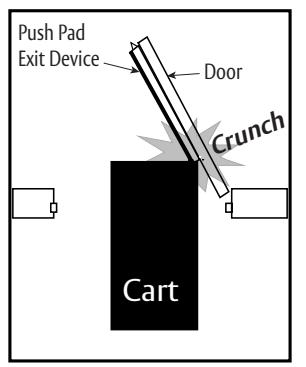

Without Protection Bar - Costly Damage

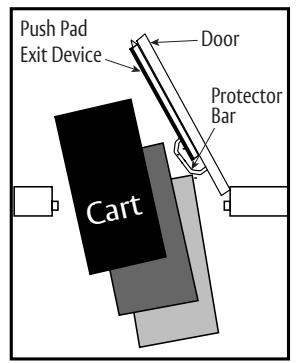

With Protection Bar - Safely Deflected

Choosing the correct protection bar:

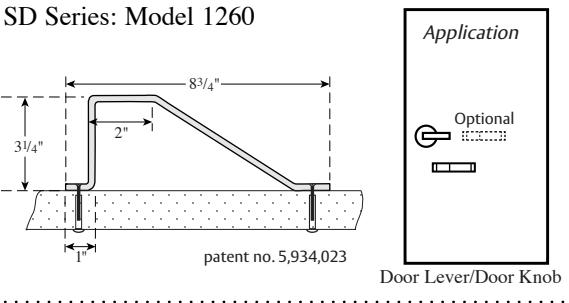

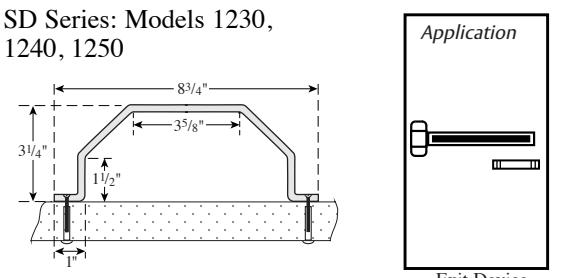

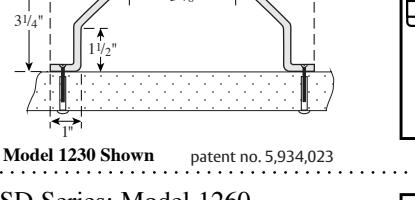

• 1. Determine traffic light to moderate use = SD Series, heavy use = HD Series
• 2. Measure projections of exit device, door knob, etc.
• 3. Review product dimensions to match bar to your specific needs.

WARNING: Do not locate protection bars where they can impede operation of exit devices.

Template T-TrimProtBars

Effective date: |anuary 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

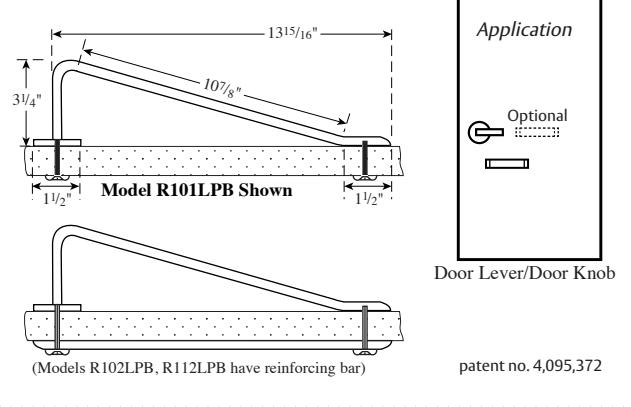

HD Series: Models R101LPB, R102LPB, R111LPB, R112LPB, R115LPB
