Architectural Door Accessories

Rockwood RM782 Cast Flush Pull

NOT TO SCALE

Template T-RM782

Effective date: October 15, 2019 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

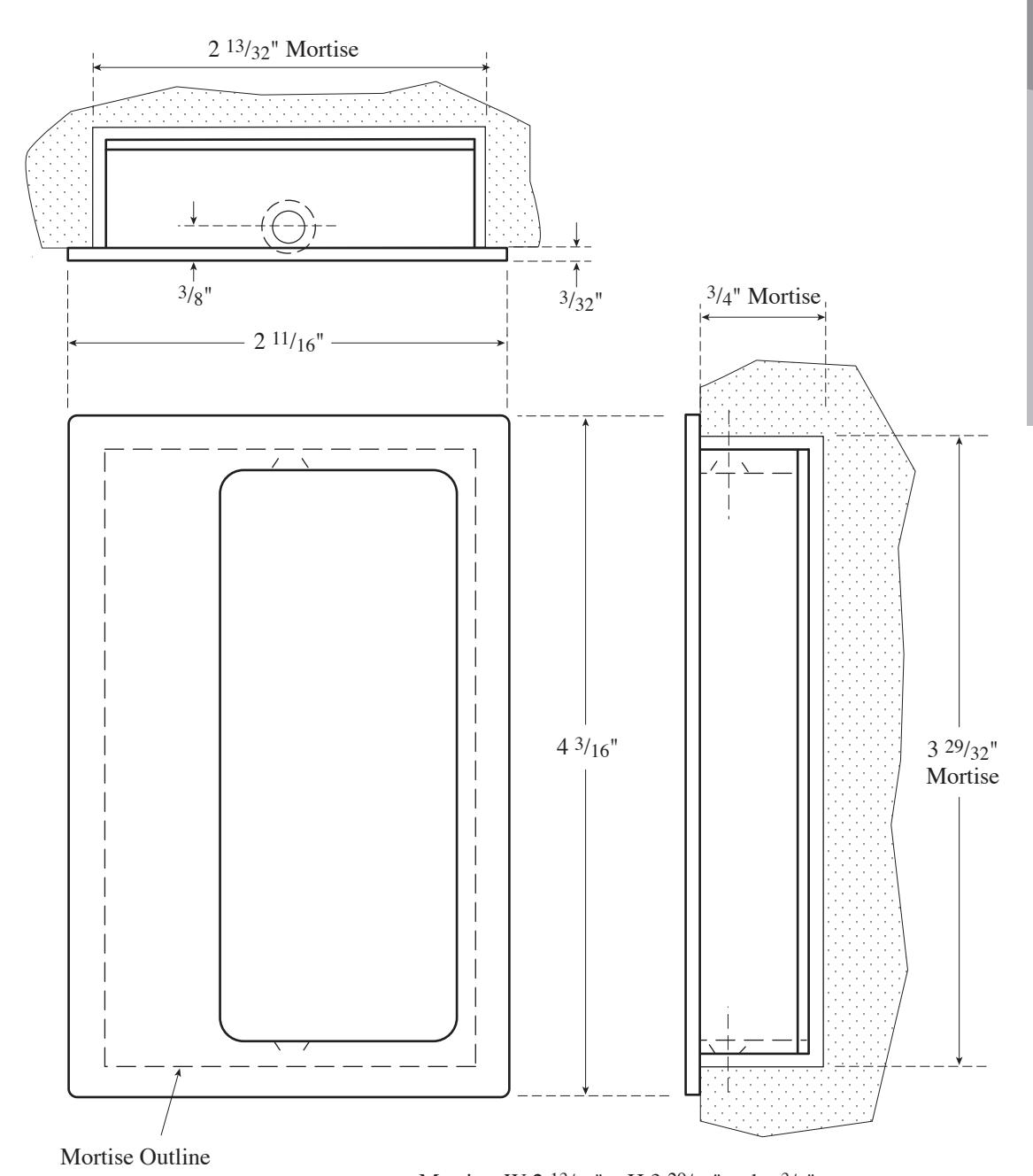

Mortise: W 2 13/32" x H 3 29/32" x dp. 3/4"

ASSA ABLOY Opening Solutions Architectural Accessories Group Rockwood, PA

Phone: (800) 458-2424 • Fax: (800) 922-9212

www.assaabloydooraccessories.us
