Rockwood Products Mounting Chart

Open the original PDF document

Rockwood Products Mounting Chart

		Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
		Standards Pulls
10-PB	N/A	2	N/A	N/A	N/A
11-PB	1	2	3 & 4	N/A	N/A
12-PB	1	2	N/A	N/A	N/A
14-PB & 15-PB	1	N/A	N/A	N/A	N/A
18-PB	1	2	3 & 4	N/A	N/A
19-PB	1	N/A	N/A	N/A	N/A
20-PB 21-PB 25-PB 26-PB	1	2	3	N/A	N/A
22-PB 23-PB	1	2	3	N/A	N/A
27-PB 28-PB 29-PB 30-PB (SETS)	N/A	N/A	3	N/A	N/A
31-PB 32-PB 33-PB 34-PB	1	2	4	N/A	N/A
35-PB 36-PB (SETS)	N/A	2	4	N/A	N/A
40-PB 41-PB 42-PB	N/A	2	N/A	N/A	N/A
43-PB	1	2	4	N/A	N/A
44-PB	1	N/A	N/A	N/A	N/A
45-PB	1	2	3	N/A	N/A
47-PB	1	6 & 8	5	15	13
SP47	1	N/A	5 & 3	N/A	N/A
48-PB	1	6 & 8	5	15	13 (*bs.plts.)
50-PB 51-PB 53-PB	1	2	4	N/A	N/A
52-PB (SET)	N/A	N/A	4	N/A	N/A
102-RKW thru 109	1	6 & 8	5	15 (*bs.plts.)	13 (*bs.plts.)
110-RKW thru 118	1	6 & 8	5	15	13
120 121	1 & 12	6 & 8	5	15	13
122-RKW 123 125-RKW 126-RKW	1	N/A	N/A	N/A	N/A
130-RKW 131-RKW	1	2	4	N/A	N/A
D133-RKW	N/A	2	N/A	N/A	N/A
132-RKW 134-RKW	1	N/A	N/A	N/A	N/A
137 137L	1	N/A	N/A	N/A	N/A
138 139	1	2	4	N/A	N/A
147 147L	1	N/A	N/A	N/A	N/A
148	1	6 & 8	5	15	13
149	1	6 & 8	5	N/A	13
BF150 thru BF152	1 & 12	17	16	15	18 (*bs.plts.)
BF156 thru BF159	1 & 12	17	16	15	18
TBF156 thru TBF159	1 & 12	17	16	15	18
YBF150 thru YBF152	1 & 12	17	16	15	18
YBF156 thru YBF159	1 & 12	17	16	15	18
BF160 thru BF162	1 & 12	17	16	15	18
BF166 thru BF169	1 & 12	17	16	15	18
176-RKW 177	1	N/A	acorn nut	N/A	N/A
185	1	6 & 8	5	N/A	N/A
193	N/A	2	N/A	N/A	N/A
208	1	6 & 8	5	15	13 (*bs.plts.)
215 216	1	6 & 8	5	15	13 (*bs.plts.)
215L	1	6 & 8	5	15	13 (*bs.plts.)

ASSA ABLOY

	M	etal/Wood Doors		Glass	s Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
	Tubular Pulls	(RM200 & 300 s	series)
**RM201 thru RM204	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM221 thru RM224	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM251 thru RM252 (SETS)	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM257 thru RM259 (SOLID)	1XHD	6HD & 8HD	5HD	N/A	13HD
**RM271 thru RM272 (SETS)	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM301 thru RM304	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM321 thru RM324	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM350	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM351 RM352 (SETS)	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM370	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
**RM371 RM372 (SETS)	1XHD & 12XHD	6HD & 8HD	11	15XHD	14

**D14405 D14440 D14444		Pulls (RM400 se		45225
**RM405 RM410 RM411	1XHD & 12XHD		11	15XHD	14
**RM415 RM420 RM421	1XHD & 12XHD		11	15XHD	14
**RM412 & RM413	1XHD & 12XHD	6HD & 8HD	11 & 5HD	15XHD	14 &13HD
**RM421 RM423	1XHD & 12XHD	6HD & 8HD	11 & 5HD	15XHD	14 &13HD
**Note: For all bent 1-1/4" & 1-1/2"
Straight Solid	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
Offset Solid	1HD & 12HD	17HD	16HD	15HD	18HD
RM405 thru RM411-Alum	1HD	6HD & 8HD	5HD	15HD	13HD
RM412 & RM413-Alum	1HD	6HD & 8HD	5HD	15HD	13HD
	Small Dul	lls (RM700 serie	ne)
RM710 RM715	1 (#8-32)	N/A	N/A	N/A	N/A
RM720 thru RM735	1 (#8-32)	6S	5S	N/A	N/A
TAM/20 tha TAM/00	1 (#0 02)			14// (	14// (
	Small PostMour	nt Pulls (RM120	0 series)
RM1200 RM1240	1 (#8-32)	N/A	N/A	N/A	N/A
RM1210 thru RM1270	1 (#8-32)	6S	5S	N/A	N/A
	( )
Sma	II PostMount Gri	pZone Pulls (Ri	M1300 series)
RM1300 RM1340	1 (#8-32)	N/A	N/A	N/A	N/A
RM1310 thru RM1370	1 (#8-32)	6S	5S	N/A	N/A

	rMet Small PostN
RM1410 thru RM1470	1(#8-32)	6S	5S	N/A	N/A
	11 10 "		111200
	orMet Small Post			N1/A	N1/A
RM1510 thru RM1570	1(#8-32)	6S	5S	N/A	N/A
lho	rMet Small PostN	Mount Pulle (PM	11600 series)
RM1610 thru RM1670	1(#8-32)	6S	5S	N/A	N/A
TAW TO TO LITTLE TAW TO TO	1(π0-02)	00	1 50	1 1 1 / / \	\| IN//\[\]
	MegaCurve F	Pulls (RM2000 s	eries)
RM2000 thru RM2034	\| 1HD & 12HD \|	6HD & 8HD	5HD	15HD	13HD
	•

	Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
		MezzoTek Pulls (RM2100 series)
RM2110 RM2112	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2122	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2130 RM2132	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2140 RM2142	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2150	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

BandWidth Pulls (RM2200 series)
RM2200 RM2202 RM2204 RM2206	1 & 12	6 & 8	5	15	13
RM2210 RM2212	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2216	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2230 RM2234	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2240 RM2244	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		OvalTek Pulls (RM2300 series)
RM2300 RM2302	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2310 RM2312	1HD	6HD & 8HD	5HD	15HD (rd.pst)	13HD
RM2320 RM2330	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

OvalTek Flat Oval Pulls (RM2400 series)
RM2400 RM2402	1 & 12	6 & 8	5	15	13
RM2410	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2420	1HD	6HD & 8HD	5HD	15HD (rd.pst)	13HD

		SoftMet Pulls (RM2500 series)
RM2510 RM2512 RM2514	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2516	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2540 RM2544	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		SoftTek Pulls (RM2600 series)
RM2610 RM2612	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM2640	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
		IberMet Pulls (RM2700 series)
RM2710 thru RM2744 (N&R)	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		NeoMetrix Pulls (RM3000 series)
RM3010 RM3012	1 & 12	6 & 8	5	15	13
RM3020 RM3022	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
RM3030 RM3032	1XHD & 12XHD	6HD & 8HD	11	15XHD	14
RM3040	1 & 12	17	16	15	18

RM3050 RM3060 1XHD & 12XHD 6HD & 8HD 11 15XHD 14


		Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
		PostMount Pulls (RM3100 series)
RM3100 RM3101 RM3102	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3104 RM3106	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3110 RM3112 RM3114 RM3116	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3120 RM3122 RM3124 RM3126	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3130 RM3131 RM3134	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3140 RM3144	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3150 RM3154	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		NeoTek Pulls (RM3200 series)
RM3200 RM3202 RM3204 RM3206	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD (*bs.plts.)
RM3210 RM3212 RM3214 RM3216	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3220 RM3222 RM3224 RM3226	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3230 RM3234	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3240 RM3244	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3250 RM3254	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

MegaTek Pulls (RM3300 series)
RM3300 thru RM3332	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3340	1 & 12	6 & 8	5	15	13
RM3341 RM3342	1HD & 12HD	6HD & 8HD	11	15HD	14

		NeoMax Pulls (RM3400 series)
RM3400 thru RM3432	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3440	1 & 12	6 & 8	5	15	13
RM3441 RM3442	1HD & 12HD	6HD & 8HD	11	15HD	14

		LineaMet Pulls (RM3500 series)
RM3510 RM3512 RM3514 RM3516	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3520 RM3522 RM3524 RM3526	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3540 RM3544	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3550 RM3554	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		LineaTek Pulls (RM3600 series)
RM3610 RM3612 RM3614 RM3616	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3620 RM3622 RM3624 RM3626	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3640 RM3644	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3650 RM3654	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		LineaMax Pulls (RM3700 series)
RM3701 thru RM3732	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

RM3741 RM3742 1XHD & 12XHD 6HD & 8HD 11 15XHD 14 RM3751 thru RM3782 1HD & 12HD 6HD & 8HD 5HD 15HD 13HD


		Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
		NoirMet Pulls (RM3800 series)
RM3800 RM3802 RM3804 RM3806	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3810 RM3812 RM3814 RM3816	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3820 RM3822 RM3824 RM3826	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3830 RM3834	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3840 RM3844	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3850 RM3854	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		NoirTek Pulls (RM3900 series)
RM3900 RM3902 RM3904 RM3906	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3910 RM3912 RM3914 RM3916	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3920 RM3922 RM3924 RM3926	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3930 RM3934	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3940 RM3944	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM3950 & RM3954	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
		ArborMet Pulls (RM4000 series)
RM4000 RM4002 RM4004 RM4006	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4010 RM4012 RM4014 RM4016	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4020 RM4022 RM4024 RM4026	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4030 RM4034	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4040 RM4044	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4050 RMRM4054	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4060 RM4062 RM4064	1	6 & 8	5	N/A	13 (*bs.plts.)
RM4066 RM4068	1	6 & 8	5	N/A	13 (*bs.plts.)

		ArborTek Pulls (RM4100 series)
RM4100 RM4104	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4110 RM4112 RM4114 RM4116	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4120 RM4122 RM4124 RM4126	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4130 RM4134 RM4140 RM4144	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4150 RM4154	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4160	1 & 12	6 & 8	5	15	13
RM4170 RM4180 RM4190	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

RM4200 RM4210	1HD & 12HD	SkewTek Pulls (RM4200 series) 6HD & 8HD	5HD	15HD	13HD
RM4270 RM4272 RM4274	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		CenTek Pulls (RM4300 series)
RM4300 THRU RM4305	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

	CenTrex 1" Radius Pulls (RM4400 series)
RM4400 RM4402 RM4410 RM4412	1 & 12 1 & 12	6 & 8 6 & 8	5 5	15 N/A	13 N/A

RM4420 RM4422	1HD & 12HD	17HD	16HD	15HD	18HD
RM4440 RM4450	1 & 12	6 & 8	5	15	13

	Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
CenTrex Large Radius Pulls (RM4500 series)
RM4500 RM4502 RM4506	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4510 RM4512 RM4516	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM4550 RM4552	1HD	6HD & 8HD	5HD	N/A	13HD

AccenTek Pulls (RM4700 series)
RM4700	1	6	5	N/A	13
RM4720	1	6	5	N/A	13
RM4750 RM4755	1HD & 12HD	6HD	5HD	15HD	13HD (*bs.plts.)
† RM4800 RM4820	TB	N/A	BTB	N/A	N/A

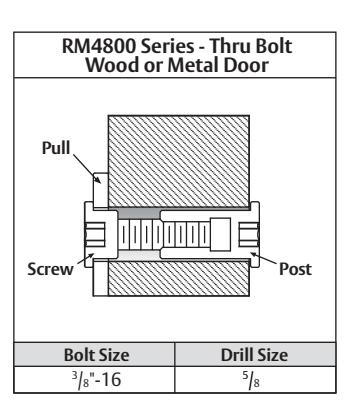

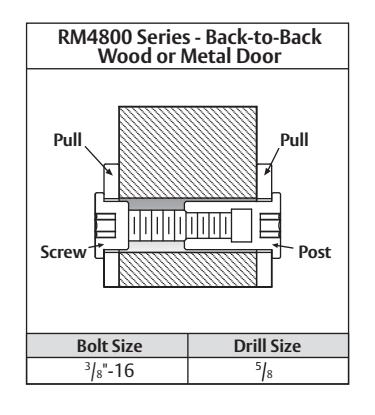

†	See image of mounting below "RM4800 Mounting Only" (page 8)

SculpTrex Pulls (RM5000 series)
RM5000 RM5002 RM5010	1 & 12	17	16	15	18
RM5012 RM5020	1 & 12	17	16	15	18
RM5030 RM5032 RM5040 RM5042	1 & 12	17 X 1 ST SC	16 X 1 ST SC	15	18 X 1 ST SC
RM5050	1 & 12	17	16	15	18

InfiniTrix Pulls (RM5100 series)
RM5100 RM5110 RM5112	1HD & 12HD	6HD & 8HD	5HD	N/A	13HD

PlanTek Pulls (RM5200 series)
RM5200 RM5202 RM5204	1	6 & 8	5	N/A	13 (*bs.plts.)
RM5210 RM5212	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM5220 RM5222	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM5230 RM5232	1	6 & 8	5	N/A	13 (*bs.plts.)
RM5240 RM5242	1HD	6HD & 8HD	5HD	N/A	13HD (*bs.plts.)
RM5250	1	6 & 8	5	N/A	13 (*bs.plts.)
RM5260	1HD	6HD & 8HD	5HD	N/A	13HD (*bs.plts.)
RM5270	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD (*bs.plts.)
RM5280	1(#8-32)	N/A	5S	N/A	N/A

Traditional Pulls (RM5500 series)
RM5500 RM5510	1 & 12	N/A	N/A	N/A	N/A
RM5502 RM5512	1	N/A	N/A	N/A	N/A
RM5520 RM5522	1	6 & 8	5	N/A	N/A
RM5530 RM5532 RM5534	1	N/A	N/A	N/A	N/A

Classic Pulls (RM5600 series)
RM5600 THRU RM5664	1	6 & 8	5	15	13
RM5670	1HD	6HD & 8HD	5HD	15HD	13HD

MariTek Series (RM5700 Series)
RM5700 RM5702	1 & 12	6 & 8	5	15	13

		Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
	English Bridle Leather Pulls (RM5600 series)
RM6000 RM6004	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6010 RM6014 RM6020 RM6024	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6030 RM6034 RM6040 RM6044	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6050 RM6054	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6060 RM6061 RM6062	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6070 RM6071 RM6072	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6080 RM6081 RM6082	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6090 RM6091 RM6092	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

	Upholstery Leather Pulls (RM6100 series)
RM6100 RM6104	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6110 RM6114 RM6120 RM6124	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6130 RM6134	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6140 RM6144	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6150 RM6154	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6160 RM6161 RM6162	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6170 RM6171 RM6172	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6180 RM6181 RM6182	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6190 RM6191 RM6192	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		Leather Oval Pulls (RM6200 series)
RM6200	1	6 & 8	5	N/A	13
RM6220	1 & 12	6 & 8	5	15	13
RM6230	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6240	1HD	6HD & 8HD	5HD	15HD (rd.pst)	13HD

	Flush Leather Wrap Pulls (RM6300 series)
RM6300 RM6304	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6310 RM6314 RM6320 RM6324	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6330 RM6334 RM6340 RM6344	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM6350 RM6354	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD

		Leather Rect Pulls (RM6400 series)
RM6400 RM6410 RM6420	1	6 & 8	5	N/A	13 (*bs.plts.)
RM6430 RM6440	1	6 & 8	5	N/A	13 (*bs.plts.)

	Small Leather Wrap Pulls (RM6500 series)
RM6500	1 (#8-32)	N/A	N/A	N/A	N/A
RM6510 RM6530	1 (#8-32)	6S	5S	N/A	N/A
RM6540	1 (#8-32)	N/A	N/A	N/A	N/A
RM6550 RM6570	1 (#8-32)	6S	5S	N/A	N/A

RM6610 RM6630 RM6650 RM6670 1 (#8-32) 6S 5S N/A N/A

RM6700 1 (#8-32) N/A N/A N/A N/A RM6710 RM6730 1 (#8-32) 6S 5S N/A N/A

	Metal/Wood Doors			Glass Doors
Product No.	Thru Bolt	Cncld. Or Sfc.	Back to Back	Thru Bolt	Back to Back
NeoCylinder Pulls (RM7200 series)
RM7210 RM7212 RM7220	1HD & 12HD	6HD & 8HD	5HD	N/A	13HD (*bs.plts.)
RM7230 RM7232 RM7240	1HD & 12HD	6HD & 8HD	5HD	N/A	13HD (*bs.plts.)

NeoMitre Pulls (RM7300 series)
RM7300 RM7302 RM7310 RM7312	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM7320 RM7322	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM7330 RM7340 RM7350	1HD & 12HD	6HD & 8HD	5HD	N/A	13HD
RM7400 RM7402 RM7410	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM7412 RM7420 RM7422	1HD & 12HD	6HD & 8HD	5HD	15HD	13HD
RM7430 RM7440 RM7450	1HD	6HD & 8HD	5HD	N/A	13HD

GeoMetek Pulls (RM7700-RM7900 Series)
RM7700	1 & 12	6 & 8	5	N/A	13 (*bs.plts.)
RM7800 RM7805 RM7810 RM7815	1 & 12	6 & 8	5	N/A	13 (*bs.plts.)
RM7900 RM7902 RM7910 RM7912	1 & 12	6 & 8	5	N/A	13 (*bs.plts.)
RM7907 RM7917 RM7927 RM7937	1HD & 12HD	6HD & 8HD	5HD	N/A	13HD (*bs.plts.)
RM7920 RM7925 RM7930 RM7935	1 & 12	6 & 8	5	N/A	13 (*bs.plts.)
RM7940	1HD & 12HD	6HD & 8HD	5HD	N/A	13HD (*bs.plts.)
RM7960	1 & 12	6 & 8	5	N/A	13 (*bs.plts.)

^* bs. plts. (base plates) are glass mounting plates, similar to a washer and the same cross section of the post. (They are not the Y-Plates used on wood or metal doors.)
