Rockwood OH900 Series Surface Mounted Door Stops and Holders

The global leader in door opening solutions

NOT TO SCALE

Effective date: |anuary 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

INSTALLATION INSTRUCTIONS

  • 1. Select and determine degree of hold open or dead stop from chart on opposite side of page.
  • 2. Locate "A" and "B" dimensions on door and frame.

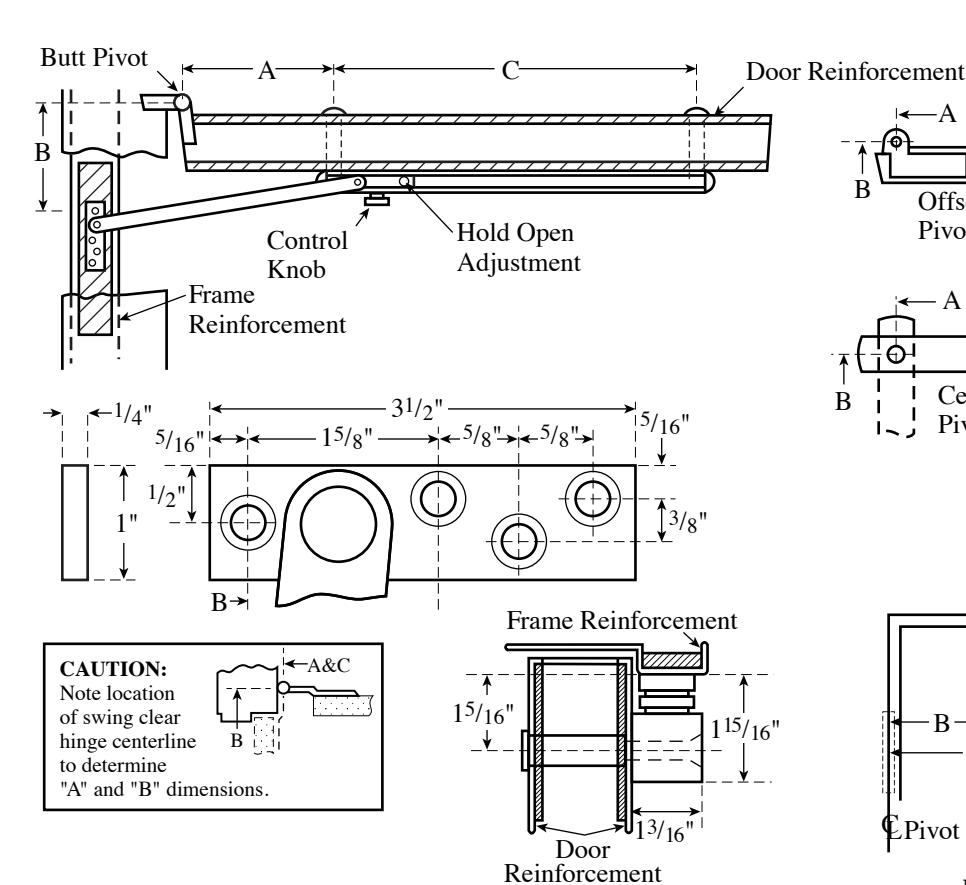

  • 3. Install jamb bracket on stop strip as shown.

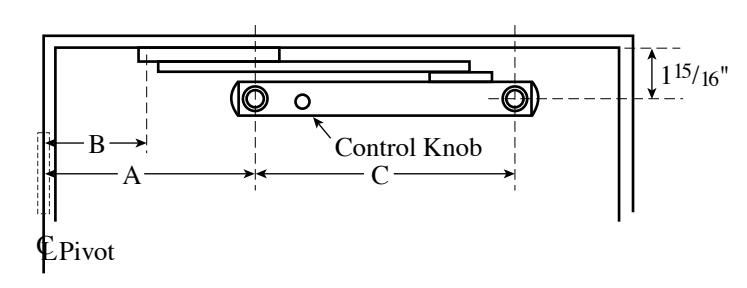

  • 4. Position channel on door with shock end located towards pivot. Drill \frac{1}{2} " dia. sex bolt hole, "A" dimension, \frac{15}{16} " down from stop strip as shown.
  • 5. Install channel on door with "A" dimension sex bolt. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with stop strip. Drill 1/2" dia. sex bolt hole and finish installing holder. Install control knob on channel as shown.

  • All hollow metal frames should be properly reinforced with <sup>3</sup>/<sub>16</sub>" min. thickness x 12" min. length reinforcement plates.
  • All hollow metal doors should be properly reinforced with 2^{1}/2^{"} wide x 3/16^{"} min. thick x full width of door reinforcement plates.
  • All drilling and tapping to be done in field.
  • Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
  • Left hand shown right hand opposite. (Note hole pattern in jamb bracket).

Offset

Pivot

Center Hung

Jamb: #1/4-20 x 3/4" Flat Head Machine Screws or #14 x 1<sup>1</sup>/<sub>2</sub>" Flat Head Wood Screws (Four Places) Door: 5/16"-18 x 2" Flat Head Machine Screws and Ø 1/2" Sex Bolt (Two Places)

Page 10f2

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience

Rockwood OH900 Series Surface Mounted Door Stops and Holders (cont.)

  • 1. See other side for installation instructions.
  • 2. Select proper dimensions noted below.
  • 3. All drilling and tapping to be done in field.
  • 4. All dimensions given in inches.

Reversible, non-handed.

H.O. = Hold Open D.S. = Dead Stop

Device
Number 		Degree 85° 90° 95° 100° 105° 110°
Degree H.O. D.S. H.O. D.S. H.O. D.S. H.O. D.S. H.O. D. S. . Н.О. D.S
13/4 - 21/4 H.O. Stop Door Opening Α В A В A В A В A В A В A В A В A В A В A В A В С
Butts
& 		901H 901S 24 - 28 41/4 43/4 47/8 43/4 37/8 43/8 41/2 43/8 39/16 41/16 43/16 41/16 35/16 313/16 315/16 313/16 - - - - - - - - 1515/16
³/ 4 Offset 902H 902S 281/16 - 33 61/8 57/8 63/4 57/8 511/16 5 7 / 16 65/16 57/16 53/8 51/8 6 51/8 51/16 413/16 511/16 413/16 43/4 41/2 53/8 41/2 49/16 45/16 5^3/_{16} 45/16 173/16
Pivot 903H 903S 331/16 - 38 93/4 71/4 103/8 71/4 91/4 63/4 97/8 63/4 813/16 65/16 97/16 65/16 87/16 515/16 91/16 515/16 81/8 55/8 83/4 55/8 77/8 53/8 8-1/2 53/8 1811/16
904H 904S 381/16 - 43 1211/16 91/8 135/16 91/8 121/8 81/2 123/4 81/2 115/8 8 121/4 8 11^{3}/_{16} 79/16 1113/16 79/16 1013/16 73/16 117/16 7^{3}/_{16} 101/2 67/8 111/8 67/8 2013/16
905H 905S 431/16 - 48 161/4 103/8 167/8 103/8 155/8 93/4 161/4 93/4 15 91/8 155/8 91/8 141/2 85/8 151/8 85/8 141/16 83/16 1411/16 83/16 1311/16 713/16 145/16 713/16 225/16

NOTE: A, B, and C dimensions measured from centerline of pivot, not edge of door.

Device
Number 		Degree 85° 90° 95° 100° 105° 110°
Degree H.O. D.S. H.O. D.S. H.O. D.S. H.O. D.S. H.O. D.S. H.O. D.S.
H.O. Stop Door Opening A В A В A В A В A В A В A В A В A В A В A В A В С
1^{3}/_{4} - 2^{1}/_{4} Center 901H 901S 251/2 - 30 51/16 59/16 511/16 59/16 43/4 51/4 53/8 51/4 47/16 415/16 51/16 415/16 43/16 411/16 413/16 411/16 315/16 47/16 49/16 47/16 311/16 43/16 45/16 43/16 1515/16
Hung 902H 902S 301/16 - 36 67/8 61/2 71/2 61/2 61/2 61/8 71/8 61/8 61/8 53/4 63/4 53/4 513/16 57/16 67/16 57/16 59/16 53/16 63/16 53/16 55/16 415/16 515/16 415/16 173/16
903H 903S 361/16 - 41 101/2 8 111/8 8 10 71/2 105/8 71/2 99/16 71/16 103/16 71/16 93/16 611/16 913/16 611/16 87/8 63/8 91/2 63/8 89/16 61/16 93/16 61/16 1811/16
904H 904S 411/16 - 46 133/8 93/4 14 93/4 1213/16 93/16 137/16 93/16 125/16 811/16 1215/16 811/16 1113/16 83/16 127/16 83/16 117/16 7^{13}/_{16} 121/16 713/16 111/8 71/2 113/4 71/2 2013/16
905H 905S 461/16 - 50 171/16 113/16 1711/16 113/16 163/8 101/2 17 101/2 153/4 97/8 163/8 97/8 151/4 93/8 157/8 93/8 143/4 87/8 153/8 87/8 143/8 81/2 15 81/2 225/16
