Rockwood OH200 Series Concealed Door Stops and Holders

The global leader in door opening solutions

NOT TO SCALE

INSTALLATION INSTRUCTIONS

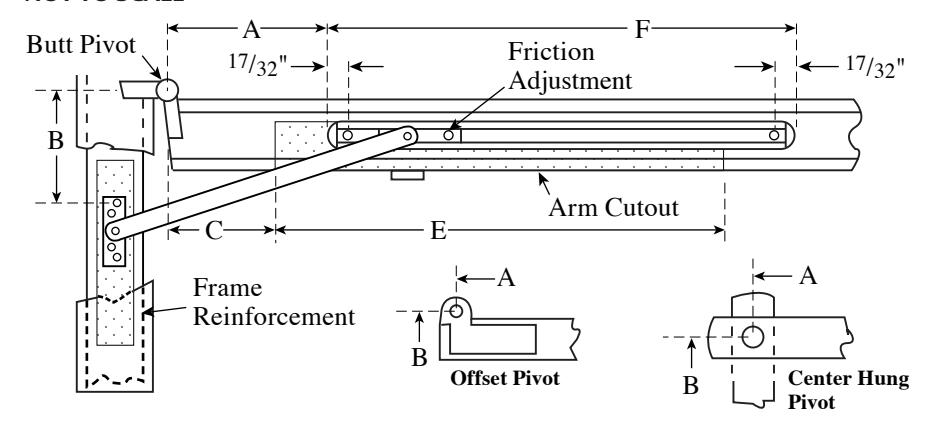

  • 1. Select proper dimensions from chart on opposite side of page. NOTE : Add <sup>5</sup>/<sub>8</sub>" to "A" dimension for dead stop.

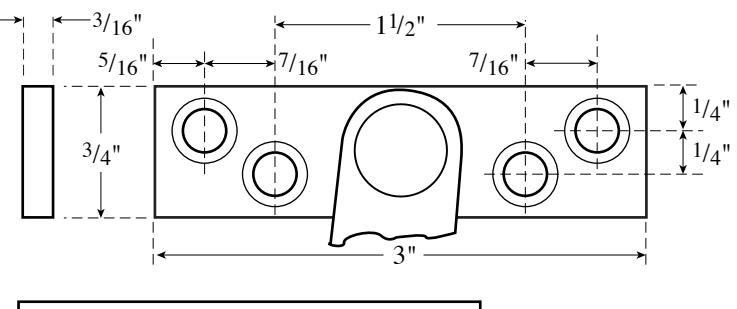

  • 2. Locate "B" dimension on frame and mortise ^3/_{16} " deep for jamb bracket as shown.
  • 3. Locate "A" and "F" dimensions on centerline of door and mortise <sup>13</sup>/<sub>16</sub>" wide x <sup>7</sup>/<sub>8</sub>" deep for channel. <sup>1</sup>/<sub>16</sub>" head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
  • 4. Locate "C" and "E" dimensions on top of door and mortise 1/4" deep as shown for arm clearance.
  • 5. Install door stop or holder with screws provided.

Template T-OH200

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

Frame Frame Reinforcement Reinforcement Arm Arm Cutout Cutout Both One Sides Side Hollow Metal Reinforcement DOUBLE ACTING SINGLE ACTING DOOR DOOR

FASTENERS NOTE:

Jamb: #12-24 x <sup>1</sup>/<sub>2</sub>" Flat Head Machine Screws or #12 x 1<sup>1</sup>/<sub>2</sub>" Flat Head Wood Screws Door: #12-24 x 1<sup>1</sup>/<sub>2</sub>" Flat Head Machine Screws

or #12 x 11/2" Flat Head Wood Screws

NOTES:

  • •All hollow metal frames are to be provided with 3/16" min. thickness x 12" min. length reinforcement plates.
  • •All hollow metal doors are to be properly reinforced as shown.
  • •Adjustments are necessary if dead stop is required.

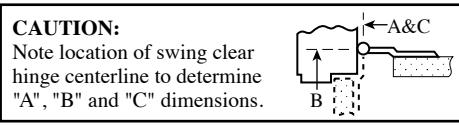

  • \bullet A, B, and C dimensions are measured from center line of pivot, not edge of door.
  • •Reversible, non-handed.

Page 1 0f 2

300 Main Street Rockwood, Pennsylvania 15557 P: 800.458.2424 | F: 800.922.9212

www.rockwoodmfg.com | orders.rockwood@assaabloy.com

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience

Rockwood OH200 Series Concealed Door Stops and Holders (cont.)

When using center hung pivots, check pivot manufacturer's compatibility prior to specifying.

  • 1. See other side for installation instructions.
  • 2. Select proper dimensions noted below.
  • 3. Add <sup>5</sup>/<sub>8</sub>" to "A" dimension for dead stop.
  • 4. All dimensions given in inches.

1 3 / 4 - 2 3 / 4 Butts & 3/ 4 Offset Pivot Device Number
Stop Multi Door Opening A В С E F
201S 201M *18 - 24 13/16 311/16 0 155/16 157/8
202S 202M 241/16 - 30 4 43/8 29/16 169/16 171/16
203S 203M 301/16 - 36 6^{3}/_{4} 59/16 411/16 19 1813/16
204S 204M 361/16 - 42 97/8 71/4 63/8 23 211/4
205S 205M 421/16 - 48 1313/16 81/2 75/8 271/2 231/16
Center
Hung 		Device Number
Stop Multi Door Opening A В C Е F
- - - - - - - -
202S 202M 27 - 32 57/16 61/8 51/4 155/8 171/16
203S 203M 321/16 - 381/2 73/16 6 59/32 19 1813/16
204S 204M 389/16 - 45 105/16 711/16 613/16 23 211/4
205S 205M 451/16 - 48 141/4 815/16 81/16 271/2 231/16

TO SELECT DEGREE OF STOP

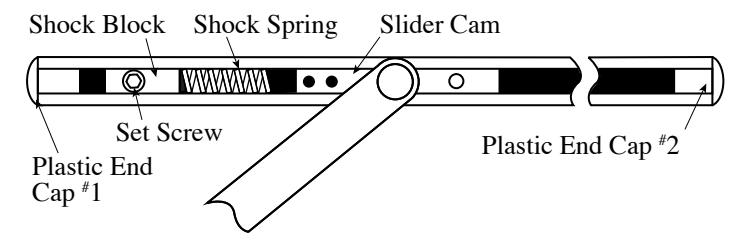

  • 1. With a ^3/_{16} hex key wrench, loosen the set screw in the shock block.
  • 2. Open door to desired degree of opening.
  • 3. Slide shock block and spring until the spring touches slider cam.
  • 4. Tighten set screw.
  • 5. Verify door opening position and re-adjust, as needed.

Page 2 of 2

* Butt mounting only. Reversible, non-handed.
