Rockwood OH100 Series Concealed Door Stops and Holders

The global leader in door opening solutions

Effective date: |anuary 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves

changes and is not responsible

for obsolete template errors.

template is current, please visit our website at

www.rockwoodmfg.com or call us at 800-458-2424

the right to make product

To ensure your

NOT TO SCALE

INSTALLATION INSTRUCTIONS

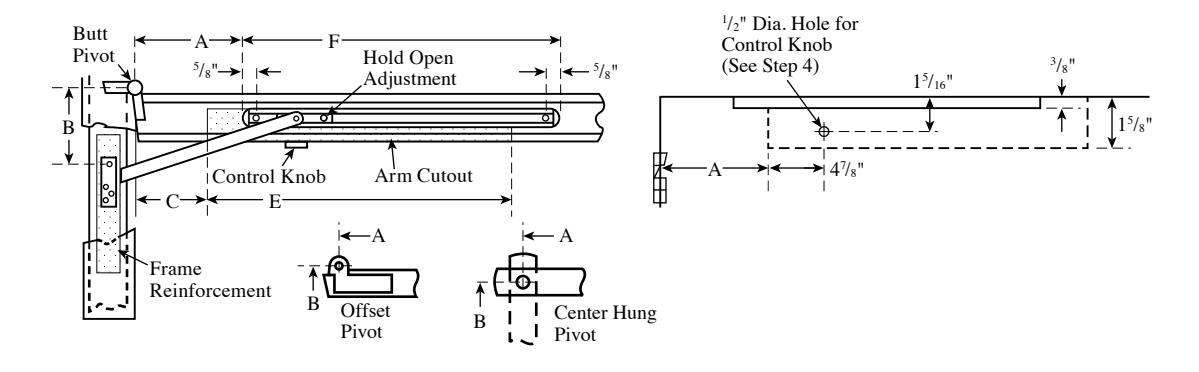

1. Determine degree of hold open or dead stop dimension for dead stop.

required. Then select proper dimensions from chart on opposite side of page. Add <sup>5</sup>/<sub>8</sub>" to "A"

NOTE:

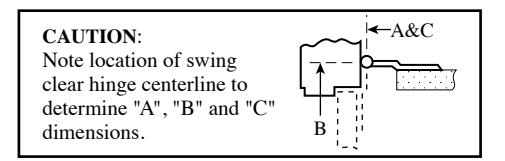

A, B, and C dimensions are measured from hinge center, not edge of door.

  • 2. Locate "B" dimension on frame and mortise 1/4" deep for jamb bracket as shown.
  • 3. Locate "A" and "F" dimensions on centerline of door and mortise 15/8" deep for channel. <sup>1</sup>/<sub>16</sub>" head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
  • 4. Drill 1/2" diameter control knob hole for door holders only.
  • 5. Locate "C" and "E" dimensions on top of door and mortise <sup>3</sup>/<sub>8</sub>" deep as shown for arm cutout.
  • 6. Install door stop or holder with screws provided. Install control knob last.

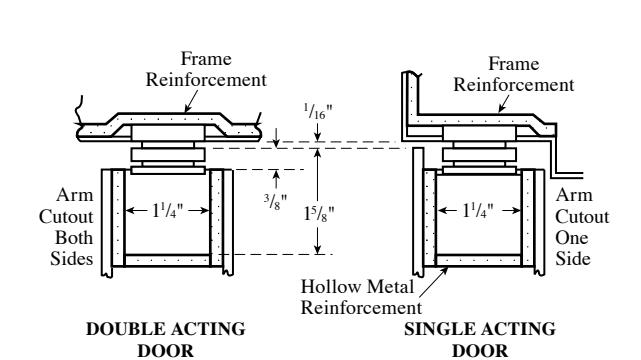

  • All hollow metal frames are to be provided with ^{3}/_{16} " min. thickness x 12" min. length reinforcement plates.
  • All hollow metal doors are to be properly reinforced as shown.
  • If dead stop is required add <sup>5</sup>/<sub>8</sub>" to "A" dimension as noted on opposite side of page.
  • A, B and C dimensions are measured from centerline of pivot, not edge of door.
  • · Left hand shown, right hand opposite.

FASTENERS:

Jamb: \frac{1}{4} "-20 x \frac{3}{4} " flat head machine screw or #14 x \frac{1}{2} " flat head wood screw. Door: \frac{5}{16} "-18 x \frac{1}{2} " flat head machine screw or #18 x 3" flat head wood screw.

Page 10f2

300 Main Street Rockwood, Pennsylvania 15557 P: 800.458.2424 | F: 800.922.9212 www.rockwoodmfg.com | orders.rockwood@assaabloy.com

Rockwood OH100 Series Concealed Door Stops and Holders (cont.)

When using center hung pivots, check pivot manufacturer's compatibility prior to specifying.

No. 1 Series Concealed Door Stops and Holders

  • 1. See other side for installation instructions.
  • 2. Select proper dimensions noted below.
  • 3. Add 5 /8" to "A" dimension for dead stop.
  • 4. All dimensions given in inches.

Device Number Degree 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
H.O. Stop Door
Opening 		A B C E A B C E A B C E A B C E A B C E A B C E F
13/4 - 21/4
Butts 		101H 101S 24 - 28 47/16 51/2 43/4 117/8 4 1/8 53/16 41/2 131/4 *
313/16 		*
47/8 		*
3 		*
147/16 		*
31/2 		*
49/16 		*
11/2 		*
155/8 		*
31/4 		*
45/16 		*
0 		*
167/8 		*
31/16 		*
41/8 		*
0 		*
165/8 		173/16
&
3/4 Offset
Pivot 		102H 102S 281/16 - 33 63/16 69/16 6 153/4 5 13/16 63/16 51/2 157/8 57/16 513/16 41/2 161/2 *
51/8 		*
51/2 		*
31/2 		*
173/16 		*
47/8 		*
51/4 		*
21/4 		*
183/16 		*
45/8 		*
5 		*
1 		*
191/8 		187/16
103H 103S 331/16 - 38 93/4 77/8 73/4 191/16 9 5/16 77/16 71/4 191/8 87/8 7 63/4 191/8 87/16 6 9/16 61/4 191/4 81/8 61/4 51/2 195/8 77/8 6 41/4 205/8 1915/16
104H 104S 381/16 - 43 1211/16 911/16 91/2 223/8 12 3/16 93/16 9 223/8 1111/16 811/16 81/2 223/8 113/16 83/16 8 223/8 103/4 73/4 71/2 223/8 107/16 77/16 71/4 223/8 221/16
105H 105S 431/16 - 48 165/16 111/16 103/4 261/4 15 11/16 107/16 101/4 261/4 151/16 913/16 91/2 261/4 149/16 95/16 9 261/4 141/8 87/8 83/4 261/4 133/4 81/2 81/4 261/4 239/16

NOTE:

A, B, and C dimensions measured from centerline of pivot, not edge of door.

13/4 - 21/4
Center
Hung 		Device
Number 		Degree 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
H.O. Stop Door
Opening 		A B C E A B C E A B C E A B C E A B C E A B C E F
- - - - - - - - - - - - - - - - - - - - - - - - - - - -
102H 102S 30-36 65/8 7 63/4 153/8 61/4 65/8 63/8 153/8 57/8 61/4 6 153/8 59/16 515/16 53/4 153/8 55/16 511/16 51/2 153/8 - - - 191/8 187/16
103H 103S 361/16 - 41 103/8 81/2 81/4 191/8 97/8 8 73/4 191/8 97/16 79/16 73/8 191/8 91/16 73/16 7 191/8 811/16 613/16 61/2 191/8 83/8 61/2 61/4 191/8 1915/16
104H 104S 411/16 - 46 131/4 101/4 10 223/8 125/8 95/8 93/8 223/8 121/8 91/8 9 223/8 115/8 85/8 81/2 223/8 111/4 81/4 8 223/8 107/8 77/8 73/4 223/8 221/16
105H 105S 461/16 - 50 17 113/4 111/2 261/8 161/4 11 103/4 261/8 159/16 105/16 10 261/8 151/16 913/16 91/2 261/8 145/8 93/8 9 261/8 143/16 815/16 83/4 261/8 239/16

* Butt mounting only. Reversible, non-handed.
