Architectural Door Accessories

Rockwood Locking Pull System

l o c k i n g p u l l s y s t e m

s i m p l e , d u r a b l e , b e a u t i f u l d e s i g n f o r s w i n g i n g a n d s l i d i n g d o o r s

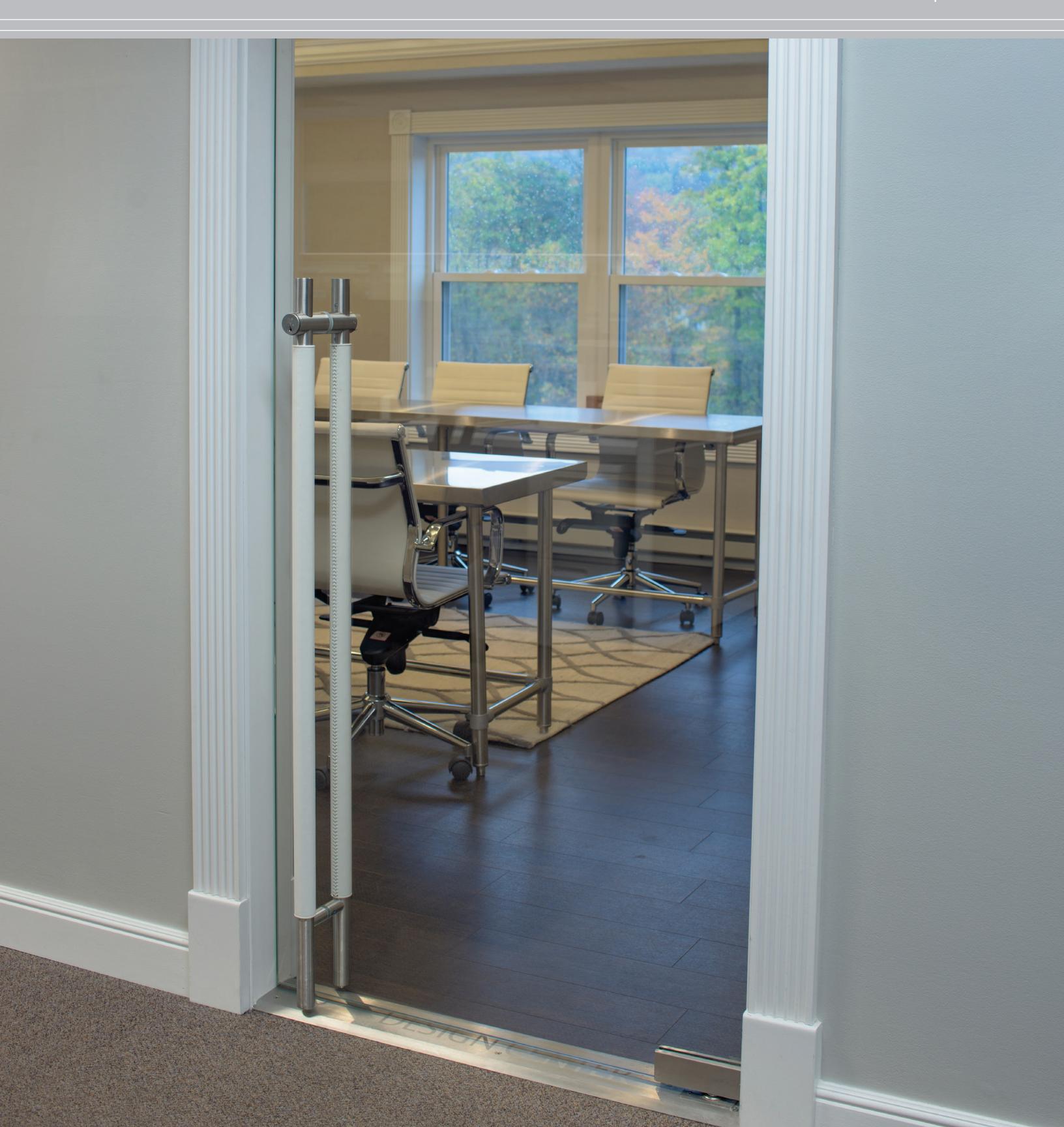

The Rockwood Locking Pull System integrates a contemporary Post Mount or GeoMetek style door pull with deadbolt locking. Engineered for smooth operation, the locking pull is manufactured to ensure strength and durability with clean appealing lines.

Features

  • Key operated from outside; turn piece on inside
  • Cylinder options: Yale® 1109 rim cylinder, Yale K680 SFIC housing, dummy or less cylinder
  • Door types: 3/8" 7/8" thick glass, 13/8" 21/2" thick aluminum, hollow metal or wood doors
  • Multiple locking options: floor, head or both
  • Bolt location: 2" from face of door to centerline of bolt
  • Bolt has 13/16" travel with fine adjustment
  • Horizontal push/pull bar option
  • Designed to Suite with Rockwood architectural door pulls and accessories
  • Dummy versions available

Benefits

  • Cylinder and thumbturn location eliminates physical strain when locking and unlocking
  • Glass door applications secure the opening and allow for more natural light
  • Bolt concealed inside pull provides a clean, streamlined look
  • Simple door preparation allows for faster installation
  • Suites with popular Rockwood door pulls, CORBIN RUSSWIN and SARGENT lever handles, McKinney hinges, creating a continuum of design
  • Offers flexibility in custom sizes for a variety of applications

a e s t h e t i c o p t i o n s

LP3301 Series

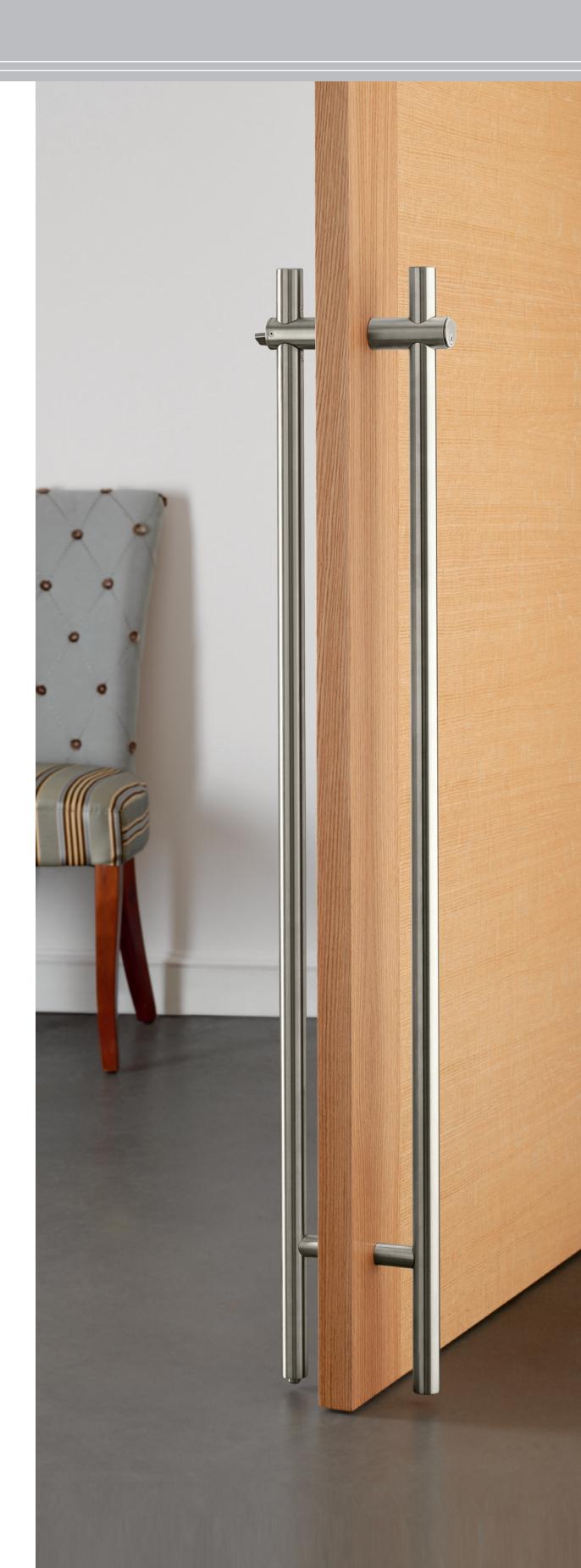

PostMount - This basic post mounted pull is a clean and simple design. The simplicity adds contemporary beauty to standard entrance doors.

LP3401 Series

GripZone - This beautiful bright and brushed two-tone finish provides a "wear" area for gripping the pull. This minimizes the appearance of small scratches caused by rings and keys.

LP6061 Series

English Bridle Leather Wrapped - Authentic J & E Sedgwick & Co. Ltd. bridle leather imported from Walsall, England is hand sewn by a talented craftsman. Typically used for saddles and equestrian products, this smooth durable leather is suitable for both interior and exterior applications.

LP6161 Series

Upholstery Leather Wrapped - Supple yet durable leather makes a discriminating statement. Paired with the PostMount Locking Pull, this glove soft leather will add a level of sophistication to your interior.

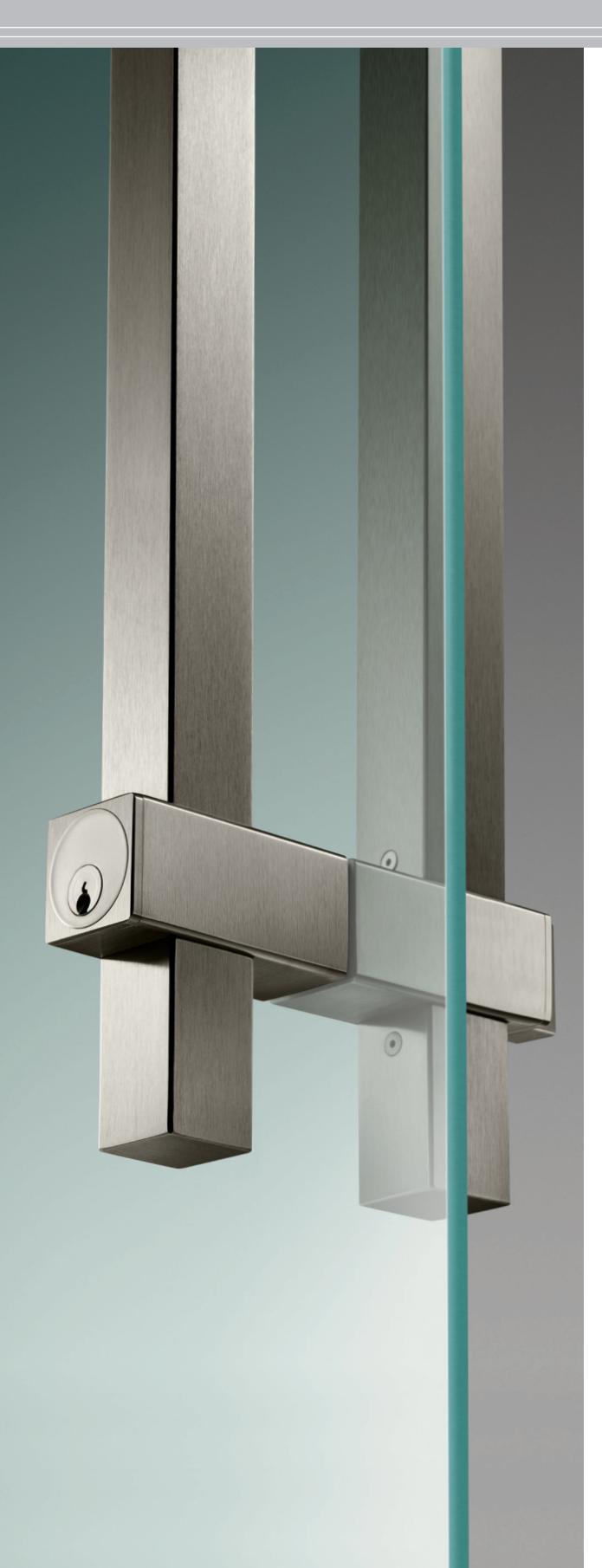

GeoMetek

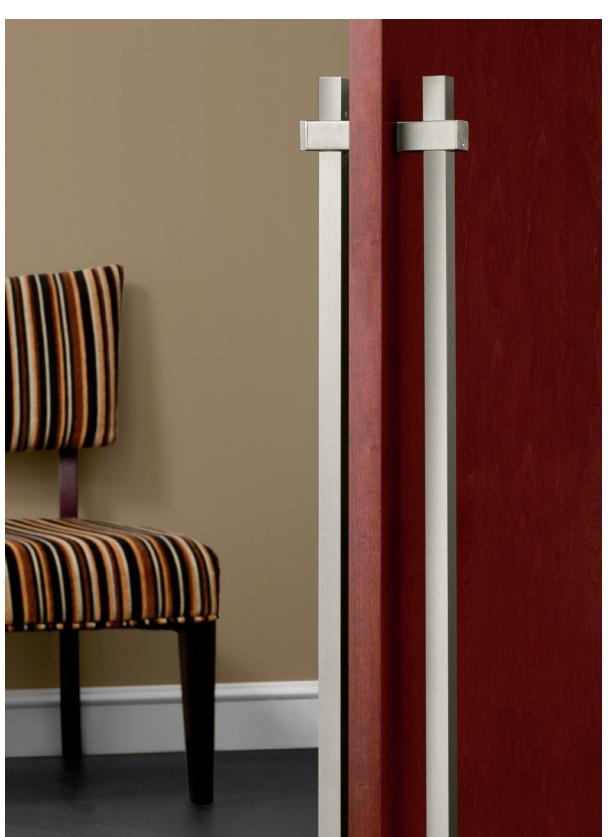

LP7901 Series

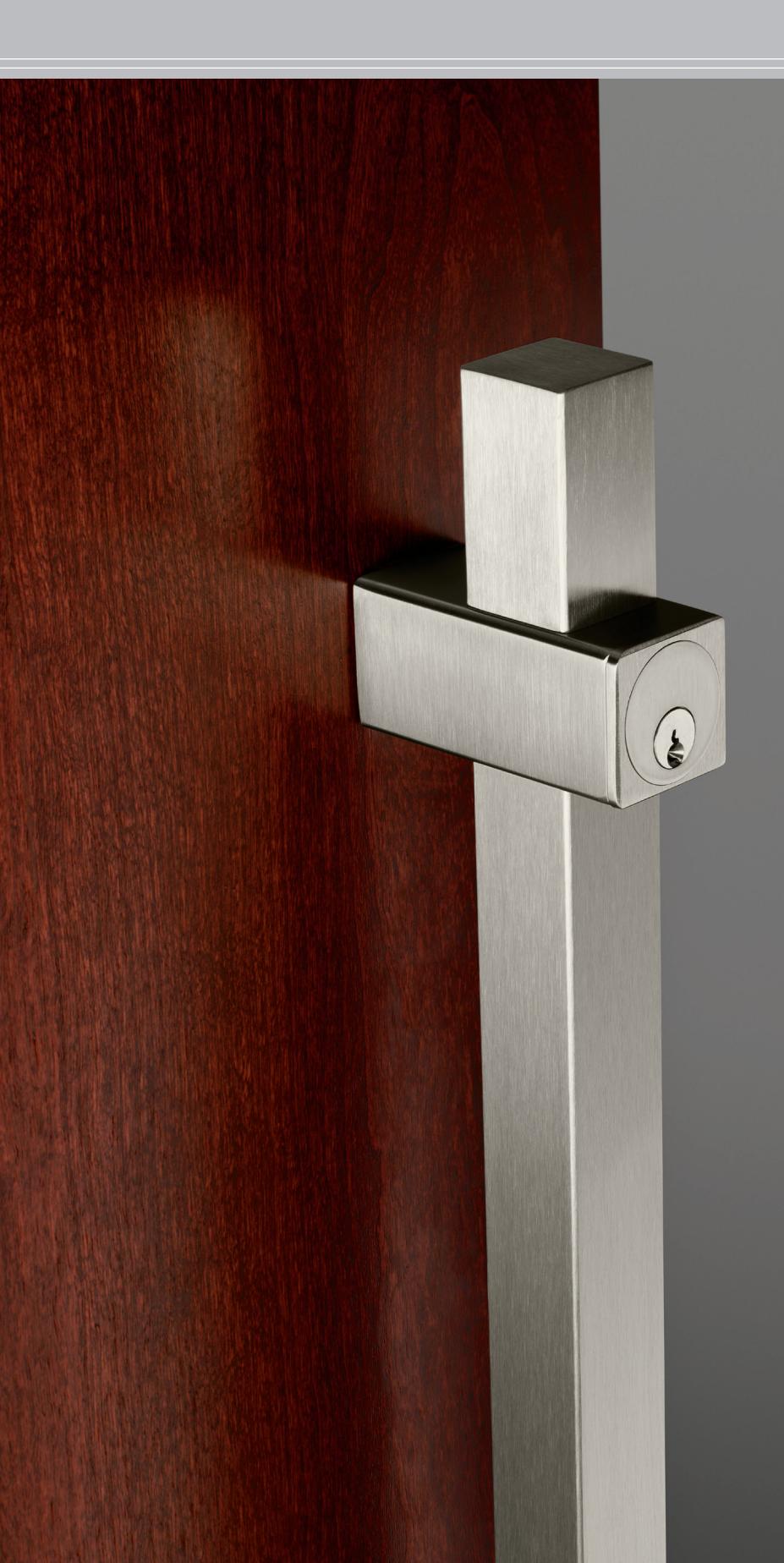

GeoMetek - This series offers a streamlined profile and crisp lines. The square pull complements the shape of the opening creating symmetrically balanced design.

LP6440 Series

Upholstery Leather Wrapped - Beautifully crafted, the GeoMetek and Upholstery Leather combination produces an elegant composition. The leather is tightly wrapped and neatly sewn on the back and is offered in a plethora of custom colors.

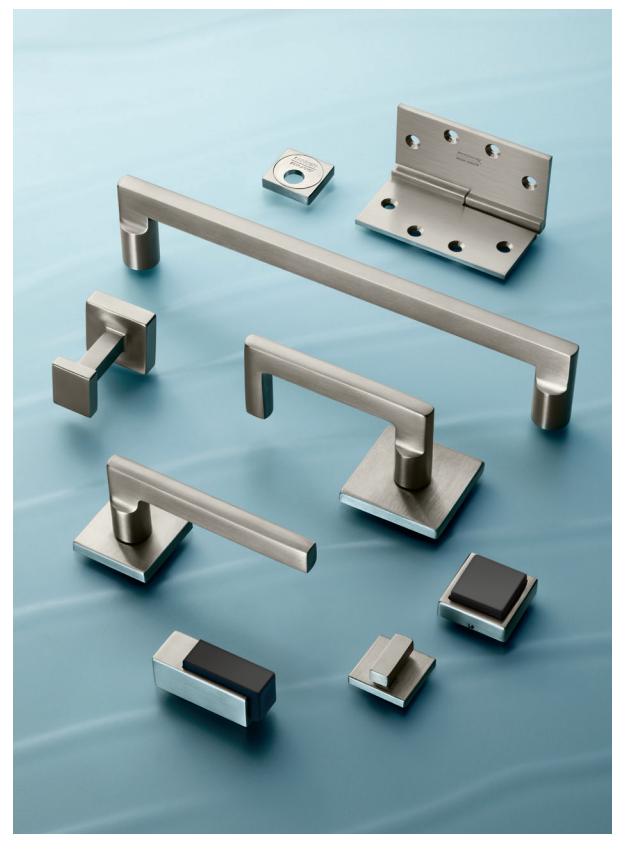

s u i t i n g o p t i o n s

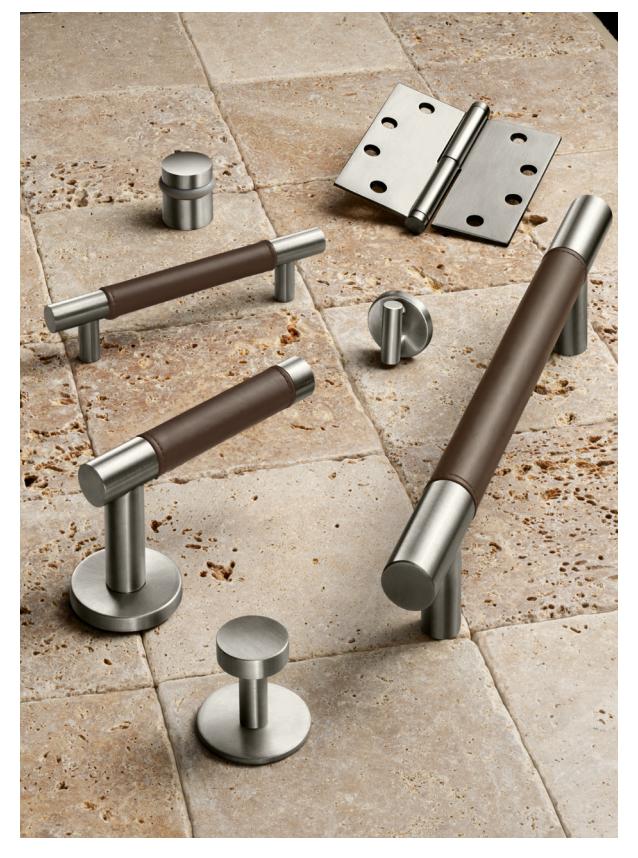

The Locking Pull System was designed to suite with Rockwood Architectural door pulls, and accessories. In addition, complementary hardware is available through Corbin Russwin, Pemko Products, McKinney Products, and SARGENT.

McKinney two knuckle hinge with flat tips

Rockwood coat hook (left)

Leather wrapped lever from Corbin Russwin and Sargent

Rockwood leather

Rockwood coat hook (left)

Square lever and rose from Corbin Russwin and Sargent

Square lever with return and rose

Rockwood

The Good Design Studio — your resource for beautiful doors, frames and hardware from ASSA ABLOY Group brands. Visit www.thegooddesignstudio.com to learn more.

a e s t h e t i c o p t i o n s

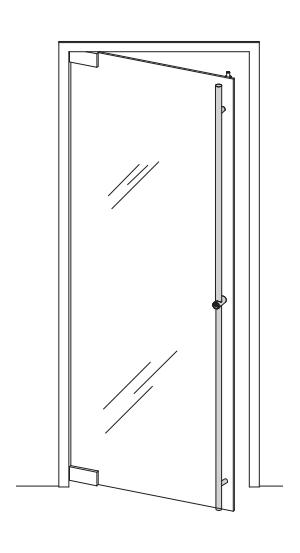

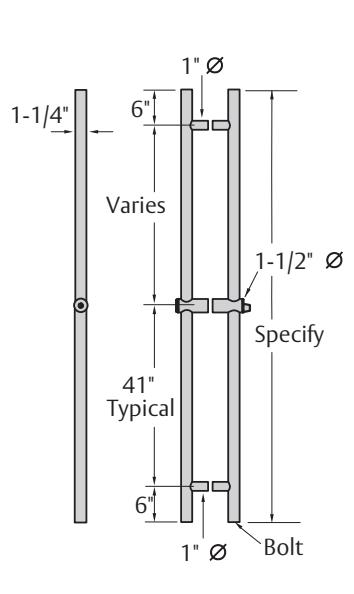

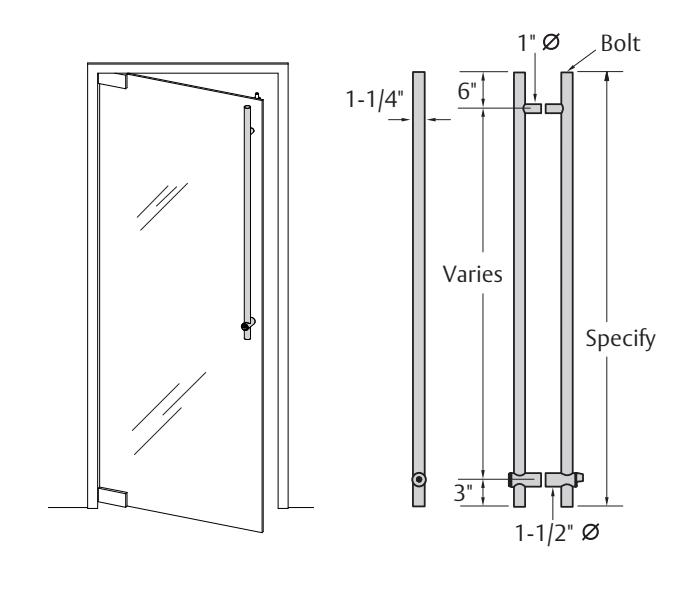

Full Height Pull - Single and Dual Bolt Models

FHD (Full Height Down) - Bolts Down FHU (Full Height Up) - Bolts Up FHB (Full Height Both) - Bolts Up and Down

  • cylinder must be located 34" to 48" above finished floor.

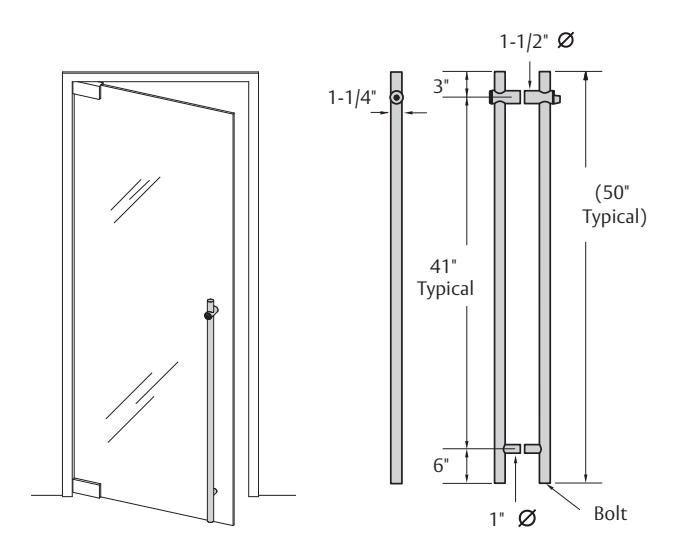

Half Height Pull - Bolts Up

DBU (Dead Bolt Up)

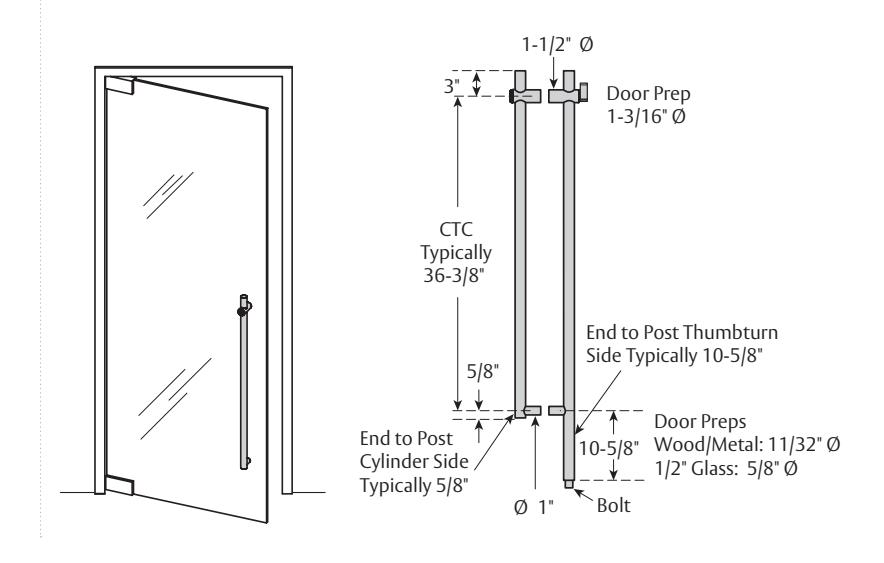

Half Height Pull - Bolts Down

DBD (Dead Bolt Down)

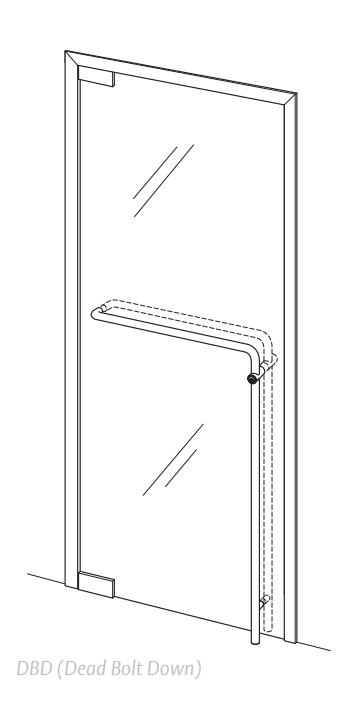

Clearance and Half Height Pull - Bolts Down (LP3305)

DBD (Dead Bolt Down)

Features

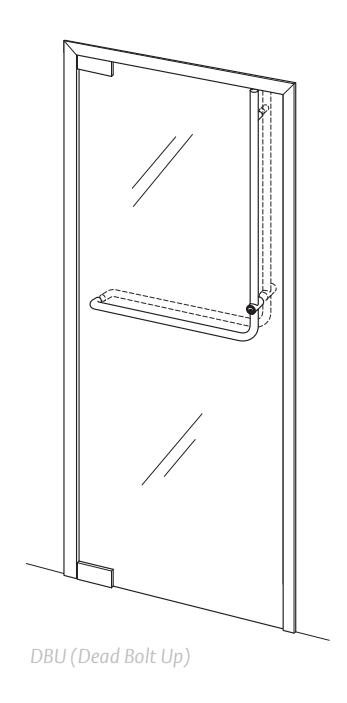

  • Horizontal push/pull bar option for locking pull system
  • PostMount or bent end design offered
  • Available for half height DBD and DBU models only*
    • Bar options single sided (thumbturn or cylinder side only) and double sided (bar on both sides)
  • Offered on aluminum, glass, hollow metal doors or wood doors

Benefits

  • Keeps glass clean and free of hand prints
  • Provides greater push/pull area while maintaining clean aesthetic
  • Contemporary design that suites with popular Rockwood door pulls

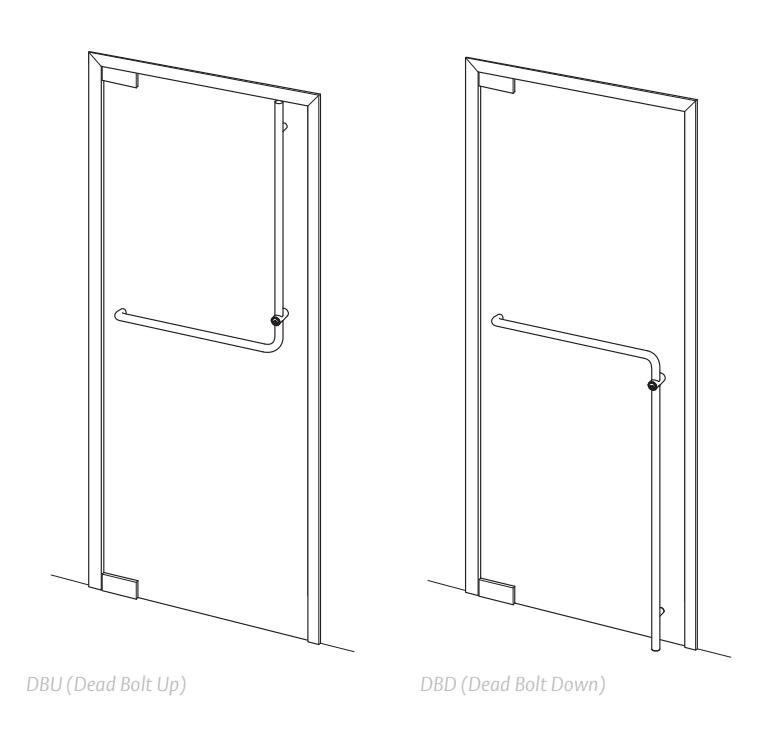

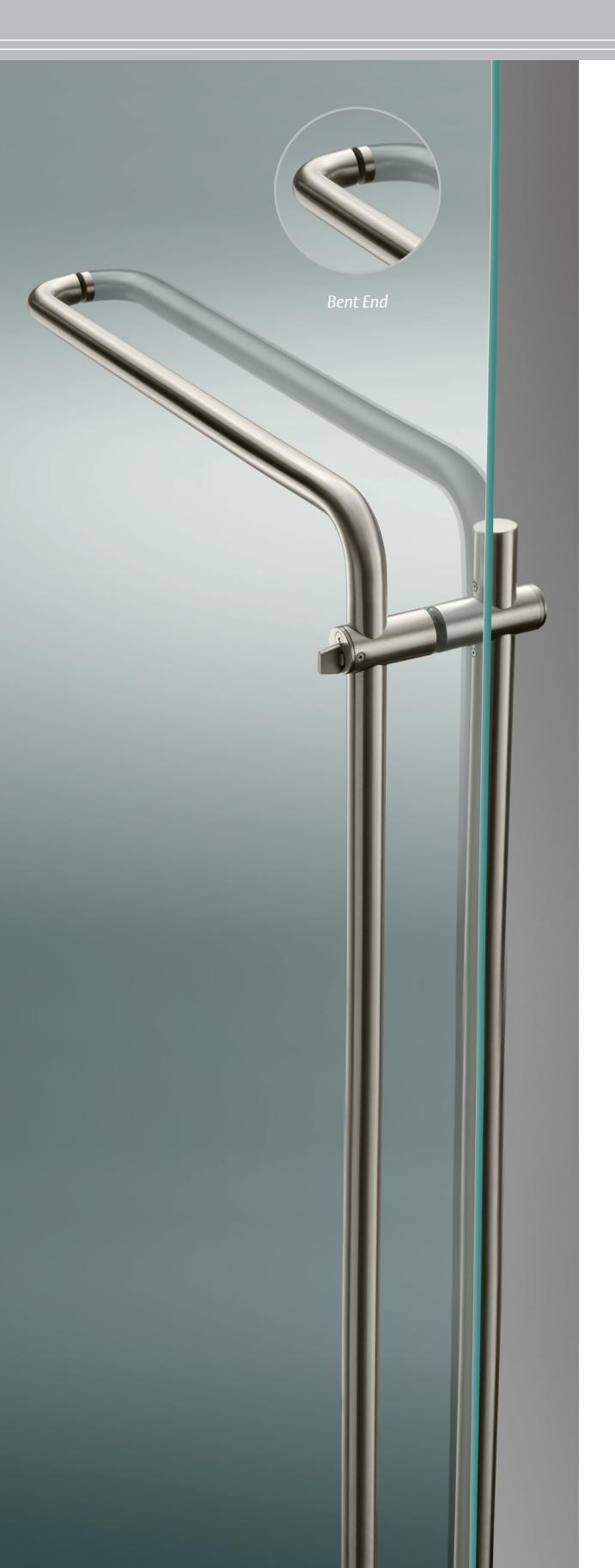

h o r i z o n t a l p u s h / p u l l b a r

Single Sided (Thumbturn or Cylinder)

Double Sided

Glass doors

All glass door applications include a bushing and washer to insulate the glass from the pull. Sturdy fasteners securely attach the pull to the door making for a durable, trouble free installation. Simple glass prep requires two (or three) round holes.

Location from Door Bolt Adjustment

Adjusts 1 /4" in and out from the shown factory settings.

Bolt into Floor Models - Detail at Floor

DBD - Half Height Pull - Bolts Down

FHD - Full Height Pull - Bolts Down

FHB - Full Height Pull - Bolts Up and Down

with Threshold

Bolt into Head Models - Detail at Head

DBU - Half Height Pull - Bolts Up

FHU - Full Height Pull - Bolts Up

FHB - Full Height Pull - Bolts Up and Down

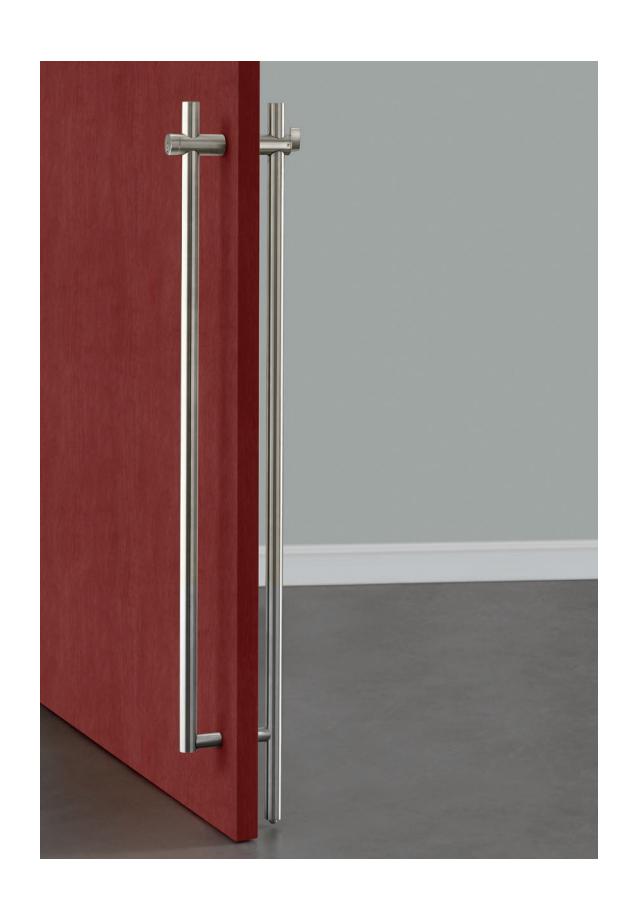

Aluminum, wood and hollow metal doors

Location from Door

Locking pulls are available for 13/8" to 2 1/2" thick aluminum, wood or hollow metal doors.

Bolt Adjustment

Adjusts 1 /4" in and out from the shown factory settings.

Bolt into Floor Models - Detail at Floor

DBD - Half Height Pull - Bolts Down FHD - Full Height Pull - Bolts Down

FHB - Full Height Pull - Bolts Up and Down

with Threshold

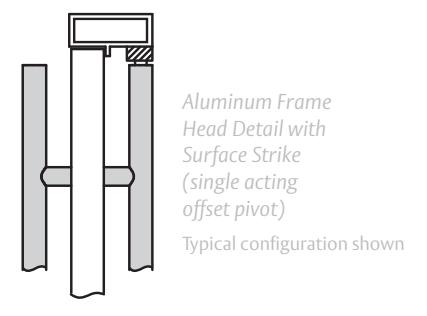

Bolt into Head Models - Detail at Head

DBU - Half Height Pull - Bolts Up

FHU - Full Height Pull - Bolts Up

FHB - Full Height Pull - Bolts Up and Down

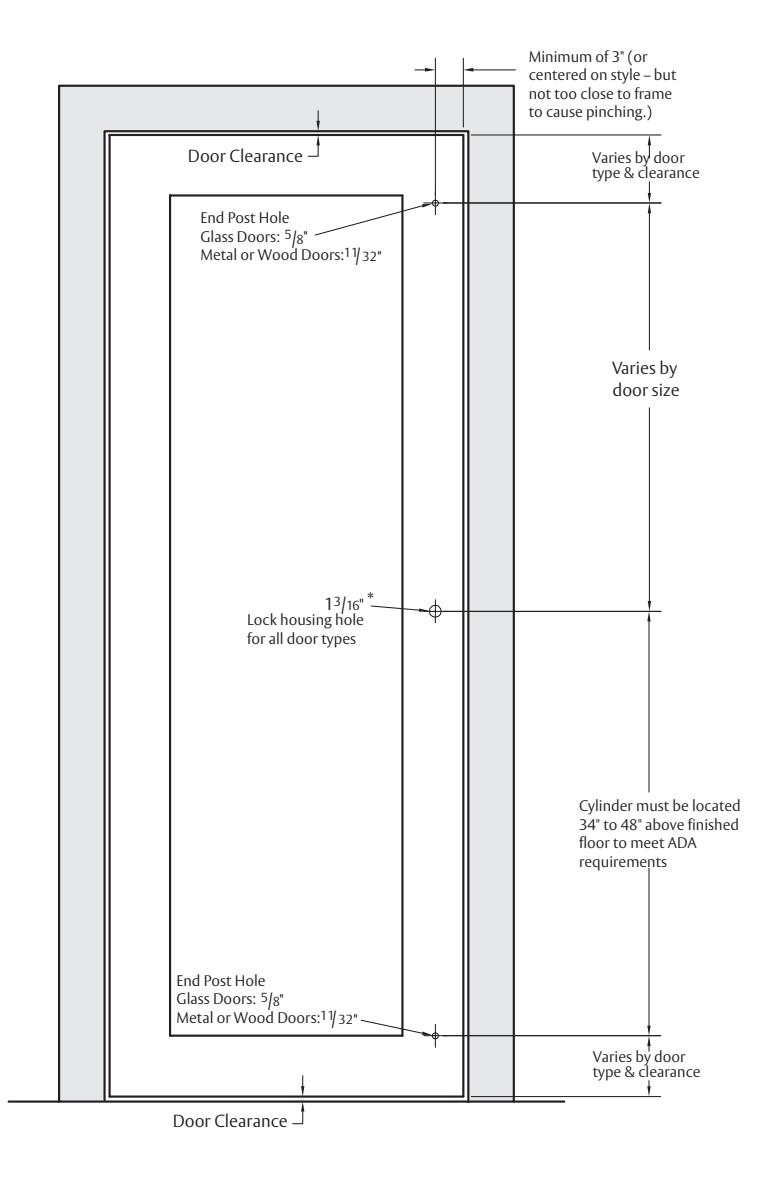

Holes Sizes Required

Glass Door

  • End Posts: 5/8" ø for 1/2" glass thickness
  • Lock Housing: 13/16" ø

Aluminum, Wood, Hollow Metal Doors:

  • End Posts: 11/32"
  • Lock Housing: 13/16"

Top Strike Options

Custom Strikes Available

LPS01

• 3/4" x 11/2" x 3"

LPS02 LPS03

• 3/4" x 21/2" x 3"

• Rubber Stop

• .050" x 11/8" x 21/4"

LPS04

• 11/4" dia. x 41/2" h

• 11/4" sq. x 41/2" h • 2" dia

LPS05 LPS06

Bottom Strike Option

570

Dust Proof Strike

Face Plate: 13/8" x 27/8"

ORDERING INFORMATION

Series* Description
LP3301 Plain PostMount
LP3305** Plain PostMount Clearance
LP3401 PostMount GripZone
LP6061 PostMount English Bridle
Leather Wrapped
LP6161 PostMount Upholstery
Leather Wrapped
LP7901 Plain GeoMetek
LP6440 GeoMetek Upholstery
Leather Wrapped

* Specify "DP" in front of series number for dummy locking pull. Example: DP3301

** LP3305 offered with DBD only.

Options Code*
Large Thumbturn ADA
Thumbturn Only,
No Cylinder 		Π
Custom Engraving CE

* Specify code after suffix

Suffix Description
DBD Half Height, Bolts Down
DBU Half Height, Bolts Up
FHD Full Height, Bolts, Down
FHU Full Height, Bolts Up
FHB Full Height, Bolts Up and Down
Cylinder Options Code
Yale® 1109 rim cylinder,
6-pin, 1147 tailpiece, E1R
keyway (keyed random) 		01
Yale® K680 Small format interchangeable core housing (SFIC) Standard 02
Yale® K680 Small format interchangeable core housing, w/ plastic construction core (SFIC) 03
Supplied cylinder 05
Dummy cylinder 07
7 Pin SFIC Housing with Yale Core 09
Push Bar Suffix* Description
BEPT Bent End Horizontal
Bar - Thumbturn Side
BEPC Bent End Horizontal
Bar - Cylinder Side
BEPB Bent End Horizontal
Bar - Both Sides
PMPT Post Mount Horizontal
Bar - Thumbturn Side
PMPC Post Mount Horizontal
Bar - Cylinder Side
PMPB Post Mount Horizontal
Bar - Both Sides

* Available on DBD and DBU models only. Not offered with LP7901 or LP6440. Specify horizontal CTC and handing: sized to order.

How to Order Example:

For a quick and efficient ordering process, use the order forms on assaabloydooraccessories.us (Resource Library > Order Forms > Rockwood Products).

Quantity Series Suffix Push Bar
Suffix 		Finish Door
Material 		Door
Thickness 		Device
Dimensions 		Door
Clearance 		Strike Cylinder
1 LP3301 DBD BEPT 630 Glass 1/2" 831/2" 1 / 4 " at Bottom 01
2 LP7901 DBD N/A 629 Wood 13/4" 931/4" 1/8" at Top LPS02

o r d e r i n g i n f o r m a t i o n

PostMount Finishes:

Polished Brass 605 (US3)
Satin Brass 606 (US4)
Satin Oxidized Clear Coated 614 (US10BL)
Dark Satin Bronze Equivalent 613E (US10BE)
Polished Stainless Steel 629 (US32)
Satin Stainless Steel 630 (US32D)
Satin Stainless Steel with MicroShield® – (US32DMS)
Polished Stainless Steel with MicroShield® – (US32MS)

Black Suede Powder Coat BSP White Suede Powder Coat WSP

Stock Powder Coats

GeoMetek Finishes:

Dark Satin Bronze Equivalent 613E (US10BE)
Polished Stainless Steel 629 (US32)
Satin Stainless Steel 630 (US32D)
Satin Stainless Steel with MicroShield® – (US32DMS)
Polished Stainless Steel with MicroShield® – (US32MS)

Black Suede Powder Coat BSP White Suede Powder Coat WSP

Stock Powder Coats

Leather Finish Standard Color Selections:

English Bridle Leather

(Light Brown)

(Medium Brown)

(Dark Brown)

Upholstery Leather

(Dark Brown)

Custom colors available

Accessories

  • LPS01 Top Strike
  • LPS02 Top Strike
  • LPS03 Top Strike
  • LPS04 Transom Strike
  • LPS05 Transom Strike
  • LPS06 Mortised Header Strike
  • 570 Dust Proof Bottom Strike
  • RM850 Door Stop
  • Custom Strikes for unique conditions
  • ADA Thumbturn

Thumbturns:

GeoMetek Thumbturn

MicroShield®

As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
