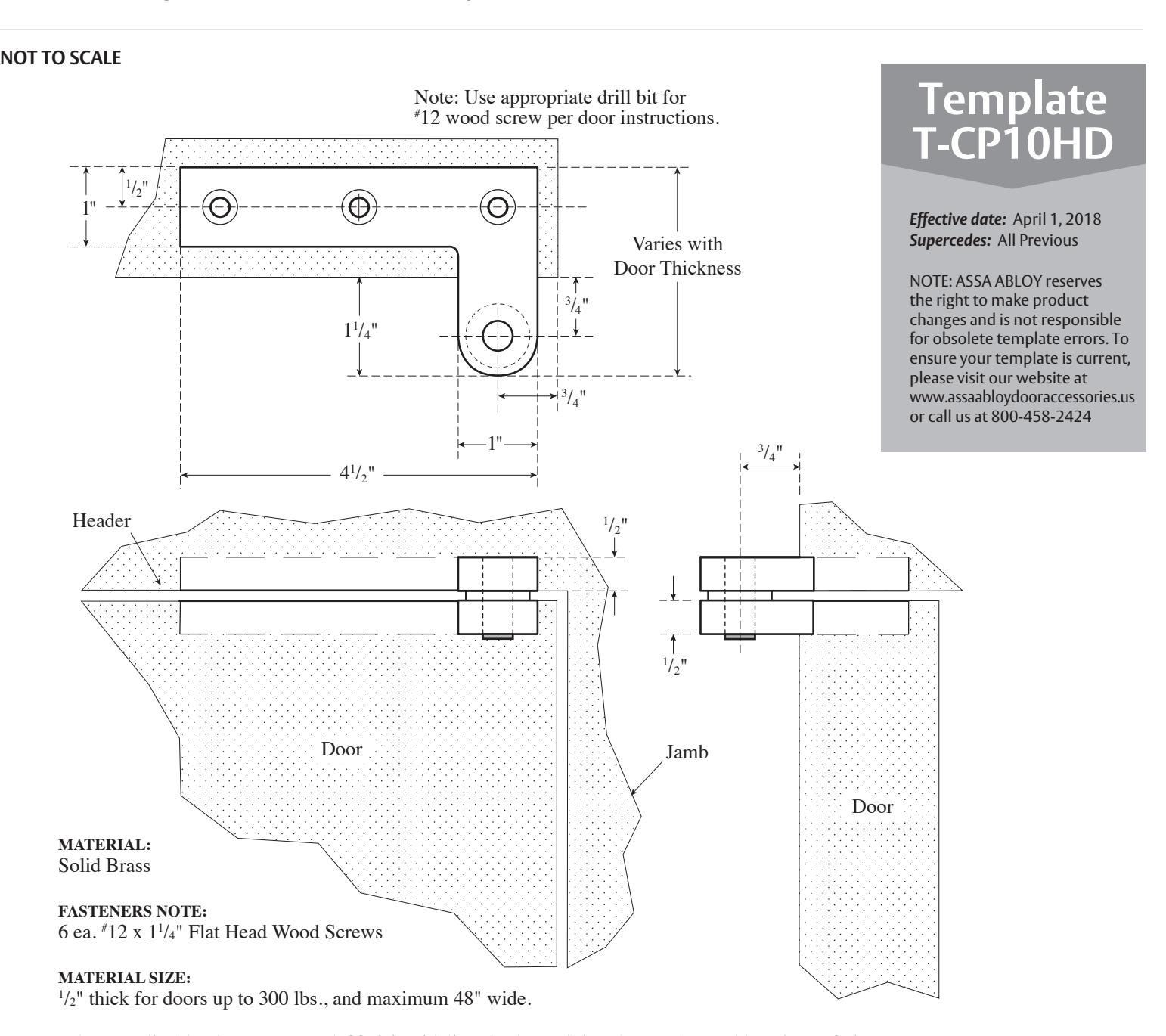

Rockwood CP10HD Head Pivot - Heavy Duty 1 /2" Thick for Wood Doors Engineered to be Used in Conjunction with Offset Floor Pivot
Where applicable please use NFPA 80 6.4 guidelines in determining the number and locations of pivots.
**Modifying construction or components of Custom Pivot Assembly can impact performance and will void manufacturer's warranty and liability.
