Architectural Door Accessories

ASSA ABLOY

Rockwood BFRC12 & 24 Vertical Rod Cover

The global leader in door opening solutions

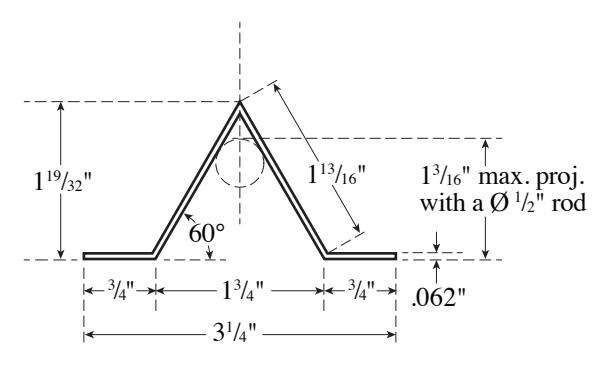

NOT TO SCALE

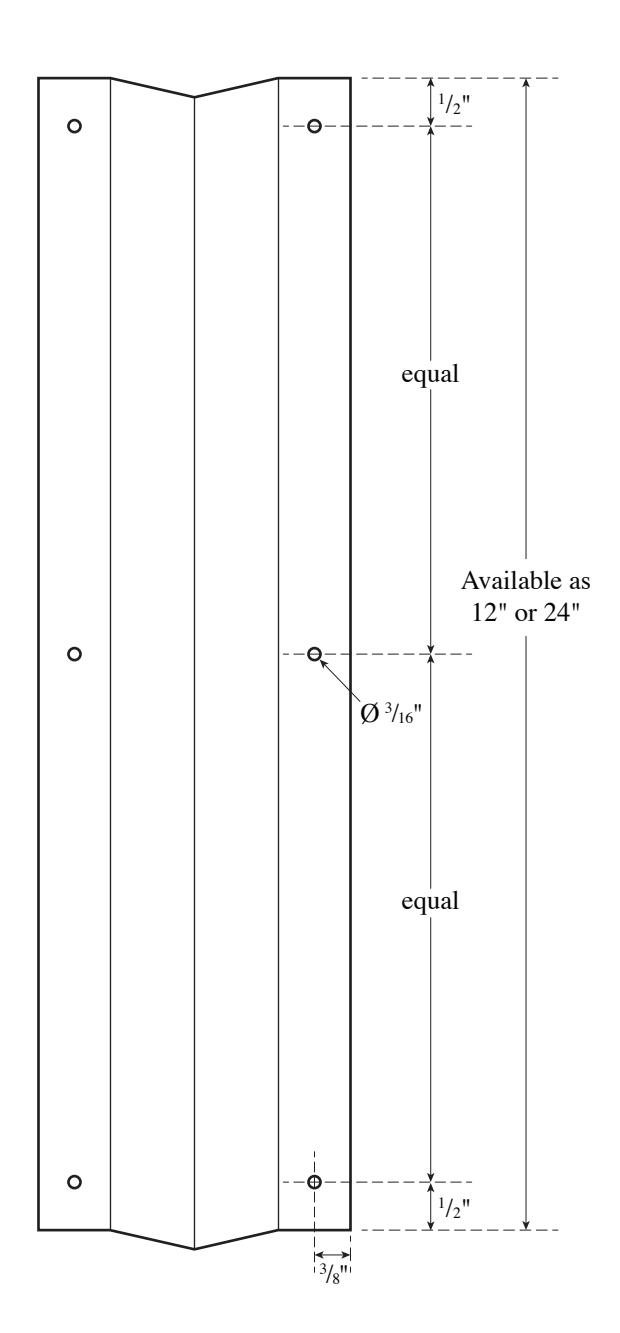

Template T-BFRC12 & 24

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

MATERIAL:

.050" Brass, Bronze, Stainless Steel

FASTENERS NOTE:

#6 x 5/8" Oval Head Sheet Metal Screws
