Architectural Door Accessories

Rockwood BFLG Latch Guards

NOT TO SCALE

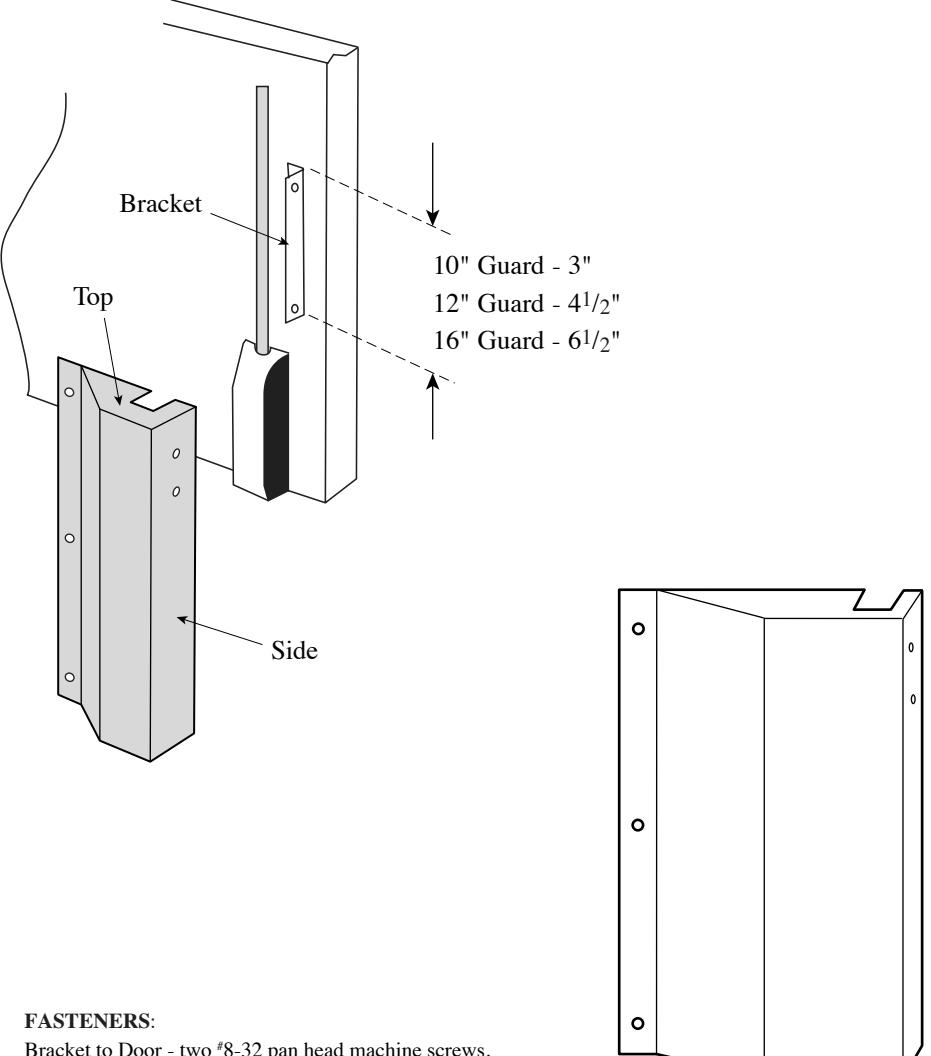

The Rockwood BFLG Series Latch Guard will cover a bottom latch that is up to W 21/4" x 21/8" projection.

Template T-BFLG

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

Bracket to Door - two # 8-32 pan head machine screws. Guard to Bracket - two # 8-32 pan head machine screws. Guard to Door - three # 8-32 pan head machine screws.
