Architectural Door Accessories

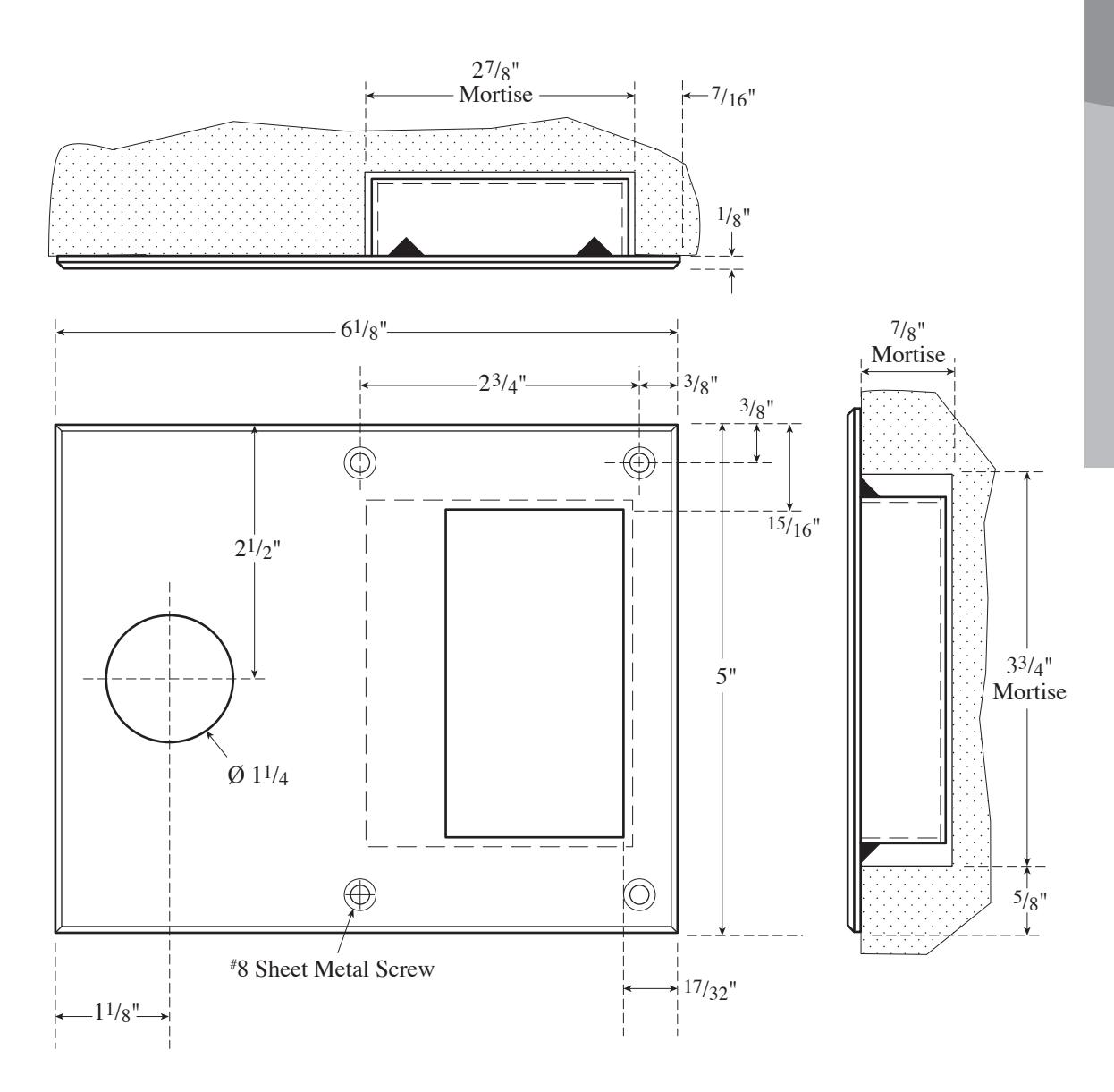

Rockwood 94DLS Flush Pull

NOT TO SCALE

Template T-94DLS

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

Mortise: W 27/8" x H 33/4" x dp. 7/8" Drop pull into opening and drill mounting holes using holes in handle as a template.
