Architectural Door Accessories

Rockwood 94 Flush Pull - Single Mounting

NOT TO SCALE

Template T-94

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

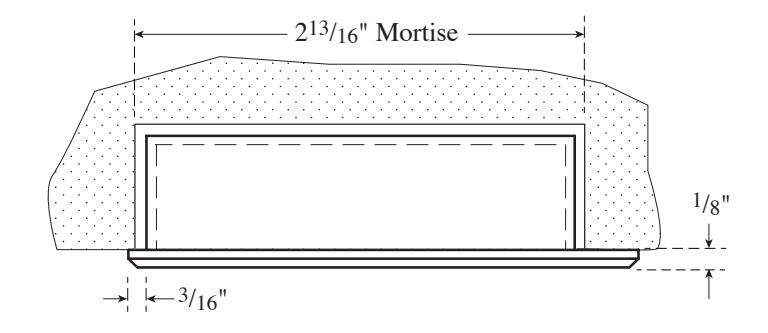

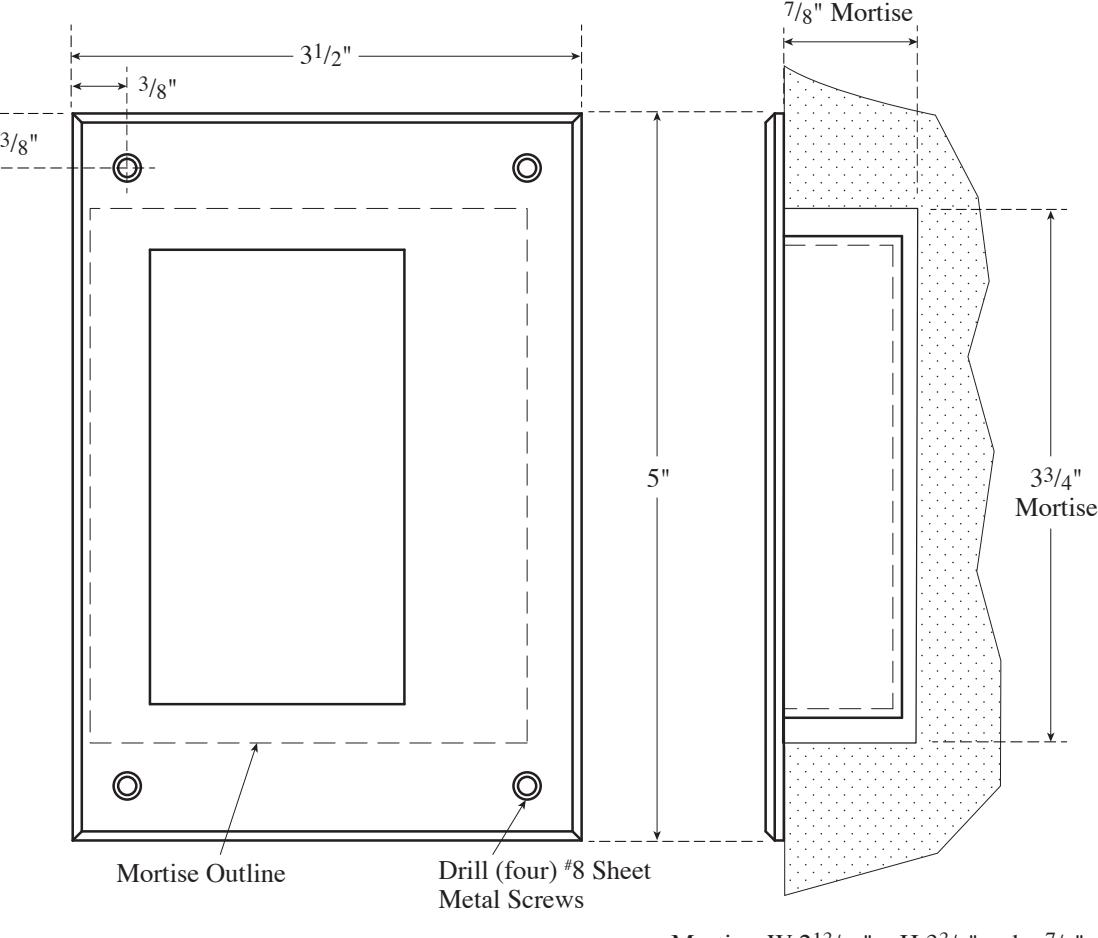

Mortise: W 213/16" x H 33/4" x dp. 7/8" Drop pull into opening and drill mounting holes using holes in handle as a template.
