Architectural Door Accessories

Rockwood 94 Flush Pull - Back to Back Mounting

NOT TO SCALE

Template T-94BTB

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

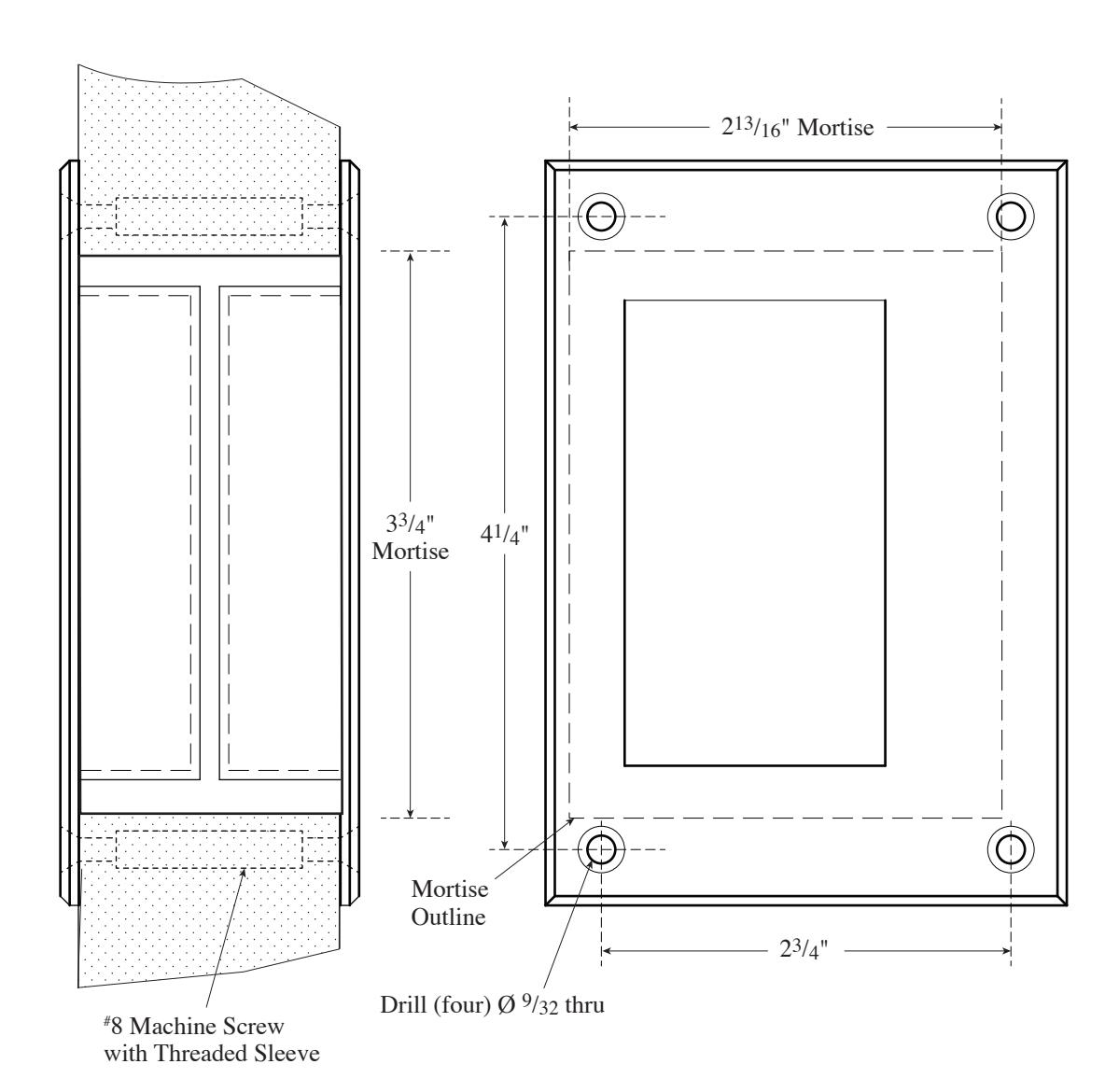

Mortise: W 213/16" x H 33/4".

Drop flush cup into cutout and spot drill holes using the pull

as a template. Drill holes to Ø 9/32.
