Architectural Door Accessories

Template

T-900/901

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors.

template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

To ensure your

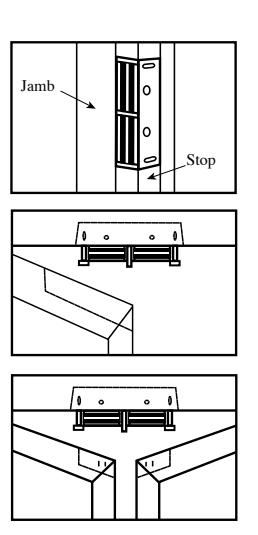

Rockwood 900/901 Magnetic Catches

NOT TO SCALE

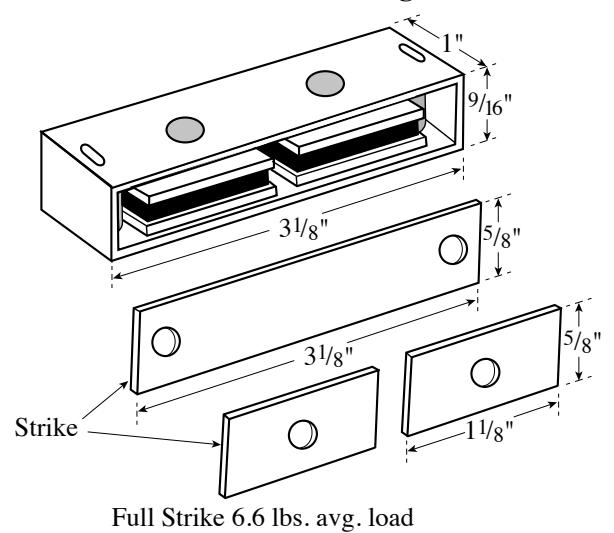

Model 900 Dual Double Magnetic Catch

Single Small Strike 2 lbs. avg. load

31/8" 31/8" 11/8" 7/8" 7/8" 13/16" 1" Strike Model 901 Dual Triple Magnetic Catch

Full Strike 10.4 lbs. avg. load Single Small Strike 3 lbs. avg. load

FASTENERS 900:

Body: two # 6 x 11/4" Truss Head Sheet Metal Screws Strike: two # 6 x 1/2" Flat Head Sheet Metal Screws

FASTENERS 901:

Body: two # 6 x 11/2" Truss Head Sheet Metal Screws Strike: two # 6 x 1/2" Flat Head Sheet Metal Screws

MATERIAL: Aluminum
