Architectural Door Accessories

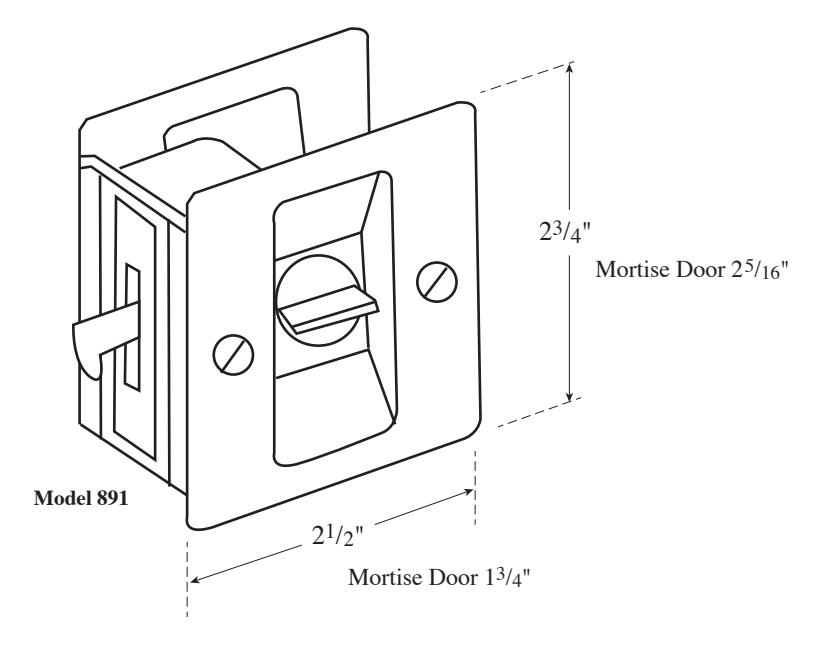

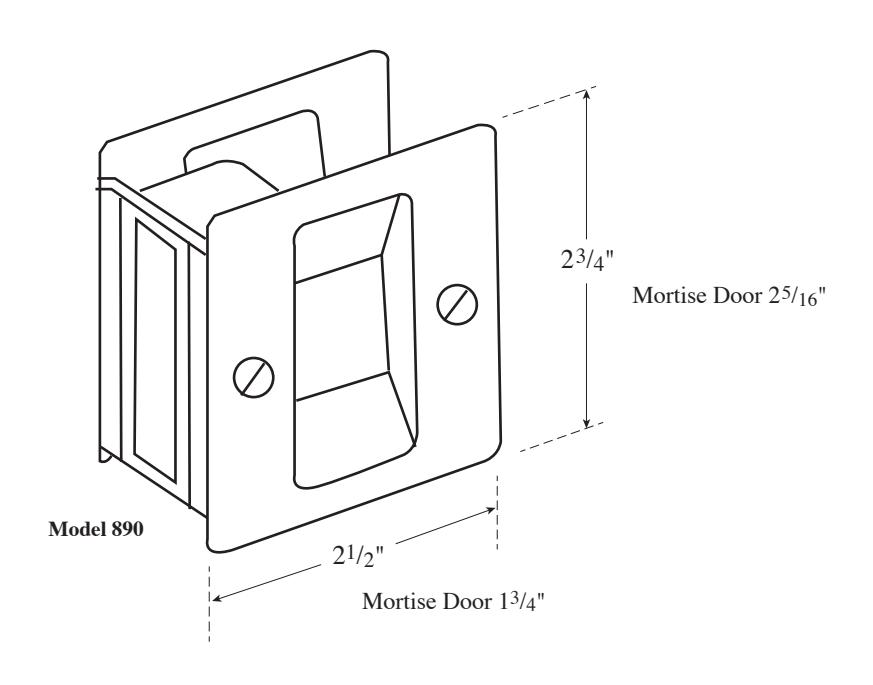

Rockwood 890/891 Pocket Door Latches

NOT TO SCALE

Template T-890/891

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

MATERIAL: Brass

FASTENERS NOTE: (two) #6 x 5/8" Oval Head Sheet Metal Screws
