View PDFArchitectural Door Accessories
Rockwood 885-RKW Concealed Edge Pull (Swing Door)
Template
T-885-RKW
NOT TO SCALE
Effective date: January 1, 2017 Supercedes: All Previous NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

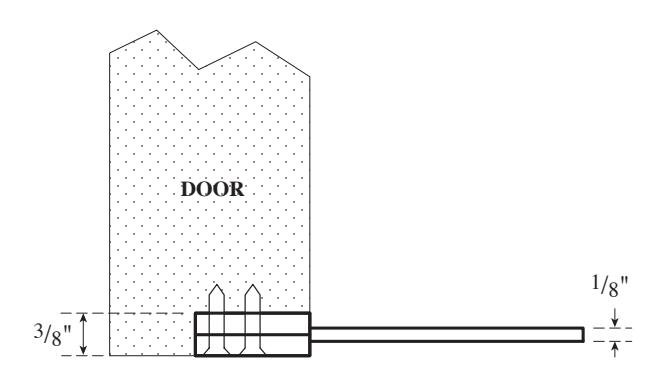

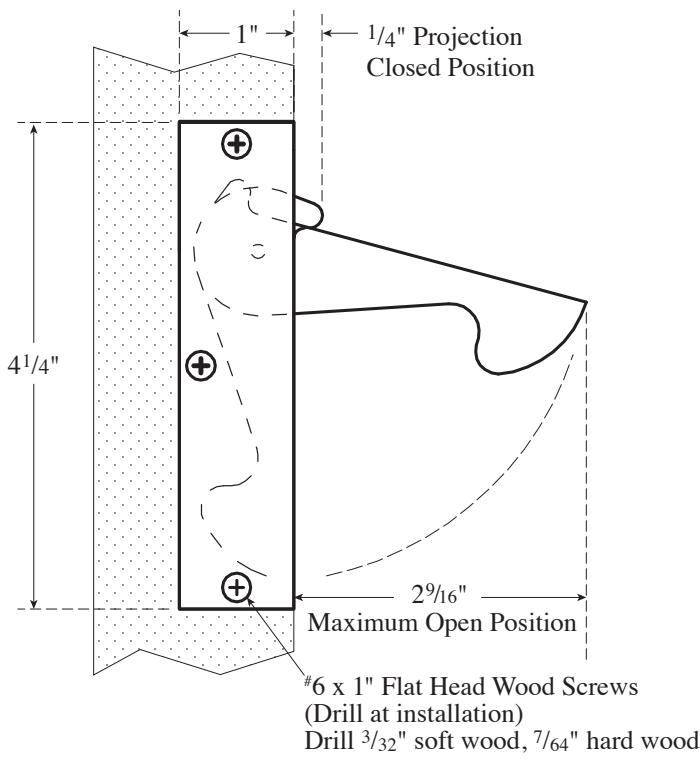

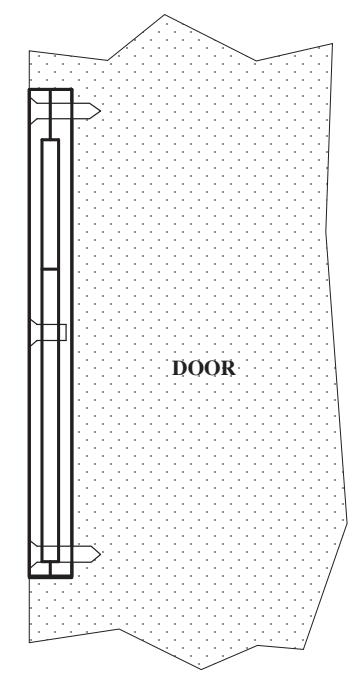

Mortise: Edge of door 1" x 41/4" x dp. 3/8"
MATERIAL: Cast Brass
