Architectural Door Accessories

Rockwood 872 Cast Flush Pull

NOT TO SCALE

Template T-872

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

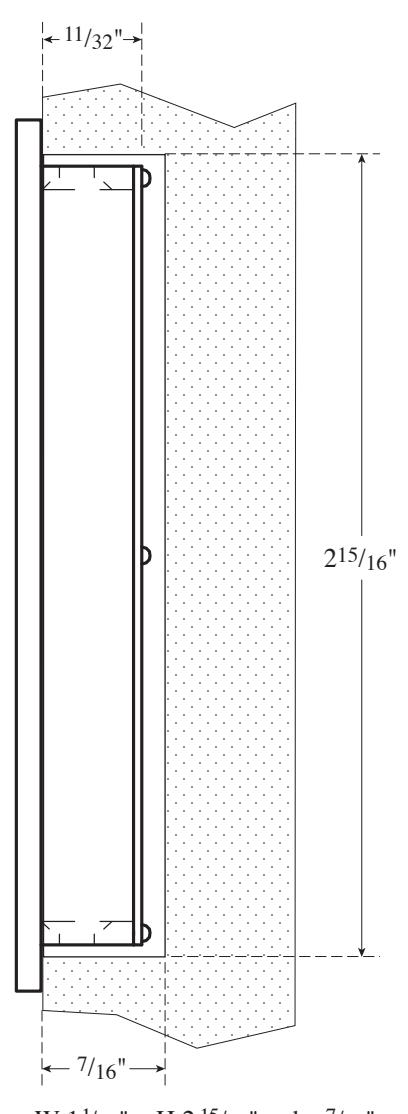

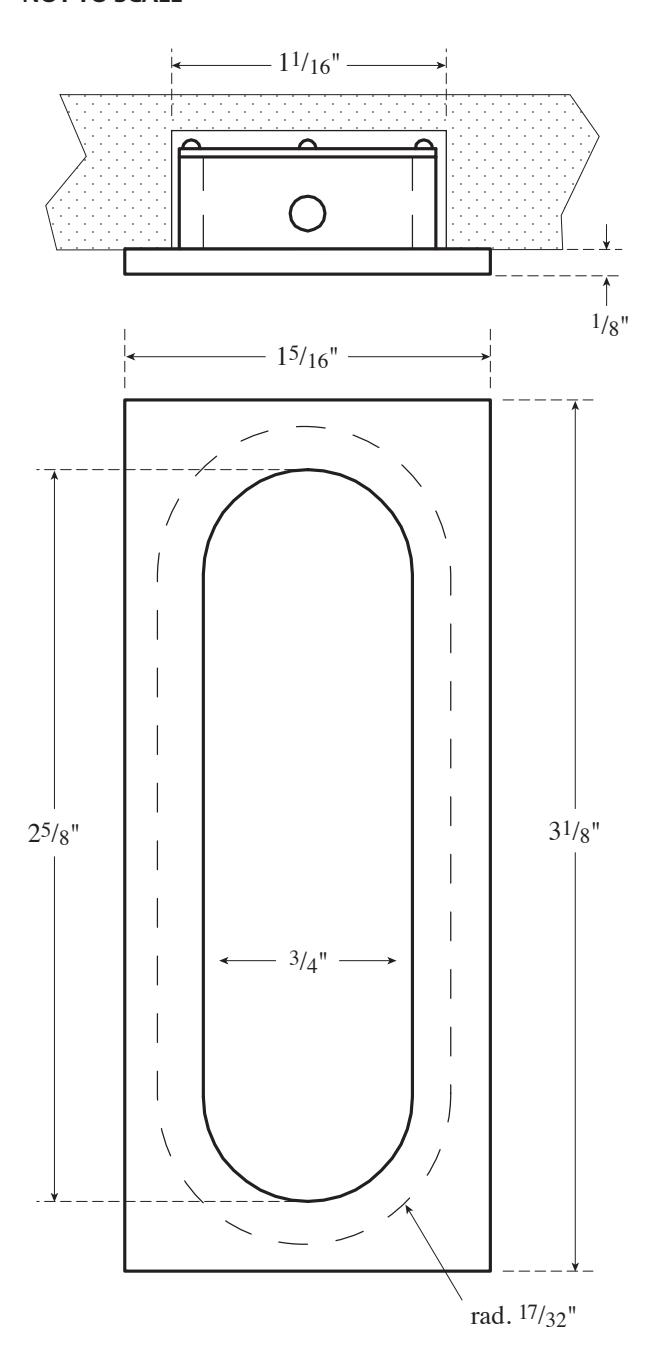

Mortise: W 11/16" x H 2 15/16" x dp. 7/16"
