Architectural Door Accessories

ASSA ABLOY

Rockwood 870 Wrought Flush Pull

The global leader in door opening solutions

NOT TO SCALE

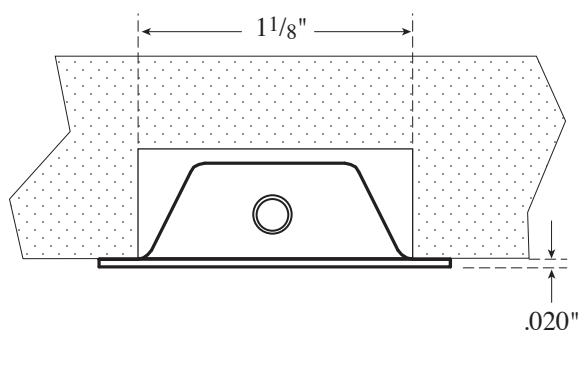

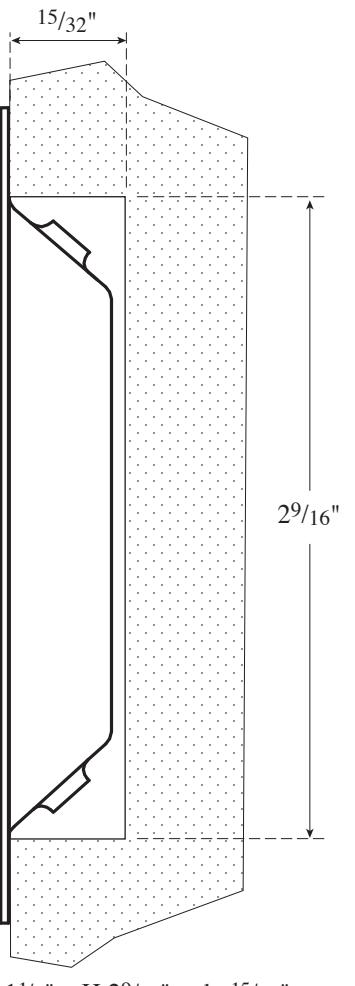

Mortise: W 11/8" x H 29/16" x dp.15/32"

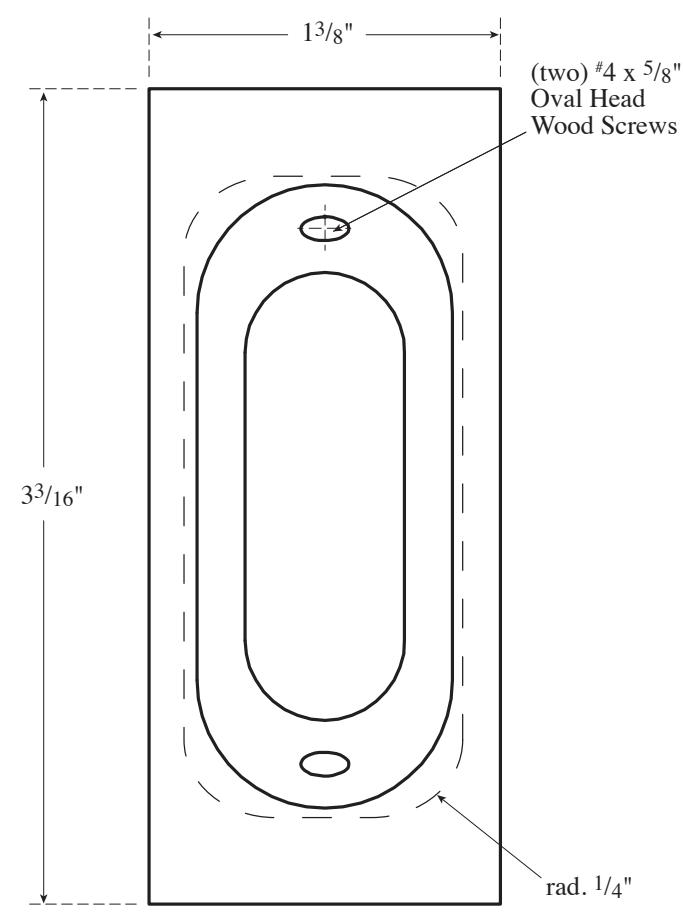

Template T-870

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

300 Main Street Rockwood, Pennsylvania 15557 P: 800.458.2424 | F: 800.922.9212
