Architectural Door Accessories

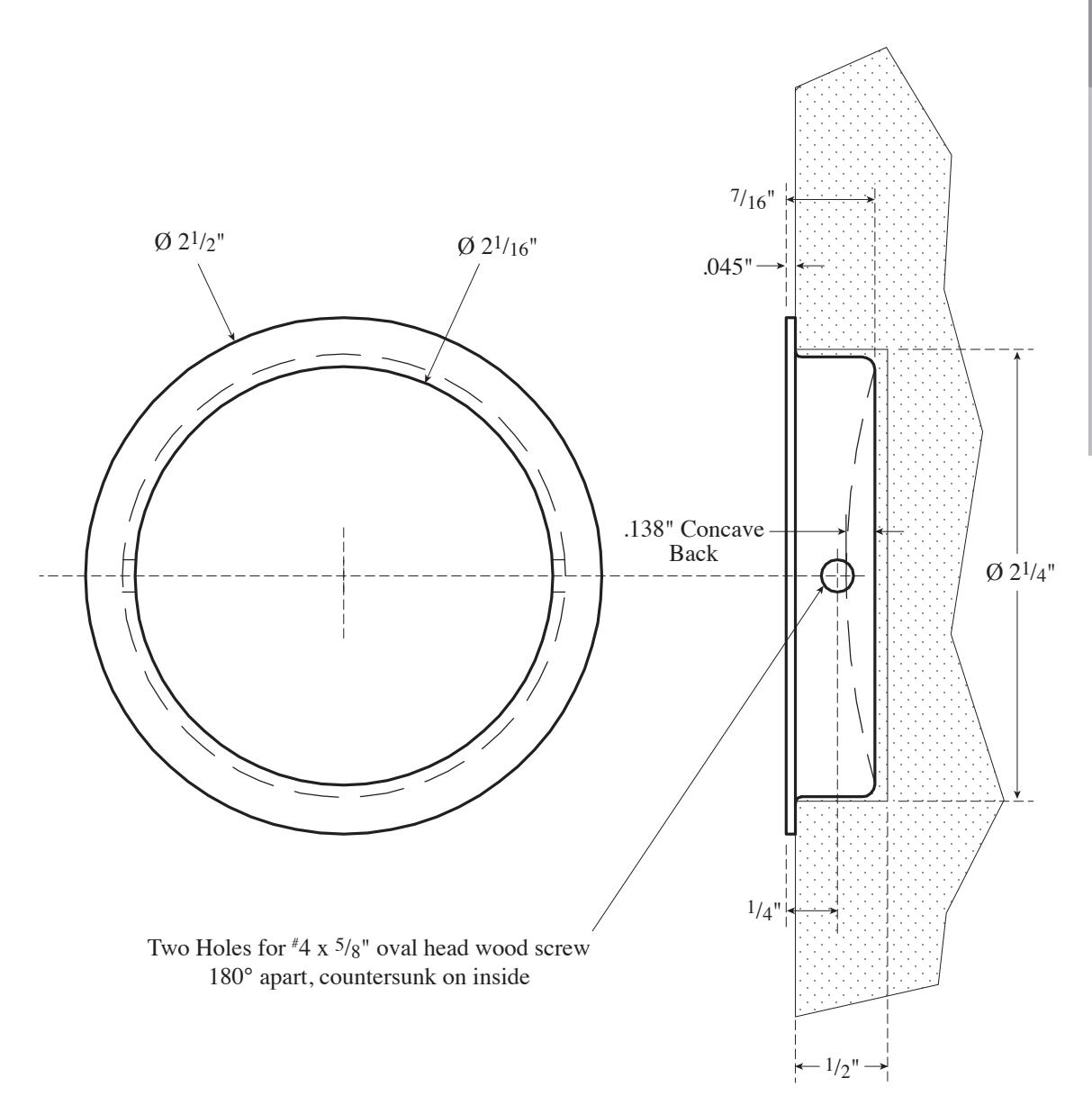

Rockwood 860 Flush Cup Pull

NOT TO SCALE

Template T-860

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

Mortise: Ø 21/4" x dp. 1/2"

MATERIAL : .045" Brass

Reproduction in whole or in part without the express written permission of Rockwood Manufacturing Company is prohibited.
