Architectural Door Accessories

Rockwood 651 Card Holder

NOT TO SCALE

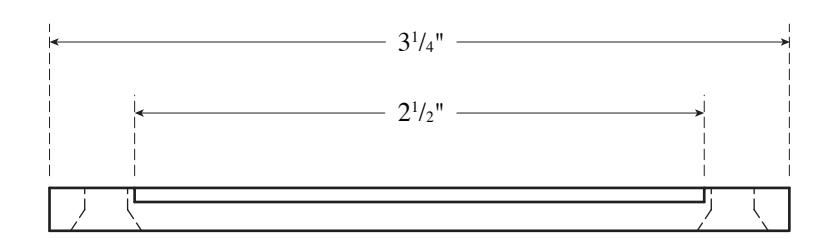

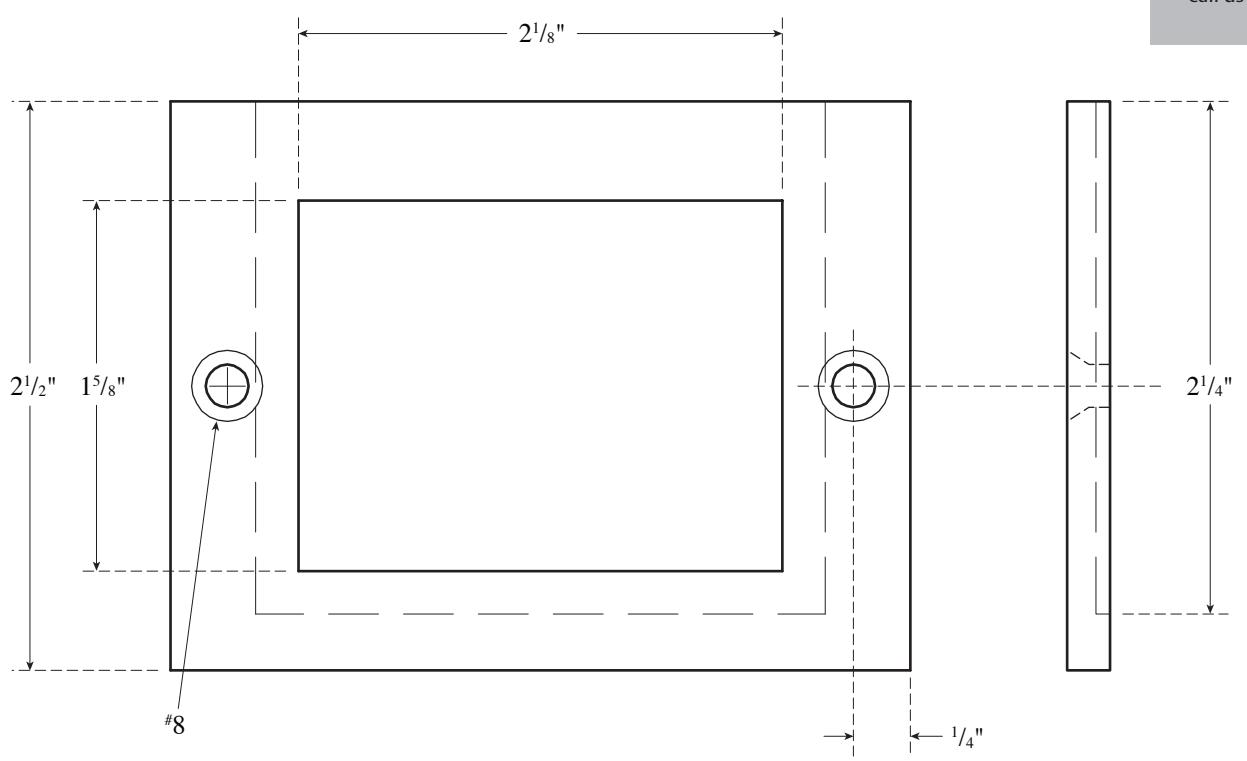

Template T-651

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

MATERIAL: Cast Brass

FASTENERS NOTE: 2 ea. # 8 x 3 /4" Oval Head Sheet Metal Screws

300 Main Street Rockwood, Pennsylvania 15557 P: 800.458.2424 | F: 800.922.9212 www.rockwoodmfg.com | orders.rockwood@assaabloy.com
