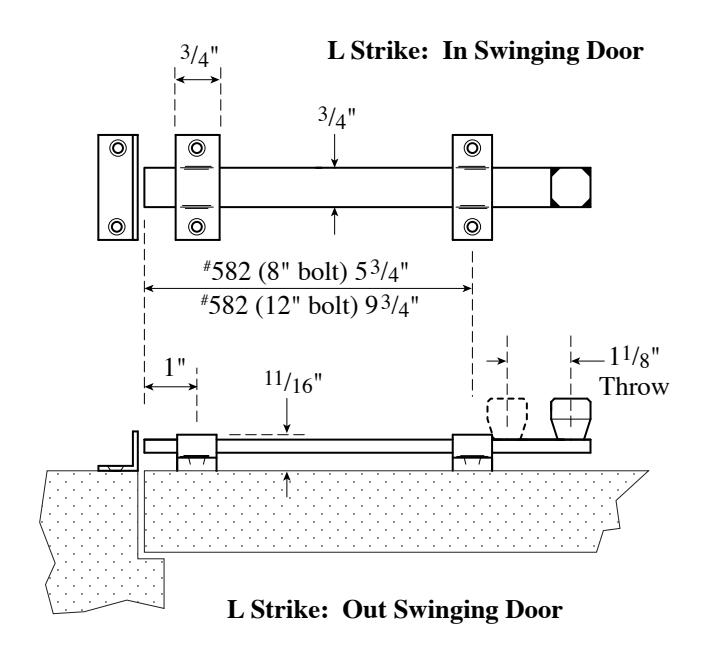

Rockwood 582 Series Surface Bolts

NOT TO SCALE

Template T-582-8 &12

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

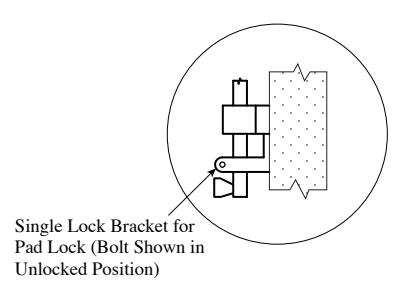

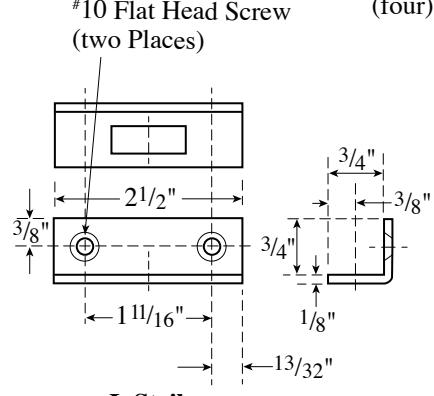

Countersunk for

#

FASTENER INFORMATION

BOLT:

(four) # 10-24 x 11/2" Phillips Pan Head Machine Screw (four) # 10 x 11/4" Phillips Pan Head Wood Screw

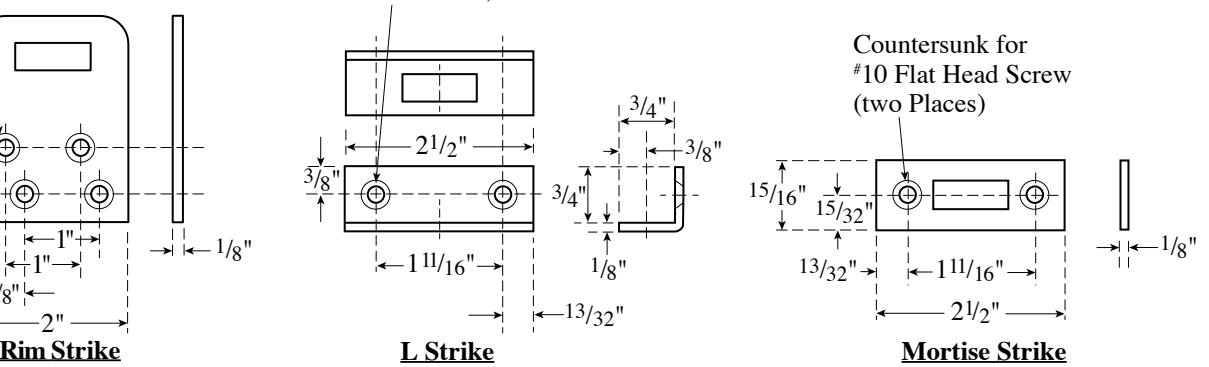

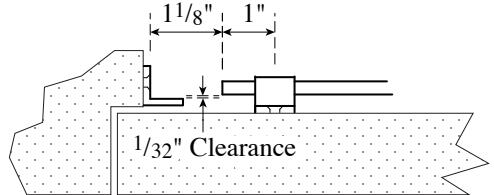

MORTISE & L STRIKES:

(two) # 10-32 x 11/2" Phillips Flat Head Machine Screw (two) # 10-32 x 11/2" Phillips Flat Head Wood Screw

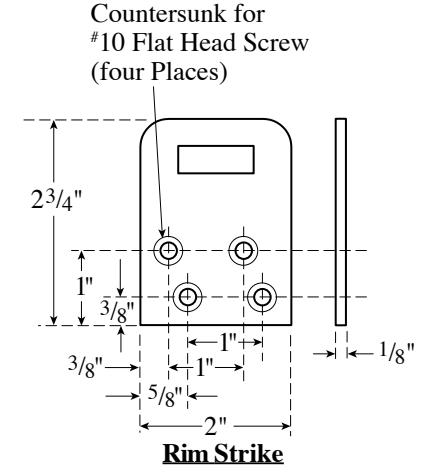

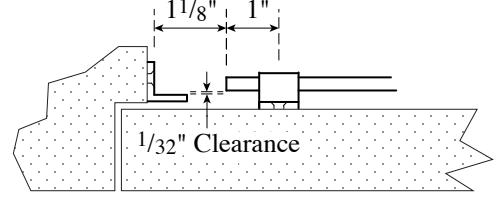

RIM STRIKE:

(four) # 10-32 x 11/2" Phillips Flat Head Machine Screw (four) # 10-32 x 11/2" Phillips Flat Head Wood Screw
