Architectural Door Accessories

Template

T-580-8 &12

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors.

template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

To ensure your

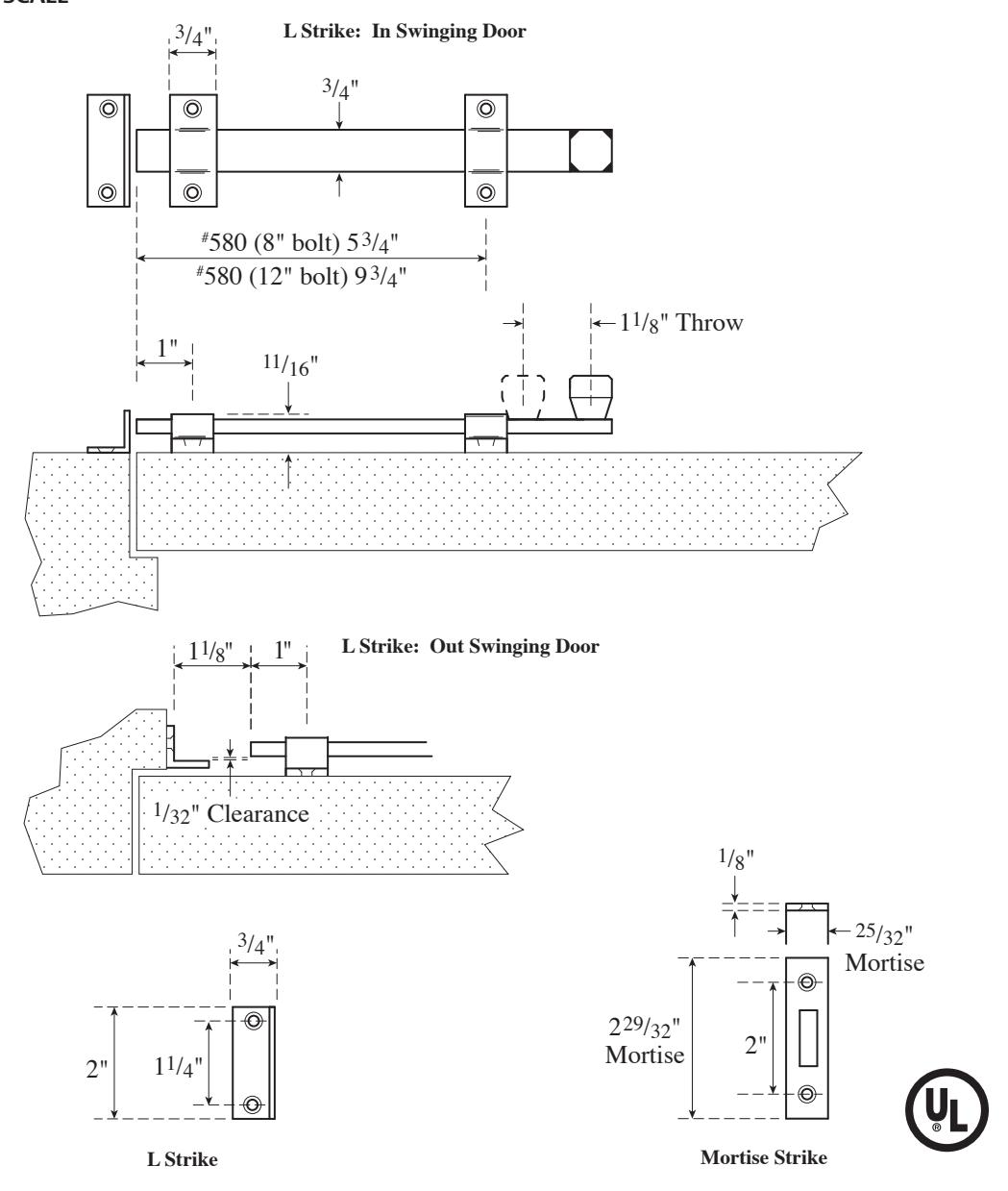

Rockwood 580 Series Surface Bolts

NOT TO SCALE

FASTENERS NOTE:

(six) # 10 x 11/4" Flat Head Sheet Metal Screws and (six) # 10-24 Flat Head Machine Screws are Packed with Each Bolt.

Sex Bolts Available on Special Order for Thru Bolt Fastening.
