Architectural Door Accessories

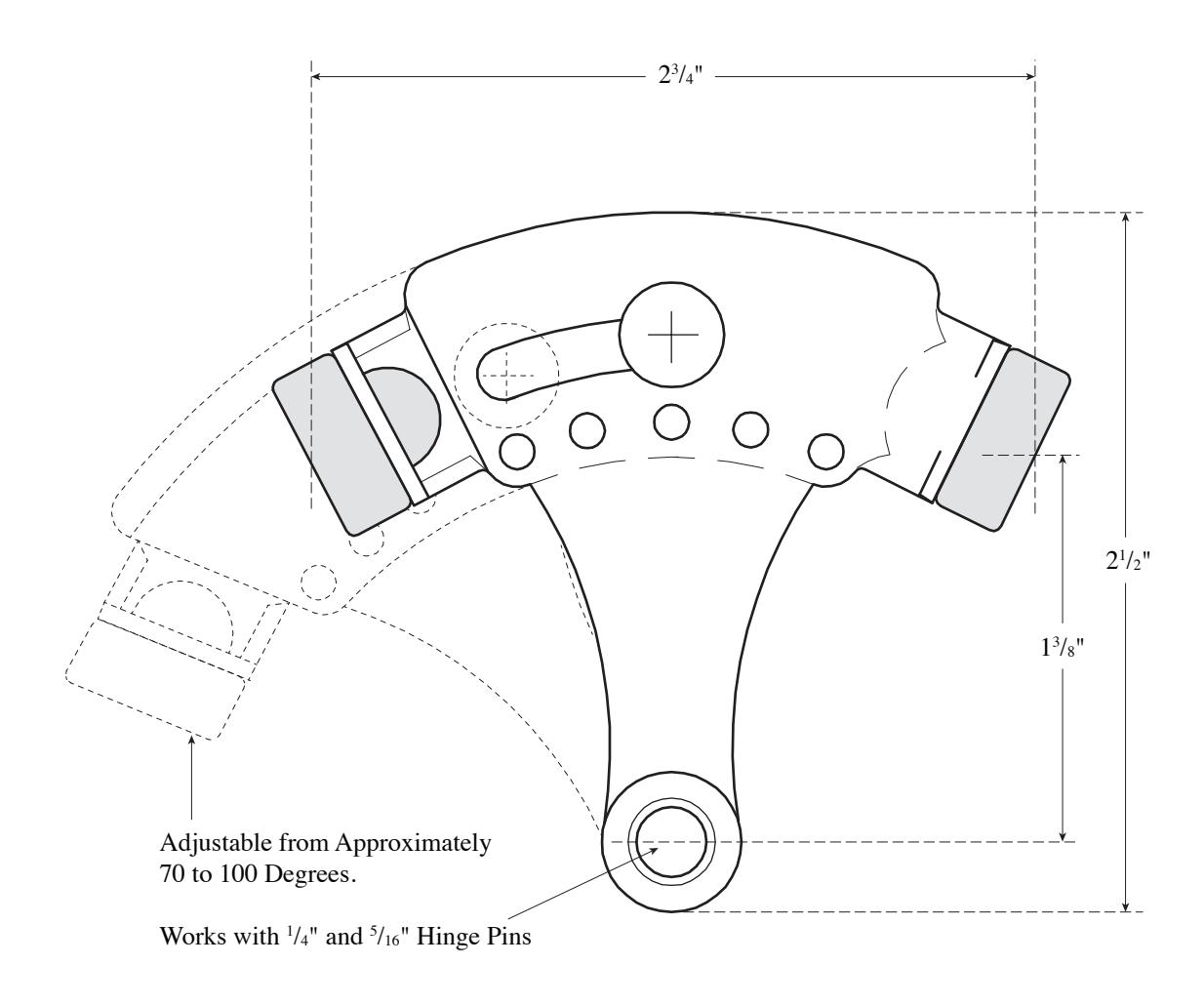

Rockwood 528 Heavy Duty Hinge Pin Stop

NOT TO SCALE

Template T-528

Effective date: February1, 2020 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

MATERIAL: Wrought Steel
