Rockwood 491-RKW Automatic Door Stop & Holder

NOT TO SCALE

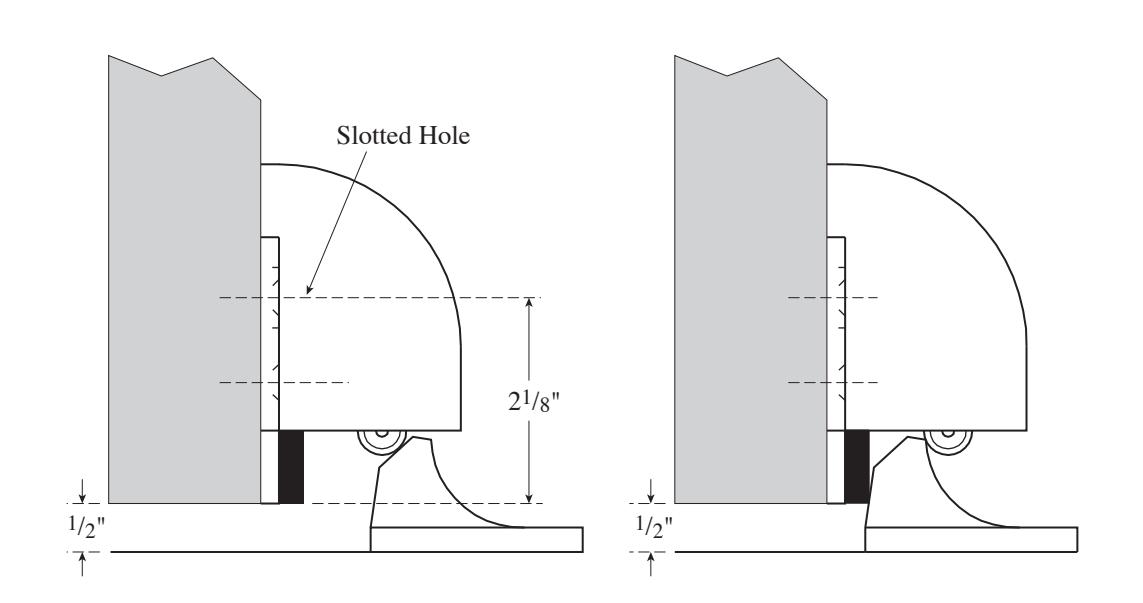

Template T-491-RKW

Effective date: Oct. 9, 2018 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

FASTENERS

491 - (three) # 12 x 11/4" Flat Head Wood Screws, (three) Plastic Anchors and (four) # 10 X 11/4" Flat Head Wood Screws.

491R - (three) # 12-24 x 1" Flat Head Machine Screws, (three) Anchors and (four) # 10 X 11/4" Flat Head Wood Screws.

# 491S - (three) # 12 x 1" Flat Head Machine Screws, (three) Anchors, (four) # 10 X 1" Flat Head Machine Screws and (four) # 10-24 X 13/8" Sex Bolts.

The # 491 is intended for doors with 1/2" clearance under the door.

/!\ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

DRILL SIZE CHART
# 12 Wood Screw	9/64" Soft Wood	5/32" Hard Wood
# 10 Wood Screw	1/8" Soft Wood	9/64" Hard Wood
# 12 Plastic Anchor	9/32"
# 12 Anchor	1/2"
# 10 Sex Bolt	5/16"

NOTE: Special order risers are available in situations where there is more than 1/2" clearance.
