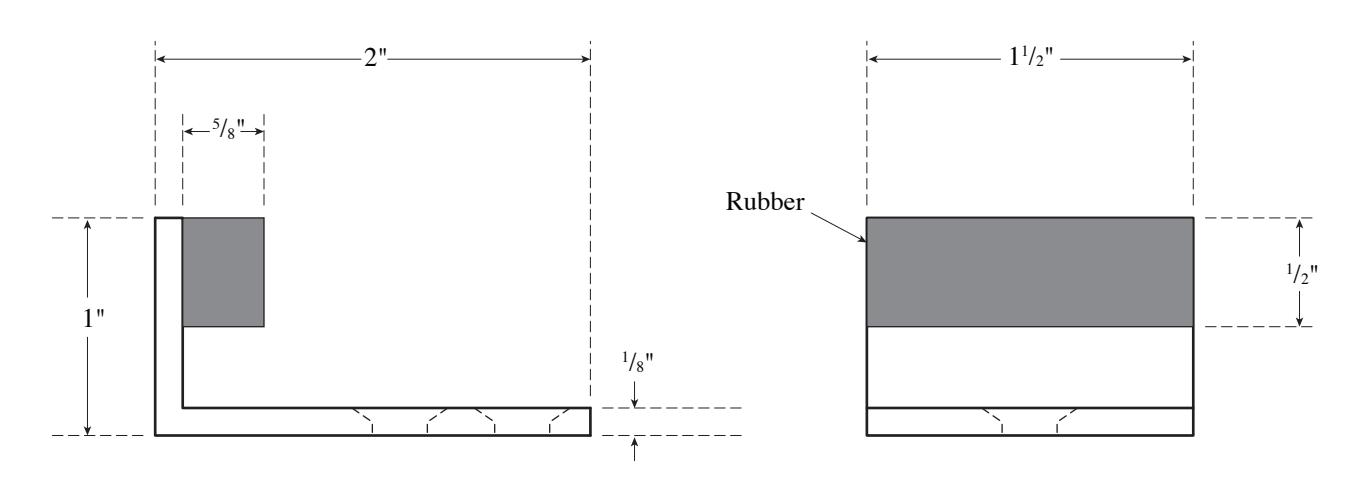

Rockwood 488 Header Door Stop

The global leader in door opening solutions

NOT TO SCALE

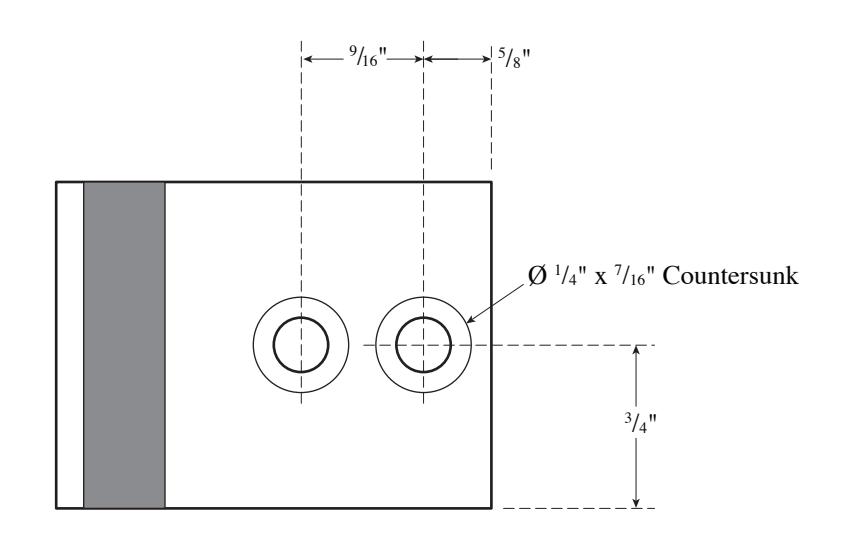

Template T-488

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

MATERIAL: Solid Brass

FASTENERS NOTE:

2 ea. #12 x 1¹/₂" Flat Head Wood Screws, 2 ea. Plastic Anchors; 2 ea. #12-24 x 1" Flat Head Machine Screws
