Architectural Door Accessories

ASSA ABLOY

The global leader in door opening solutions

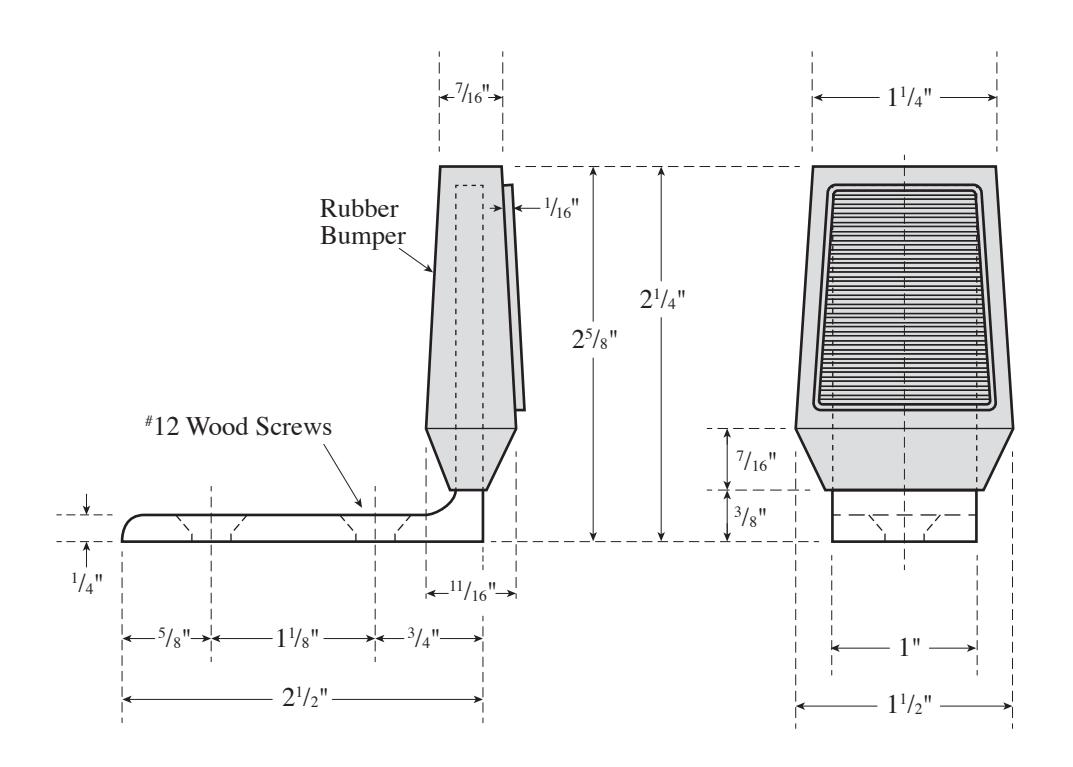

Rockwood 486 Door Stop

NOT TO SCALE

Template T-486

Effective date: Oct. 9, 2018 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

FASTENERS NOTE:

2 ea. #12 x 1<sup>1</sup>/<sub>2</sub>" Flat Head Sheet Metal Screws, 2 ea. Plastic Anchors

300 Main Street

Rockwood, Pennsylvania 15557

P: 800.458.2424 • F: 800.922.9212
