Architectural Door Accessories

ASSA ABLOY

Rockwood 477 Door Stop w/Keeper

The global leader in door opening solutions

NOT TO SCALE

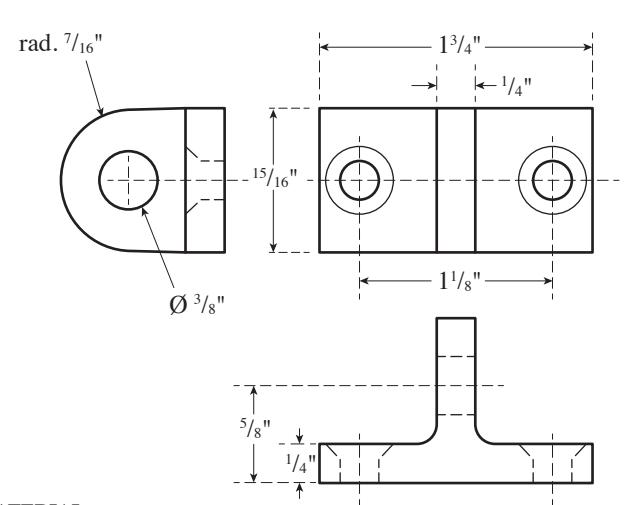

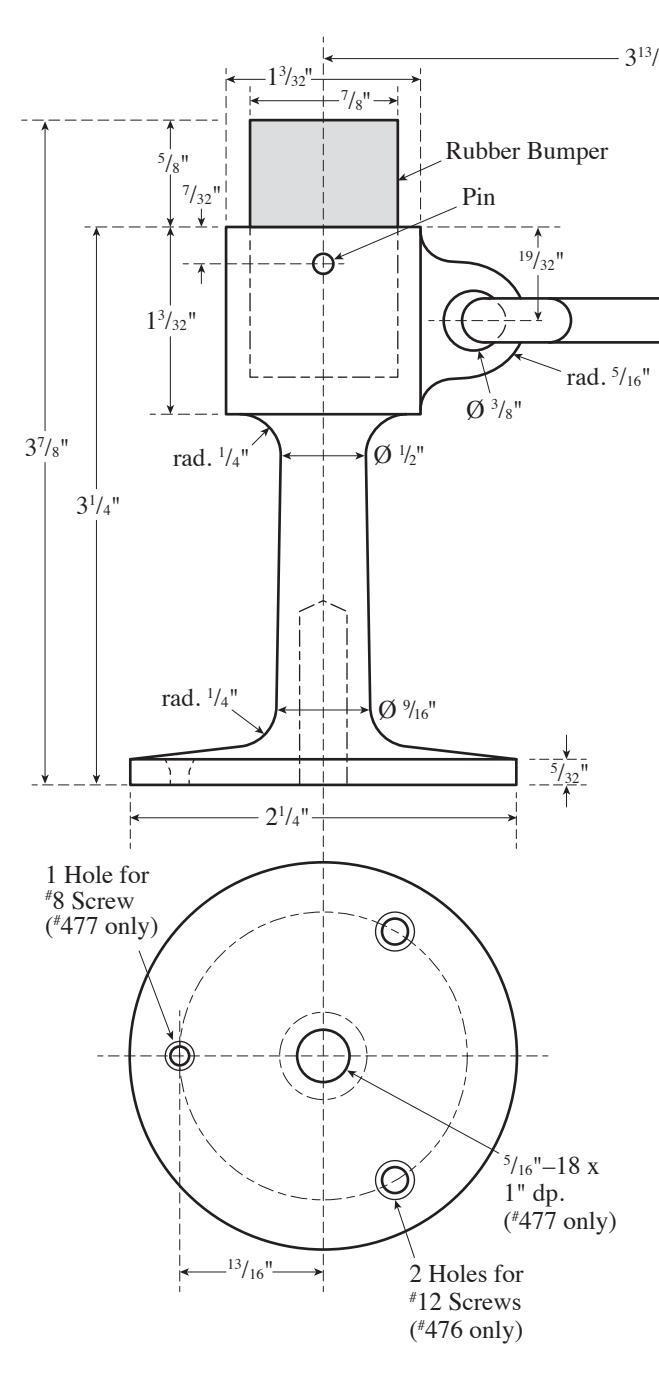

Template T-477

Effective date: Oct. 9, 2018 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

MATERIAL:

Solid Cast Brass with Rubber Bumper

Door Bracket

FASTENERS NOTE:

Stop: 5/16"-18 x 13/4" Stud, Anchor; #8 x 3/4" Oval Head Sheet

Metal Screws, Plastic Anchor

Keeper: 2 ea. #12 x 11/4" Flat Head

Wood Screws, 2 ea. Plastic Anchors

/!\ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

300 Main Street

Rockwood, Pennsylvania 15557

P: 800.458.2424 • F: 800.922.9212
