View PDFArchitectural Door Accessories
ASSA ABLOY
The global leader in door opening solutions

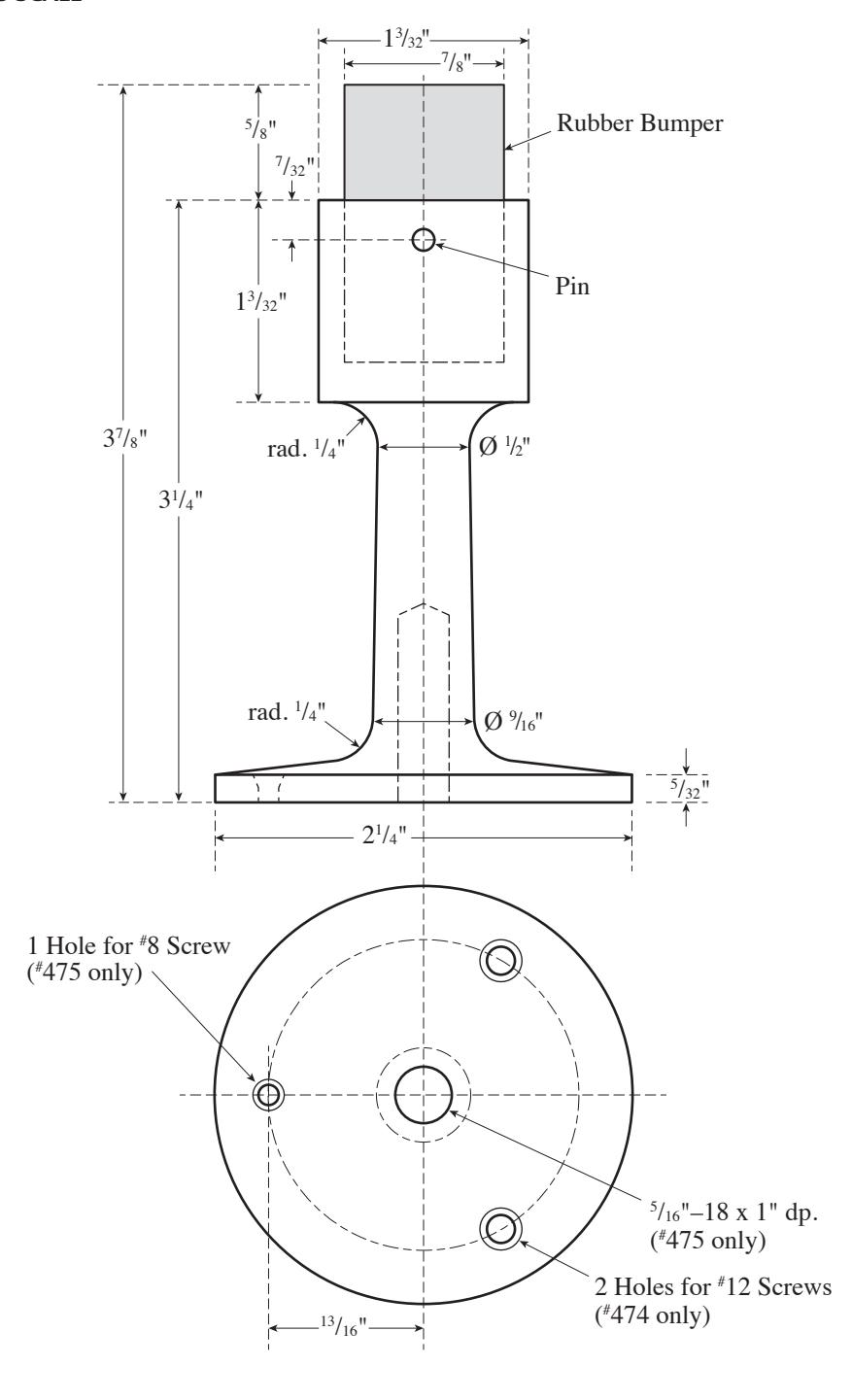

Rockwood 475 Wall Stop
NOT TO SCALE
Template T-475
Effective date: Oct. 9, 2018 Supercedes: All Previous
NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.
! WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
MATERIAL:
Cast Brass with Rubber Bumper
FASTENERS NOTE:
1 ea. <sup>5</sup>/<sub>16</sub>"-18 x 1<sup>3</sup>/<sub>4</sub>" Stud, Anchor; #8 x <sup>3</sup>/<sub>4</sub>" Oval Head Sheet Metal Screw, Plastic Anchor
