Architectural Door Accessories

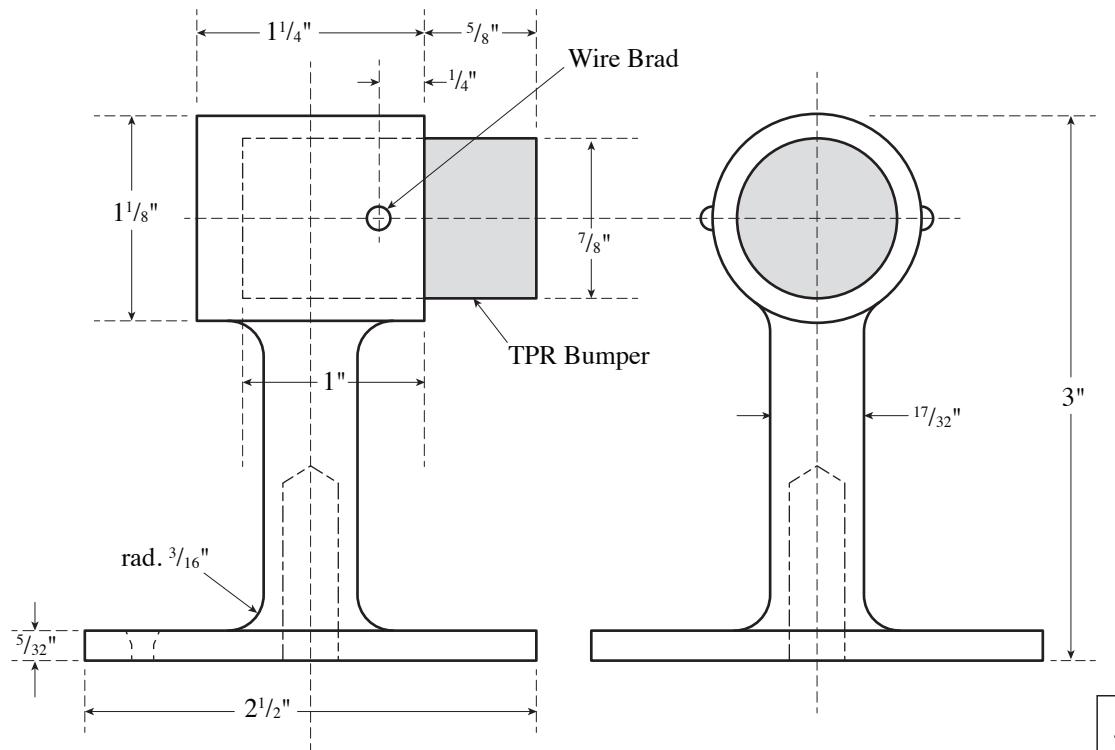

Rockwood 471 Door Stop

NOT TO SCALE

Template T-471

Effective date: Oct. 9, 2018 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.assaabloydooraccessories.us or call us at 800-458-2424.

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

15/16" 3 Holes for # 12 Screws (# 470 only) 1 Hole for 8 Screw 471 only) 5 /16"–18 x 1" dp. ( # 471 only)

MATERIAL : Cast Brass with Rubber Bumper FASTENERS NOTE: 1 ea. ⁵ /16"-18 x 1 3 /4" Stud, Anchor; # 8 x 3 /4" Oval Head Sheet Metal Screws, Plastic Anchor

#

( #
