Architectural Door Accessories

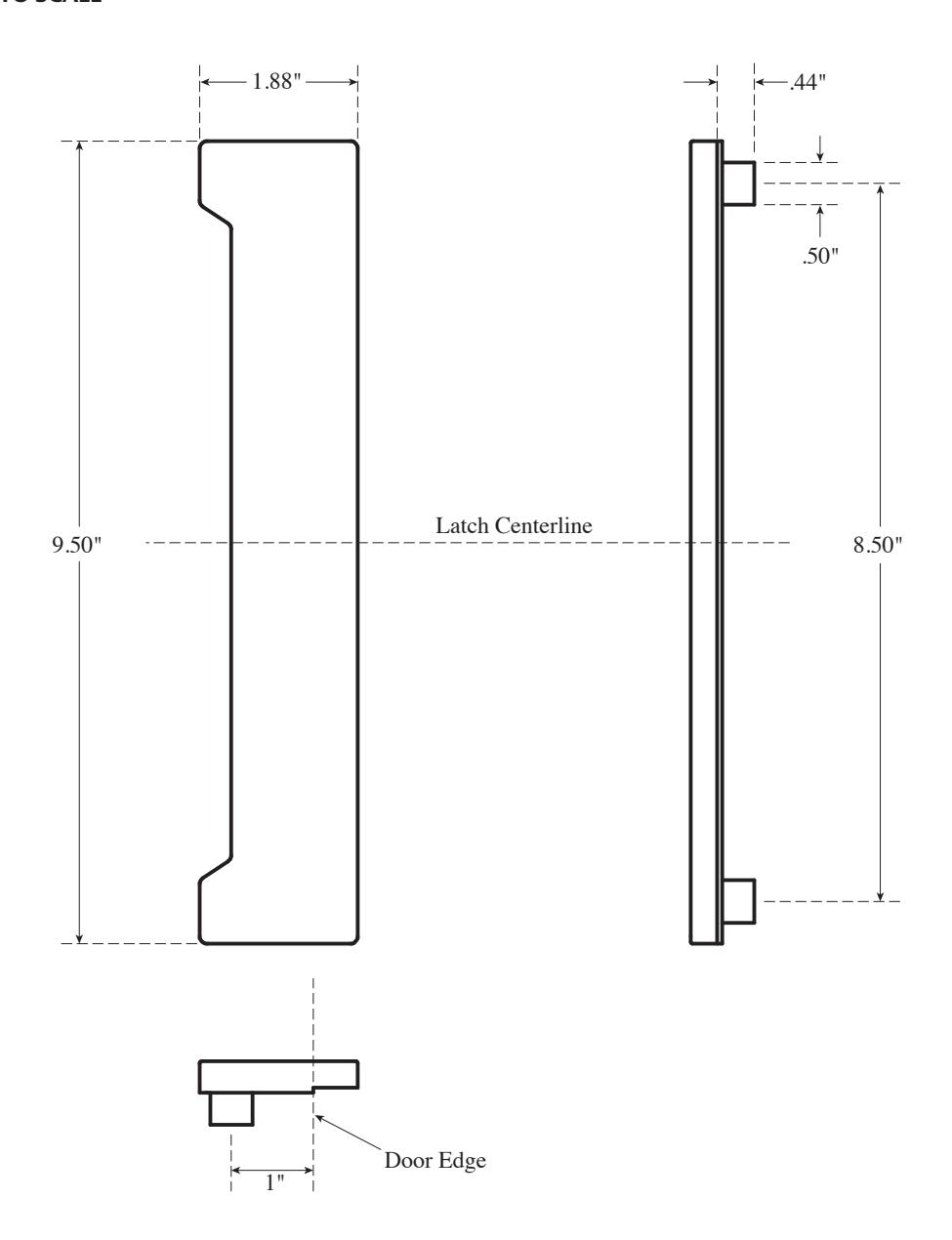

Rockwood 325 Latch Protector - Mounting

NOT TO SCALE

Template T-325

Effective date: January 1, 2017 Supercedes: All Previous

NOTE: ASSA ABLOY reserves the right to make product changes and is not responsible for obsolete template errors. To ensure your template is current, please visit our website at www.rockwoodmfg.com or call us at 800-458-2424

• 1. Drill two 9/32" thru holes 81/2" center to center and 1" in from the outside edge of the door.
• 2. Counterbore two 17/32" holes dp. 7/16" on the outside of the door only.
