Rixson W700 Series Overhead Concealed Closer W800 Wood Door-Frame Center Hung Single or Double Acting Template
Open the original PDF document
View PDF

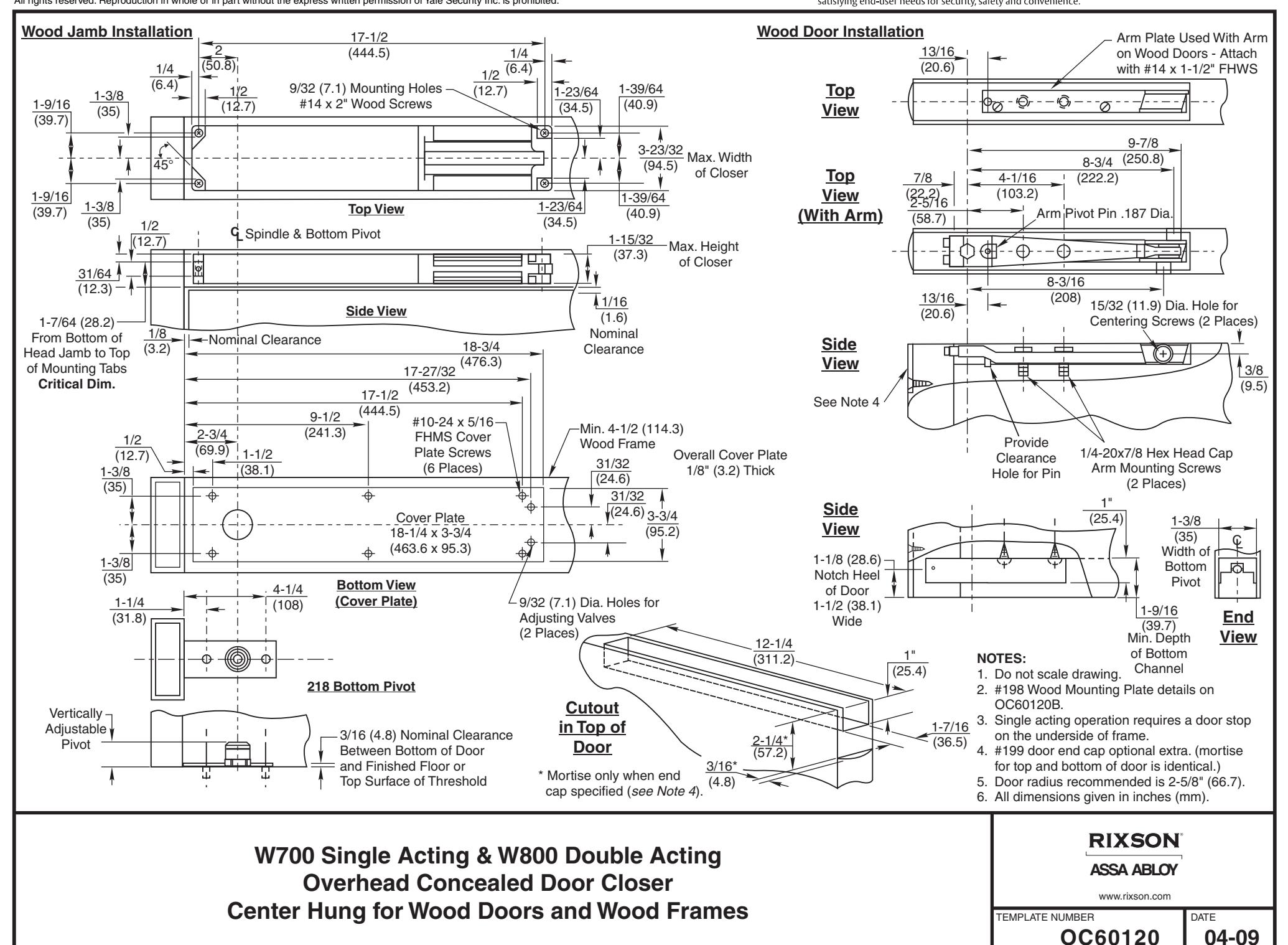

W700 Single Acting & W800 Double Acting Overhead Concealed Door Closer Center Hung for Wood Doors and Wood Frames
ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER DATE
OC60120
04-09
