Rixson W608 Series Overhead Concealed Closer Center Pivot Page B Installation Instructions

Open the original PDF document

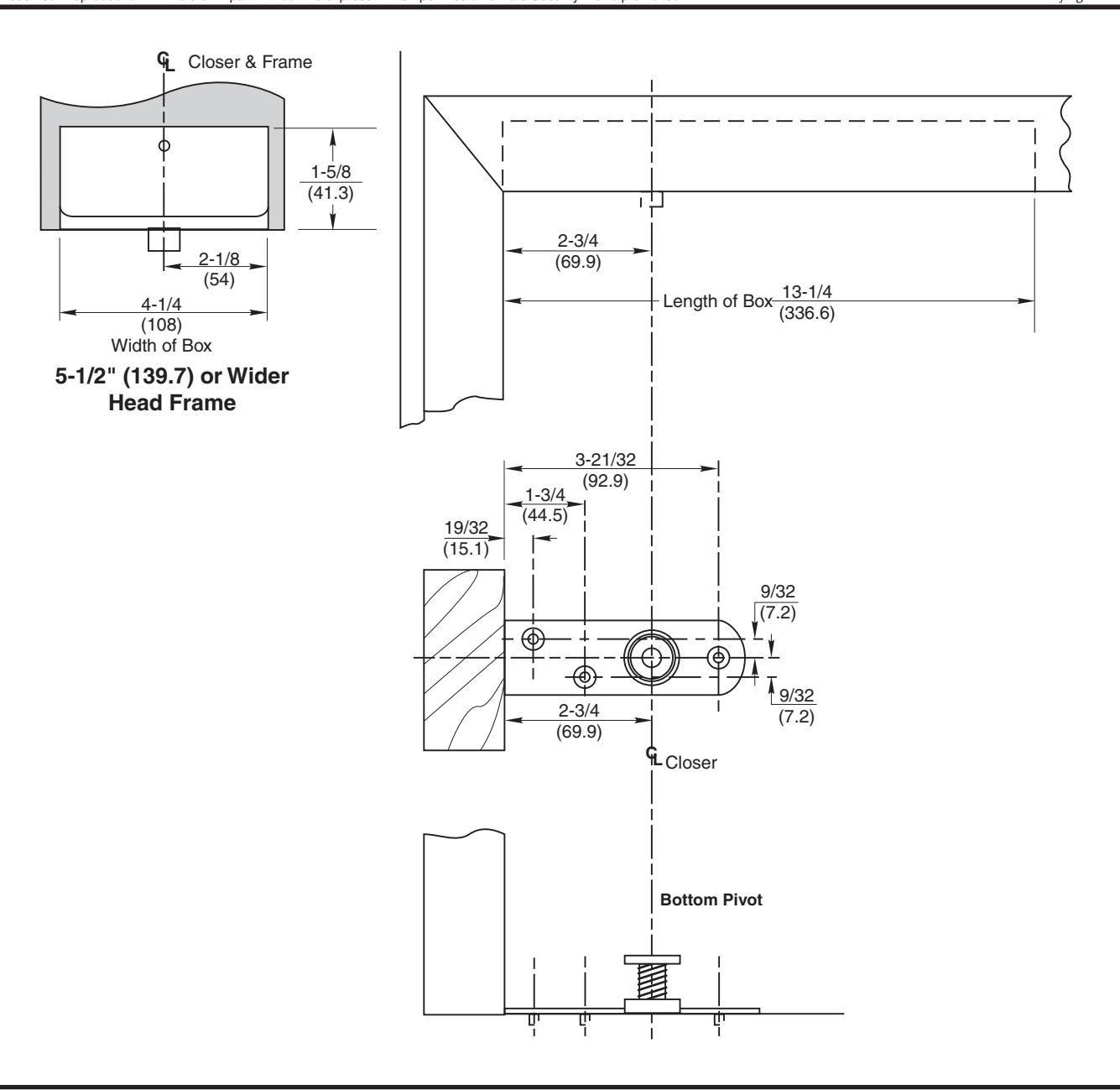

WOOD JAMB INSTALLATION

NOTES:

1. Do not scale drawing.
2. Arm plate used with arm on wood doors. Attach with #14 x 1-1/2"FHWS
3. Door radius recommended 2-5/8" (66.7).
4. All dimensions given in inches (mm).

W608 Series Overhead Concealed Door Closer Center Pivot

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE

OC60450B

05-09
