Closer Adjustment

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose of each adjustment screw. Adjustments are for speed

Closer Type

This closer is one of three types as follows:

• 1. Non hold-open factory set. No hold-open adjustments.
• 2. Automatic hold-open factory set. No hold-open adjustment.

Spring Power Adjustments

This closer can be adjusted for increased or decreased spring power.

These adjustments if required should be done by an authorized repair agency.

Repairs, parts replacement or internal adjustments must be done by a Rixson authorized repair agency. Consult www.rixsondoorcontrols.com for an authorized repair agency in your area.

866-474-9766 Technical Department

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience. Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2002, 2009, Yale Security Inc., an ASSA ABLOY Group company All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited

RIXSON

ASSA ABLOY

PAGE 4

W30-W40 Floor Closer

Installation Instructions

3040W (05-09)

Center Hung Double Acting Non-Handed Wood Door Installation

www.rixson.com

Rixson Specialty Door Controls

Auxiliary stop required.

866-474-9766 Technical Department

1-13/32

Rixson designed threshold available on request.

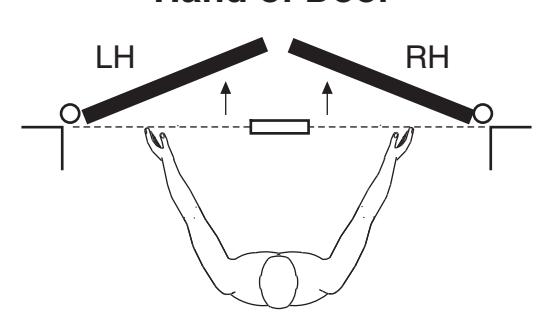

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand. NOTE: This product allows the door to swing in both directions.

Installation Instructions

1. Locating Closer

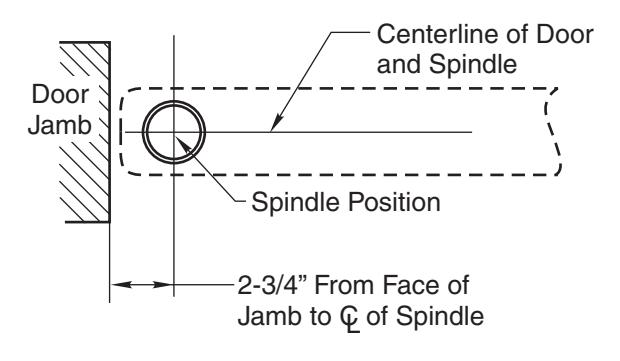

A. Measure 2-3/4" out from door jamb on centerline of door. This is the location of the spindle center.

2. Install Cement Case in Floor

• A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
• B. For threshold application: Cement case is set flush with floor.
• C. Set cement case in floor and block in position.
• D. Case should be parallel with center line of door.

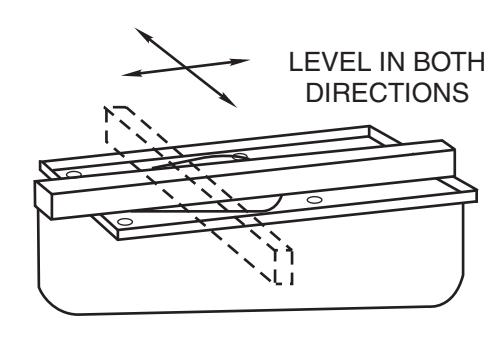

• E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
• F. Grout in cement case with closer. Cement should not get between closer and case.

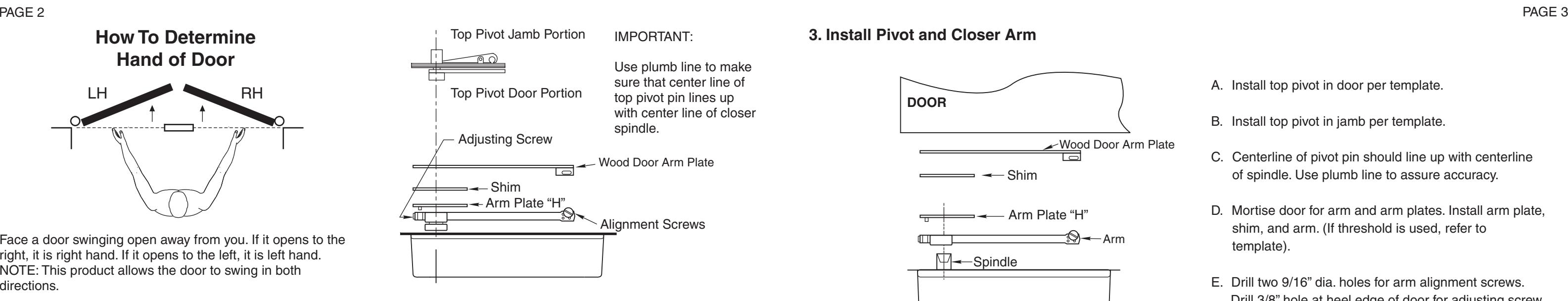

3. Install Pivot and Closer Arm

Floor

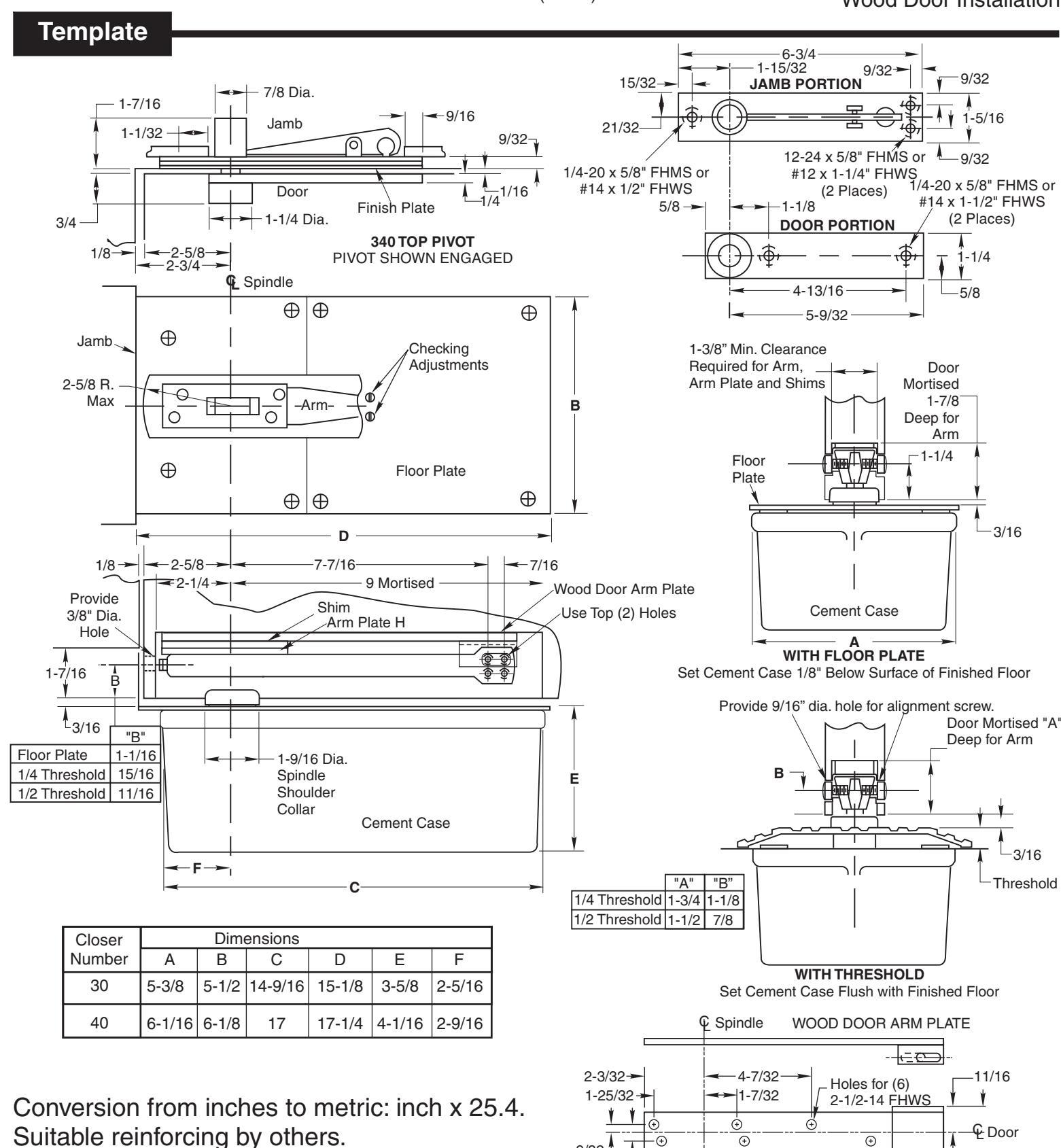

• A. Install top pivot in door per template.
• B. Install top pivot in jamb per template.
• C. Centerline of pivot pin should line up with centerline of spindle. Use plumb line to assure accuracy.

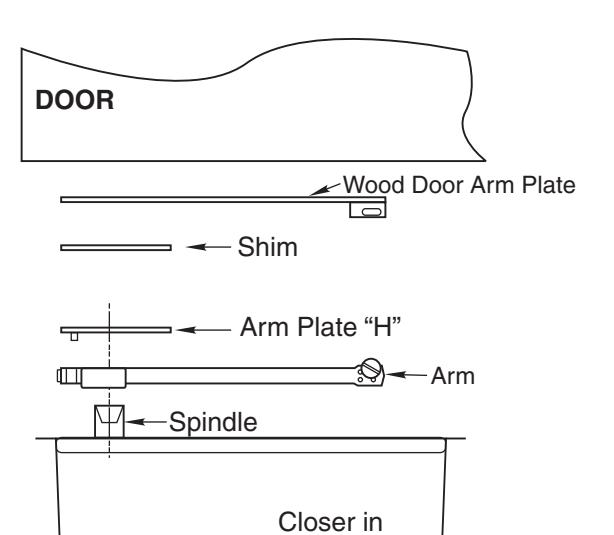

• D. Mortise door for arm and arm plates. Install arm plate, shim, and arm. (If threshold is used, refer to template).
• E. Drill two 9/16" dia. holes for arm alignment screws. Drill 3/8" hole at heel edge of door for adjusting screw.

4. Hang Door

• CAUTION: Closer is shipped with "valve" screws down. DO NOT FORCE VALVE DOWN.

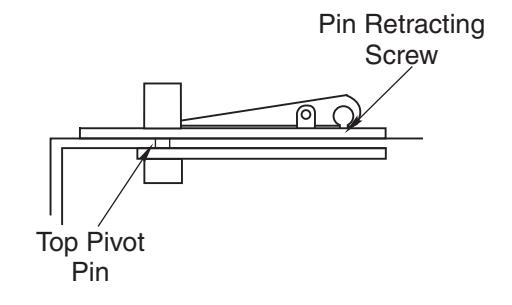

• A. Retract top pivot pin by turning retracting pin screw counter-clockwise (see illustration).

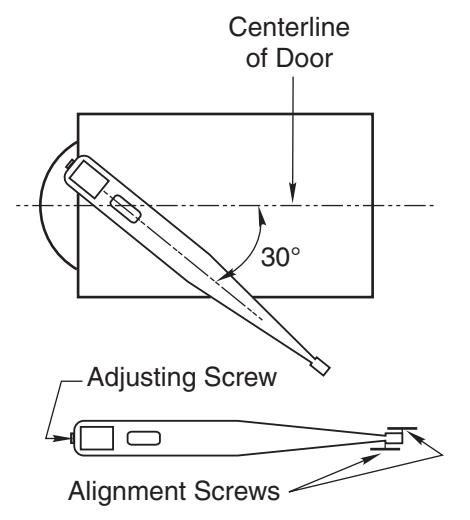

• B. With arm on spindle, turn spindle until arm is in 30° open position (see illustration).
• C. Set door on spindle. DO NOT ATTEMPT TO CLOSE DOOR.
• D. Align two portions of top pivot and turn pin retracting screw clockwise to engage top pivot pin.
• E. Open door to 60° or more and turn valve screws counterclockwise. Door will then close.
• F. If necessary, turn adjusting screw at bottom of heel edge of door to equalize side jamb clearances.
• G. Adjust center door in doorway. arm alignment screws equally from each side to
