Rixson W0608 Series Overhead Concealed Closer W608 Page A Installation Instructions
Open the original PDF document
View PDF

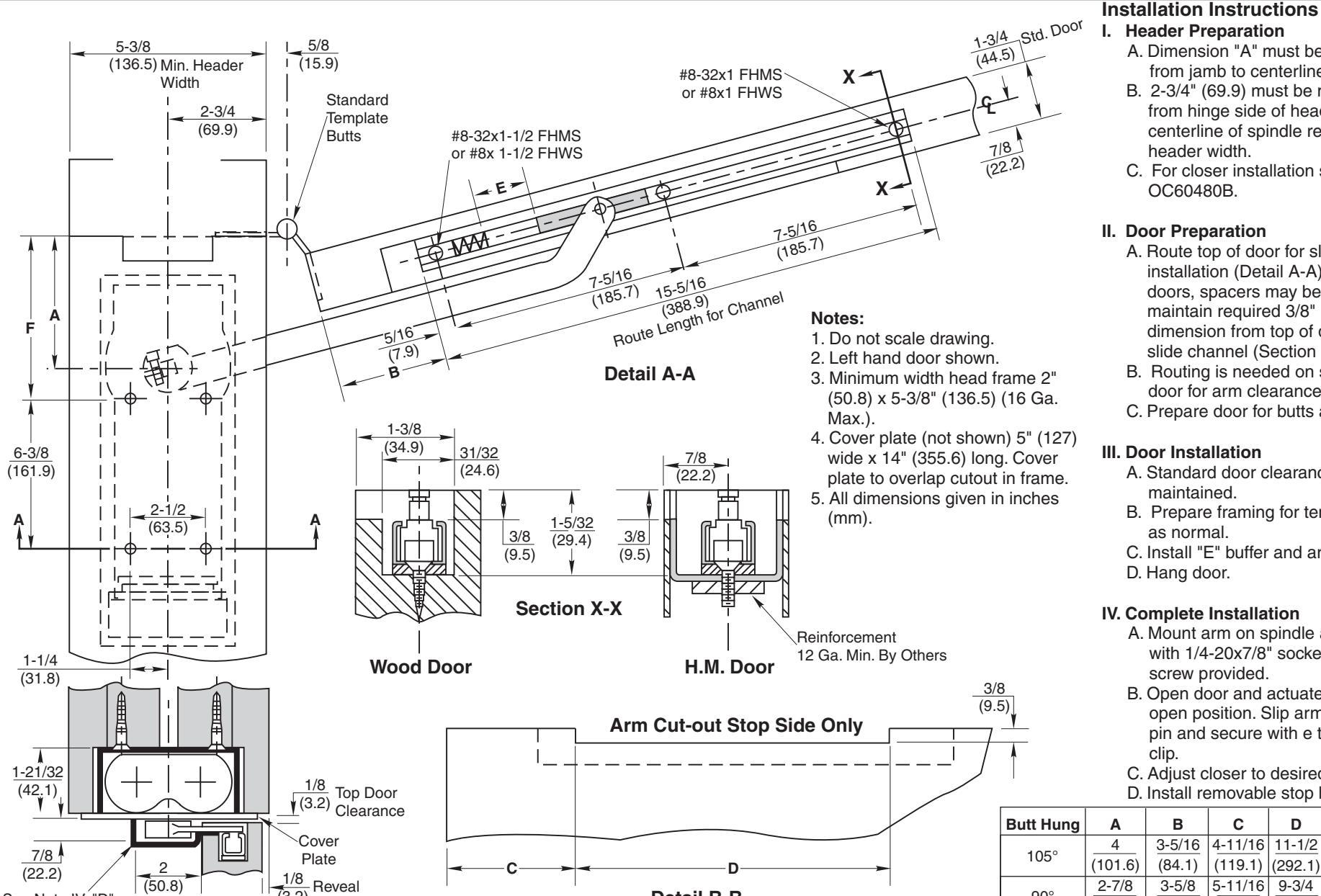

Detail B-B
W0608 Series Overhead Concealed Door Closer Butt Hung
See Note IV, "D"
Section A-A
- A. Dimension "A" must be maintained from jamb to centerline of spindle.
- B. 2-3/4" (69.9) must be maintained from hinge side of header to centerline of spindle regardless of
- C. For closer installation see Template
- A. Route top of door for slide channel installation (Detail A-A). On metal doors, spacers may be needed to maintain required 3/8" (9.5) dimension from top of door to top of slide channel (Section X-X).
- B. Routing is needed on stop side of door for arm clearance. (Detail B-B).
- C. Prepare door for butts as normal.
- A. Standard door clearances are to be
- B. Prepare framing for template butts
- C. Install "E" buffer and arm slider.
- A. Mount arm on spindle and secure with 1/4-20x7/8" socket head cap
- B. Open door and actuate arm into open position. Slip arm over slide pin and secure with e type retainer
- C. Adjust closer to desired door speed.
- D. Install removable stop by others.
| Butt Hung | Α | В | С | D | E | F |
|---|---|---|---|---|---|---|
| 105° | _ 4 | 3-5/16 | 4-11/16 | 11-1/2 | 1-3/8 | 4-11/16 |
| (101.6) | (84.1) | (119.1) | (292.1) | (34.9) | (119.1) | |
| 90° | 2-7/8 | 3-5/8 | 5-11/16 | 9-3/4 | 2 | 3-9/16 |
| (73) | (92.1) | (144.5) | (247.7) | (50.8) | (90.5) |
RIXSON ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
DATE
OC60480A
05-09
