Smok-Chek® VI Installation and Instruction Manual

ASSA ABLOY

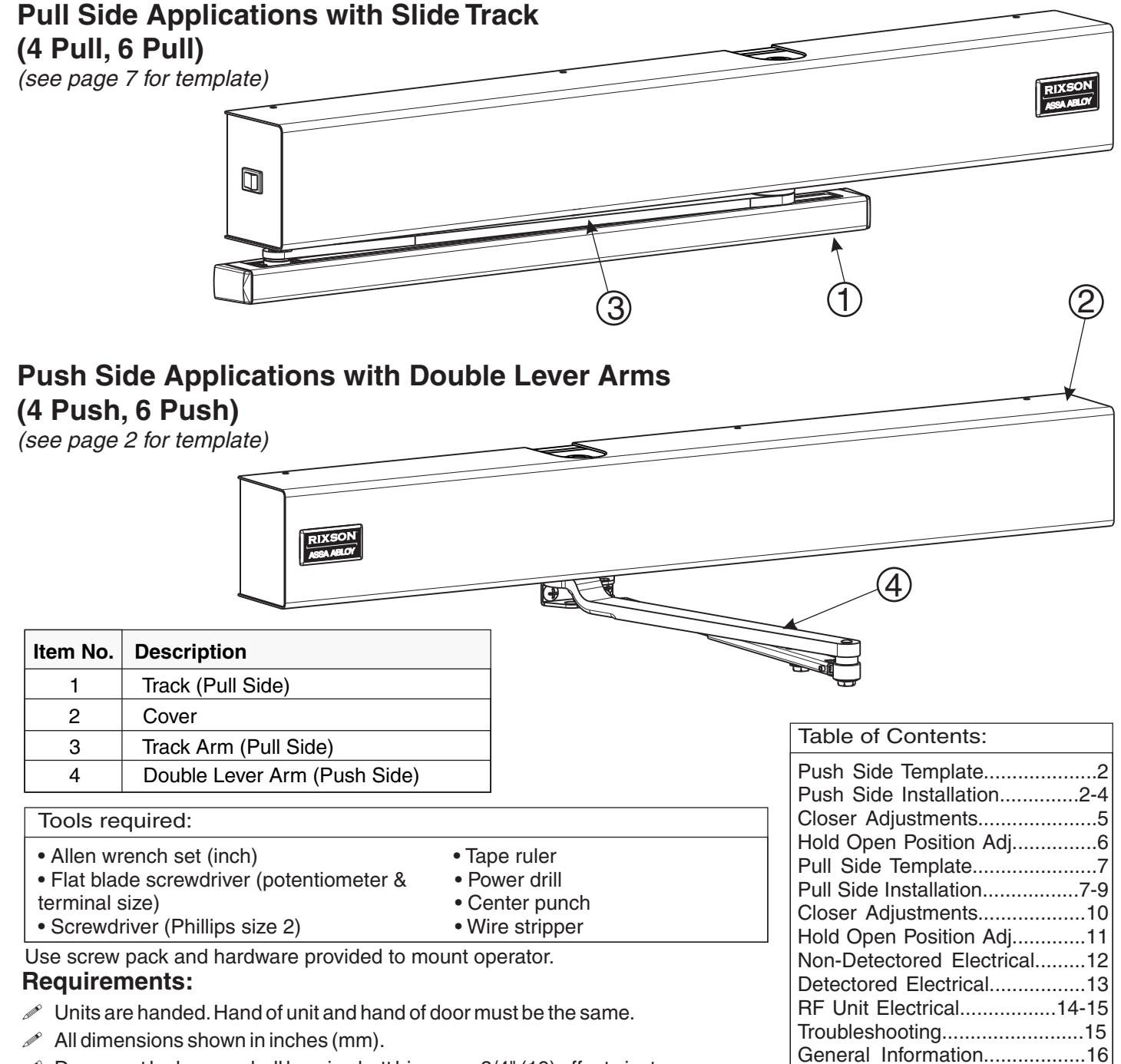

• ✓ Door must be hung on ball bearing butt hinges or 3/4" (19) offset pivots.
• Door thickness must be 1-3/4" (44) to 2-1/4" (64).
• Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.
• Frame face must be a minimum of 2" (51).

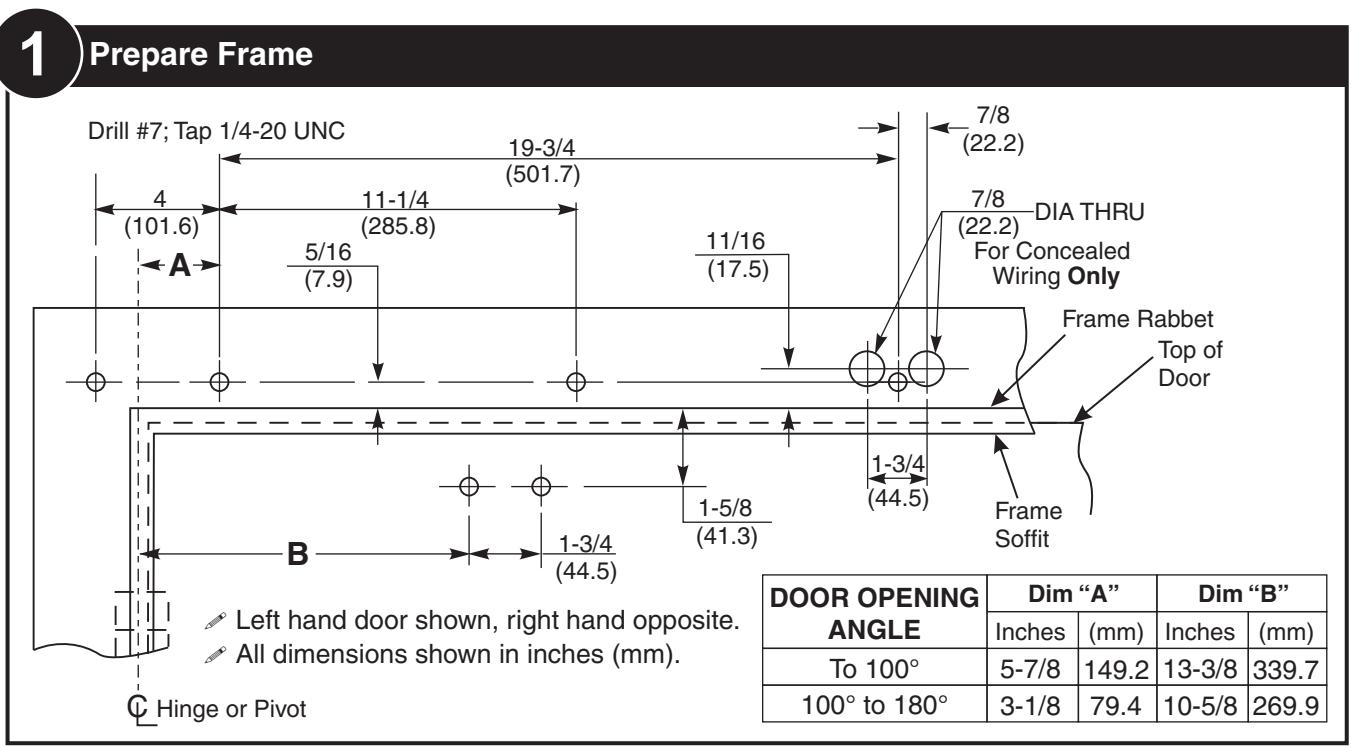

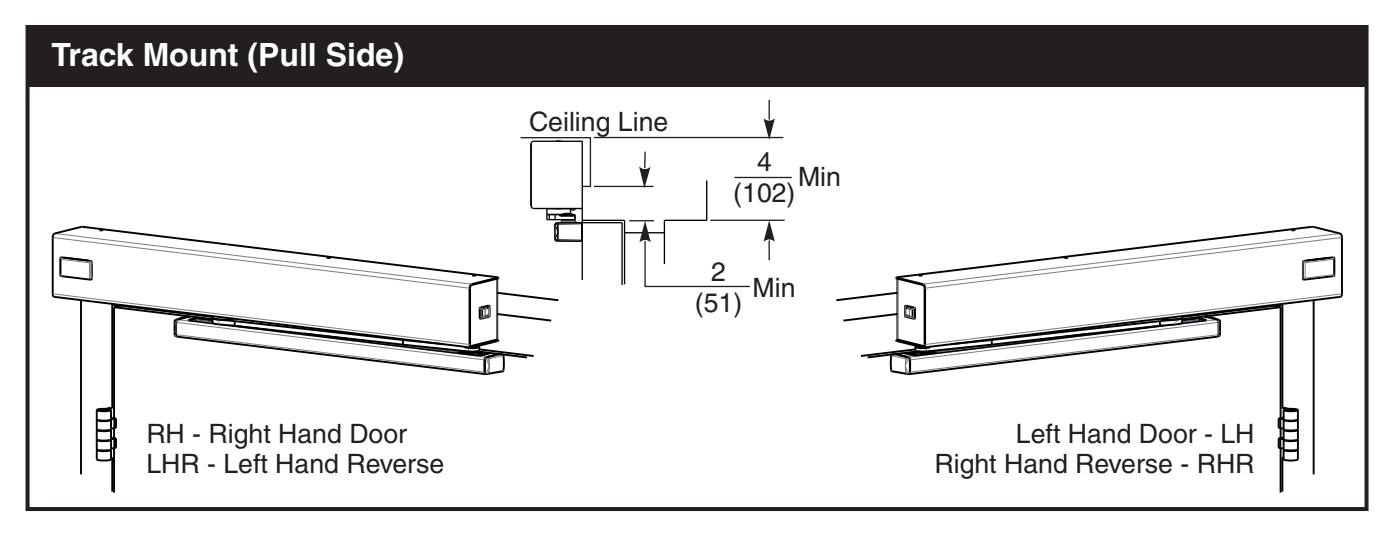

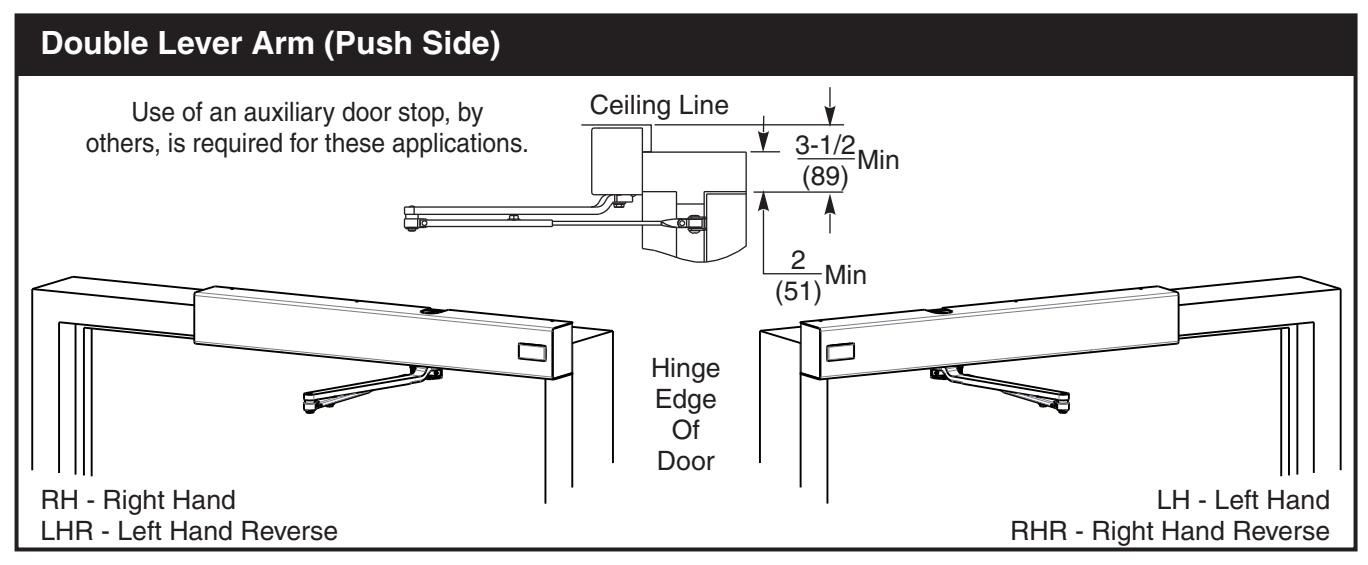

• Ceiling clearance must be a minimum of 3-1/2" (89) for push side application or 4" (102) for pull side application. See pages 2 and 7 for templates.
• Power input to unit must be of the same voltage as that stated on the unit.
• Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.
• See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

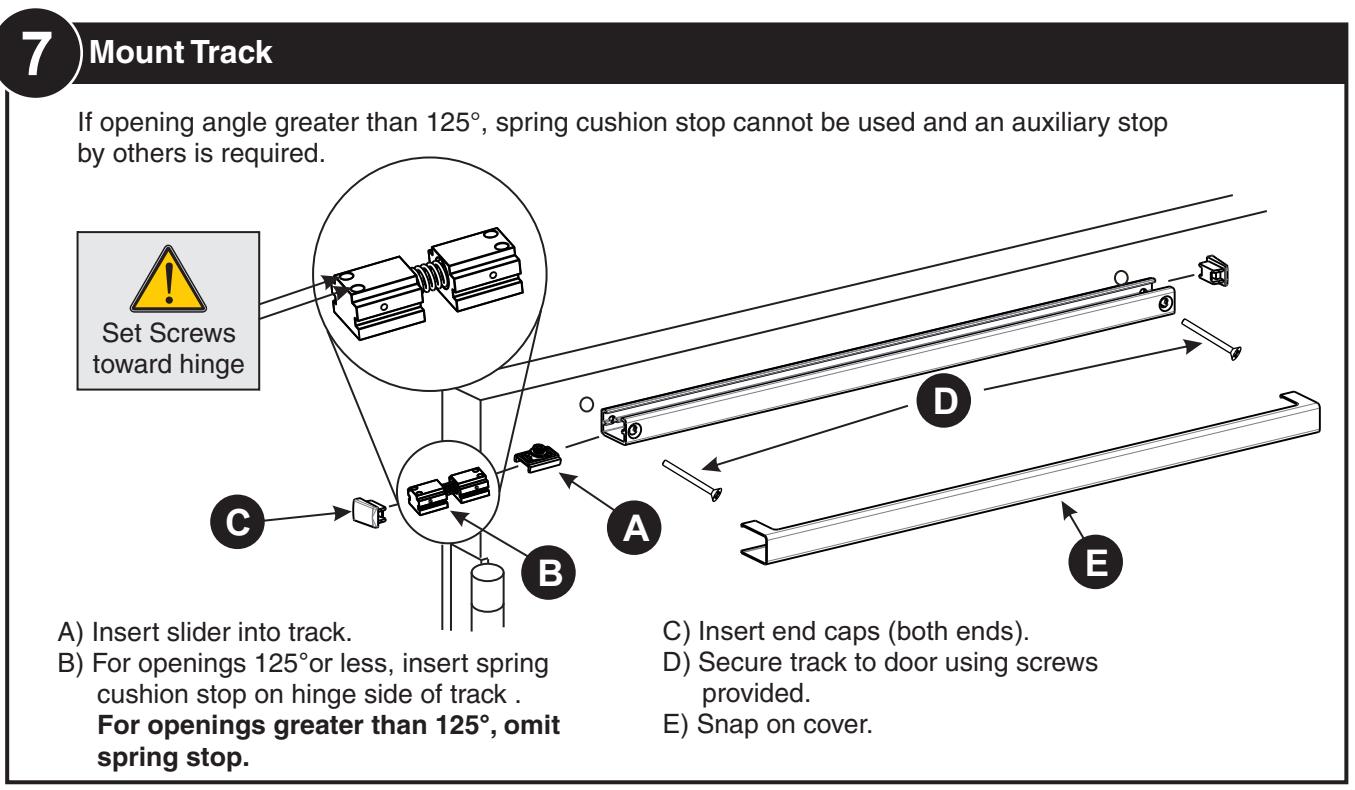

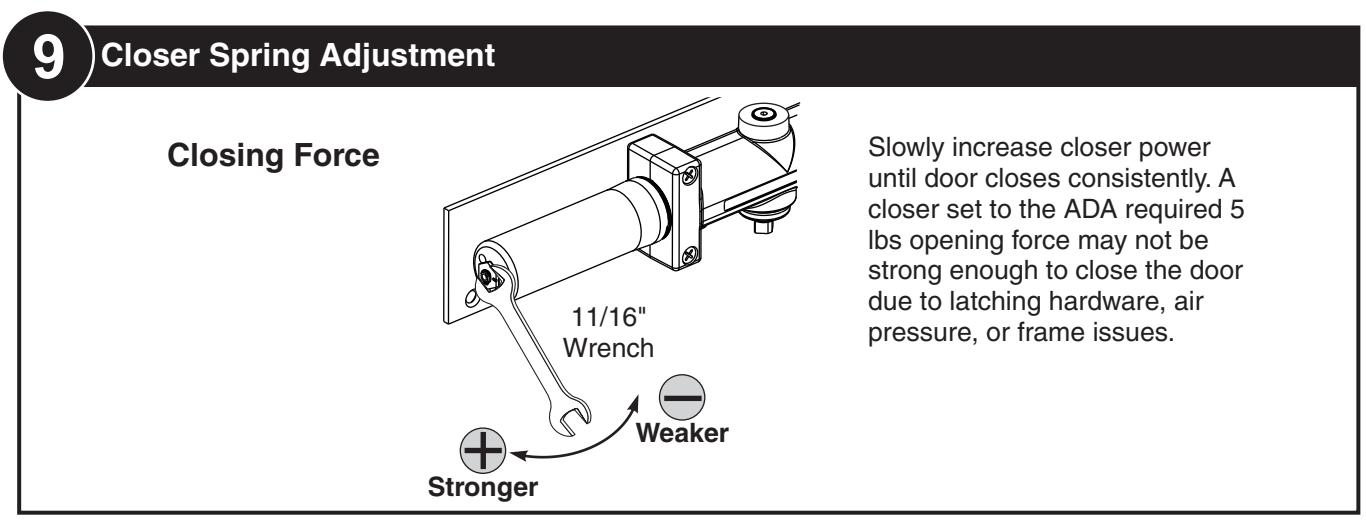

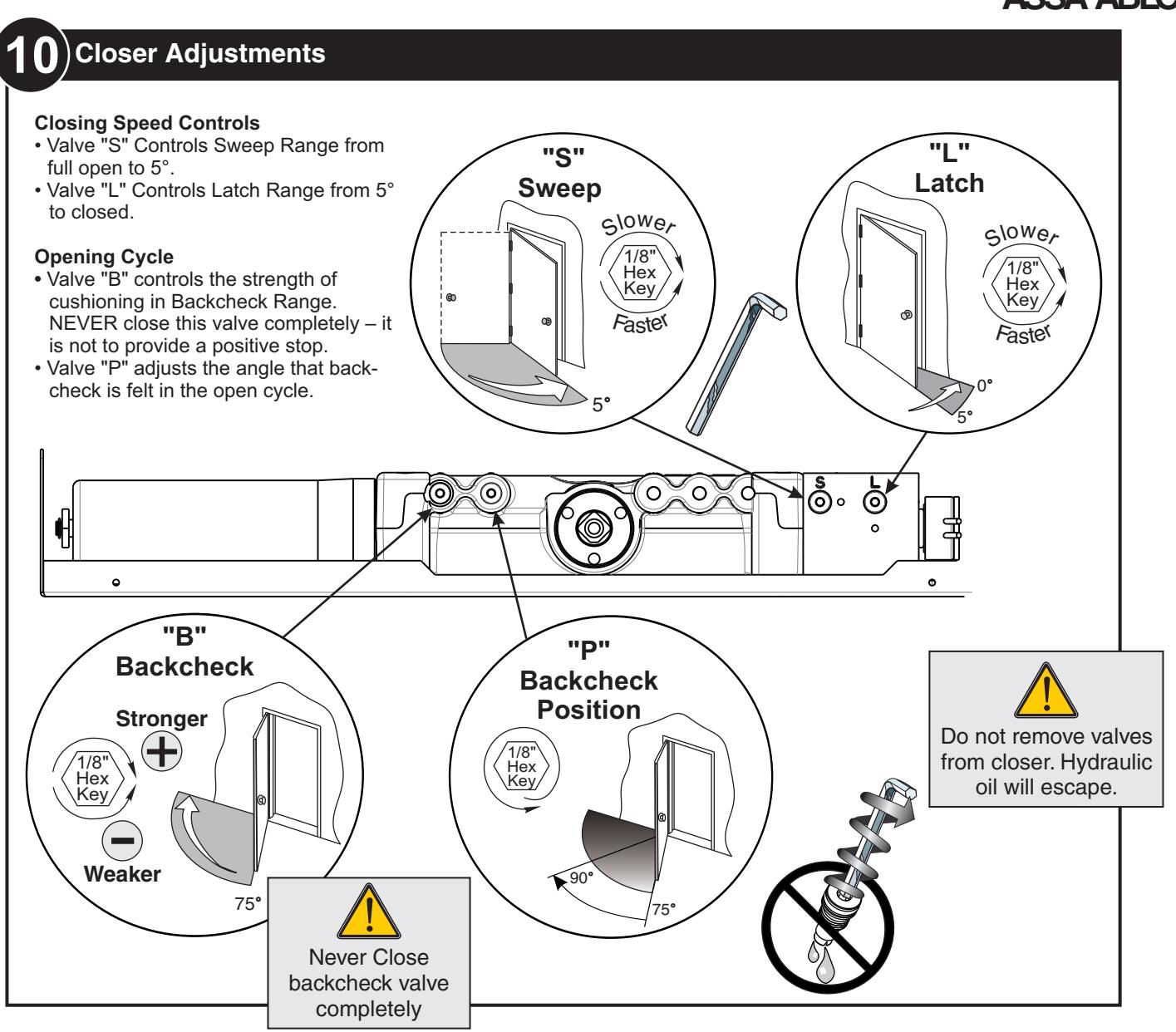

10 Electrical Connections

See Page 13 for Non-Detectored Units See Page 14 for Detectored Units See Page 15 for RF Units

131 Selective Hold Open Cam Adjustment

Setting Hold Open Angle

• Make all required electrical connections and turn power switch to on for nondetectored units (detectored units cannot be turned off at the closer). (See previous step)
• Open door to desired hold open angle.

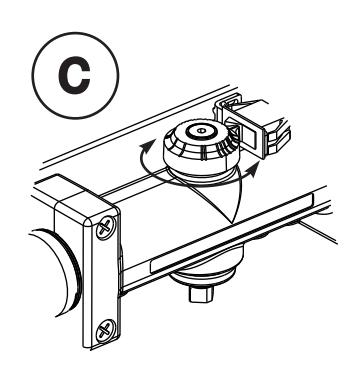

• Loosen cam screw and rotate cam until switch closes and door holds open.
• Rotate cam until it touches the switch.
• Tighten cam screw but do not over torque as this will cause damage to cam.
• Force door out of hold open by closing the door, then test hold open by opening to hold open angle again.

SHO switch in open position. Closer not in hold open.

SHO switch in closed position. Closer in hold open.

123 Attach Cover Attach cover using screws provided.

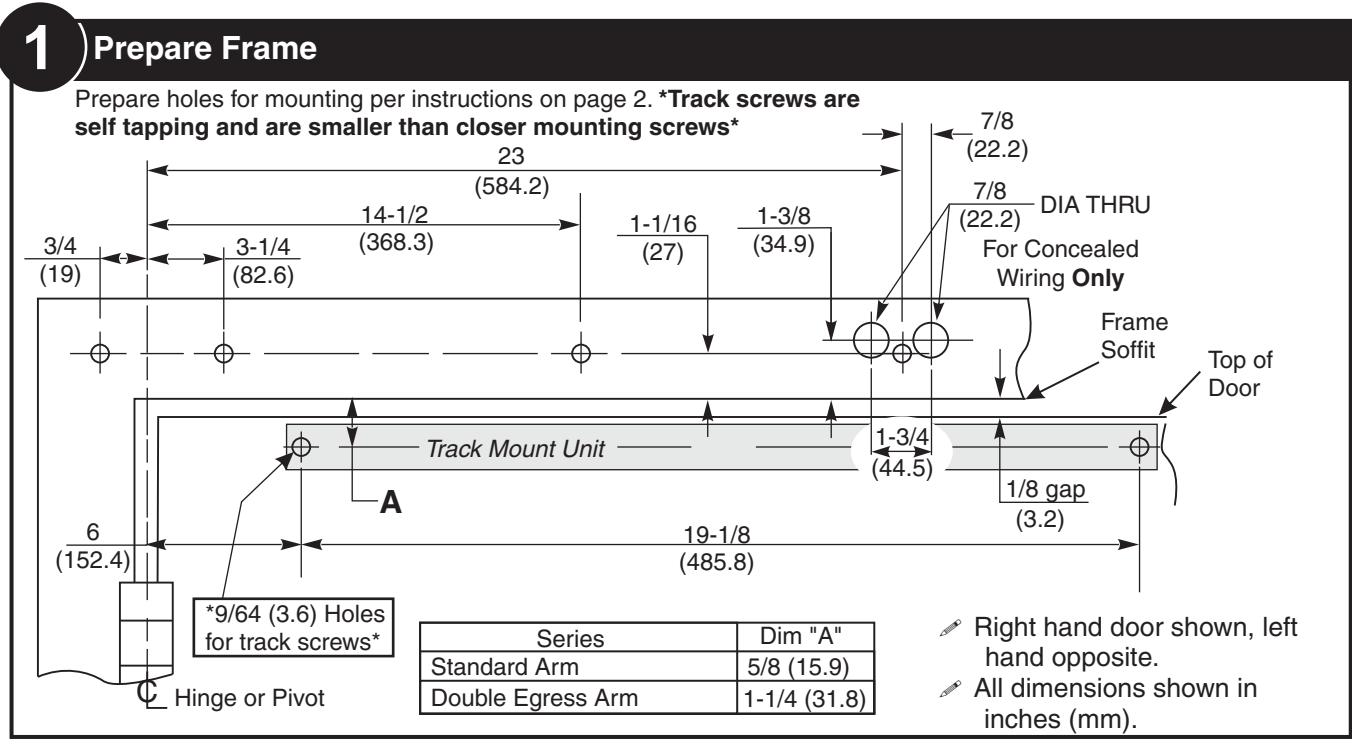

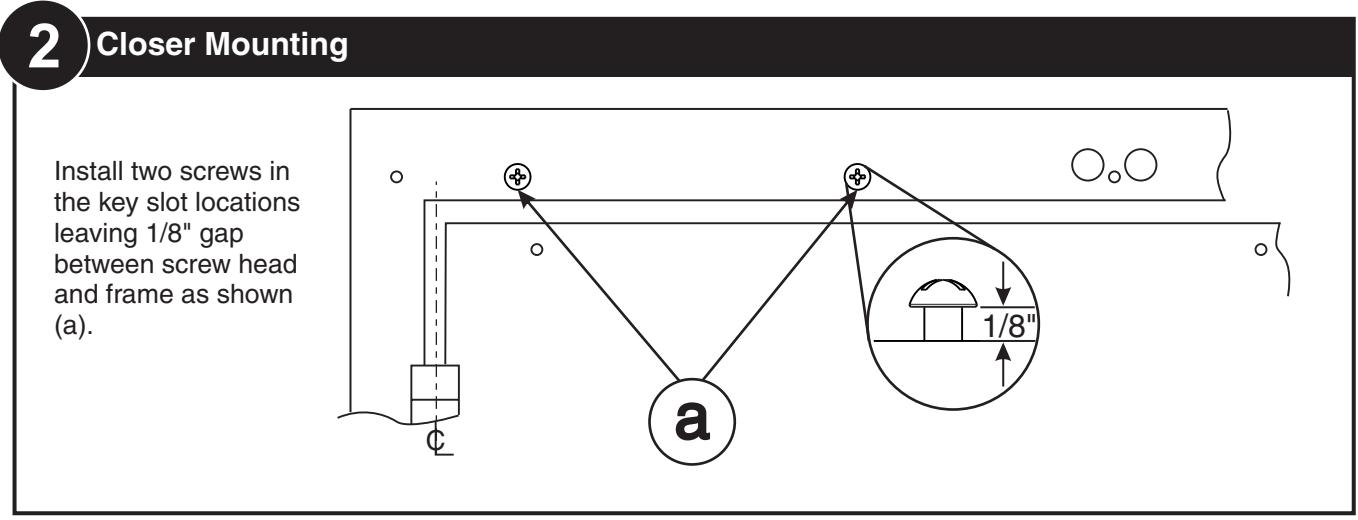

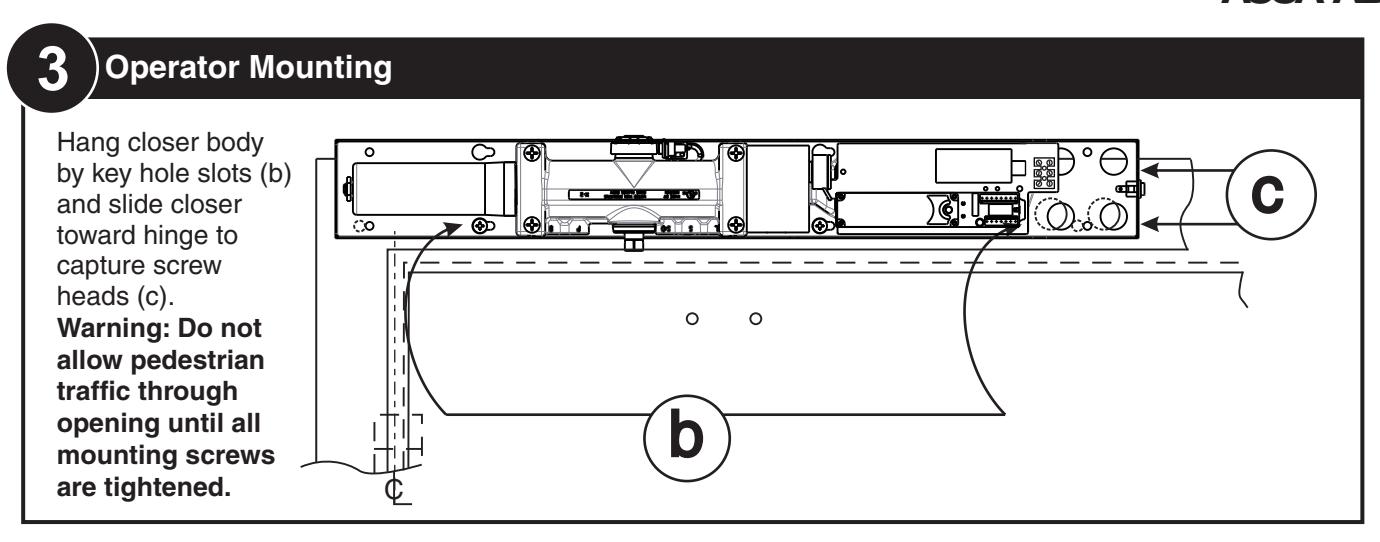

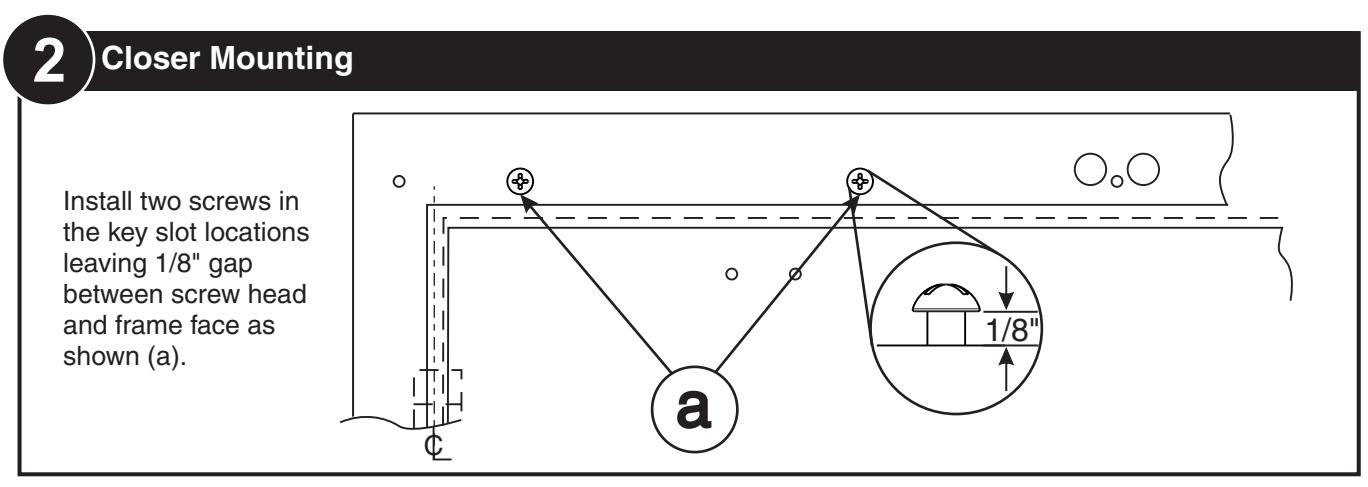

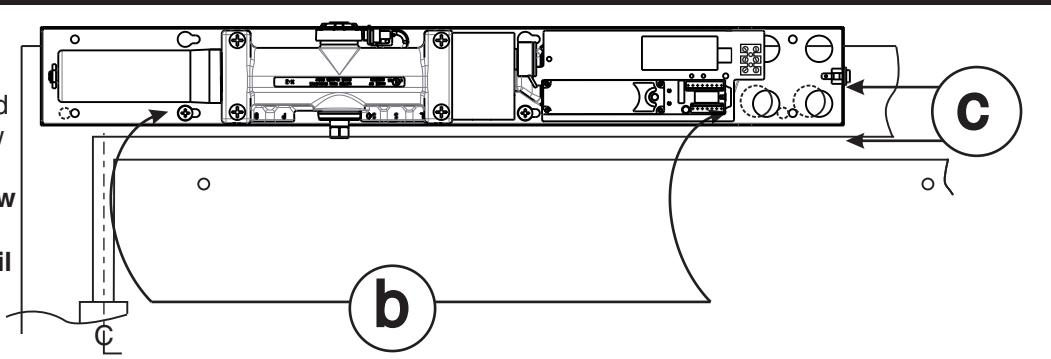

Hang closer body by key hole slots (b) and slide closer toward hinge to capture screw heads (c).

Warning: Do not allow pedestrian traffic through opening until all mounting screws are tightened.

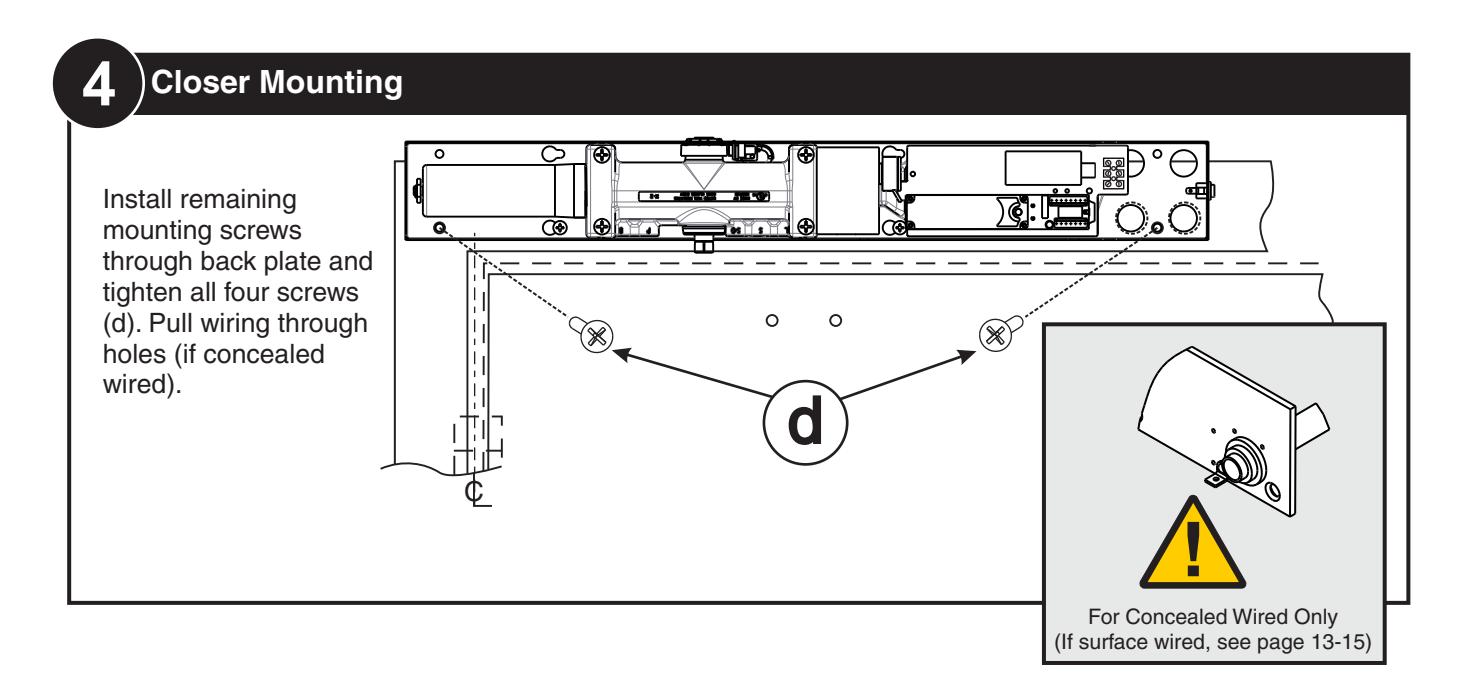

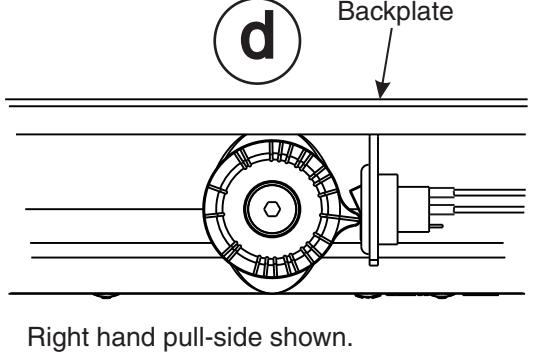

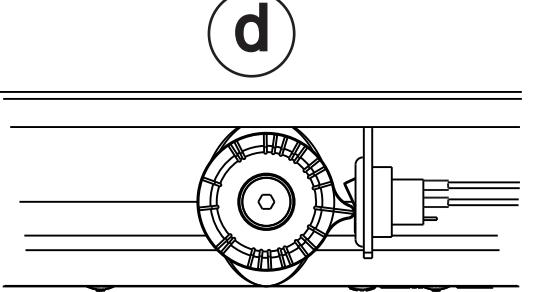

4 Closer Mounting Install remaining mounting screws through back plate and tighten all four screws (d). Pull wiring through holes (if concealed wired). d !

For Concealed Wired Only (If surface wired, see page 13-15)

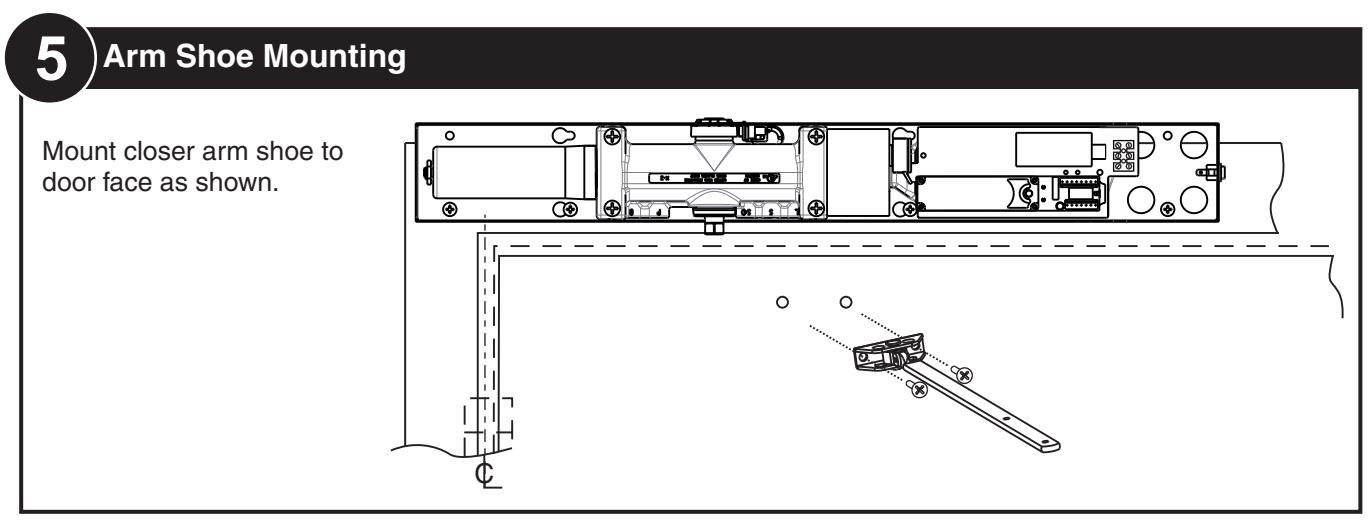

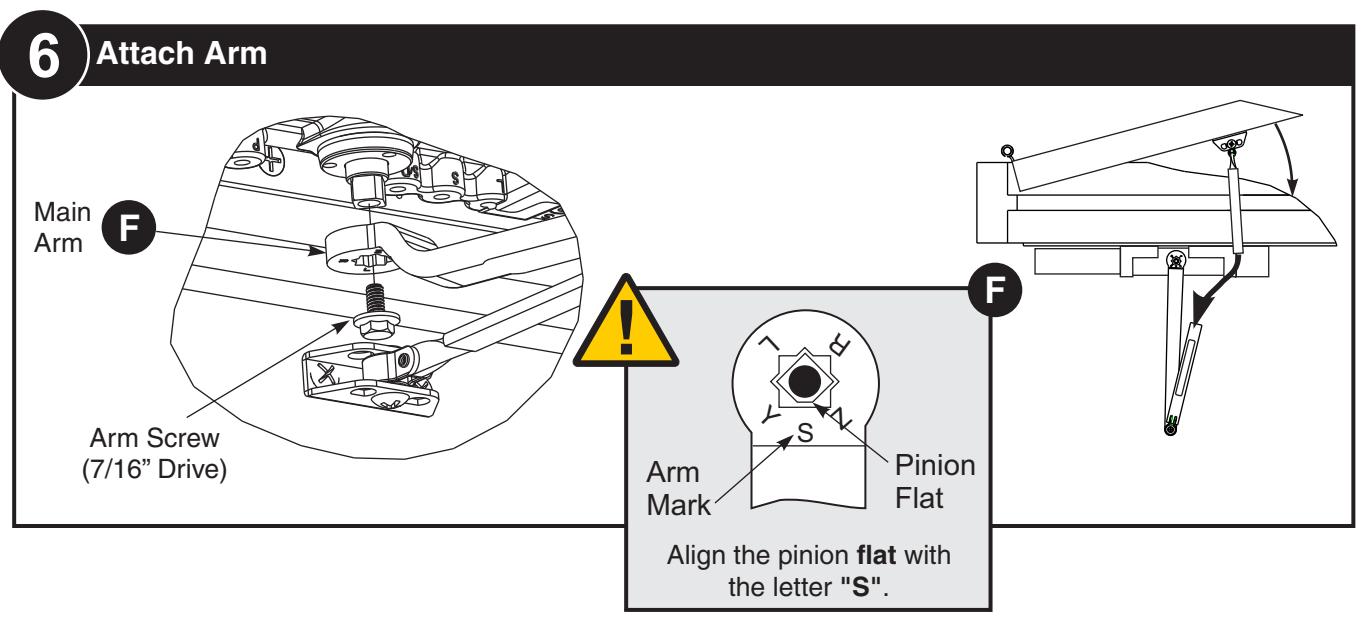

C

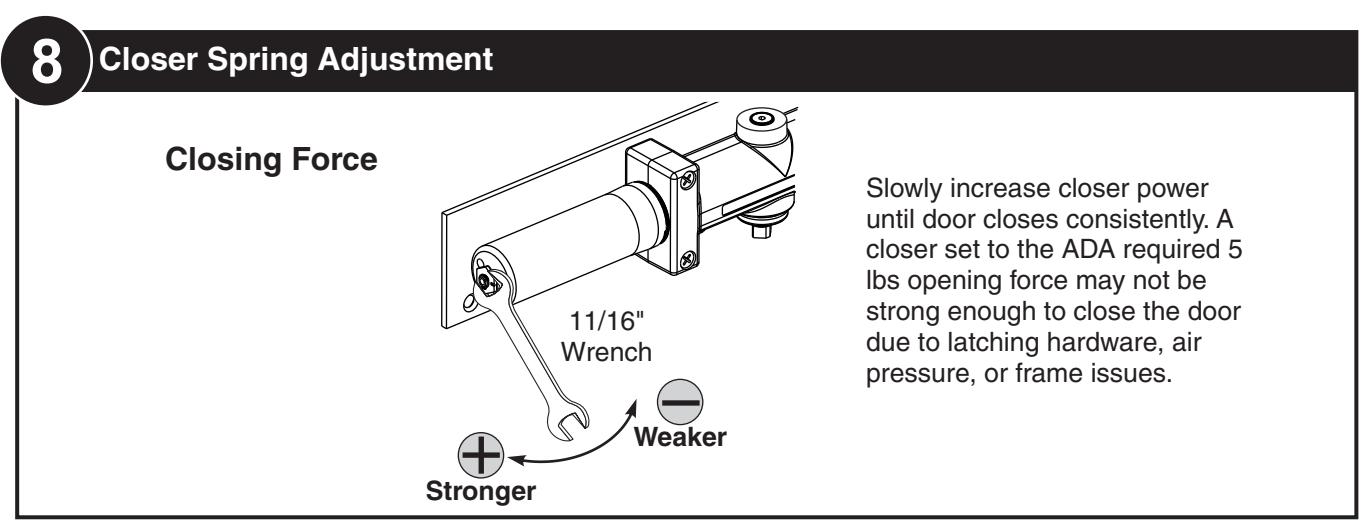

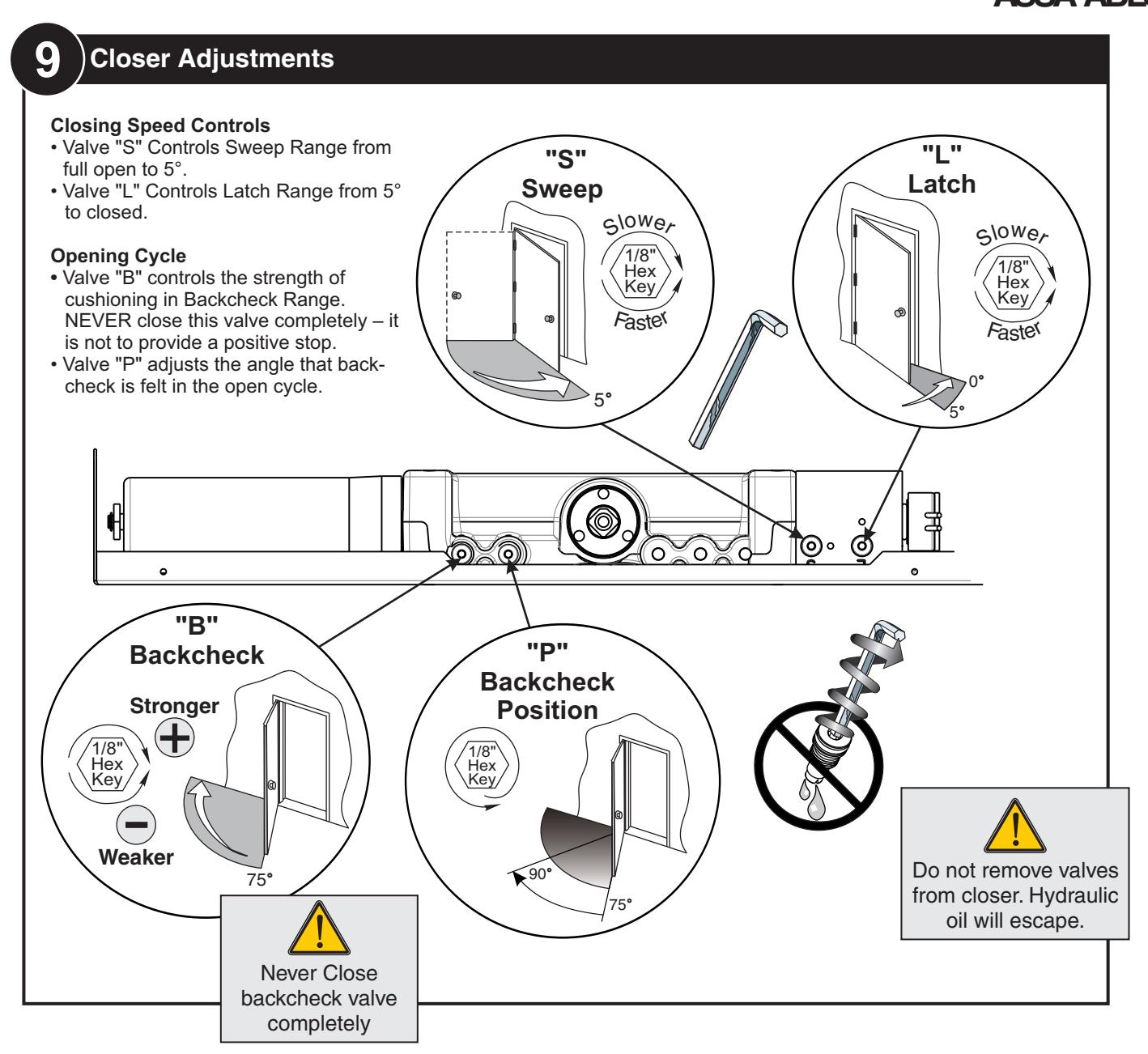

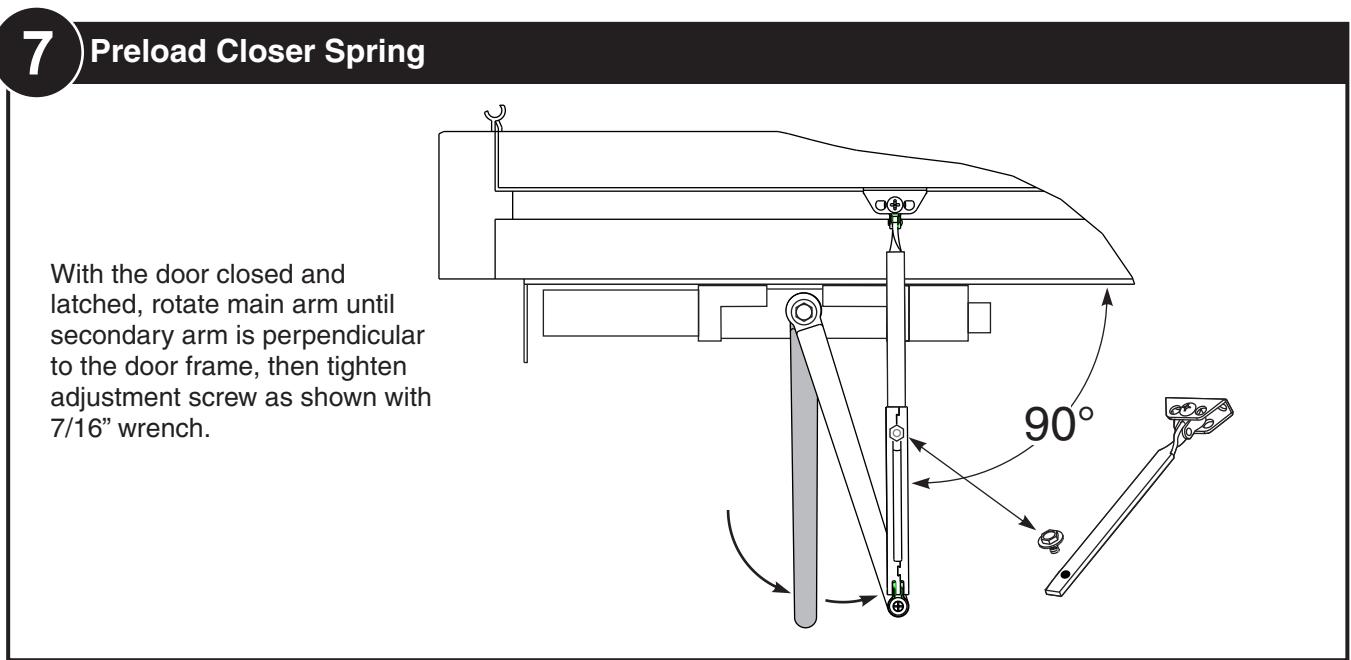

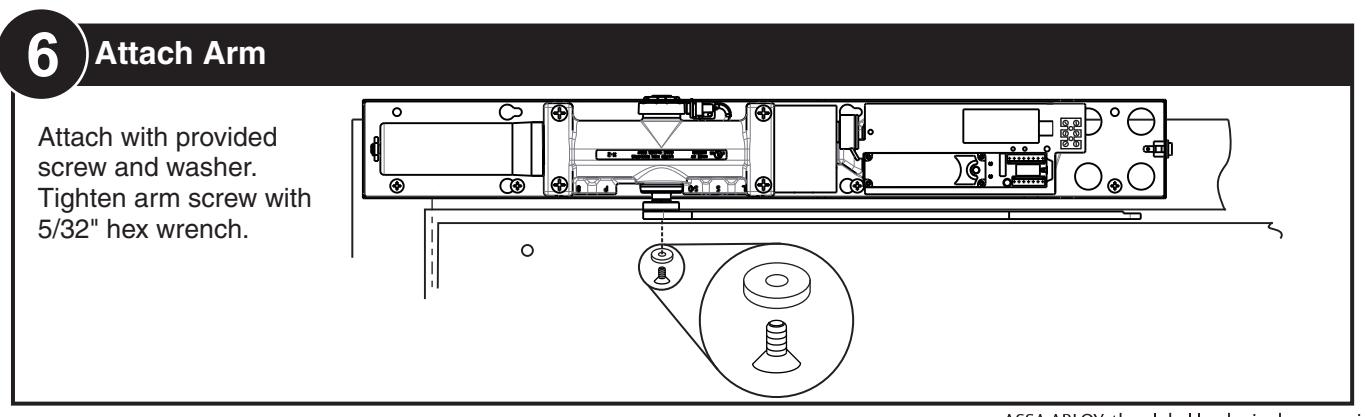

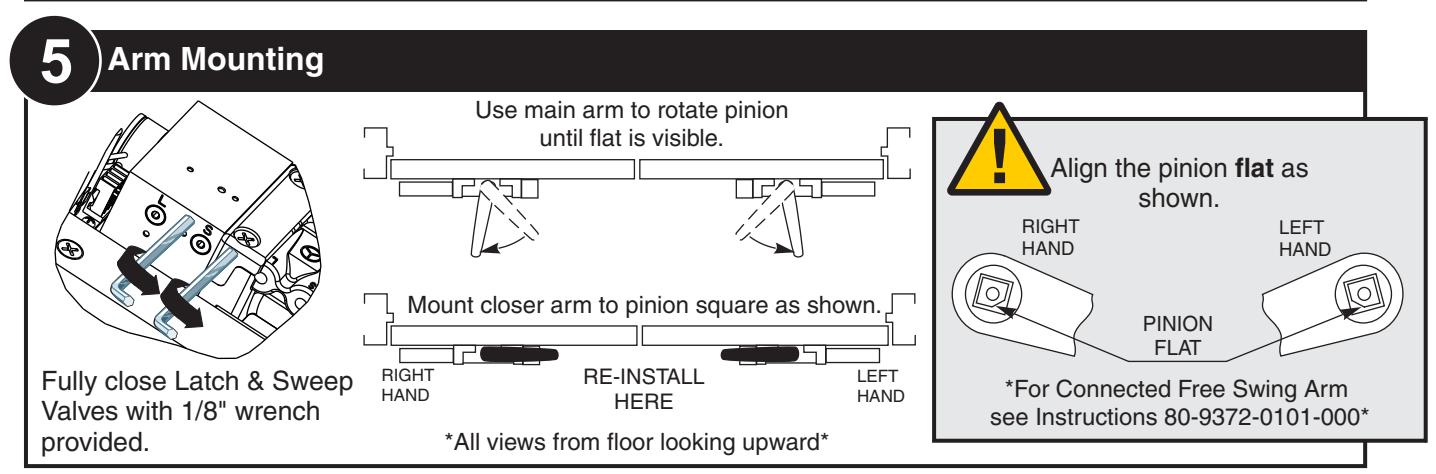

11 Electrical Connections

See Page 13 for Non-Detectored Units See Page 14 for Detectored Units See Page 15 for RF Units

123 Selective Hold Open Cam Adjustment

Setting Hold Open Angle

• Make all required electrical connections and turn power switch to "ON" for nondetectored units (Detectored units cannot be turned off at the closer).
• Open door to desired hold open angle.

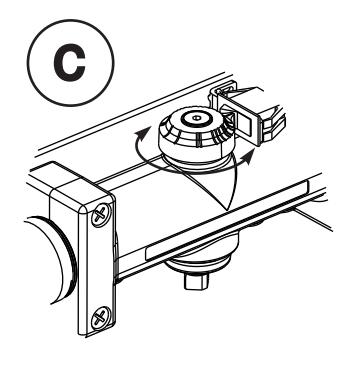

• Loosen cam screw and rotate cam until switch closes and door holds open.
• Rotate cam until it touches the switch.
• Tighten cam screw but do not over torque as this will cause damage to cam.
• Force door out of hold open by closing the door, then test hold open by opening to hold open angle again.

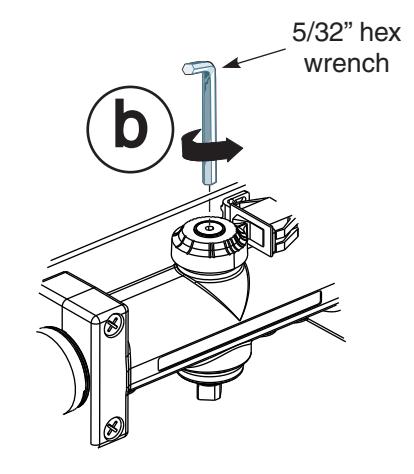

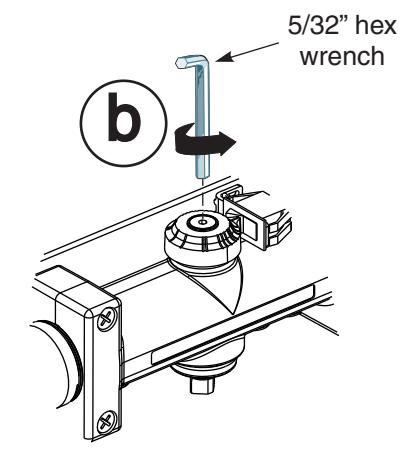

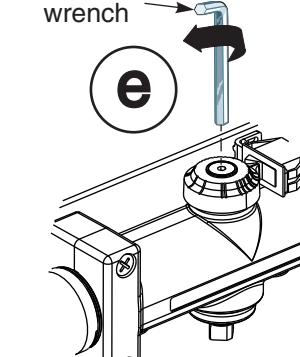

5/32" hex

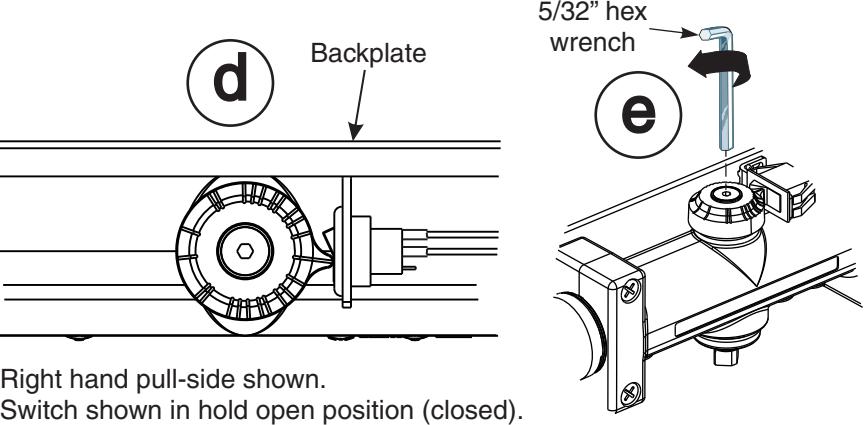

Right hand pull-side shown. Switch shown in hold open position.

SHO switch in open position. Closer not in hold open.

SHO switch in closed position. Closer in hold open.

133 Attach Cover Attach cover using screws provided.

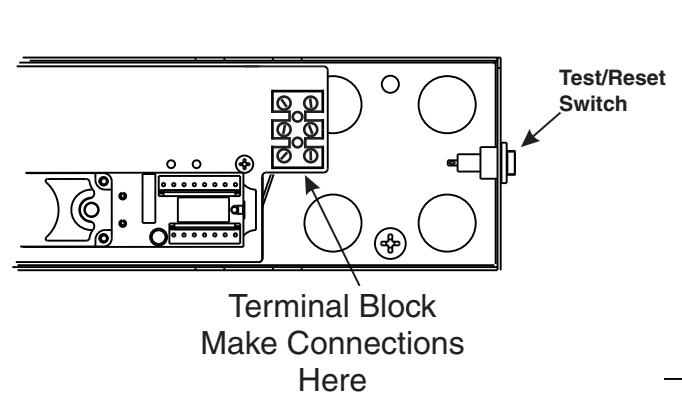

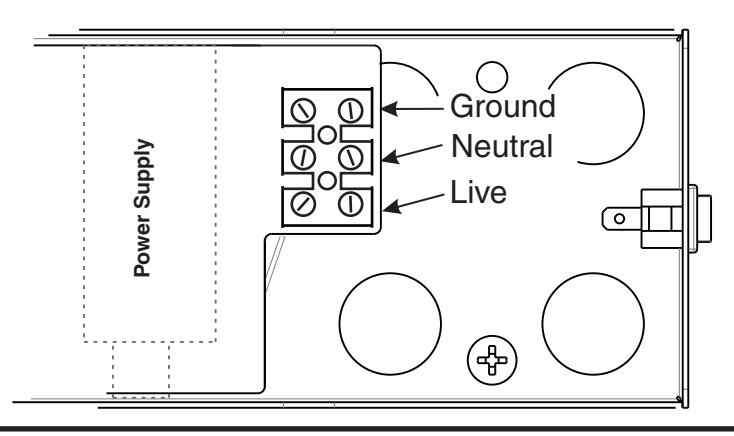

NON-DETECTORED ELECTRICAL CONNECTIONS

• Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice conforming to local wiring codes.
• Maximum wire size is 18AWG.

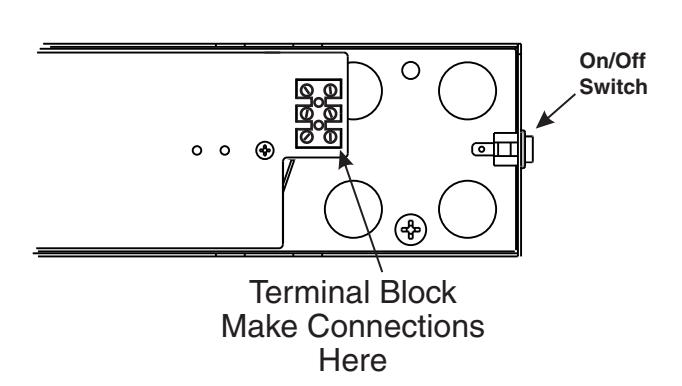

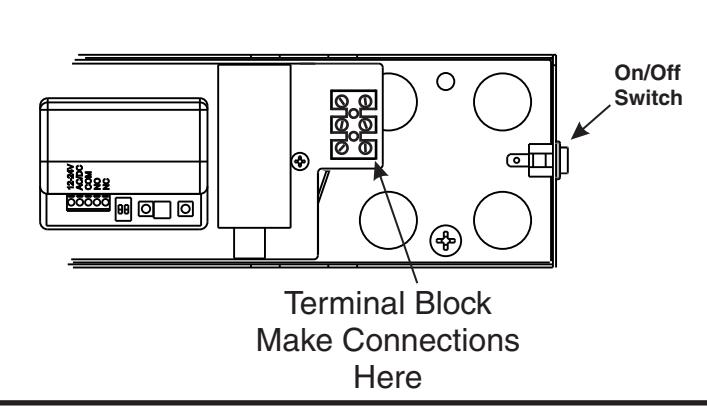

• Make input power connections to the terminal block or power supply using illustrations below.

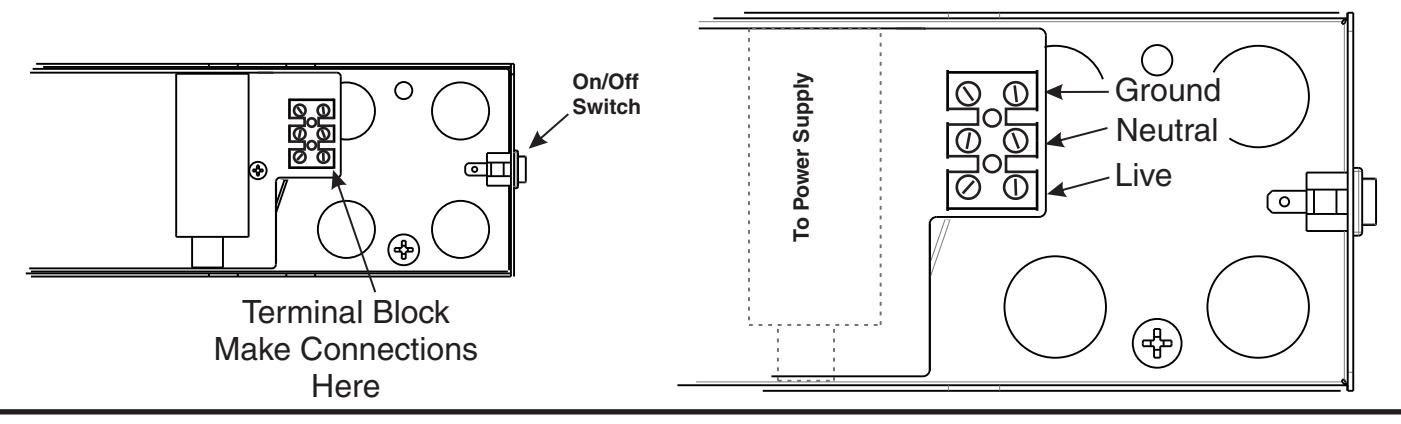

Surface mount power input:

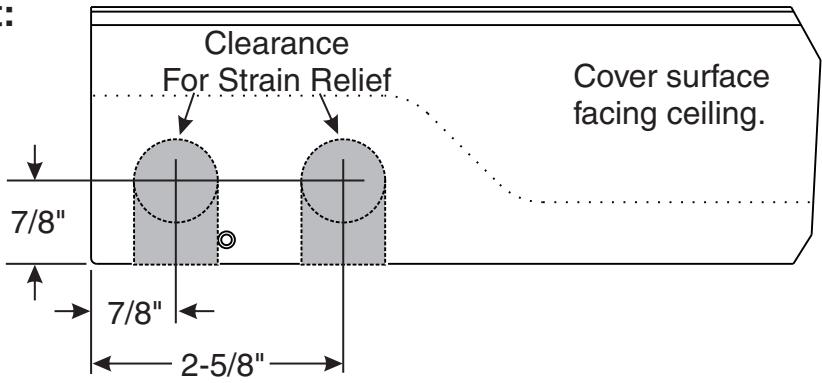

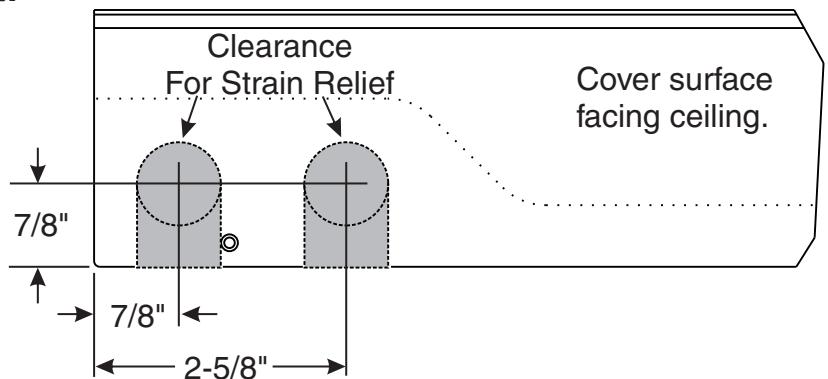

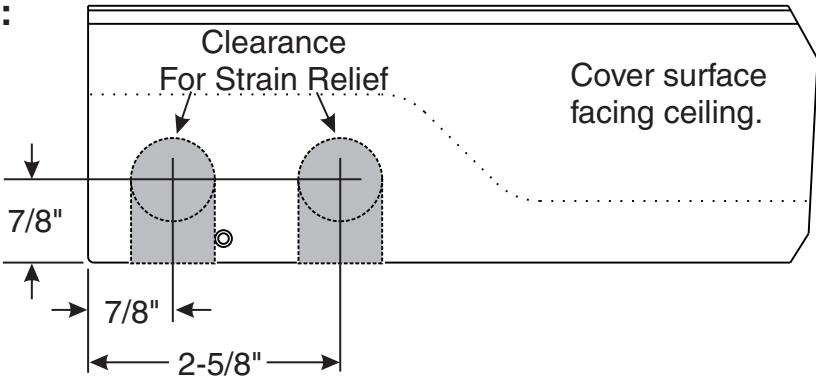

Remove appropriate shaded area from cover for surface wired installations only. Repaint cut edges as necessary to prevent corrosion.

Stand-Alone wiring instructions below. (To incorporate other devices, see included wiring instruction manual: 80-9342-0904-000)

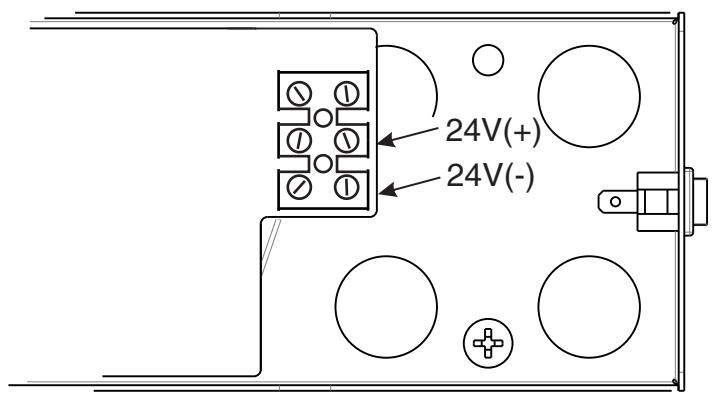

120V AC INPUT

Make power connections as shown below.

24V DC INPUT

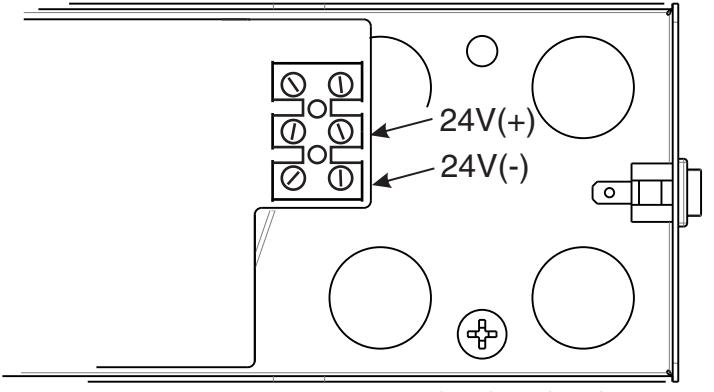

Make power connections as shown below.

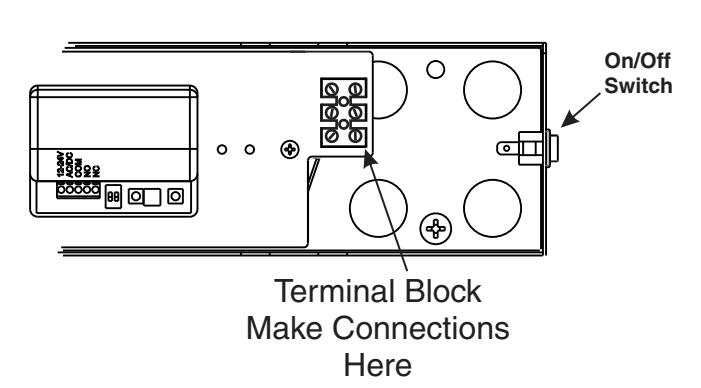

SMOKE DETECTOR ELECTRICAL CONNECTIONS

• Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice conforming to local wiring codes.
• Maximum wire size is 18AWG.

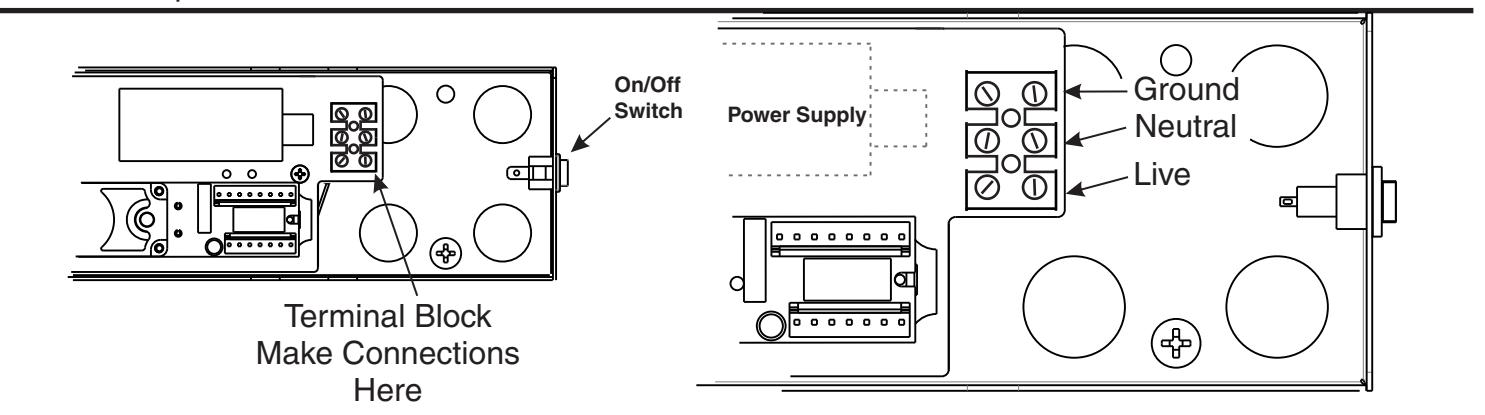

• Make input power connections to the terminal block or power supply using illustrations below.

Surface mount power input:

Remove appropriate shaded area from cover for surface wired installations only. Repaint cut edges as necessary to prevent corrosion.

Stand-Alone wiring instructions below. (To incorporate other devices, see included wiring instruction manual: 80-9342-0904-000)

120V AC INPUT

Make power connections as shown below.

24V AC/DC INPUT

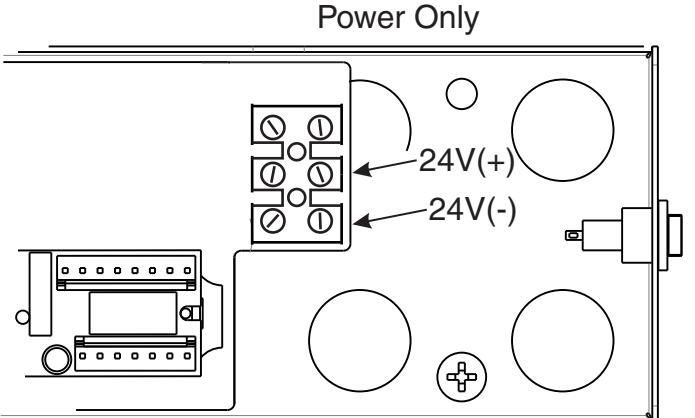

Make power connections as shown below.

24VDC Input

RF REMOTE RECEIVER UNITS ELECTRICAL CONNECTIONS

• Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice conforming to local wiring codes.
• Maximum wire size is 18AWG.
• Make input power connections to the terminal block or power supply using illustrations below.

Surface mount power input:

Remove appropriate shaded area from cover for surface wired installations only. Repaint cut edges as necessary to prevent corrosion.

120V AC INPUT

Make power connections as shown below.

24V AC/DC INPUT

Make power connections as shown below.

ASSA ABLOY, the global leader in door opening solutions

PROGRAMMING RF REMOTE RECEIVER UNITS

DIP SWITCH SETTINGS

#2

OFF

ON

# 1	DESCRIPTION	FUNCTION
OFF	Pulse Relay	Press the transmitter once and the relay will be active momentarily.
ON	Toggle Relay	Press the transmitter once and the relay output is active indefinitely, press it again and the relay will de-energize indefinitely.

FUNCTION (Pulse Mode Only)

In Toggle Setting (1-ON), the Hold Time is inactive. Either setting for #2 dip switch will have the same result.

0.5 second Pulse Setting

DIE

Pulse Setting

REDIED

LEARN W/O DELAY

BUTTON

POTENTIOMETER

(Time Adjustment)

HAND HELD CONFIGURATION

DESCRIPTION

0.5 sec Hold Time

10 sec Hold Time

1. Set dip switches on the receiver to the desired activation cycle (dip switch 1 -Toggle or Pulse and dip switch 2 - 0.5s or 10s hold).

Relay will remain active 0.5 second after the loss of activation.

Relay will remain active 10 seconds after the loss of activation.

• Press either Learn w/Delay Button or Learn w/No Delay Button on the receiver depending on the activation requirements (If delay learn is selected, adjust potentiometer to counterclockwise limit, 0 second delay). After learn cycle is complete, adjust potentiometer to desired delay time (0-30 sec).
• 3. Depress transmitter button repeatedly until Blue LED on the receiver illuminates (indicating reception of signal from transmitter).

NOTE: Repeat Steps 2-3 to program additional transmitters.

4. To test the system, depress transmitter button (Red LED on Transmitter will illuminate) and observe that the Blue LED illuminates on the receiver. This indicates that the relay has been activated. ANTENNA WIRE

PUSH PLATE CONFIGURATION

• 1. Before beginning, it is easiest to have already prepared the installation of the pushplate.
• 2. Connect the wires from the transmitter to the NO and COM contacts of the pushplates switch.
• Follow Steps 1-4 (Hand-Held Configuration); depress the pushplate to activate the transmitter.

Attach the transmitter to the inside of the electrical box and complete the installation. REMOVING TRANSMITTER CODE(S)

2. Press transmitter button twice within 10 seconds and the transmitter code will be deleted.

ALL TRANSMITTER CODES

SINGLE TRANSMITTER CODE

1. Press and hold both DELAY and NO DELAY BUTTONS simultaneously until Blue LED illuminates then release (approximately 10 seconds)

Troubleshooting

DETECTORED AND NON-DETECTORED UNITS

SYMPTOMS	PROBABLE CAUSE	CORRECTIVE ACTION
Door does not hold open.	No power to unit. Loose wire connection. Cam switch not engaged.	Check input voltage: 24VDC or 120VAC Inspect wiring for loose connections. Adjust Cam position (see pg. 6 or 11)
Door holds open but at the wrong angle.	Cam switch engaged too early or too late. Cam switch shorted.	Adjust Cam position (see pg. 6 or 11) Inspect Cam switch wiring for short circuit.
Door not closing when Test/Reset switch depressed. (Detectored units only)	Wiring incorrect. Short circuit across Test/Reset switch.	Inspect wiring (see pg.13-15). Inspect Test/Reset switch for short circuit.

RF UNITS

SYMPTOMS	PROBABLE CAUSE	CORRECTIVE ACTION
Red LED flashes on RF unit and can't program receiver.	Push plate stuck or faulty transmitter.	Disconnect each push plate or remove batteries until LED goes out. Replace faulty push plate.
Receiver intermittently doesn't receive the transmitter signal.	Receiver antenna wire is too short	Add 6 3/4' lengths of wire to antenna until it receives signal.

For problems not listed here, see page 16 for Technical Product Support Contact info.

General Information

4 (Non-Detectored)

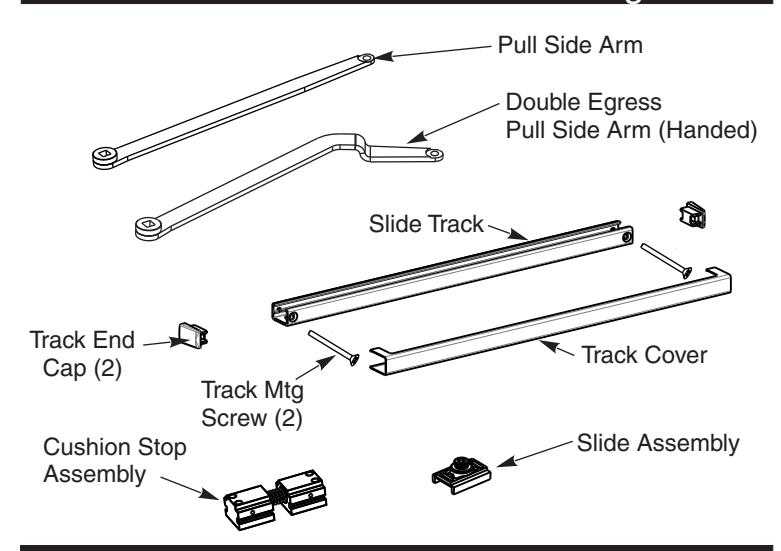

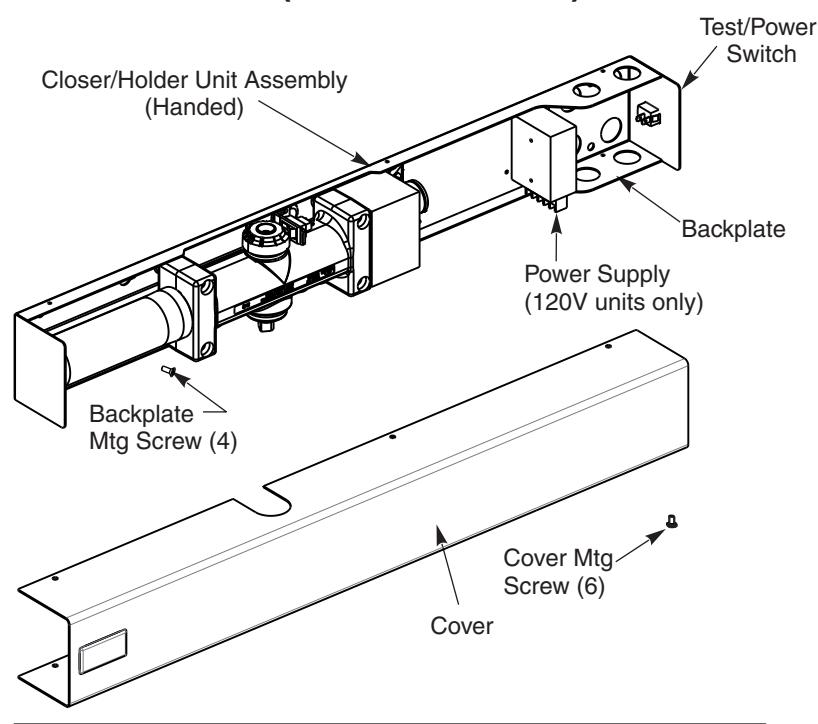

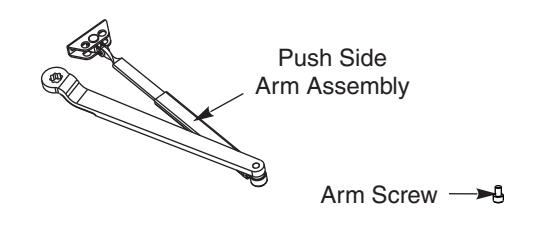

Closer/Holder Unit Assembly (Handed) Backplate Power Supply (120V units only) Smoke Detector Mtg Screw (4) Cover Mtg Screw (6) Cover

Included with Pull Side or Double Egress

Included with Push Side

Certifications

UL228, UL10B

Preparation for Fasteners
Fasteners Door or Frame Drill-Sizes
	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
	Self tapping screw (Track screws only)	Metal / Wood	Pre-Drill: 9/64 hole
Standard	Self tapping screw (Closer mounting screws only)	Metal / Wood	Pre-Drill: 3/16 hole
	Sleeve nuts and bolts (Shoe screws only)	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
Optional	Through-bolts and grommet-nuts	All	9/32" (7 mm) thru; 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

RIXSON

ASSA ABLOY

3000 Highway 74 East Monroe, NC 28112 Tel: (800)-457-5670 Fax: (800)-221-0489 www.rixson.com
