Q185 Quick Spotter

For use with Closer Models Q27 & QT27

Installation Instructions

73022 (04-09)

Figure 1 COVER 6 7-1/2 13-1/2 Blocking Instructions Check template for location of rough hole.

Figure 1A

Note:

• 1. Do not scale drawing.
• 2. Dimensions given in inches. Conversion from inches to metric: inch x 25.4.
• 3. If necessary to prevent cement from entering foundation case, apply duct tape to seal the gap between closer and foundation case.

5/88

ANCHORS COMPLETELY WITH CEMENT

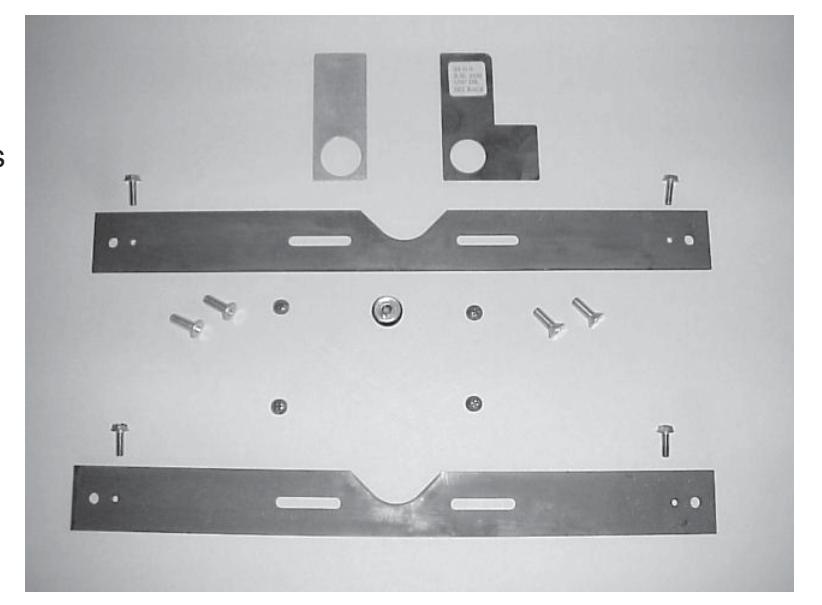

Kit includes:

• 4 ea 1/4 -20 x 3/4 Flat Head Phillips Screws
• 4 ea #10-24 x 5/16 Round Head Phillips Screws
• 4 ea #10-24 x 3/4 Hex Washer Head Screws
• 2 ea Straps
• 1 Spindle locator 3/4 offset
• 1 Spindle locator 2-3/4 center hung
• 1 Bubble level

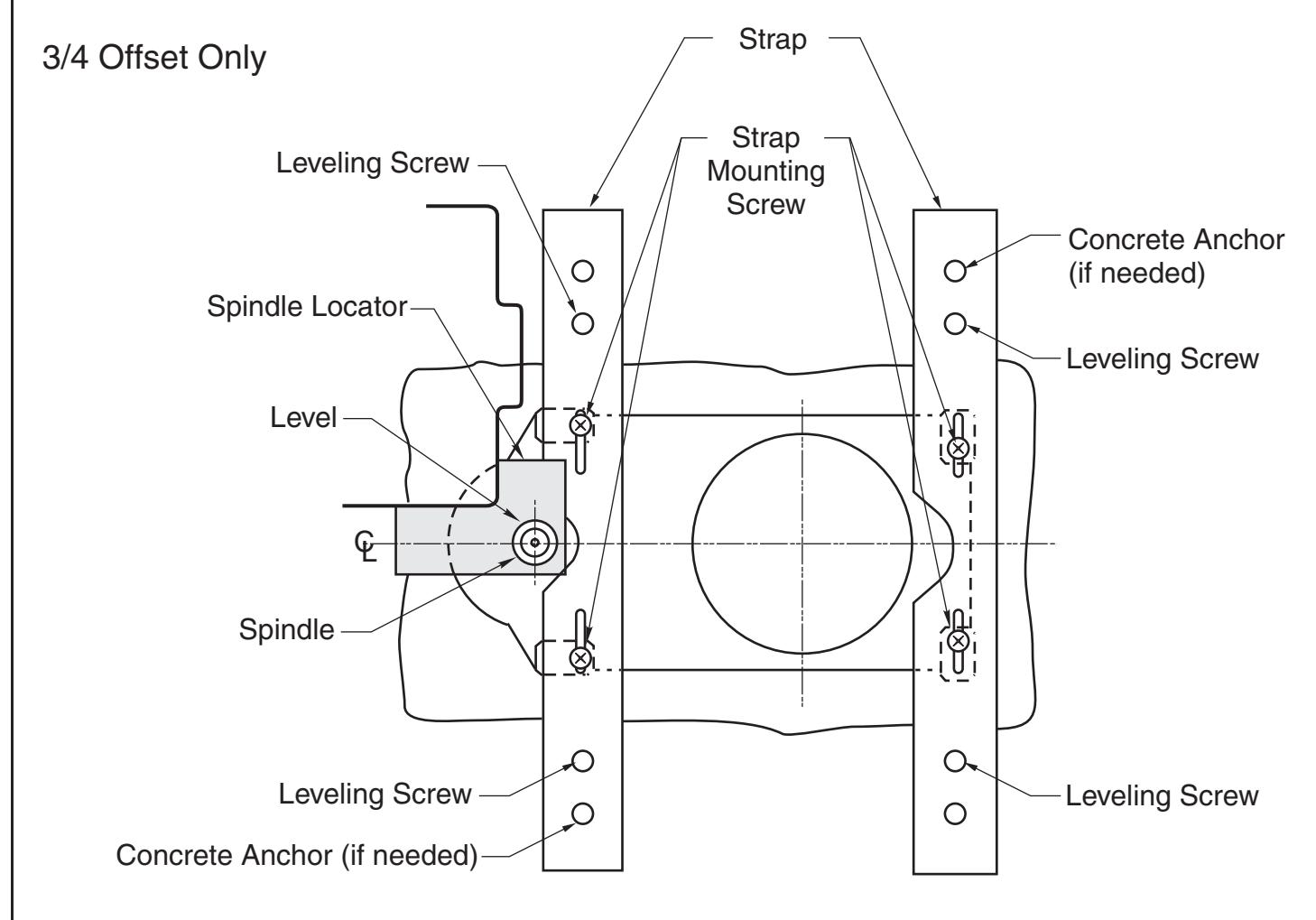

No. Q27 or QT27 Offset Closers

Right Hand Shown

Installation:

• 1. With frame set in place, cut hole in floor to dimensions for closer model on page 1; Figure 1. Clean out excess concrete.
• 2. Install top pivot in frame.

• 3. Drop plumb line from top pivot. See Figure 2 at right. (Use of Rixson 2604 Pivot Aligning Tool is recommended)
• 4. Place closer in cement case and attach with 4 each 1/4-20 x 3/4 Flat Head Phillips screws.
• 5. Place straps on top of cement case and center each.
• See Figure 3 at right. 6. Using 10-24 x 5/16 round head screws, tighten straps to top of closer.
• 7. Set closer/foundation case in hole in floor.
• 8. Put spindle locator over spindle and position closer next to frame. See closer model illustration on page 2.
• 9. Make sure that plumb line is centered over spindle.
• 10. Place bubble level on top of closer spindle and torpedo level. See Figure 4 at right.
• 11. Using 4 leveling screws (10-24 x 3/4 hex washer head screws), turn screws to raise and lower straps until closer is completely level. This is determined by bubble level provided.
• 12. Re-check all areas, locator, plumb line and level.
• 13. If needed, insert cement anchors to stabilize installation.
• 14. Use two pour grouting procedure: Use EXPANDABLE QUICKSET CEMENT, (Por-Rok or equivalent grout). Grout in only bottom 3/4" of foundation case, including bottom of cement anchor. Allow grout to harden. Step 1
• 15. Hang door.
• 16. Use a regular cement mixture, EXTERIOR TYPE (Sakrete or equivalent) to finish setting the foundation case. ALL 4 ANCHORS MUST BE COMPLETELY COVERED WITH CEMENT. (See Figure 1A on page 1) Step 2

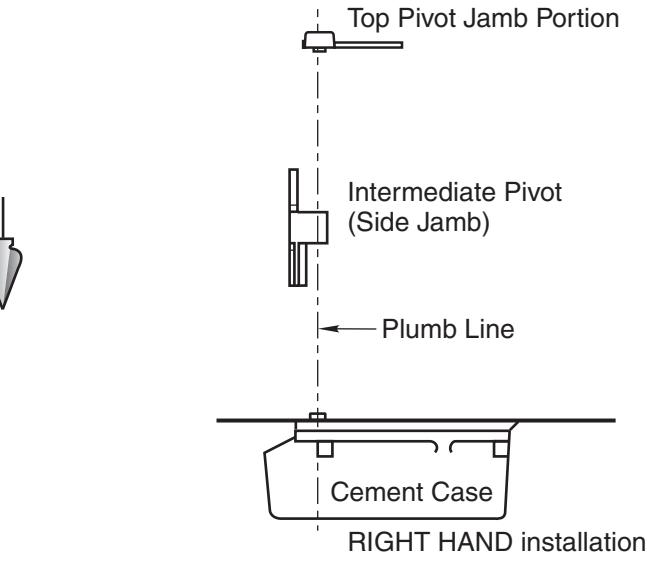

Figure 2

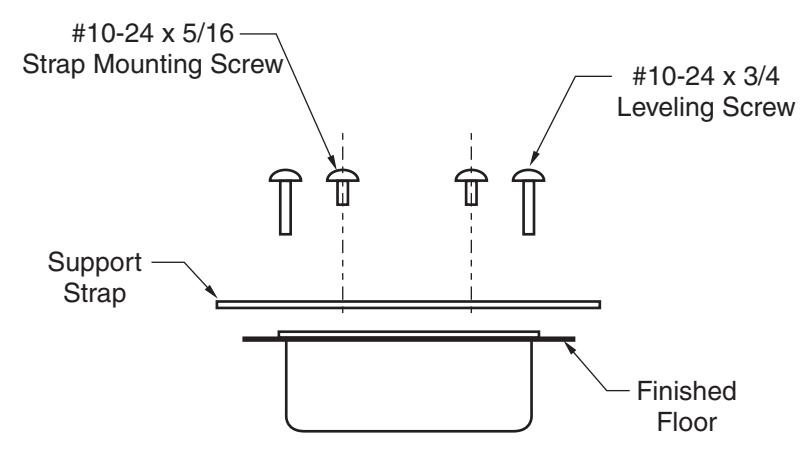

Figure 3

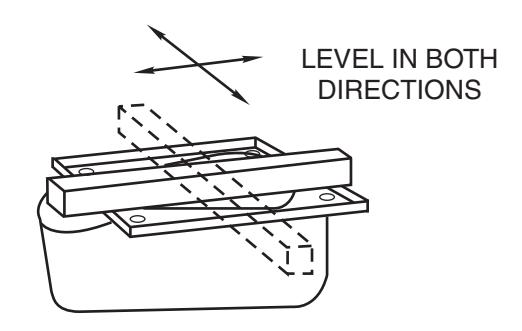

Figure 4
