Rixson No. 6 Checkmate Series Door Stop and Holder Concealed Template
Open the original PDF document
View PDF
INSTALLATION INSTRUCTIONS
1. Determine the device number for the door opening. Then select proper dimensions from chart on OH80028B.

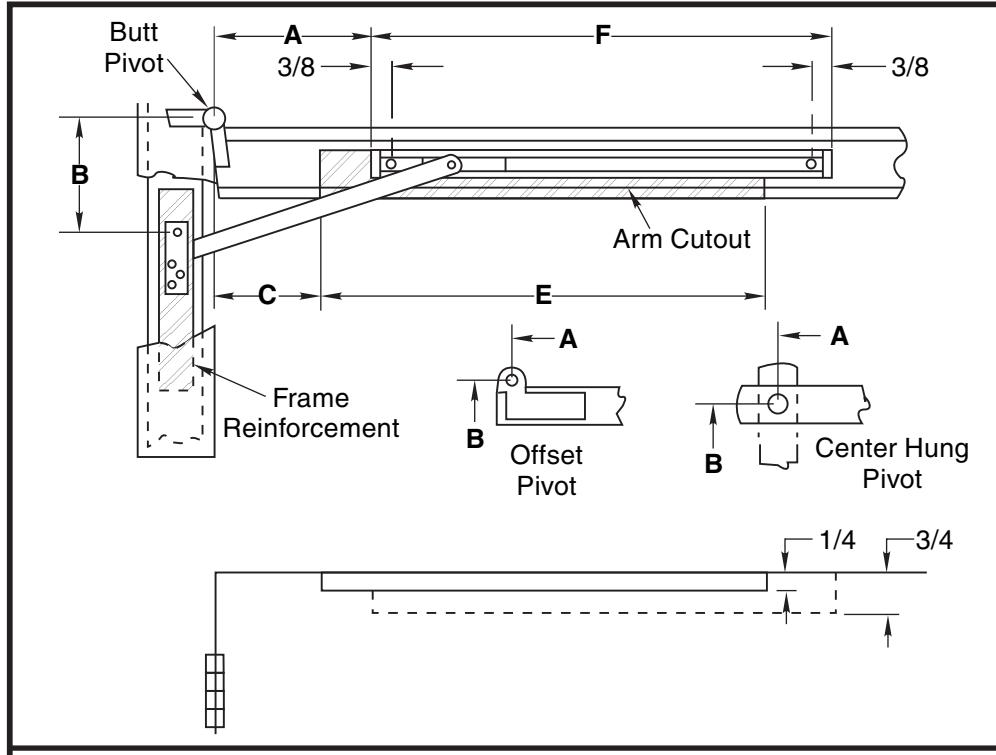

NOTE: A, B and C dimensions are measured from hinge center, not edge of door.

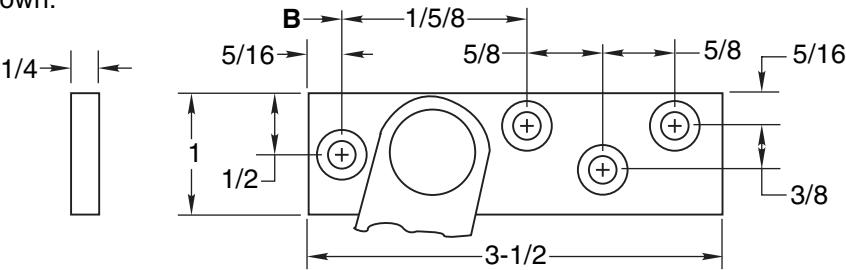

2. Locate "B" dimension on frame and mortise 1/4" deep for jamb bracket as shown.

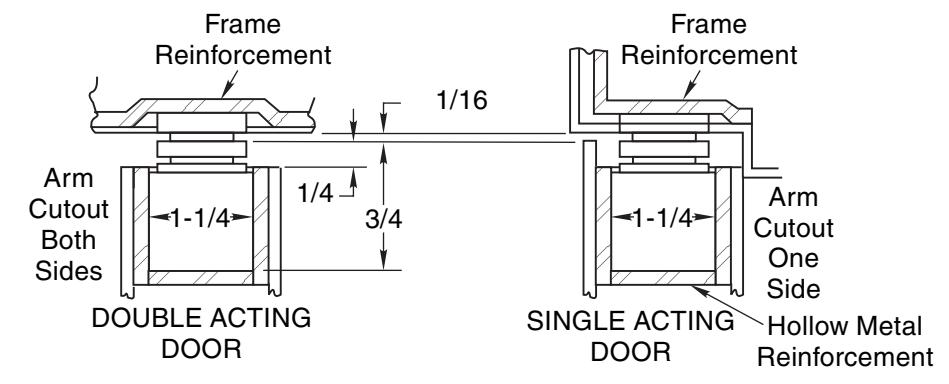

3. Locate "A" and "F dimensions on centerline of door and mortise 3/4" deep for channel. 1/16" head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
- 4. Locate "C" and "E" dimensions on top of door and mortise 1/4" deep as shown for arm cutout.

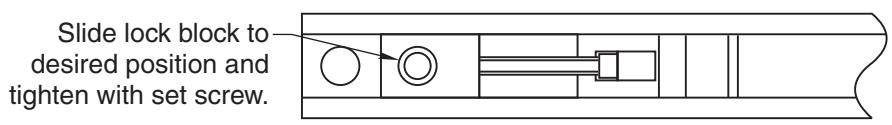

- 5. Install the holder with screws provided and locate the adjustable stop block by tightening its set screw. See view below.
NOTES:
- • All hollow metal frames are to be provided with 3/16" min. thickness x 12" min. length reinforcement plates.
- • All hollow metal doors are to have minimum 3/16" reinforcement plates.
- • A, B and C dimensions are measured from centerline of pivot, not edge of door.
- • Left hand shown, right hand opposite.
CAUTION: Note location of swing clear hinge centerline to determine "A", "B" and "C" dimensions.
| Screw Details | ||||||
|---|---|---|---|---|---|---|
| Jamb | Door | |||||
|
1/4-20 x 5/8" FHMS
or #14 x 1-1/2" FHWS |
5/16-18 x 3/4" FHMS
or #18 x 2-1/4" FHWS |
|||||
No. 6 ADJ Series Concealed Door Stops
ASSA ABLOY RIXSON
www.rixson.com
TEMPLATE NUMBER DATE OH80028A
REV. 2
®
07-19
No. 6ADJ Series Concealed Door Stops
- 1. See OH80028A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All dimensions given in inches.
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
* Butt mounting only. Reversible, non-handed
|
1-3/4" -
2-1/4" Butts & 3/4" Offset Pivot |
Device
Number |
Degree | ||||||
|---|---|---|---|---|---|---|---|---|
| Stop |
Door
Opening |
Α | В | С | E | F |
Max
Opening |
|
| 6ADJ-136 | 24 - 28 |
*
2-5/8 |
*
4-1/8 |
*
0 |
*
16-5/8 |
16-1/16 | 110° | |
| 6ADJ-236 | 28-1/16 - 33 |
*
4-3/16 |
*
5 |
*
1 |
*
19-1/8 |
17-5/16 | 110° | |
| 6ADJ-336 | 33-1/16 - 38 | 7-7/16 | 6 | 4-1/4 | 20-5/8 | 18-13/16 | 110° | |
| 6ADJ-436 | 38-1/16 - 43 | 10 | 7-7/16 | 7-1/4 | 22-3/8 | 20-15/16 | 110° | |
| 6ADJ-536 | 43-1/16 - 48 | 13-5/16 | 8-1/2 | 8-1/4 | 26-1/4 | 22-7/16 | 110° |
NOTE: A, B, and C dimensions measured from centerline of pivot, not edge of door.
|
1-3/4" -
2-1/4" Center Hung |
Device
Number |
Degree | ||||||
|---|---|---|---|---|---|---|---|---|
| Stop |
Door
Opening |
Α | В | С | Е | F |
Max
Opening |
|
| 6ADJ-136 | _ | - | - | - | - | - | N/A | |
| 6ADJ-236 | 30 - 36 | 4-7/8 | 5-11/16 | 5-1/2 | 15-3/8 | 17-5/16 | 105° | |
| 6ADJ-336 | 36-1/16 - 41 | 7-15/16 | 6-1/2 | 6-1/4 | 19-1/8 | 18-13/16 | 110° | |
| 6ADJ-436 | 41-1/16 - 46 | 10-7/16 | 7-7/8 | 7-3/4 | 22-3/8 | 20-15/16 | 110° | |
| 6ADJ-536 | 46-1/16 - 50 | 13-3/4 | 8-15/16 | 8-3/4 | 26-1/8 | 22-7/16 | 110° |
No. 6 ADJ Series Concealed Door Stops
RIXSON<sup>®</sup> ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
REV.
DATE
OH80028B | 2 | 07-19
