Rixson MW700 Series Overhead Concealed Closer MW800 Wood Door-Metal Frame Single or Double Acting Template
Open the original PDF document
View PDF

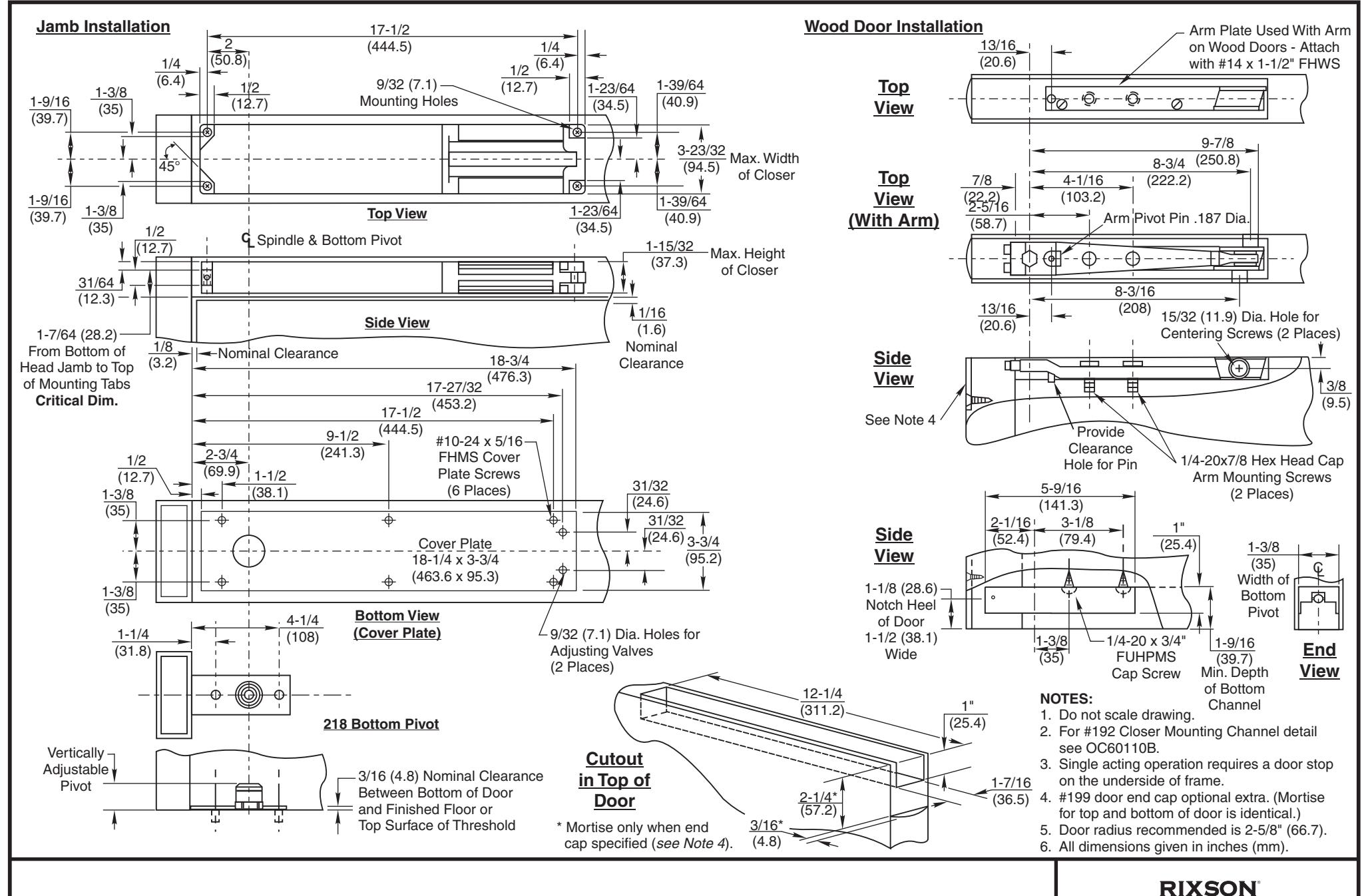

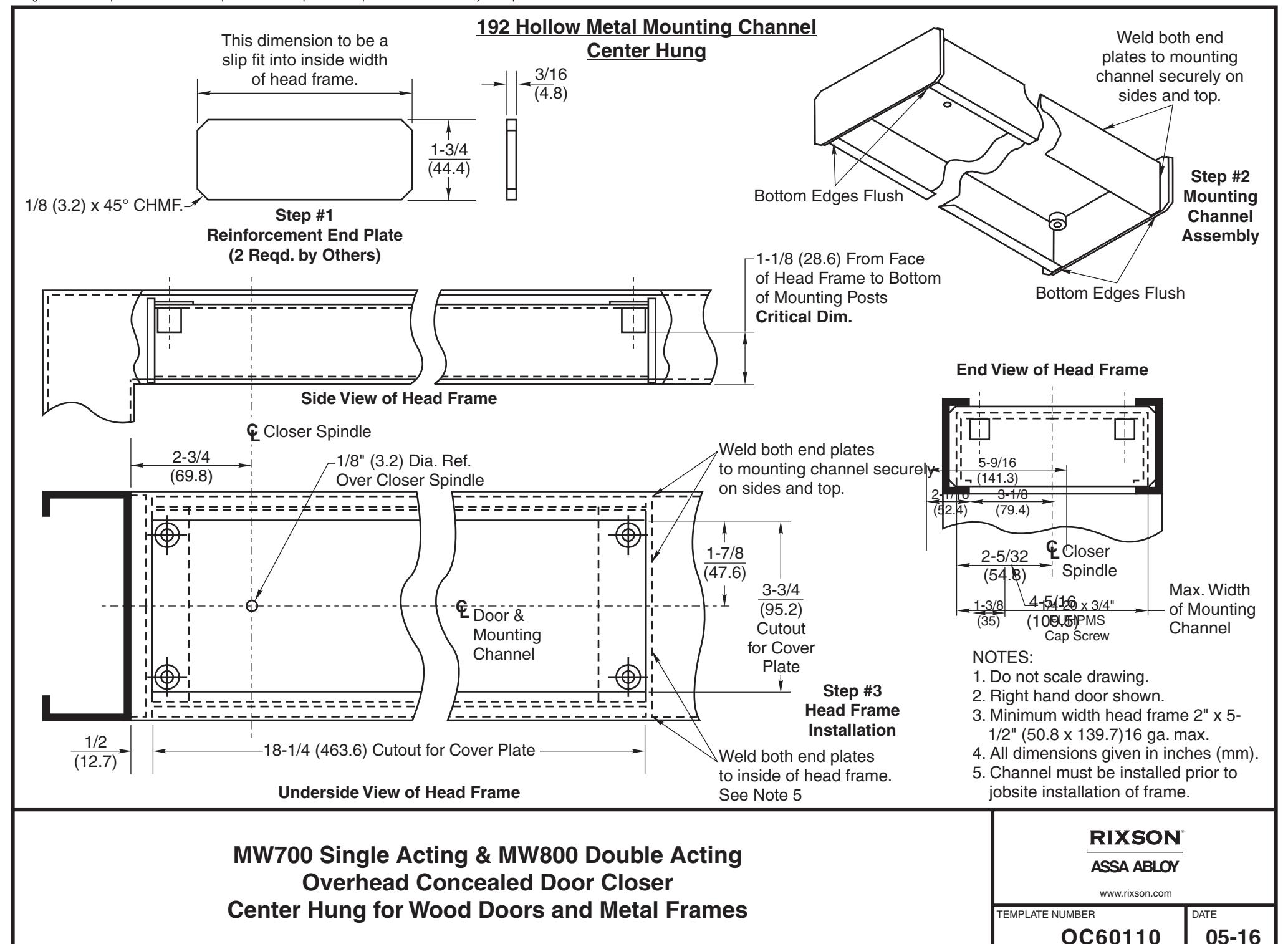

MW700 Single Acting & MW800 Double Acting Overhead Concealed Door Closer Center Hung for Wood Doors and Metal Frames
RIXSON* ASSA ABLOY www.rixson.com TEMPLATE NUMBER OC60110 DATE OC5-16
