Rixson M700 Series Overhead Concealed Closer M800 Single or Double Acting Center Hung for Metal Doors & Frames Template
Open the original PDF document
View PDF

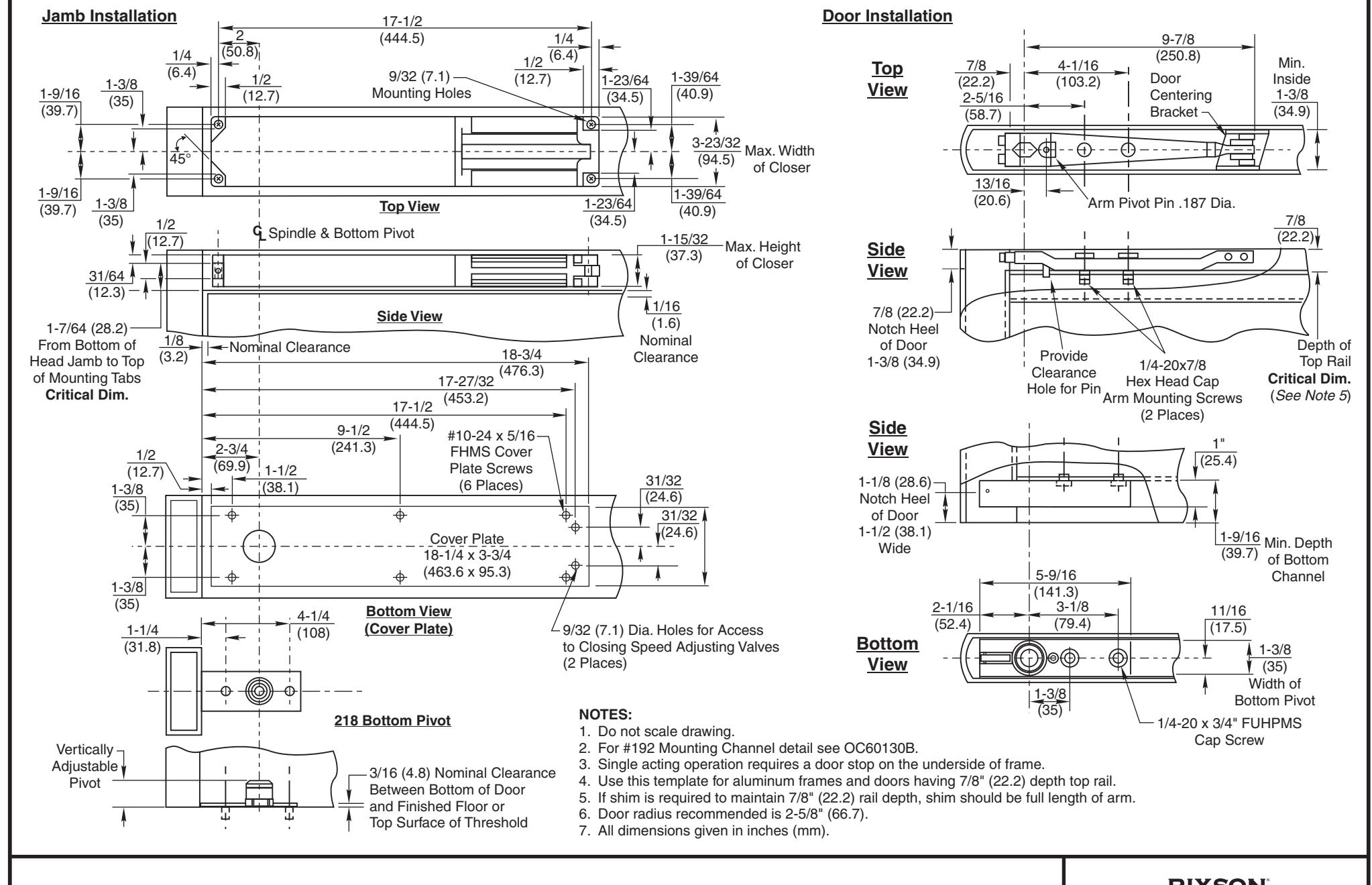

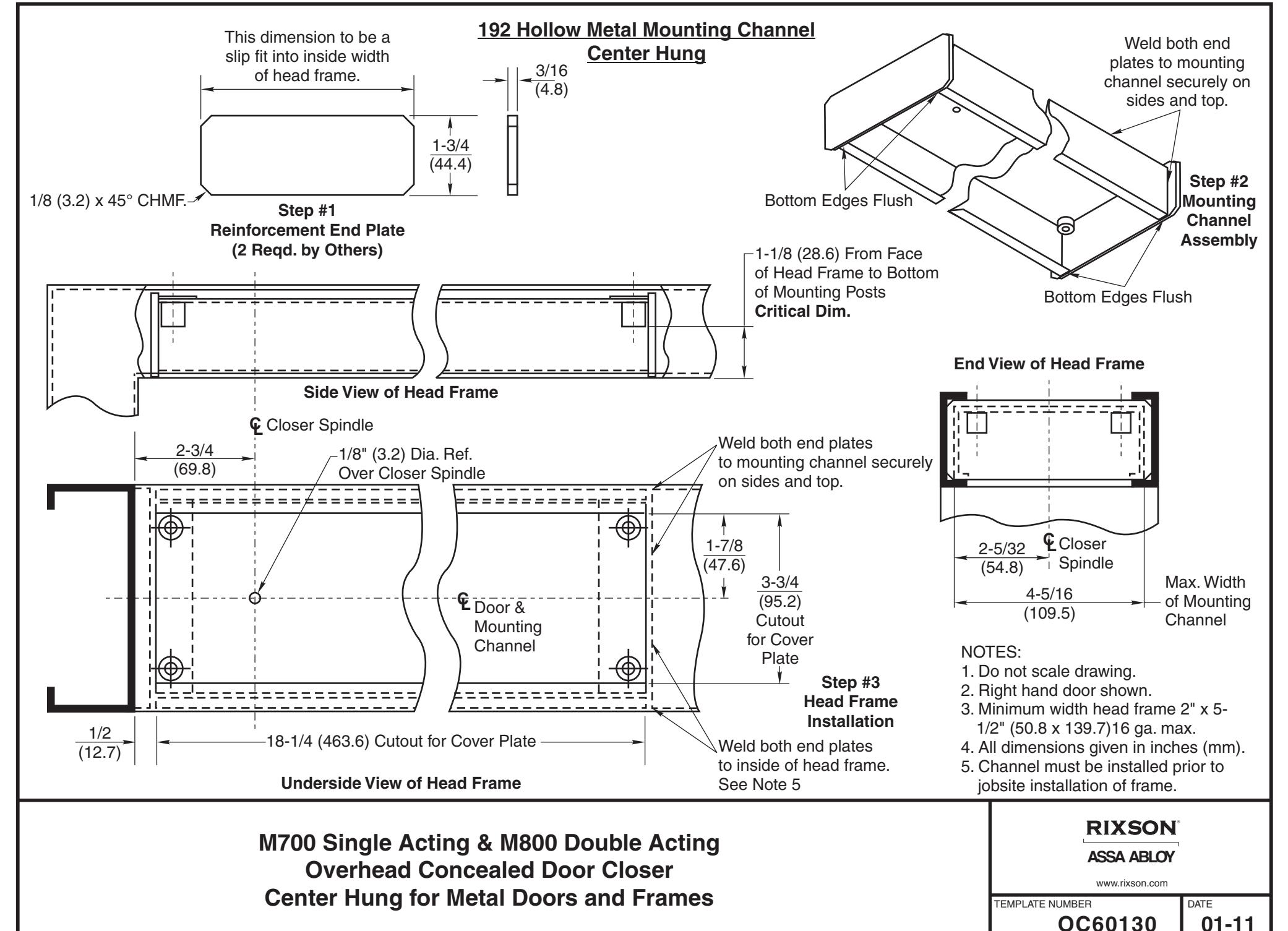

M700 Single Acting & M800 Double Acting Overhead Concealed Door Closer Center Hung for Metal Doors and Frames
ASSA ABLOY
www.nxson.com
TEMPLATE NUMBER OC60130
01-11
DATE
