Rixson L27 Series Floor Closer 3910 Cover Pan Template
Open the original PDF document
View PDF
|
Cover
Pan No. |
Pan
Depth |
Spindle
Size |
Door
Mortise |
|---|---|---|---|
| 3910-1 | 7/8 (22) | 1/2" Longer | 13/16 (20.6) |
| 3910-2 | 1/4 (6.4) | Regular | 11/16 (17.5) |
| 3910-3 | 3/8 (9.5) | Regular | 9/16 (14.3) |
| 3910-4 | 1/2 (12.7) | Regular | 1/2 (12.7) |
| 3910-5 | 5/8 (15.9) | 1/2" Longer | 11/16 (17.5) |
| 3910-6 | 3/4 (19) | 1/2" Longer | 15/16 (23.8) |
| 3910-7 | 1 (25.4) | 1/2" Longer | 11/16 (17.5) |
| 3910-8 | 1-1/4 (31.8) | 1" Longer | 11/16 (17.5) |
| 3910-9 | 1-1/2 (38.1) | 1" Longer | 1/2 (12.7) |
| 3910-10 | 1-3/4 (44.4) | 1-1/2" Longer | 5/8 (15.9) |
| 3910-11 | 2 (50.8) | 1-1/2" Longer | 9/16 (14.3) |
Notes:
- 1. Do not scale drawing.
- 2. This template can be used with standard 3/4" (19) offset arm.
- 3. For additional installation details see template OS10080.
- 4. Set cement case 1/8" (3.2) lower than depth of cover pan ordered. Use cover pan to facilitate installation of cement case.
- 5. Brass alignment pins furnished to align pan with closer. Pan is not fastened to floor closer.
- 6. Provide 1/16" (1.6) clearance around cover pan.
- 7. All dimensions are given in inches (mm).
CAUTION: Prevent grout from collecting between the closer and cement case in the event closer must be removed after the grout is set.

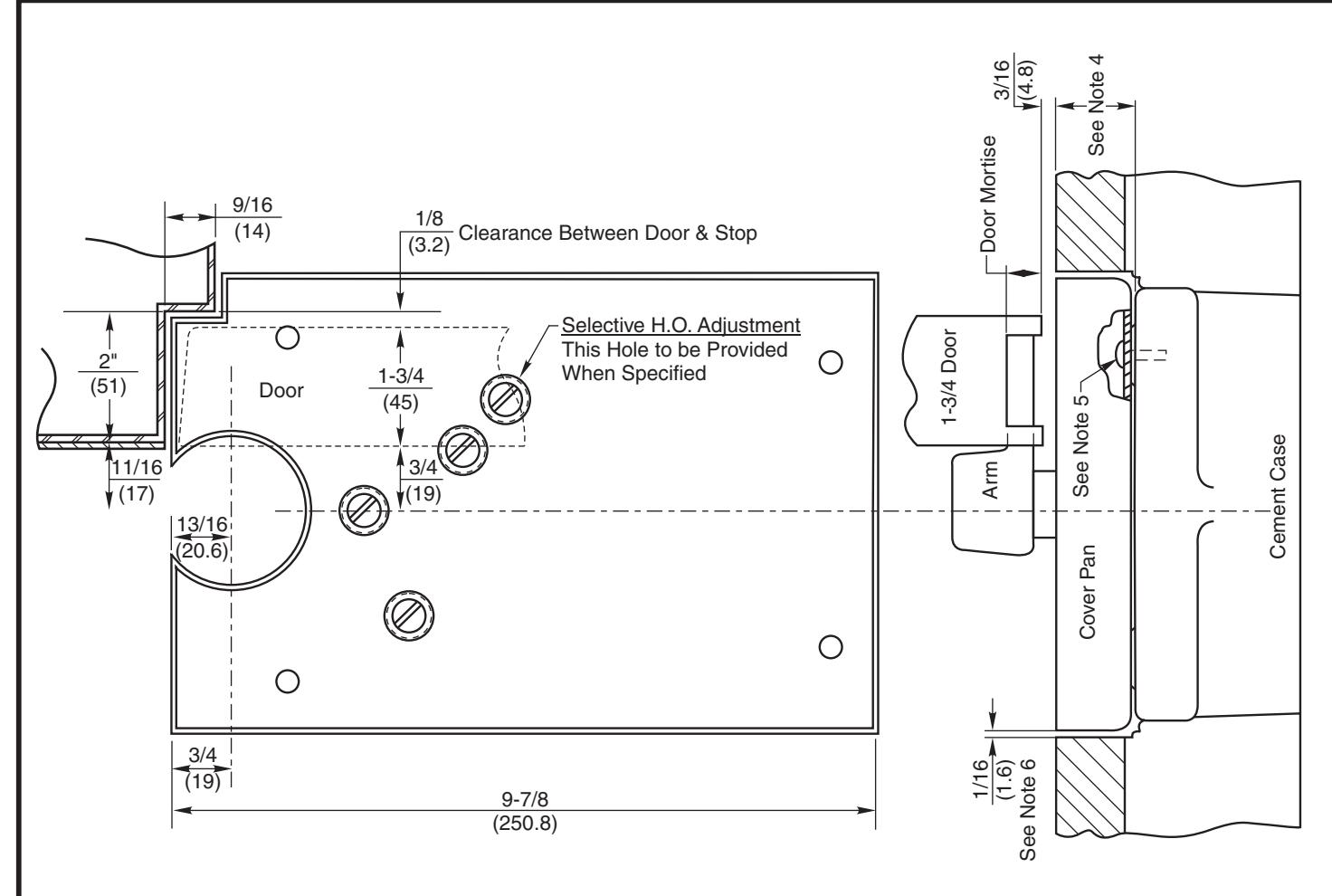

Cover Pan for L27 Closer All Depths
ASSA ABLOY RIXSON
www.rixson.com
TEMPLATE NUMBER DATE
®
MS140050
03-16
