Rixson H28 Series Floor Closer with 841B Cover Pan H28 x 587 Arm Template

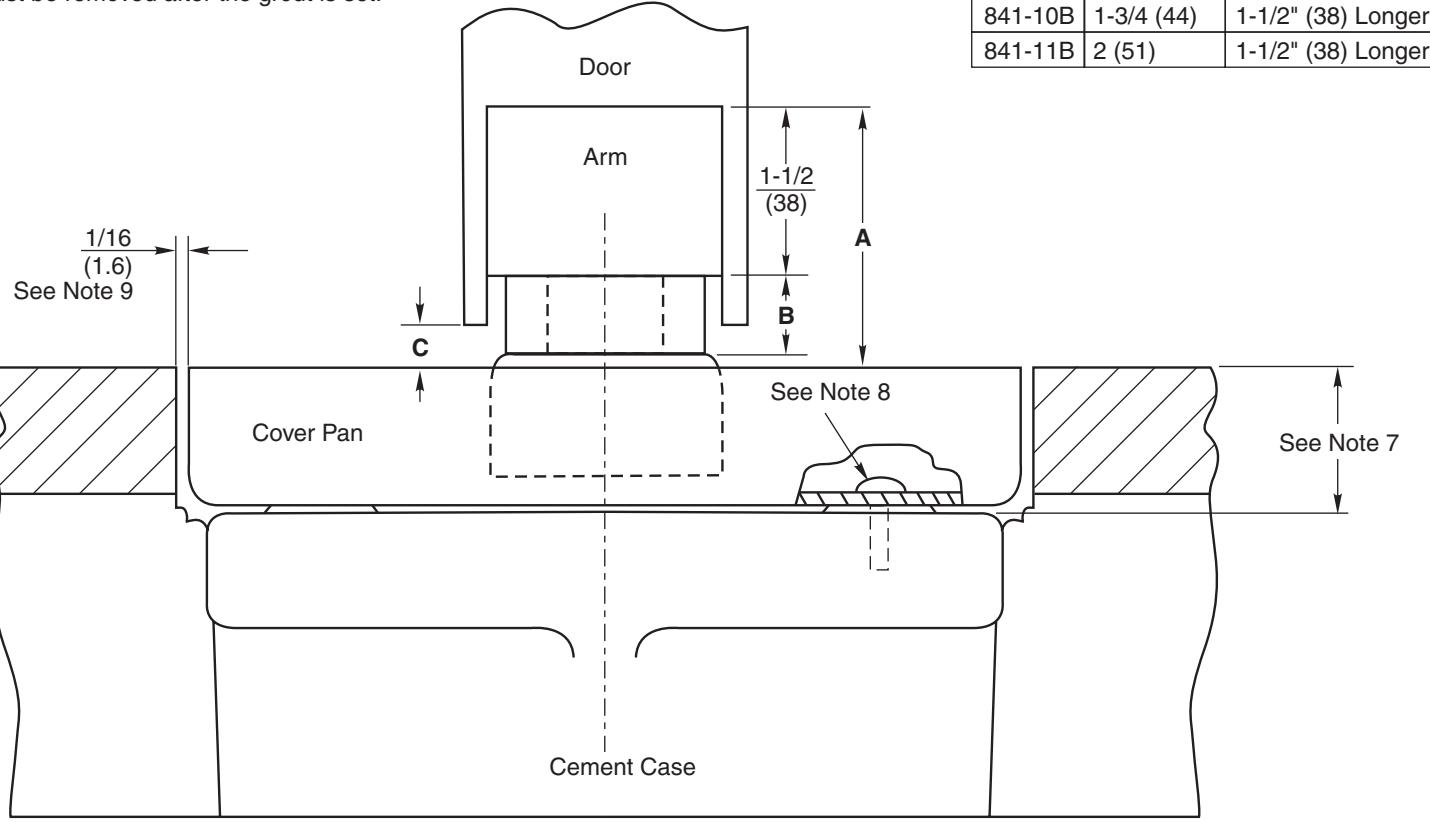

Notes:

• 1. Do not scale drawing.
• 2. "B" Dimension is the shim thickness required between arm and bearing.
• 3. "C" Dimension is the maximum undercut allowed.
• 4. This template is for a 2" thick door or larger.
• 5. For 1-3/4" thick doors specify SPLO-587.
• 6. For additional installation details see templates CH20200 or CH20110.
• 7. Set cement case 1/8" (3.2) lower than depth of cover pan ordered. Use cover pan to facilitate installation of cement case.
• 8. Brass alignment pins furnished to align pan with closer. Pan is not fastened to floor closer.
• 9. Provide 1/16" (1.6) clearance around cover pan.
• 10. All dimensions are given in inches (mm).

CAUTION: Prevent grout from collecting between the closer and cement case in the event closer must be removed after the grout is set.

841-1B 841-2B 841-3B 841-4B 841-5B 841-6B 841-7B 841-8B 841-9B 7/8 (22) 1/4 (6) 3/8 (10) 1/2 (13) 5/8 (16) 3/4 (19) 1 (25) 1-1/4 (32) 1-1/2 (38) 1/2" (13) Longer Regular Regular Regular 1/2" (13) Longer 1/2" (13) Longer 1/2" (13) Longer 1" (25) Longer 1" (25) Longer 1-1/2" (38) Longer 2-1/8 (54) 2-1/4 (57) 2-1/8 (54) 2 (51) 2-3/8 (60) 2-1/4 (57) 2 (51) 2-1/4 (57) 2 (51) 2-1/4 (57) 2 (51) Cover Pan No. Pan Depth Spindle Size A 1/2 (13) 0 0 0 1/2 (13) 1/2 (13) 1/2 (13) 1 (25) 1 (25) 1-1/2 (38) 1-1/2 (38) B 5/8 (16) MAX 3/4 (19) MAX 5/8 (16) MAX 1/2 (13) MAX 7/8 (22) MAX 3/4 (19) MAX 1/2 (13) MAX 3/4 (19) MAX 1/2 (13) MAX 3/4 (19) MAX 1/2 (13) MAX C

H28 and H28 x 587 Arm Cover Pan

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE

MS140110

10-12
