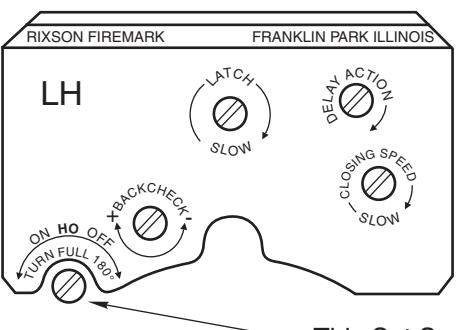

This Set Screw Is On Selector Hold-open Types Only

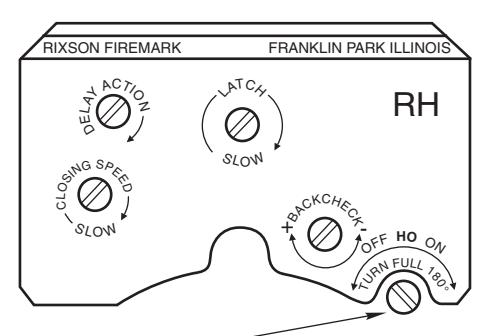

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose of each adjustment screw. Adjustments are for speed

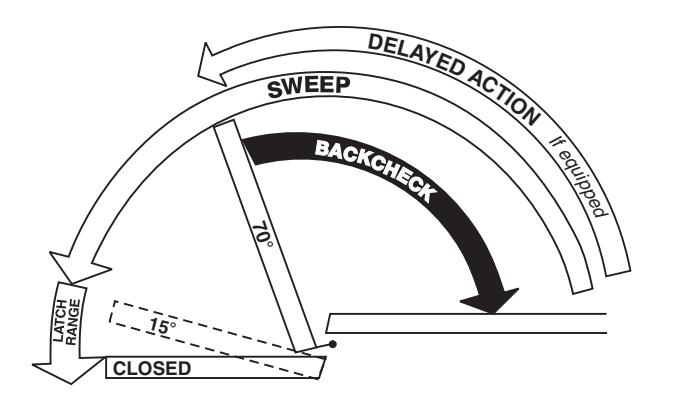

• A. The Delay Action valve allows adjustment from full open to 65° closed position. (Optional)
• B. The Closing Speed valve allows adjustment from full open to 15° on units without the Delay Action feature.
• C. The Closing Speed valve allows adjustment from 65° to 15° closed position on closers with Delay Action feature.
• D. Latch valve allows adjustment from 15° to closed position.
• E. Important: Backcheck adjustment must be adjusted to vary resistance from light to firm at 60° of door open.

Do not use Backcheck as deadstop. This is an intensity valve not speed control.

Closer Type

This closer is one of three types as follows:

• 1. Non hold-open factory set. No hold-open adjustments.
• 2. Automatic hold-open factory set. No hold-open adjustment.
• 3. Selective (on-off) hold-open label will indicate position of on-off selector screw. When turned "on", closer has automatic holdopen: turned "off", hold-open will not function. Turn full 180°.

Spring Power Adjustments

This closer can be adjusted for increased or decreased spring power.

These adjustments if required should be done by an authorized repair agency.

Repairs, parts replacement or internal adjustments must be done by a Rixson authorized repair agency. Consult www.rixson.com for an authorized repair agency in your area.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2006, 2009, Yale Security Inc., an ASSA ABLOY Group company All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited

866-474-9766 Technical Department

RIXSON

ASSA ABLOY

L27 & L27-180 Heavy Duty Floor Closers

2-15/16

2-5/16

1-11/16

1-1/16

7/16

3/4" Offset Pivoted – Handed L180 Top Pivot – Non Handed

Top Pivot

-4 - 1/4 — -3 - 9/16-

Installation Instructions

2700L (10-09)

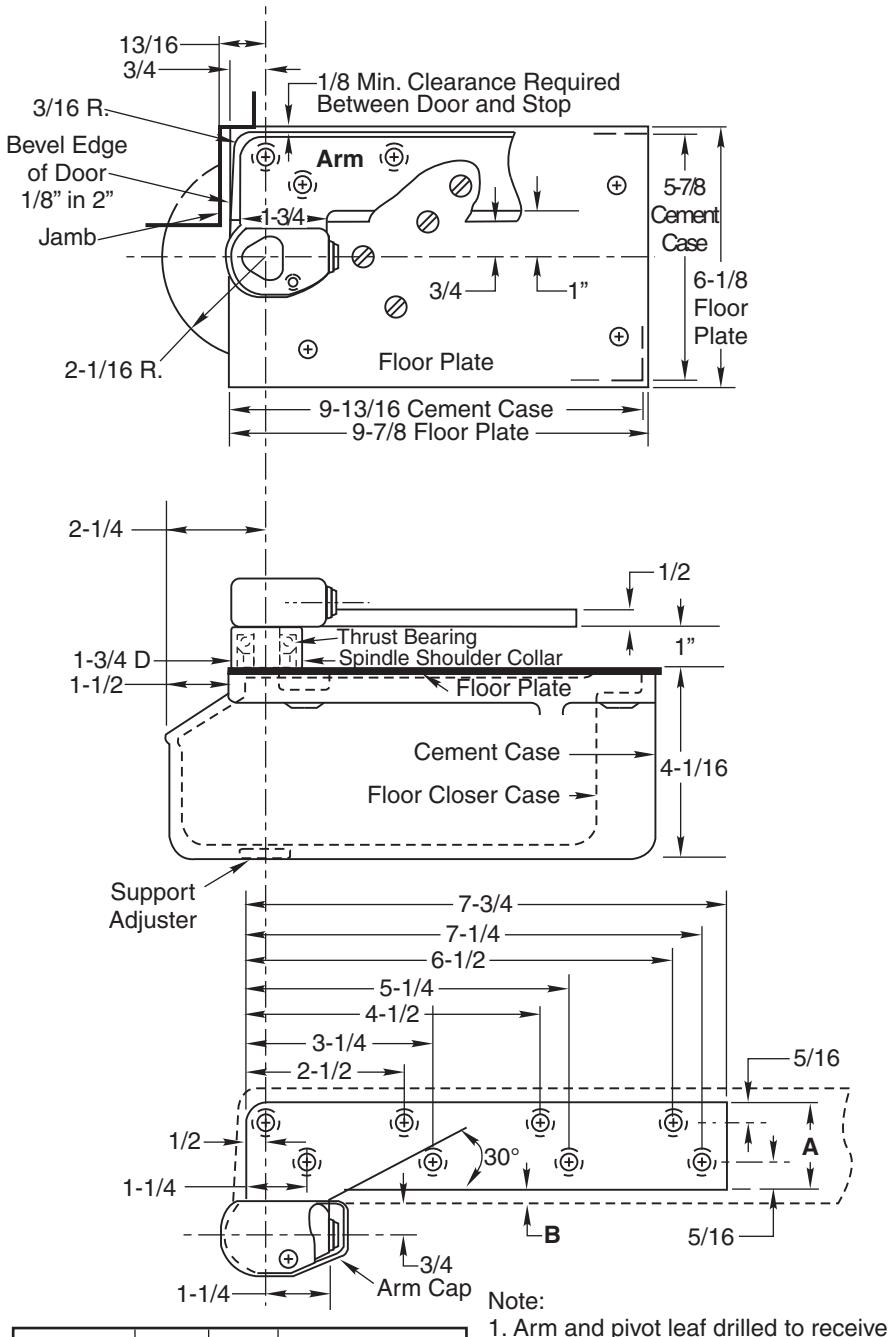

Template

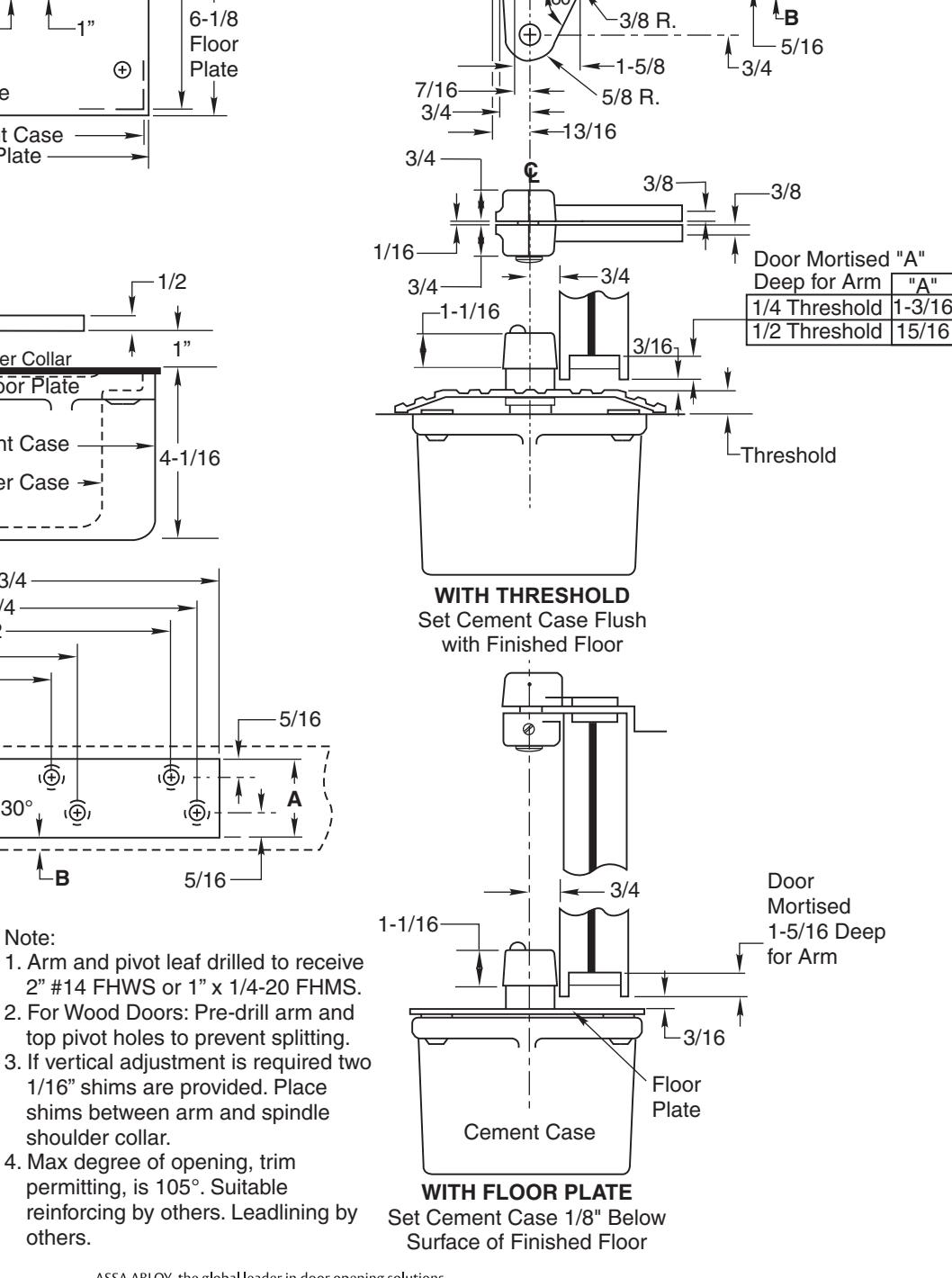

• Door Size В Max. Lead Thk. 1-3/4 1-1/4 1/4 9/32-7.14mm 5/16 1-3/8 3/8-9.52mm 2-1/4 1-1/2 3/8 15/32-11.90mm 1-5/8 7/16 9/16–14.28mm 2" 1/2 3/4–19.05mm
• Table based on lead placed in center or door.

Right Hand Shown Conversion from inches to metric: inch x 25.4

Rixson Specialty Door Controls

4. Max degree of opening, trim permitting, is 105°. Suitable reinforcing by others. Leadlining by

shoulder collar.

ASSA ABLOY, the global leader in door opening solutions

1/16" shims are provided. Place

shims between arm and spindle

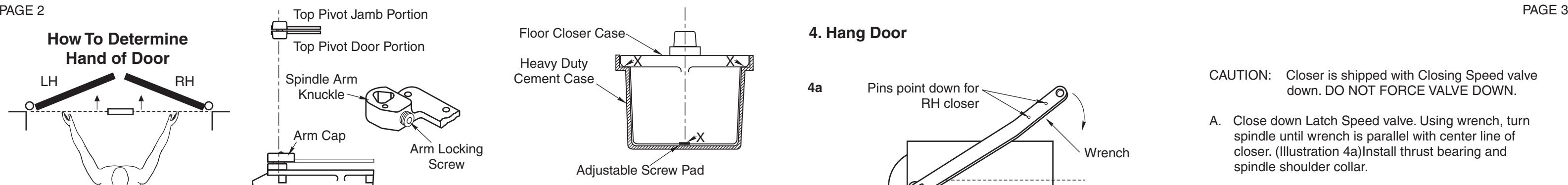

How To Determine Hand of Door

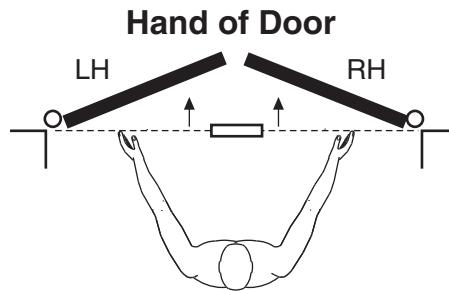

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

1. Locating Closer

Door Jamb

for a 185 Quickspotter Kit.

For accurate installation see your dealer

Door Stop

1/8" Minimum From Face of Door to Door Stop

Right Hand Door

3/4" From Face

of Door to C of Spindle ^L

Spindle Position

13/16" From Face of Jamb to C of Spindle ^L

RIGHT HAND installation

IMPORTANT:

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer spindle.

CAUTION:

An adjustable screw pad is provided in this heavy duty cement case for better load distribution. This pad is adjusted so the heavy duty closer case is equally supported by the adjustable pad and the case flange pads at outer corners of case as shown by "X". Pad is staked to keep from coming loose.

Installation Instructions

• A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
• B. For threshold application: Cement case is set flush with
• C. Set cement case in floor and block in position.

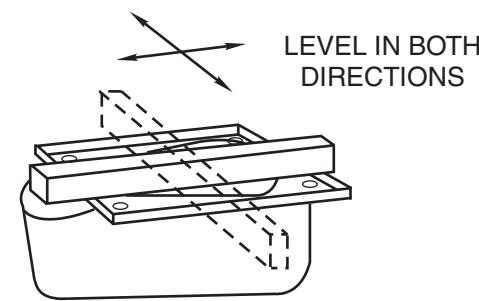

• E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
• F. Grout in cement case with closer. Cement should not get between closer and case.

• A. Measure 13/16" out from door jamb.
• B. Allow 1/8" minimum clearance from door stop to door face. Measure door thickness. Add 3/4".
• C. Where lines meet determines center line of closer.

2. Install Cement Case in Floor

• floor.
• D. Case should be parallel with center line of door.

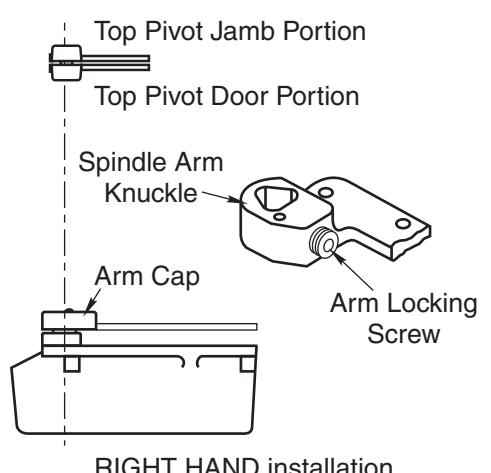

3. Install Top Pivot & Closer Arm

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.
• C. Center line of pivot should line up with center line of closer. Use plumb line as illustrated.
• D. If side pivot is used, see template for intermediate pivot.
• E. Install door closer arm in bottom of door per template.

4. Hang Door

4a

Right Hand Shown

CAUTION: Closer is shipped with Closing Speed valve down. DO NOT FORCE VALVE DOWN.

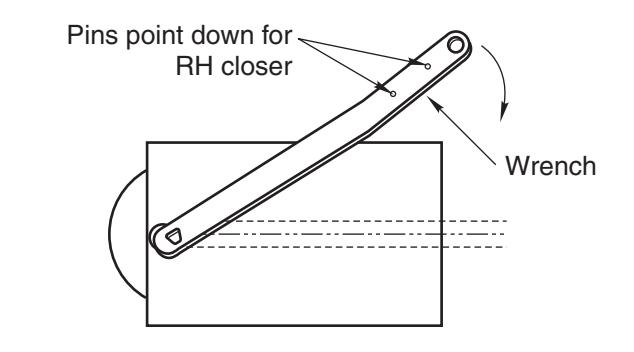

• A. Close down Latch Speed valve. Using wrench, turn spindle until wrench is parallel with center line of closer. (Illustration 4a)Install thrust bearing and spindle shoulder collar.
• B. Set door on closer spindle. DO NOT FORCE DOOR CLOSED WHILE "CLOSING SPEED" VALVE IS TURNED DOWN.

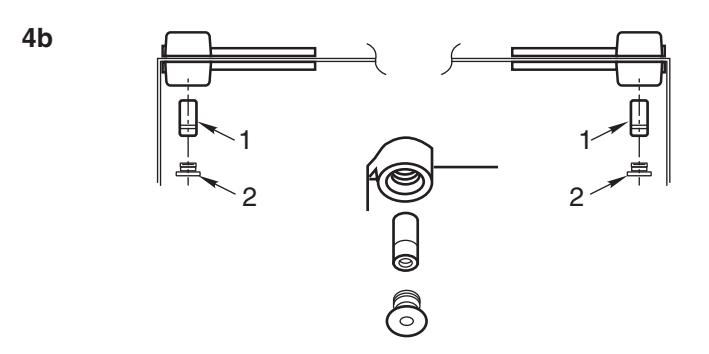

• C. Push item 1 "top pivot pin" into place. Attach "cap" item 2. (Illustration 4b) CAP MUST BE TIGHTENED SECURELY.
• D. Close door to 60° or more and turn Closing Speed valve screw counterclockwise. Door will then close.
• E. Open Closing Speed valve (counterclockwise) one turn. To increase (speed up) closing, open Latch Speed valve (ccw) one turn.

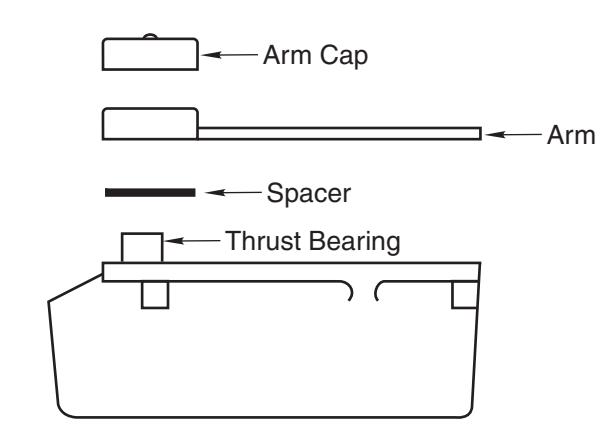

• F. If door drags at floor (or threshold, if used), remove door, insert a spacer (Illustration 4c) and rehang door.
• G. While working door back and forth TIGHTEN ARM LOCKING SCREW SECURELY with wrench furnished.
• H. Put arm cap on closer spindle and secure TIGHTLY with cap screw furnished.
• I. Adjust closing and latch speeds as required for proper closing.
