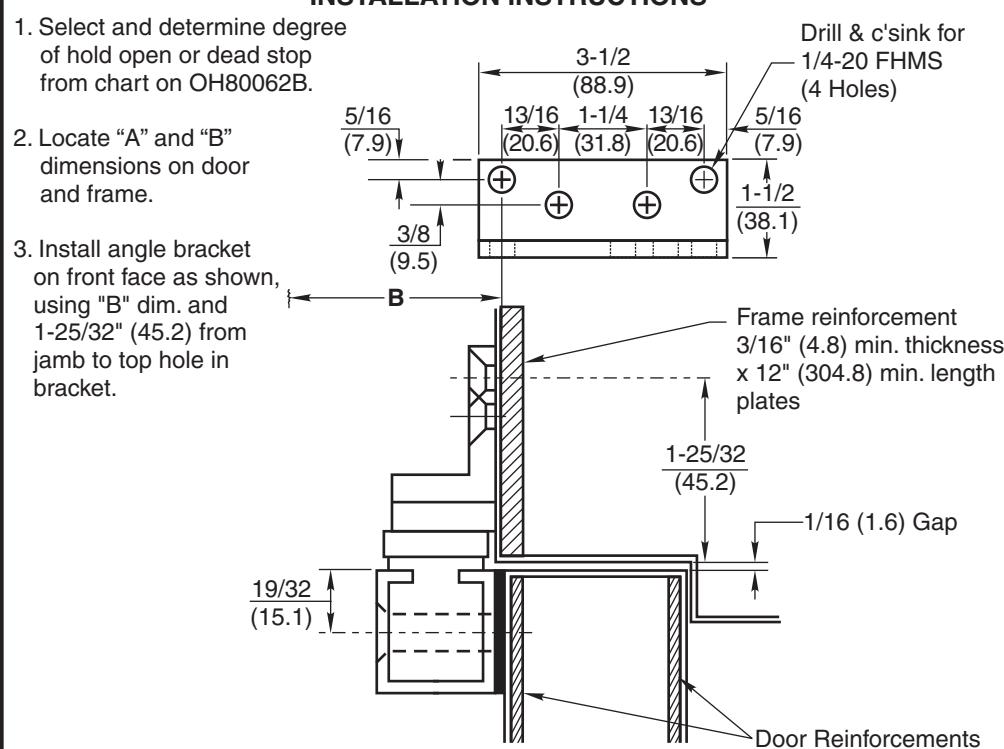

INSTALLATION INSTRUCTIONS

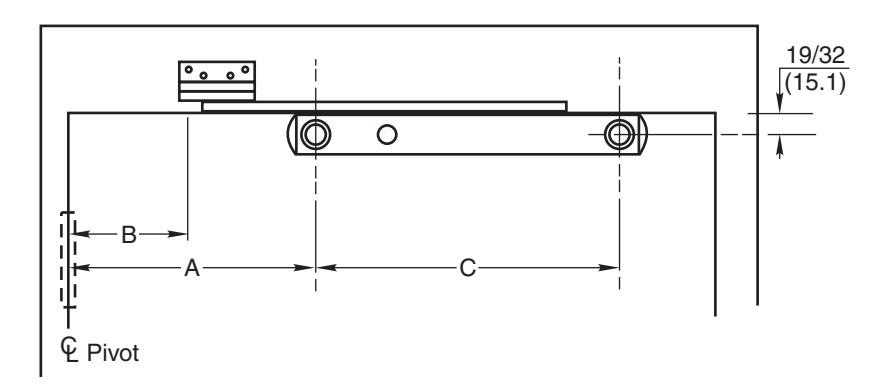

4. Install channel on door with "A" dimension and 19/32 (15.1) from top of door. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with top edge of door. Drill 1/2 (12.7) dia. sex bolt hole and finish installing holder. Install control knob on channel as shown. Install jamb bracket to angle bracket.

Notes:

• -All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
• -All hollow metal doors should be properly reinforced with 2-1/2" (63.5) wide x 3/16" (4.8) min. thick x full width of door reinforcement plates.
• -All drilling and tapping to be done by field men.
• -Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
• -Right hand shown (Angle Bracket #5459) - left hand opposite (Angle Bracket #5458). Note hole pattern in jamb bracket.
• -All dimensions are given in inches (mm).

Caution:

Note location of swing clear hinge centerline to determine "A" and "B" dimensions.

S D ai l et cr ew s
J b am	D oo r
/ S # 1 4- 2 0 3 4" F H M x	/ S 5 1 6- 1 8 2" F H M x
or	d an
1 4 1- 1 / 2" F H W S # x	1 / 2" D i S B ol t a. ex
( ) 4 P l ac es	( ) 2 P l ac es

No. 9 Series Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders

Rixson Specialty Door Controls ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE

05-09

OH80062A

No. 9 Series Angle Bracket Surface Mounted on Pull Side of Door

• 1. See OH80062A for installation instructions.
• 2. Select proper dimensions noted below.
• 3. All drilling and tapping to be done by field man.
• 4. All dimensions given in inches (mm).

Reversible, non-handed.

H.O. = Hold Open D.S. = Dead Stop

	Device Number		Degree	85°				90°				95°				100°				105°				110°
I			Degree	H.O.		D.S.		H.O.		D.S.		H.O.		D.S.		H.O.		D.S.		H.O.		D.S.		H.O.		D.S.
57.2) t Pivot	Friction	H.O.	Stop	Door Opening	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	С
1-3/4 - 2-1/4 (44.5 - 5 Butts & 3/4 (19) Offset	9-116	9-126	9-136	25-1/8 - 28-1/2	6-3/16	4-3/4	6-13/16	4-3/4	5-13/16	4-3/8	6-7/16	4-3/8	5-1/2	4-1/16	6-1/8	4-1/16	5-1/4	3-13/16	5-7/8	3-13/16	-	-	-	-	-	-	-	-	15-15/16
	9-216	9-226	9-236	28-9/16 - 33-1/2	8-1/16	5-7/8	8-11/16	5-7/8	7-5/8	5-7/16	8-1/4	5-7/16	7-5/16	5-1/8	7-15/16	5-1/8	7	4-13/16	7-5/8	4-13/16	6-11/16	4-1/2	7-5/16	4-1/2	6-1/2	4-5/16	7-1/8	4-5/16	17-3/16
	9-316	9-326	9-336	33-9/16 - 38-1/2	11-11/16	7-1/4	12-5/16	7-1/4	11-3/16	6-3/4	11-13/16	6-3/4	10-3/4	6-5/16	11-3/8	6-5/16	10-3/8	5-15/16	11	5-15/16	10-1/16	5-5/8	10-11/16	5-5/8	9-13/16	5-3/8	10-7/16	5-3/8	18-11/16
	9-416	9-426	9-436	38-9/16 - 43-1/2	14-5/8	9-1/8	15-1/4	9-1/8	14-1/16	8-1/2	14-11/16	8-1/2	13-9/16	8	14-3/16	8	13-1/8	7-9/16	13-3/4	7-9/16	12-3/4	7-3/16	13-3/8	7-3/16	12-7/16	6-7/8	13-1/16	6-7/8	20-13/16
	9-516	9-526	9-536	43-9/16 - 48	18-3/16	10-3/8	18-13/16	10-3/8	17-9/16	9-3/4	18-3/16	9-3/4	16-15/16	9-1/8	17-9/16	9-1/8	16-7/16	8-5/8	17-1/16	8-5/8	16	8-3/16	16-5/8	8-3/16	15-5/8	7-13/16	16-1/4	7-13/16	22-5/16
	Device Number		Degree	85°				90°				95°				100°			105°				110°
1			Degree	H.O.		D.S.		H.O.		D.S.		H.O.		D.S.		H.O.		D.S.		H.O.		D.S.		H.O.		D.S.
57.2)	Friction	H.O.	Stop	Door Opening	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	Α	В	С
	9-116	9-126	9-136	27-3/8 - 31	6-7/16	5-9/16	7-1/16	5-9/16	6-1/8	5-1/4	6-3/4	5-1/4	5-13/16	4-15/16	6-7/16	4-15/16	5-9/16	4-11/16	6-3/16	4-11/16	5-5/16	4-7/16	5-15/16	4-7/16	5-1/16	4-3/16	5-11/16	4-3/16	15-15/16
1-3/4 - 2-1/4 (44.5 Center Hung	9-216	9-226	9-236	31-1/16 - 36	8-1/4	6-1/2	8-7/8	6-1/2	7-7/8	6-1/8	8-1/2	6-1/8	7-1/2	5-3/4	8-1/8	5-3/4	7-3/16	5-7/16	7-13/16	5-7/16	6-15/16	5-3/16	7-9/16	5-3/16	6-11/16	4-15/16	7-5/16	4-15/16	17-3/16
	9-316	9-326	9-336	36-1/16 - 41	11-7/8	8	12-1/2	8	11-3/8	7-1/2	12	7-1/2	10-15/16	7-1/16	11-9/16	7-1/16	10-9/16	6-11/16	11-3/16	6-11/16	8-7/8	6-3/8	10-7/8	6-3/8	9-15/16	6-1/16	10-9/16	6-1/16	18-11/16
	9-416	9-426	9-436	41-1/16 - 46	14-3/4	9-3/4	15-3/8	9-3/4	14-3/16	9-3/16	14-13/16	9-3/16	13-11/16	8-11/16	14-5/16	8-11/16	13-3/16	8-3/16	13-13/16	8-3/16	12-13/16	7-13/16	13-7/16	7-13/16	12-1/2	7-1/2	13-1/8	7-1/2	20-13/16
	9-516	9-526	9-536	46-1/16 - 50	18-7/16	11-3/16	19-1/16	11-3/16	17-3/4	10-1/2	18-3/4	10-1/2	17-1/8	9-7/8	17-3/4	9-7/8	16-5/8	9-3/8	17-1/4	9-3/8	16-1/8	8-7/8	16-3/4	8-7/8	15-3/4	8-1/2	16-3/8	8-1/2	22-5/16

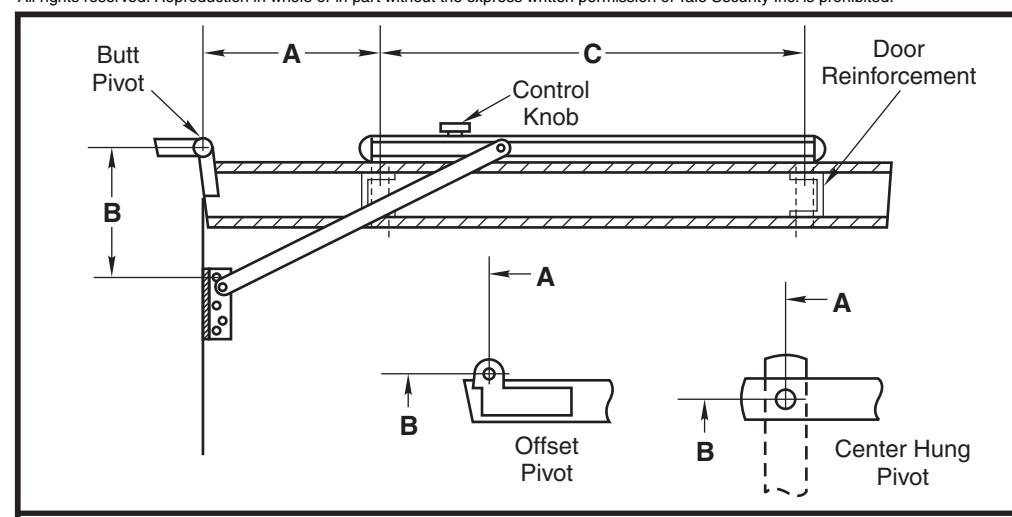

Note: "A" and "B" dimensions measured from centerline of pivot, not edge of door.

No. 9 Series Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders

ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER

DATE

OH80062B | 05-09
